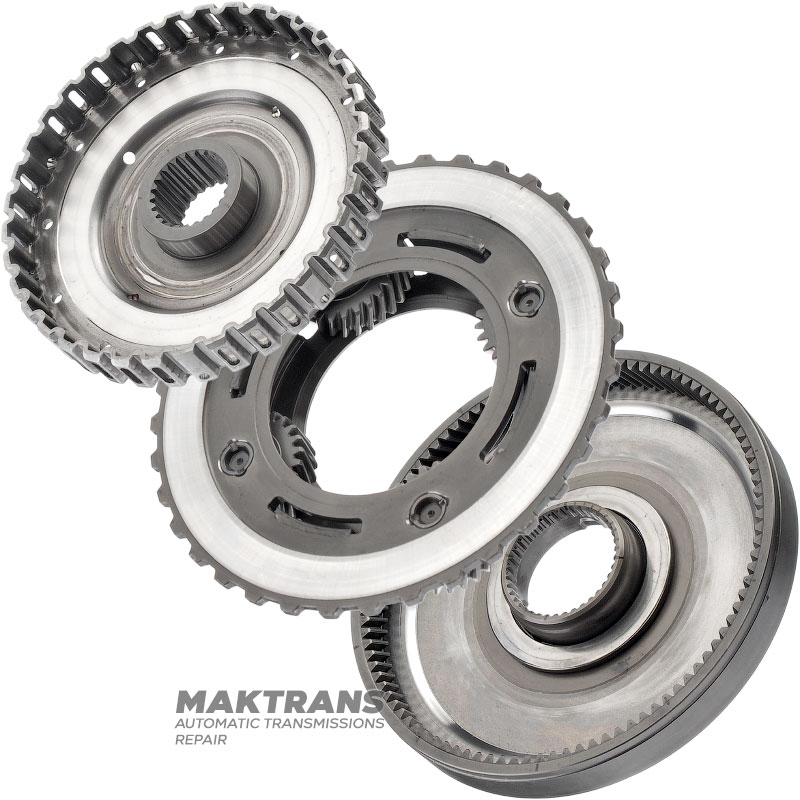

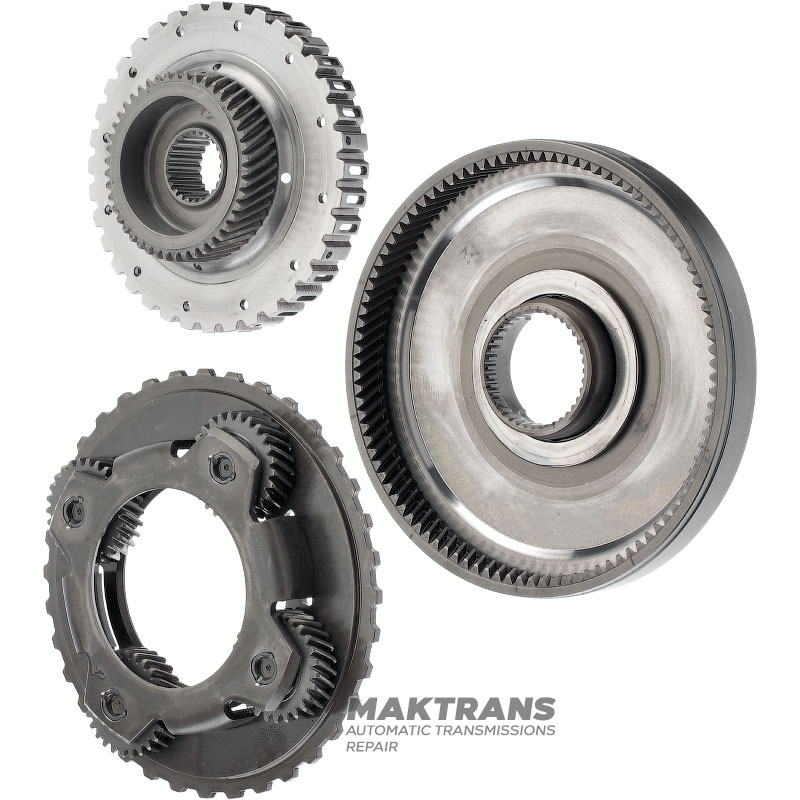

Planetary gear JATCO JF018E, JF019E Hybrid - 4 satellites (26 teeth, outer Ø 40 mm), ring gear 98 teeth, sun gear 45 teeth

Sun gear :

• Overall height - 37.50 mm;
• Hub outer diameter - 118.25 mm;
• Number of splines on the inner side - 24 pcs.;
• Number of teeth on the gear - 45 pcs.;
• Sun gear outer diameter: 67.40mm;

Planetary gear:

• Overall height - 24.50 mm;
• Number of teeth on the gear ring - 36 pcs.;
• The outer diameter of the gear ring is 157.65 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 26 pcs.;
• The outer diameter of the satellite is 40 mm;

Ring gear:

• Overall height - 21.50 mm;
• Outer diameter - 152.35 mm;
• Number of splines on the inner side - 38 pcs.;
• Number of teeth on the ring gear - 98 pcs.;
