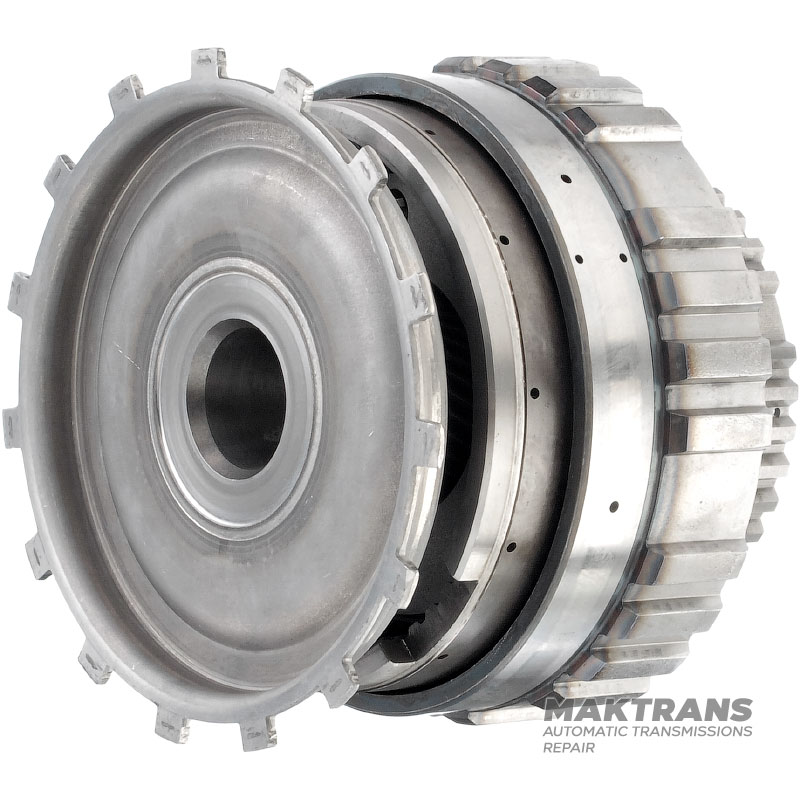

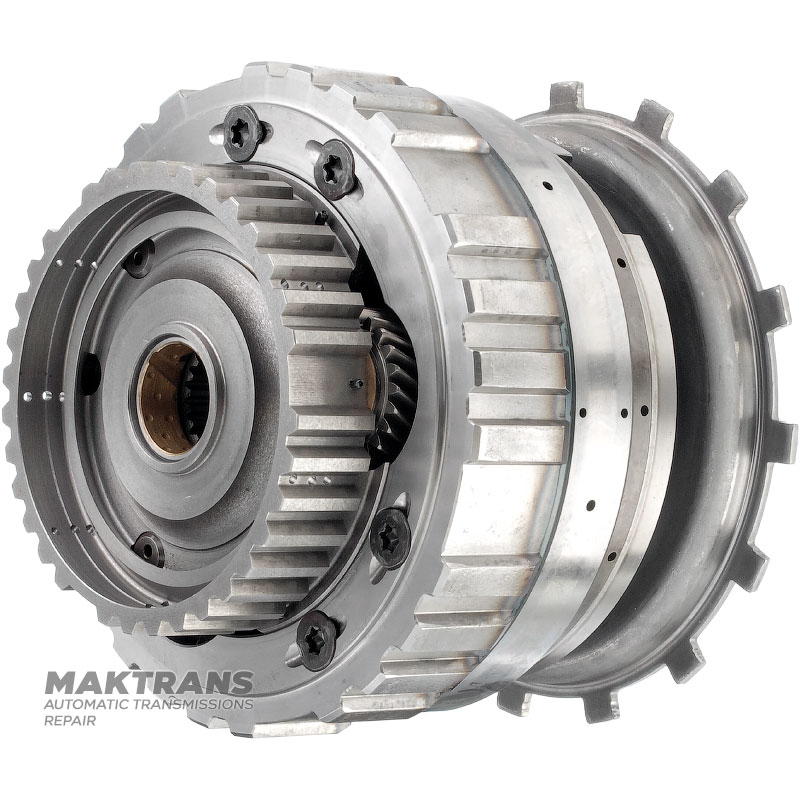

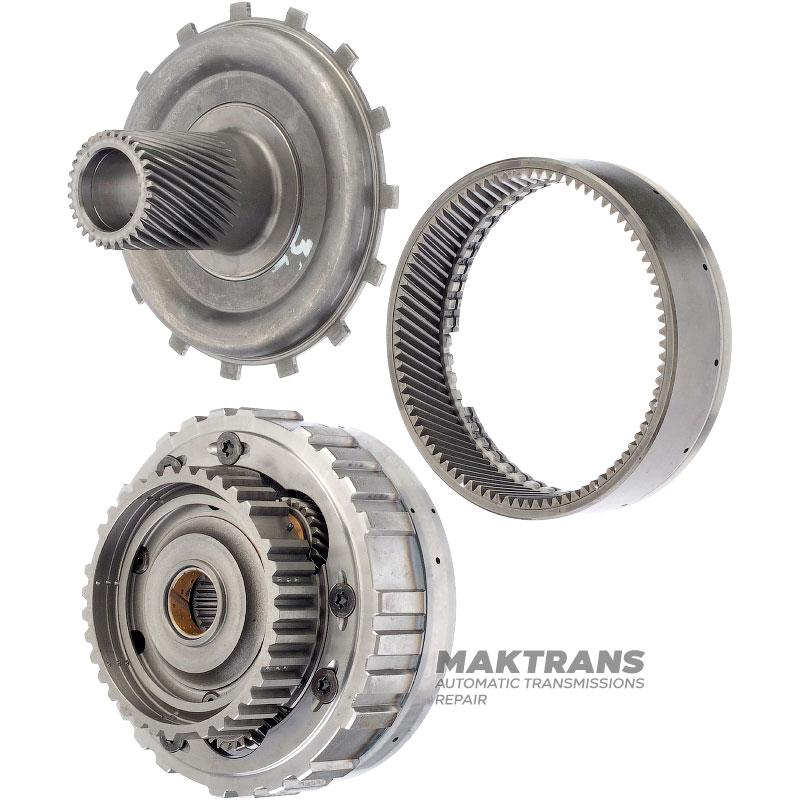

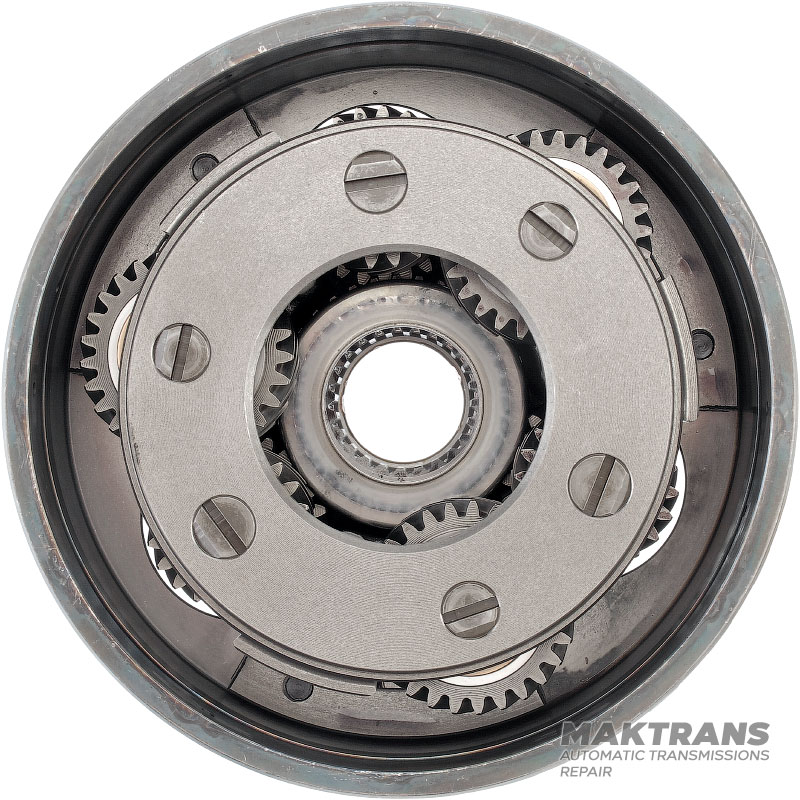

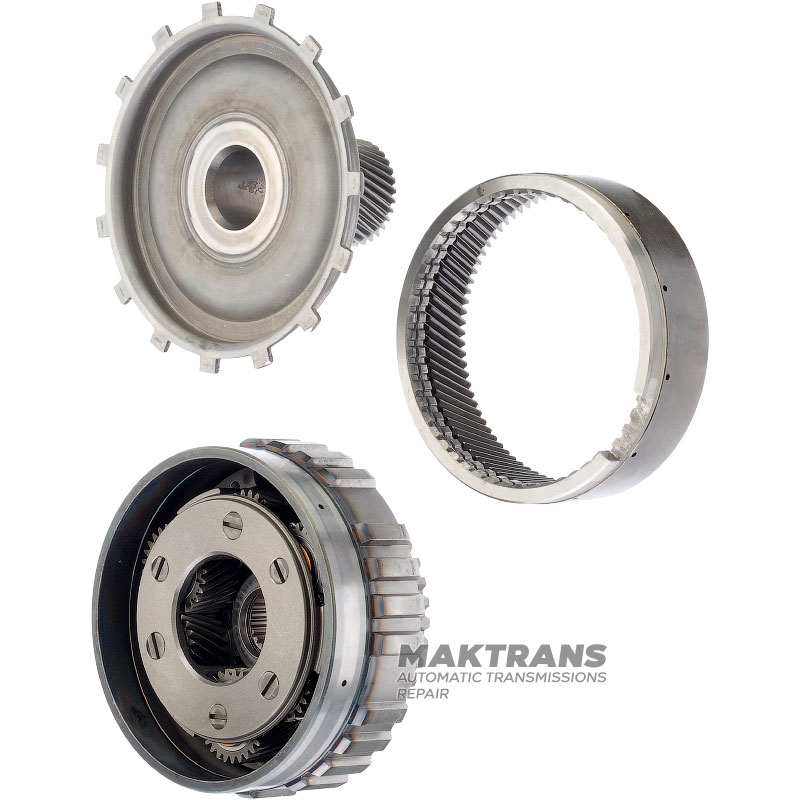

Planetary gear JATCO JF404E 001323891 001323329 001323301 - 3 (27 teeth) X 3 (20 teeth) X 3 (22 teeth) pinions, sun gear 32 teeth (outer Ø 42.15 mm), 85 teeth (outer Ø 119.20 mm)

Planetary reference:

• Total height - 73 mm;
• The outer diameter of the working part of the overrunning clutch is 130 mm;

Planetary gears:

3 front planetary gears:

• Number of teeth - 27 pcs.;

3 ring gear satellites:

• Number of teeth - 20 pcs.;

3 rear ring gear pinions:

• Number of teeth - 22 pcs.;

Front sun gear:

• Total height - 75 mm;
• Number of teeth on the flange - 15 pcs.;
• The outer diameter of the flange teeth is 137.85 mm;
• Number of teeth on the gear - 32 pcs.;
• Gear outer diameter - 42.25 mm;
• Inner diameter - 28.20 mm;

Rear sun gear:

• Number of teeth - 34 pcs.;
• The number of slots on the inside is 24 pcs.;

Ring gear:

• Overall height - 33.75 mm;
• Number of teeth - 33.80 mm;
• Outer diameter - 119.95 mm;
