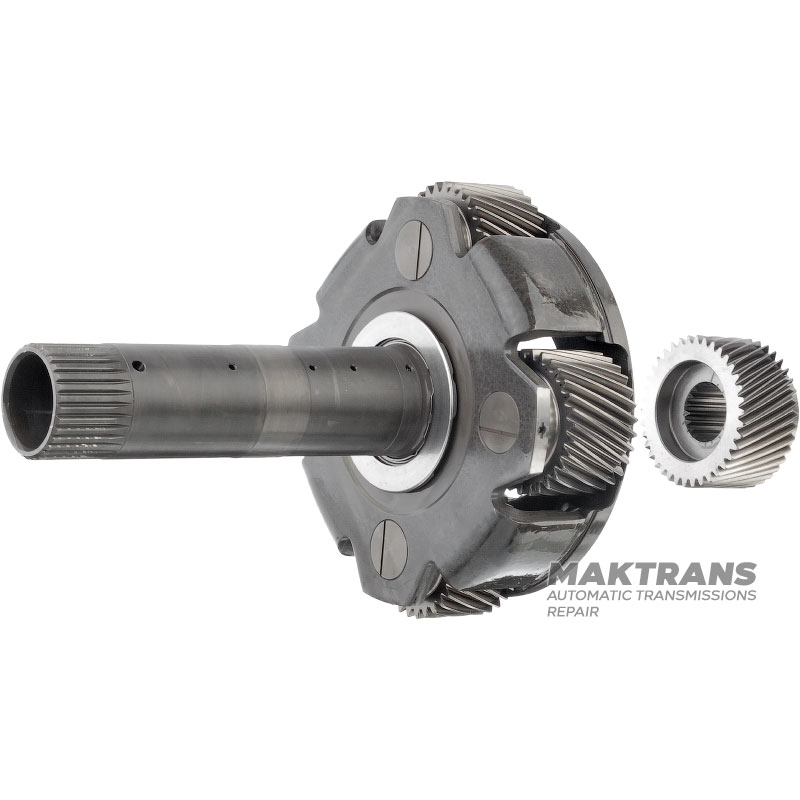

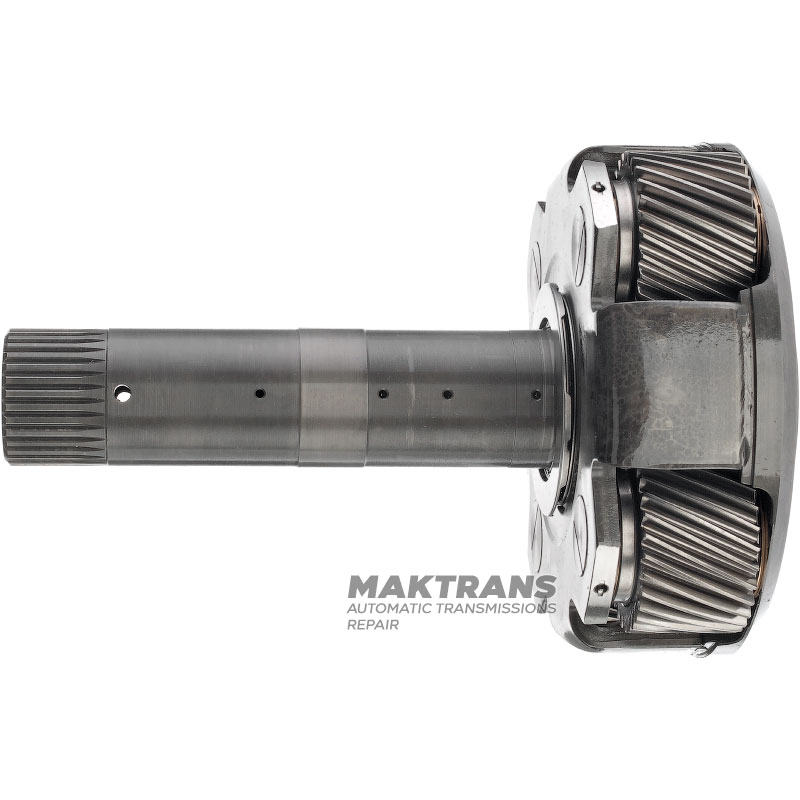

Planetary gear No. 4 MAZDA CX-90 / CX-60 2.5L-3.3L HYBRID - 4 stellites (30 teeth on the planetary gear), sun gear 38 teeth (outer Ø 56.65 mm)

Planetary gear:

• Total height - 188 mm;
• The outer diameter of the case is 128 mm;
• The number of slots on the inside is 64 pcs.;
• Number of splines on the shaft - 32 pcs.;
• The outer diameter of the spline part is 33.60 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 30 pcs.;

Sun gear:

• Total height - 37.05 mm;
• Number of teeth - 38 pcs.;
• Outer diameter - 56.65 mm;
• Gear width - 28.50 mm;
• The number of slots on the inside is 20 pcs.;
