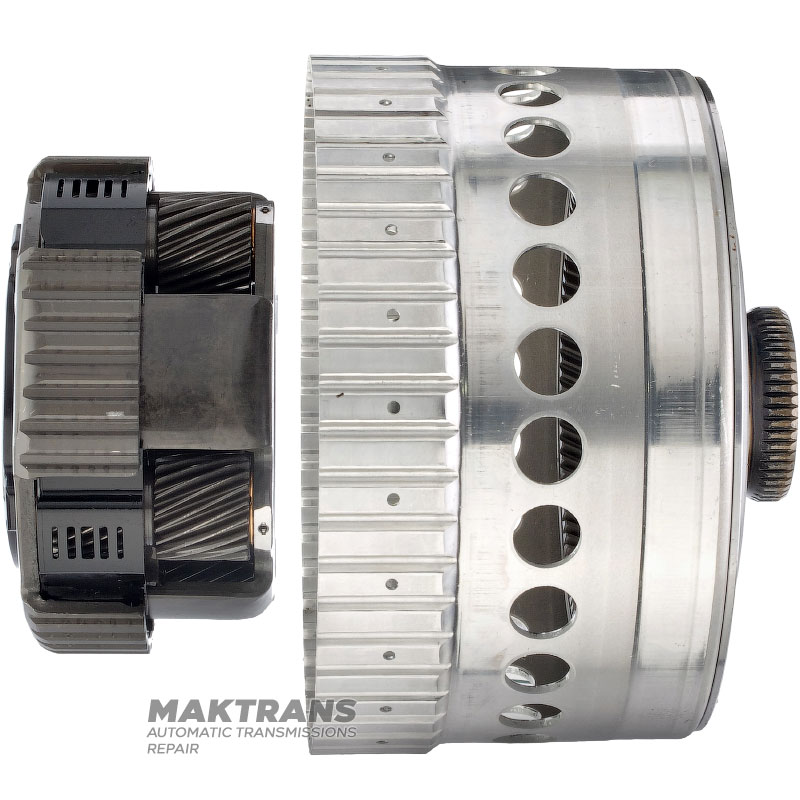

Planetary gear No. 1 MAZDA CX-90 / CX-60 2.5L-3.3L HYBRID

Ring gear/shell:

• Total height - 130 mm;
• Number of splines - 52 pcs.;
• Outer diameter - 53.70 mm;
• The outer diameter of the hub is 190.40 mm;
• The number of teeth on the ring gear is 98 pcs.;

Sun gear 1:

• Number of teeth - 58 pcs.;
• Outer diameter - 79.60 mm;
• Gear width - 22.90 mm;
• The number of slots on the inside is 44 pcs.;

Sun gear 2:

• Number of teeth - 58 pcs.;
• Outer diameter - 79.60 mm;
• Gear width - 25.30 mm;
• The number of slots on the inside is 32 pcs.;

Planetary gears 1 / 2:

• Total height - 73 mm;
• The number of slots on the inside is 22 pcs.;

Planetary gear 1:

• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 20 pcs.;

Planetary gear 2:

• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 20 pcs.;
• The outer diameter of the hub is 139.75 mm;
