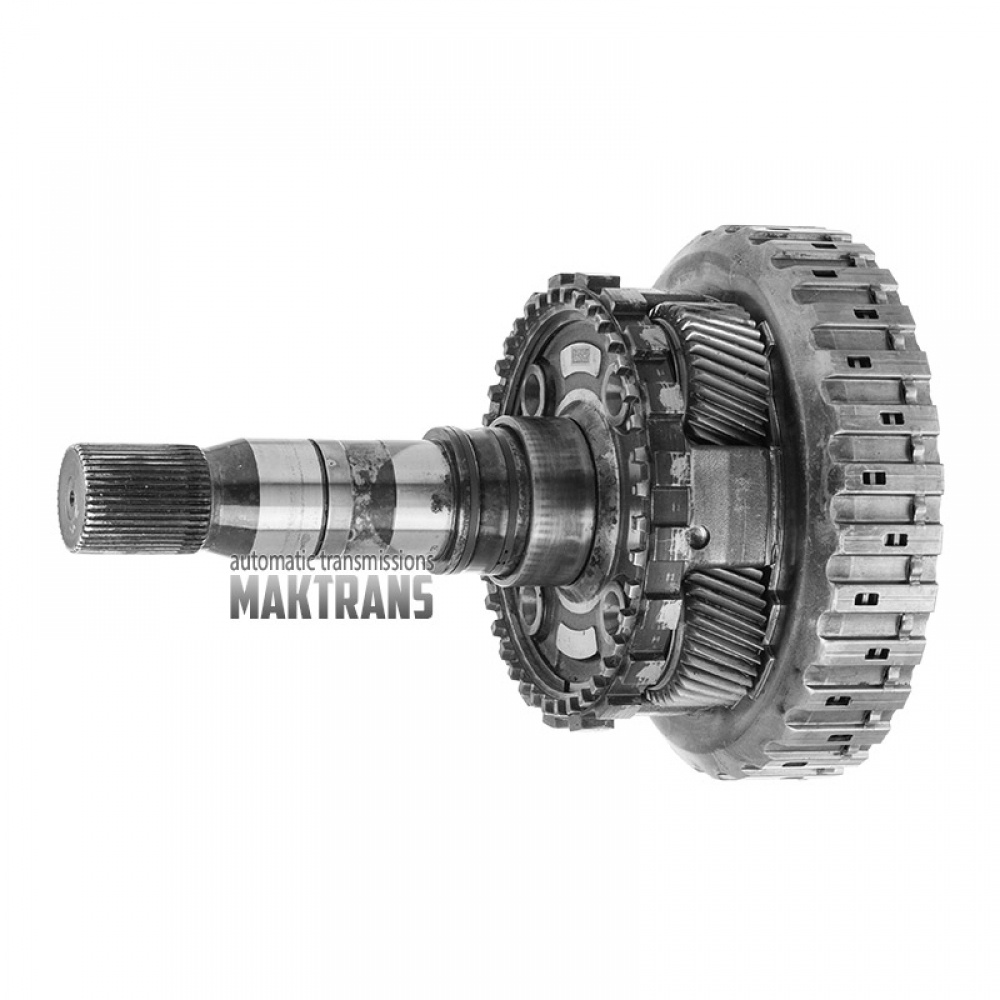

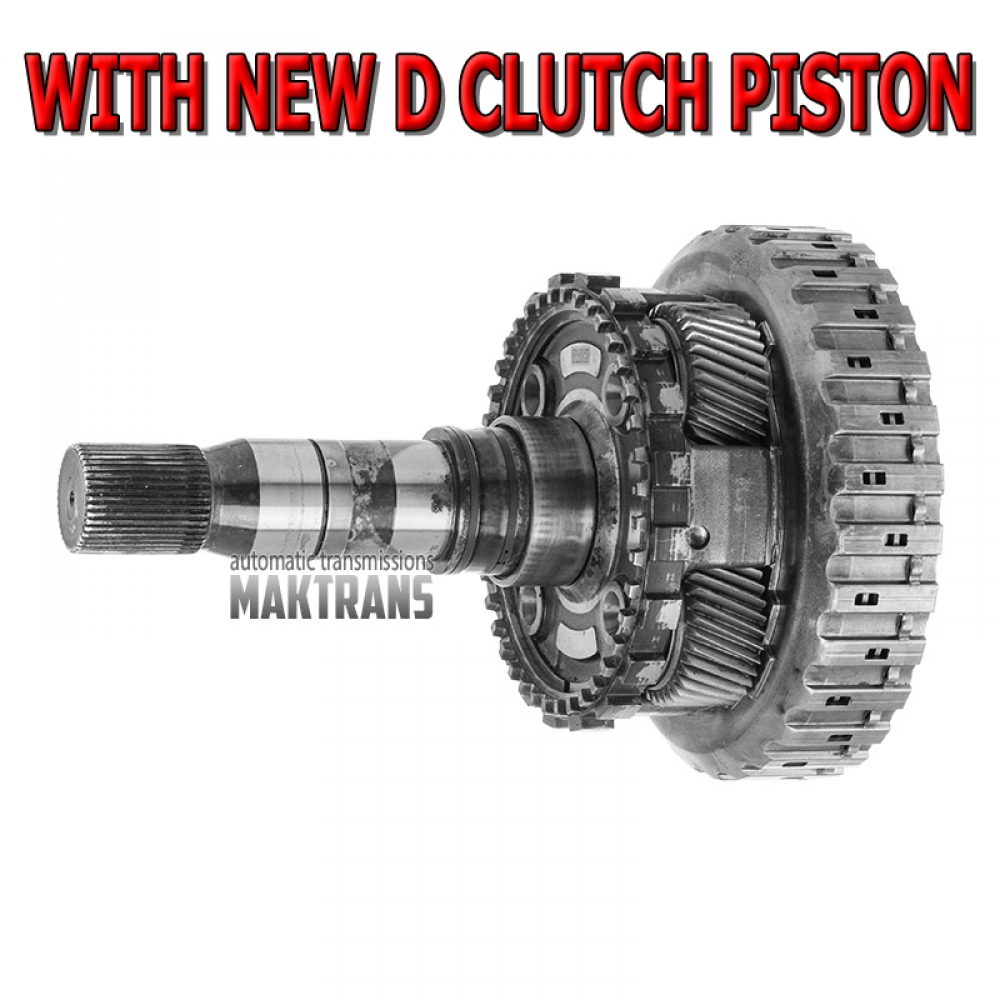

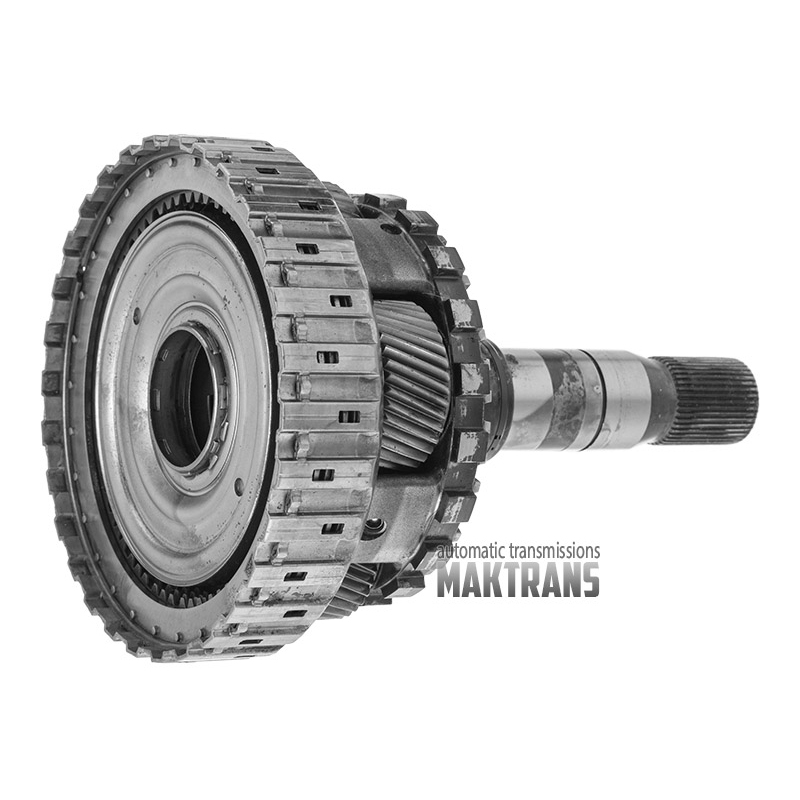

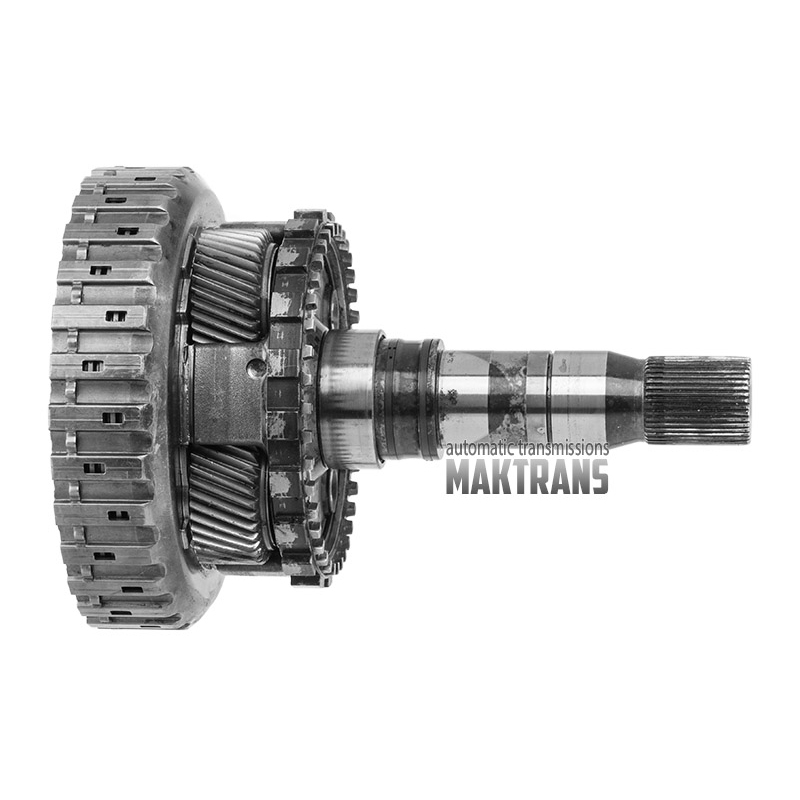

Planetary gear No.4, D Clutch drum (with new rubberized piston), output shaft (4WD) ZF 8HP70, 8HP75 - overall height 256 mm, 43 splines (outer Ø spline 34.75 mm), 4 satellites

D Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 19.75 mm;

Support disk:

• Thickness - 3.03 mm;
• Inner diameter - 145.15 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;


Friction disc:

• Thickness - 2.15 mm;
• Outer diameter - 171.45 mm;
• Number of teeth - 63 pcs.;
• Number of discs in the set - 4 pcs.;


Steel disk:

• Thickness - 1.90 mm;
• Inner diameter - 145.15 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;


Spring disc:

• Thickness - 0.60 mm;
• Inner diameter - 147.82 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;
