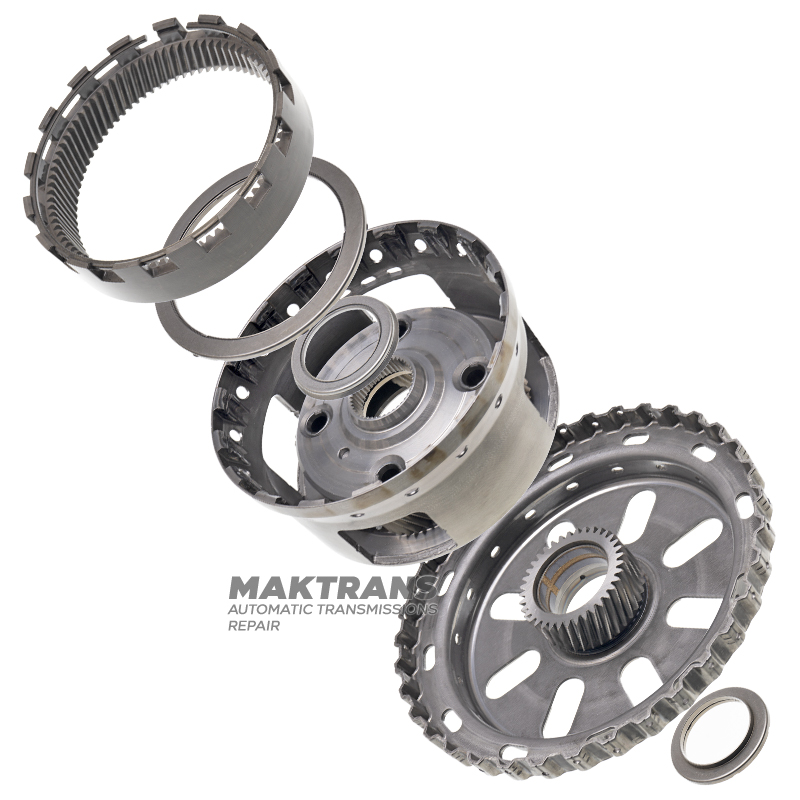

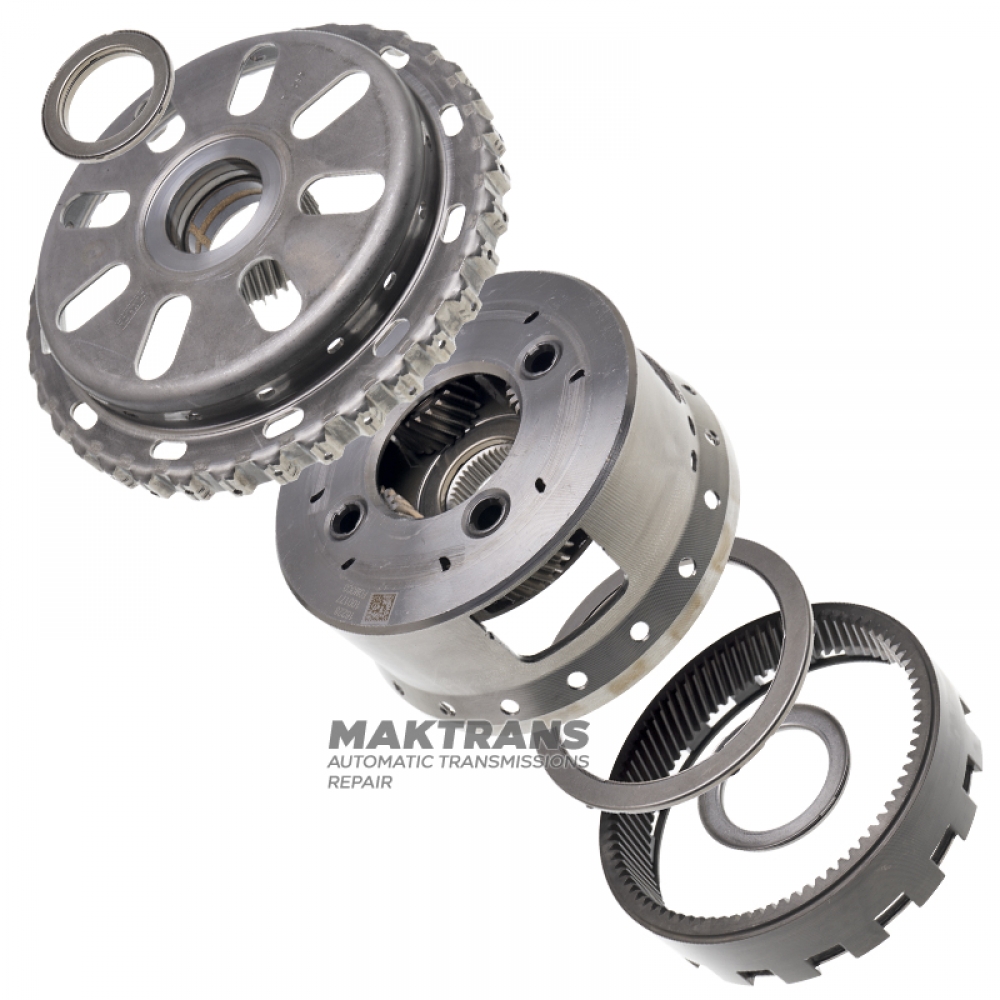

Planetary gear OUTPUT FORD 6F15 FD8Z-7D491-A FD8Z-7A019-A - 4 pinions (23 teeth), sun gear 37 teeth, ring gear 87 teeth

Planetary gear:

• Total height - 68 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 23 pcs.;
• The number of splines on the inside is 43 pcs.;

Sun gear:

• Total height - 34 mm;
• Number of teeth - 37 pcs.:
• Gear outer diameter - 54.20 mm;
• Inner diameter of the sleeve - 34.70 mm;
• Outer diameter of hub 1-2-3-4 Clutch - 186.35 mm;

Ring gear:

• Overall height - 33.55 mm;
• Number of teeth - 83 pcs.:
• Gear outer diameter - 130.60 mm;

Bearings:
1.

• Outer diameter - 108 mm;
• Inner diameter - 87.50 mm;
• Thickness - 3.45 mm;

2.

• Outer diameter - 57.25 mm;
• Inner diameter - 40.20 mm;
• Height - 5.35 mm;

3.

• Outer diameter - 51.35 mm;
• Inner diameter - 36.35 mm;
• Height - 6.55 mm;
