Main Specifications
Condition (used, new):
used and inspected
Type:

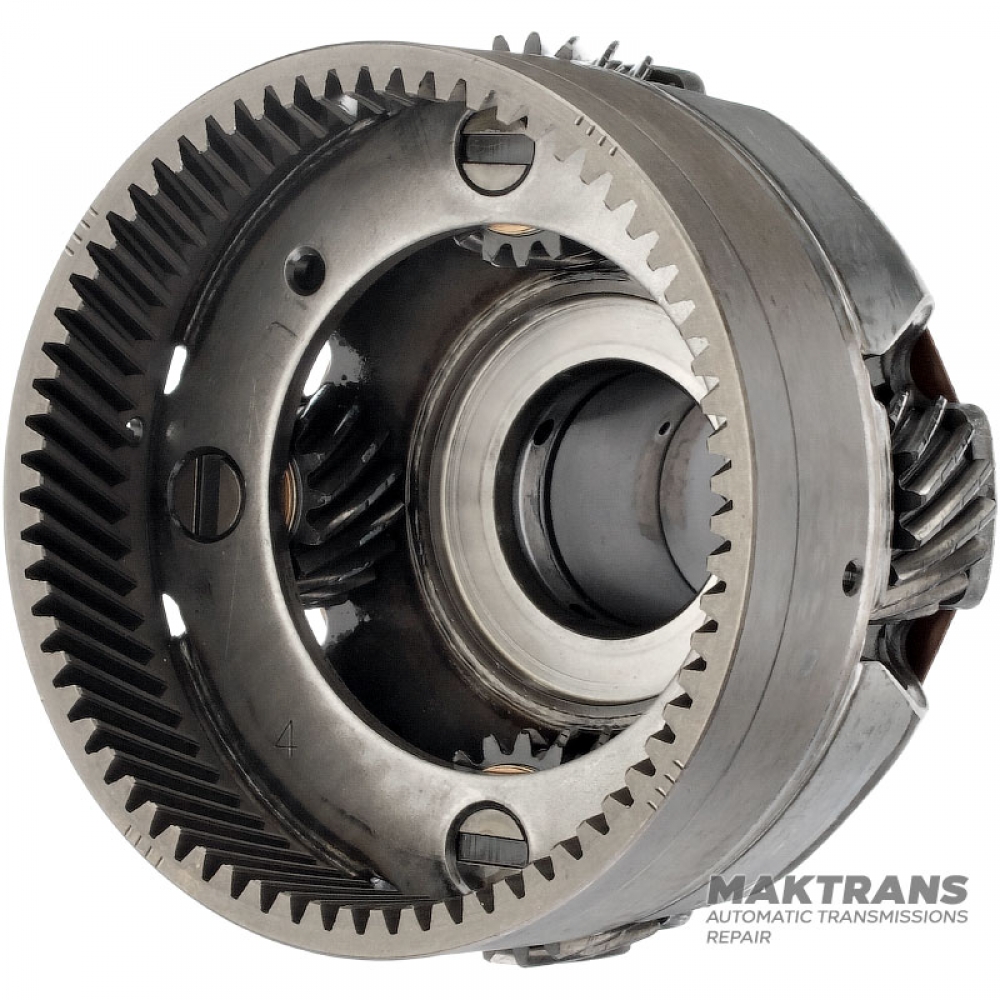

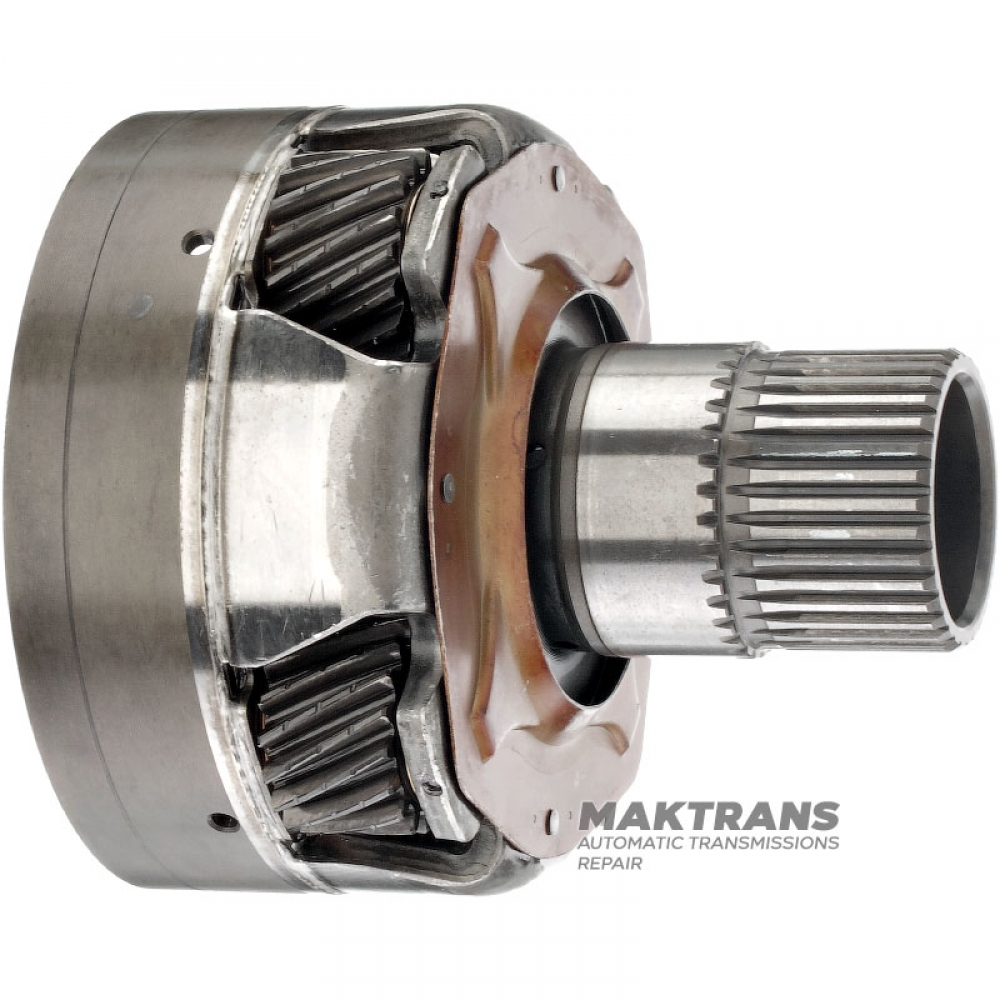

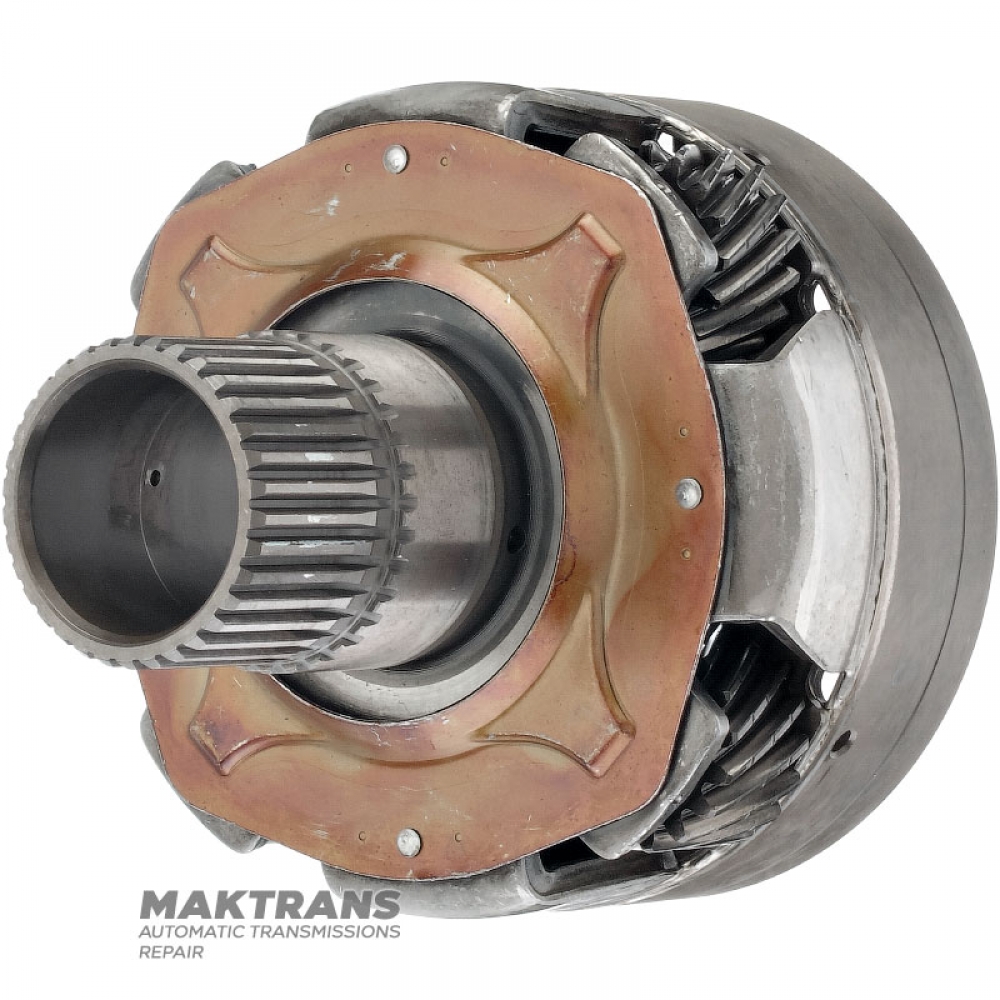

Planetary gear Output
Number of pinions:
4
Number of teeth on the satellite:
17
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 1 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)
- Overall height - 127.50 mm;
- Neck height - 63 mm;
- Number of splines - 34 pcs.;
- The outer diameter of the splined part is 44.75 mm;
- Outer diameter of the working part - 47.40 mm;
- Number of satellites - 4 pcs.;
- Number of teeth on satellites - 17 pcs.;
- Satellite outer diameter - 32.60 mm;
- Number of notes on the satellites - 3 pcs.;
- Number of teeth on the ring gear - 68 pcs.;
- The outer diameter of the ring gear is 120.85 mm;
