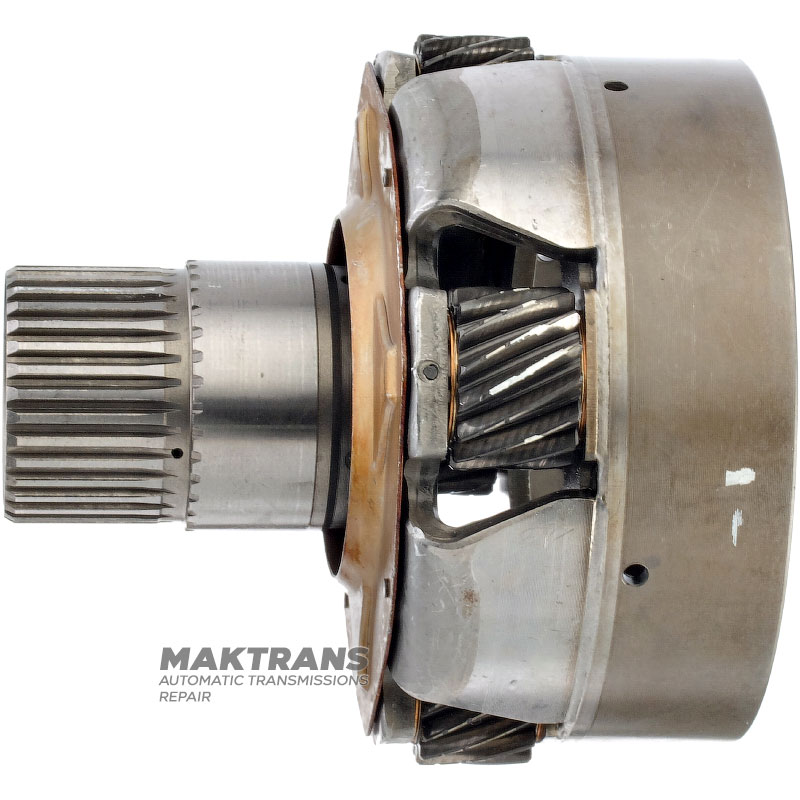

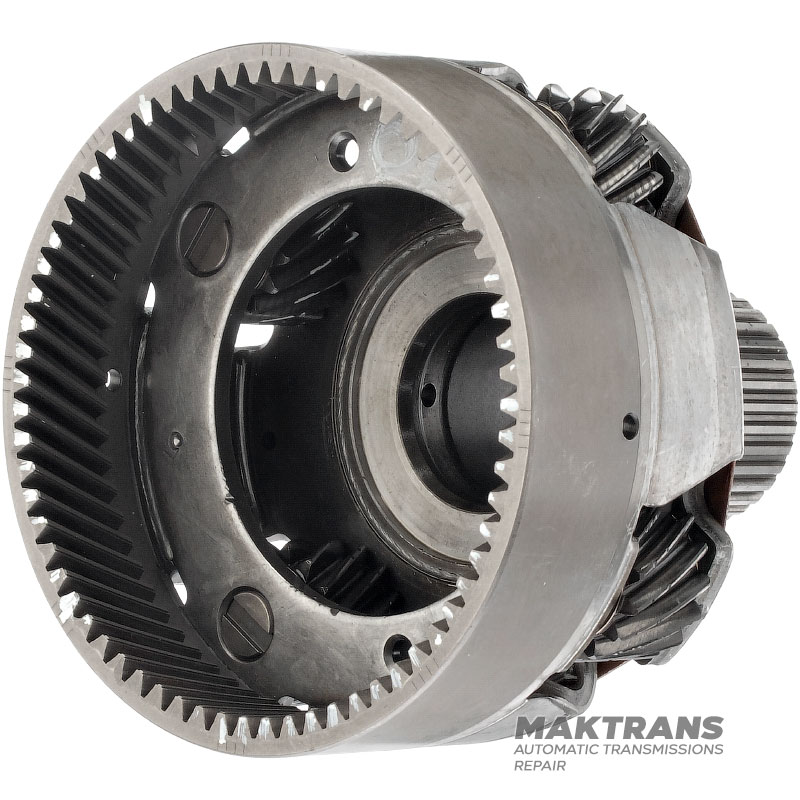

Planetary gear Output Hyundai-KIA A5HF1 - overall height 127.50 mm, 4 satellites (15 teeth), ring gear 67 teeth

Name: Planetary gear Output Hyundai-KIA A5HF1 - overall height 127.50 mm, 4 satellites (15 teeth), ring gear 67 teeth
Brand: HYUNDAI | KIA
Price: 78.34 EUR
Availability: InStock

Worldwide Shipping 🌎

Product Code:

2762A014

Product model copied to clipboard

Brand

HYUNDAI | KIA

Availability: 1

Weight (kg): 5

the asking price is €78.34

Shipping Icon Shipping to United States from €96.39

Main Specifications

Condition (used, new): used and inspected

Type: Planetary gear Output

Number of pinions: 4

Number of teeth on the satellite: 15

Available Options

Stock Place:	Availability:	Price:	Qty:
Ukraine	1 pcs.	€78.34

Qty:

Product overview
Shipping & Payment
Questions - Answers (0)
Gearbox works better with (1)

Overall height - 127.50 mm;
Neck height - 63 mm;
Number of splines - 34 pcs.;
The outer diameter of the splined part is 44.75 mm;
Outer diameter of the working part - 47.40 mm;
Number of satellites - 4 pcs.;
Number of teeth on satellites - 15 pcs.;
Number of teeth on the ring gear - 67 pcs.;
The outer diameter of the ring gear is 120.85 mm;
