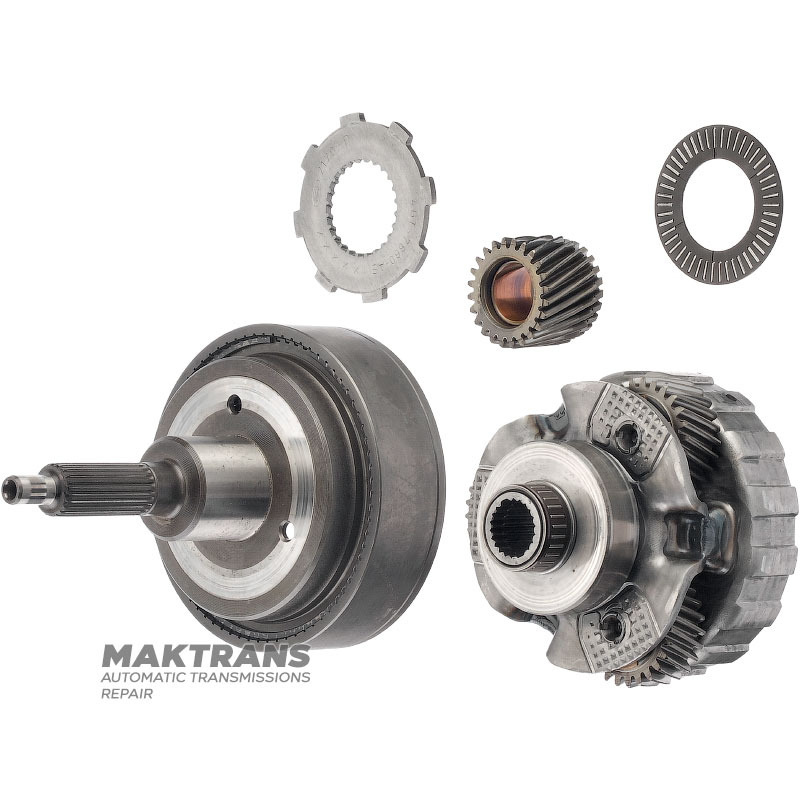

Planetary gear OVERDRIVE FORD A4LD, 4R44E, 4R55E, 5R55E — 3 satellites (25 teeth), sun gear 24 teeth (outer Ø 36.85 mm), ring gear 72 teeth (outer Ø 115.50 mm), 23 splines (length of spline part 39 mm)

Planetary gear:

• Overall height - 81 mm;
• Number of splines on the inner side - 20 pcs.;
• The outer diameter of the overrunning clutch hub is 54.80 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 25 pcs.;
• The outer diameter of the OVERDRIVE hub is 99.85 mm;

Sun gear:

• Total height - 30 mm;
• Number of teeth - 24 pcs.;
• Outer diameter - 36.90 mm;
• Inner diameter of the sleeve - 19.05 mm;

Ring gear (assembled with shaft):

• Overall height - 149 mm;
• Number of splines on the shaft - 23 pcs.;
• Length of the splined part - 39 mm;
• The outer diameter of the splined part is 18.10 mm;
• The outer diameter of the working part at the base is 36 mm;
• The outer diameter of the ring gear is 115.50 mm;
• Number of teeth on the ring gear - 72 pcs.;

Tags: 84GT-7660-ABD, E5TZ-7660-A, F7RZ-7D063-AA, 2L5Z-7B446-AA, 1W4Z-7L495-AA, F3TZ-7A153-A, XL2Z-7A658-AA, 4GT-7660-AB
