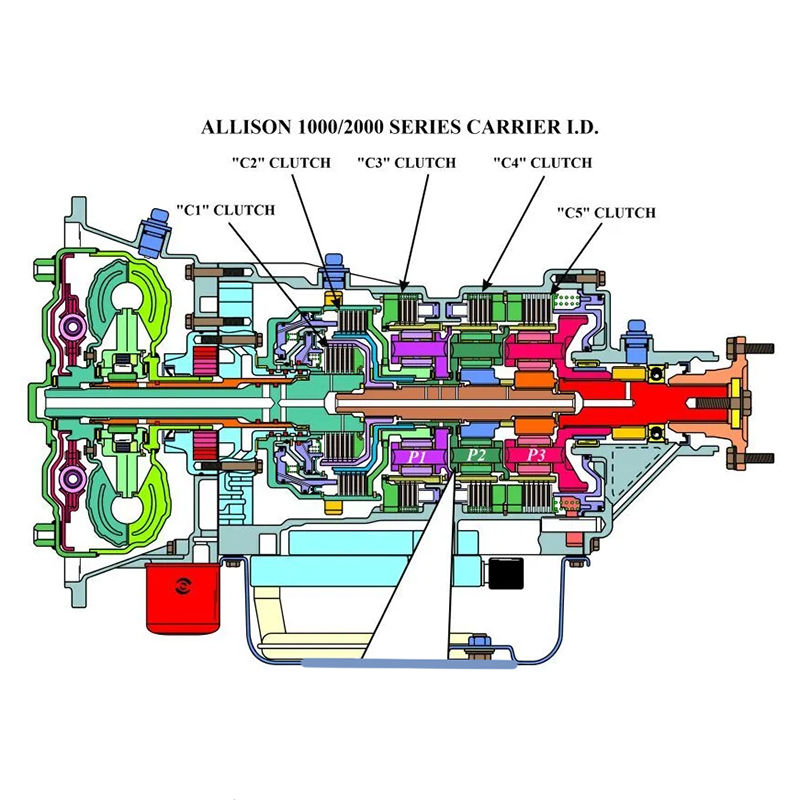

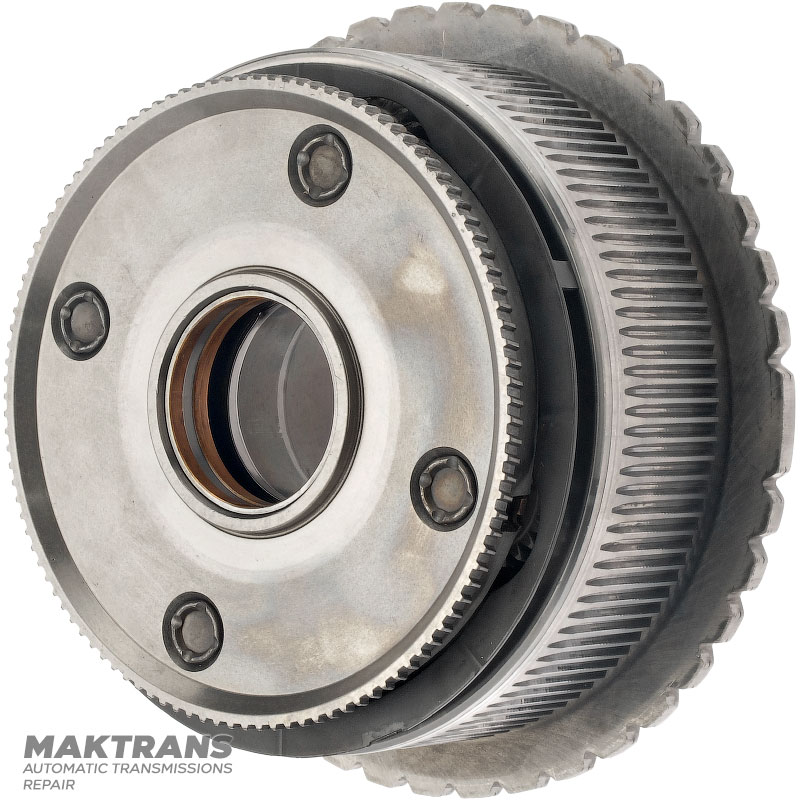

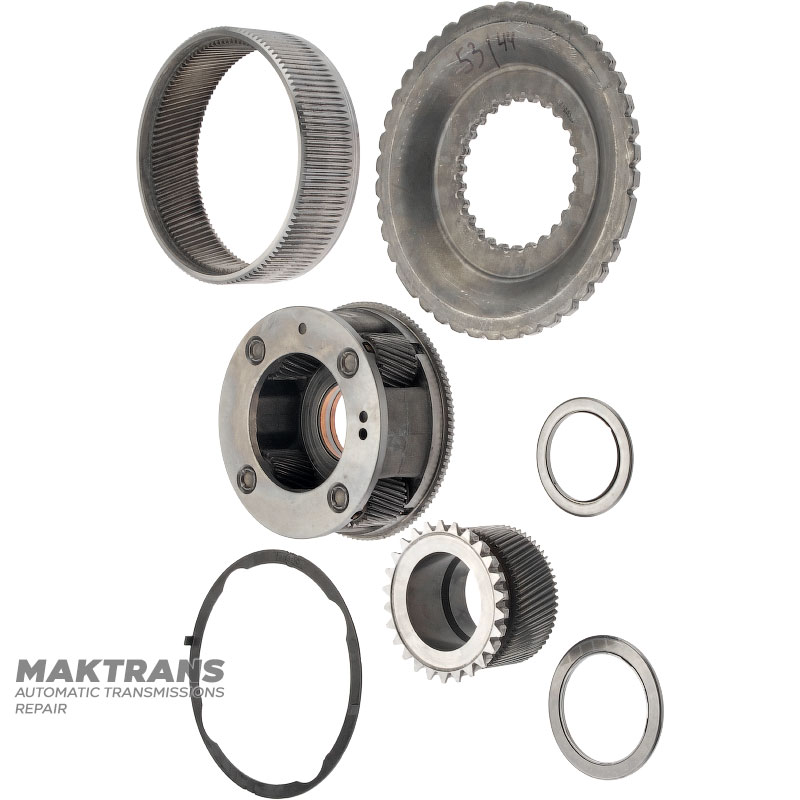

Planetary gear P1 (front) ALLISON 1000, 2000 — 4 satellites (25 teeth), ring gear height 53.15 mm (hub height C3 ≈ 44 mm) 29541704, 29541008, 29546706, 29537433

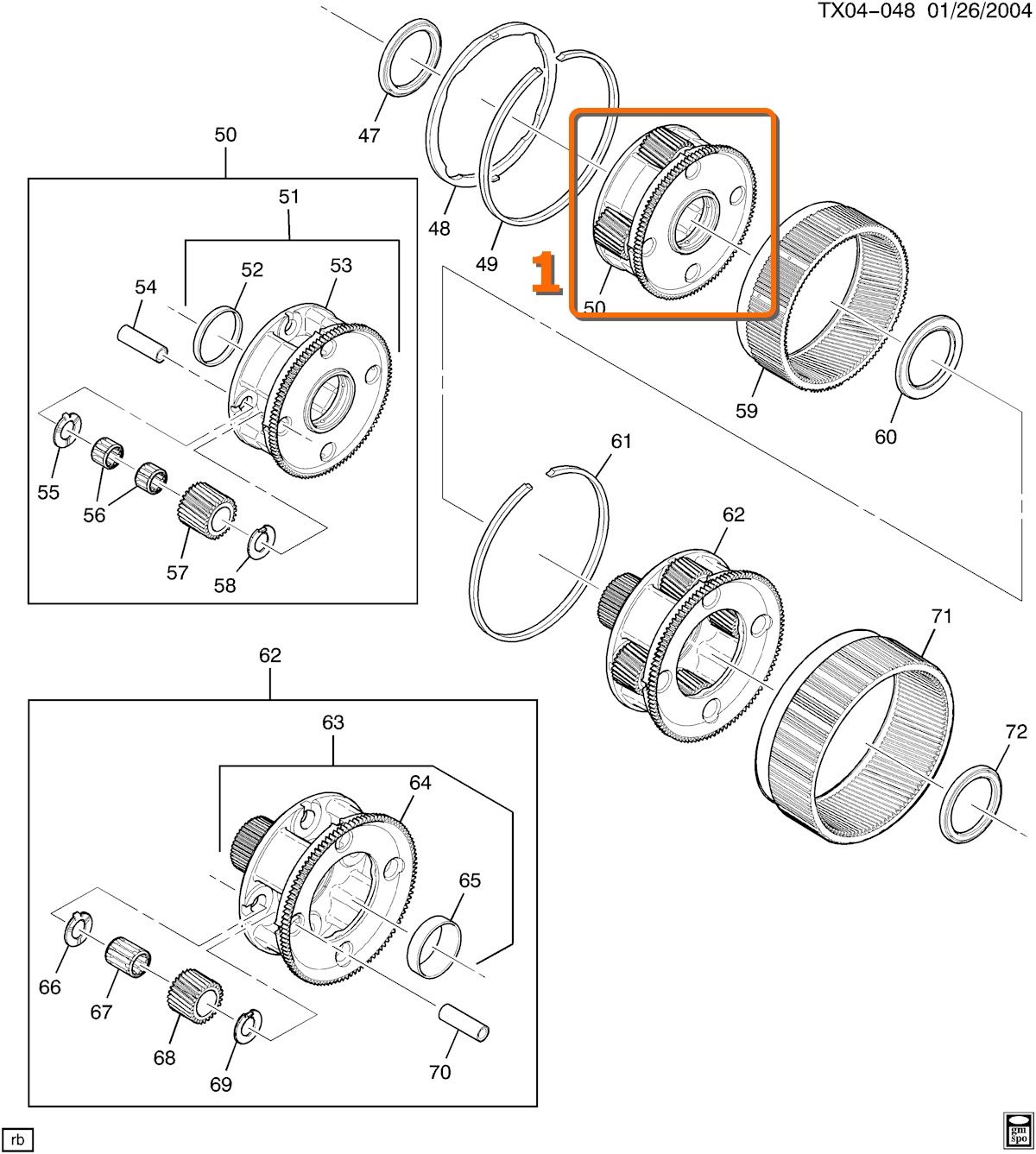

Planetary gear P1:

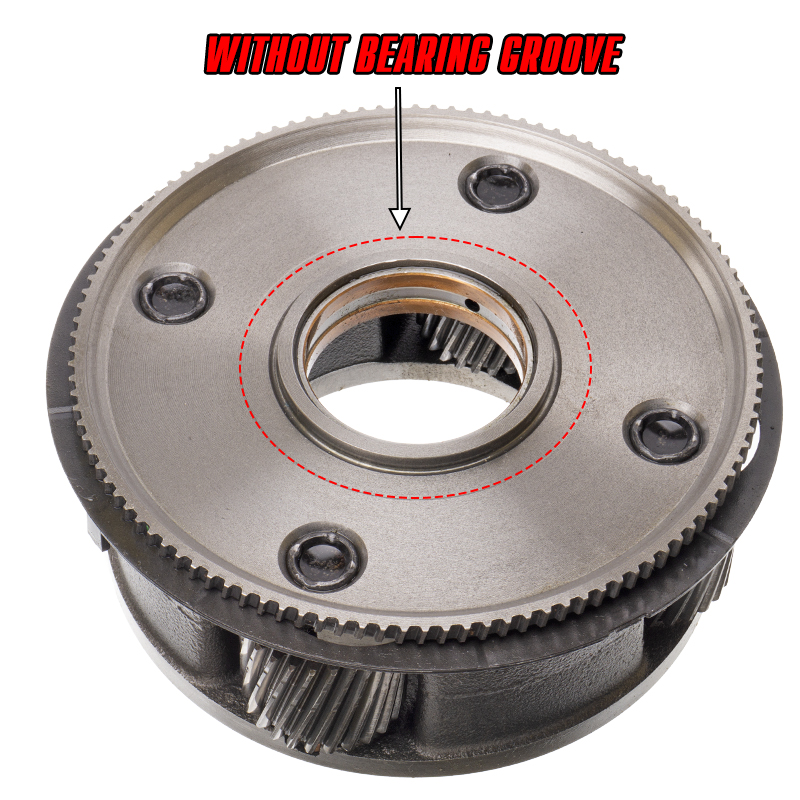

*The planetary gear housing does NOT have a recess for the bearing seat on the sleeve side (see fig.)

• Overall height - 64 mm;
• Inner diameter of the bushing - 50.50 mm;
• Outer case diameter - 149 mm;
• Outer diameter of gear ring - 158.10 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 25 pcs.;

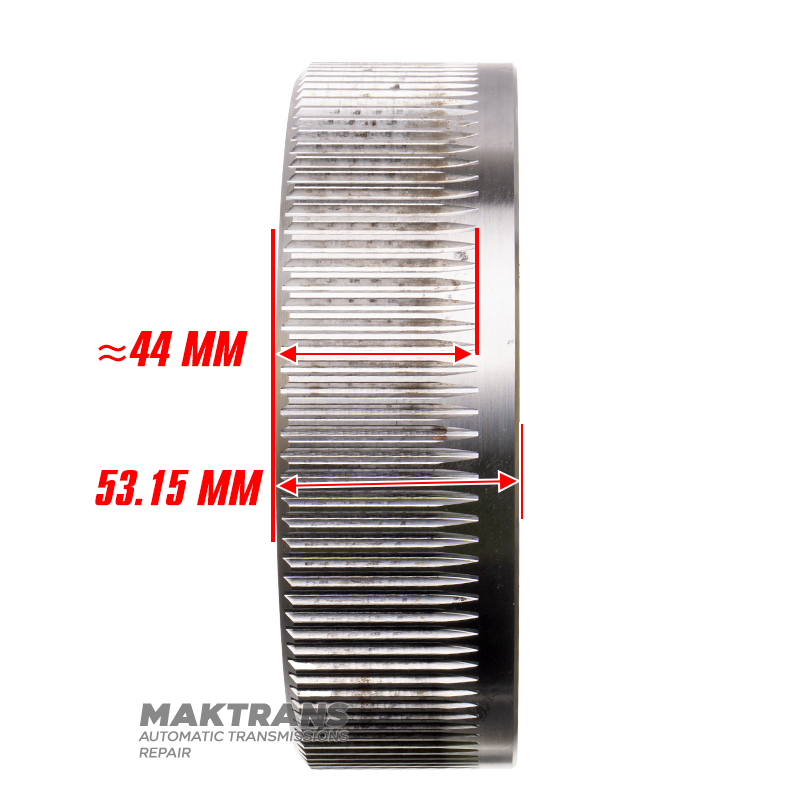

Ring gear:

• Overall height - 53.15 mm;
• Outer diameter - 174.35 mm;
• Number of teeth on the gear - 111 pcs.;

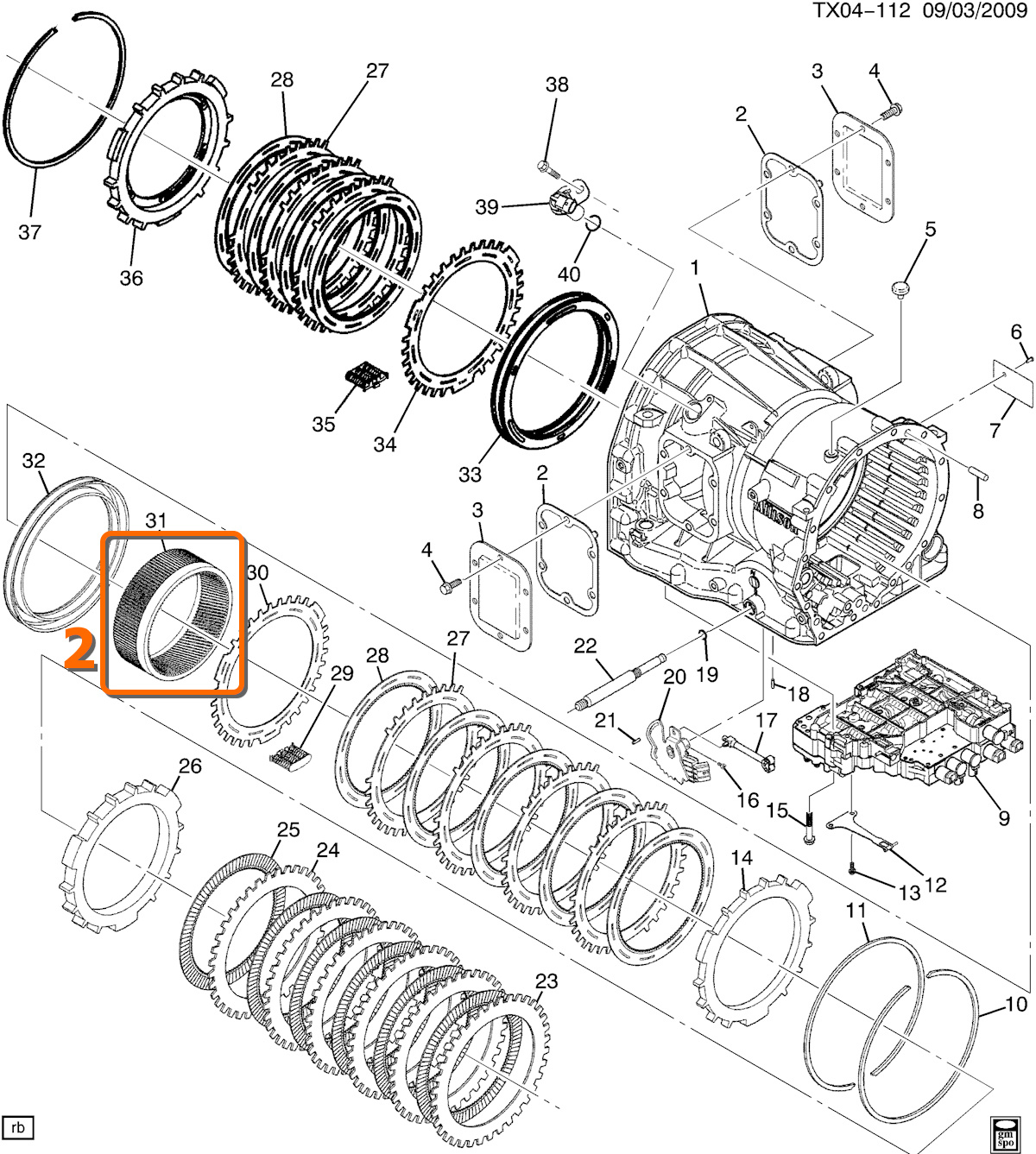

C3 Clutch Hub:

• Hub height - 44 mm;
• Number of teeth on the outer side (C3 Clutch hub) - 117 pcs.;

Sun gear:

• Overall height - 59.20 mm;
• Number of teeth - 61 pcs.;
• Outer diameter - 87.20 mm;

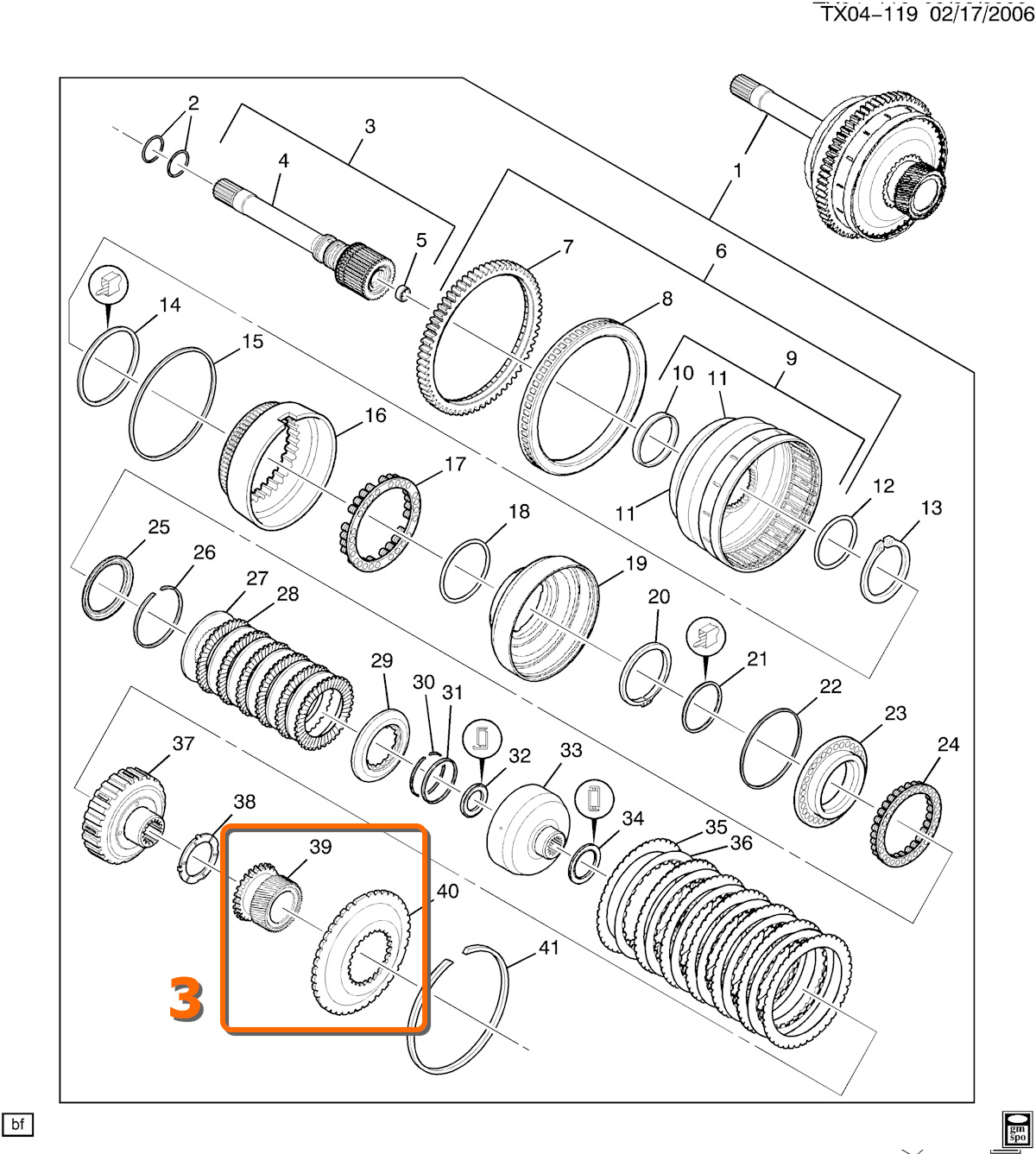

Sun gear flange:

• Height - 23 mm;
• Outer diameter - 204.55 mm;
• Number of teeth on the inner side - 26 pcs.;
• Part number - 29531094;
