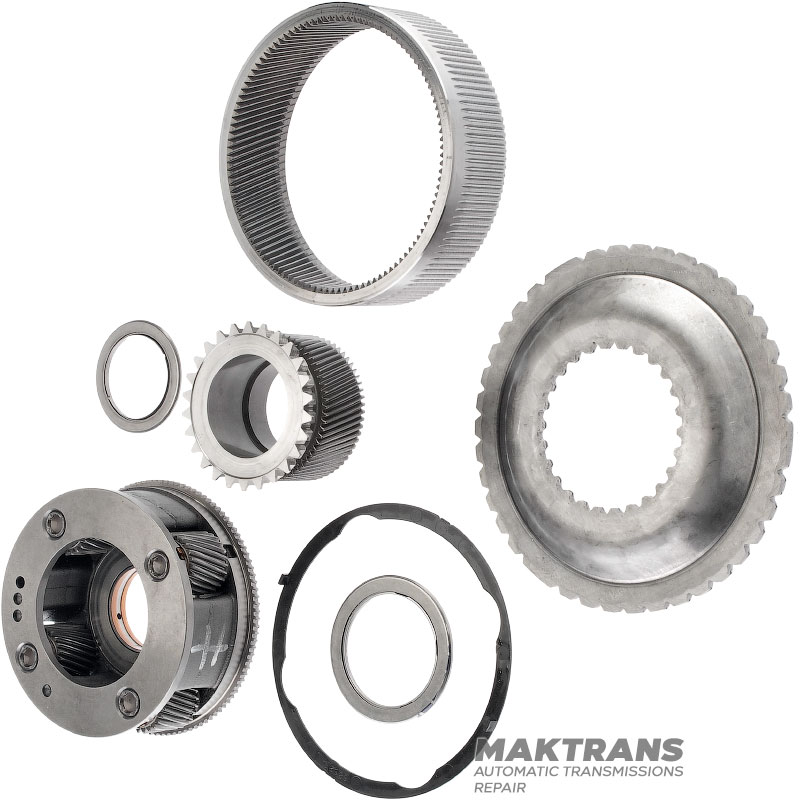

Planetary gear P1 (front) ALLISON 1000 - 4 satellites (25 teeth), 29541704, 29541008, 29546706, 29537433

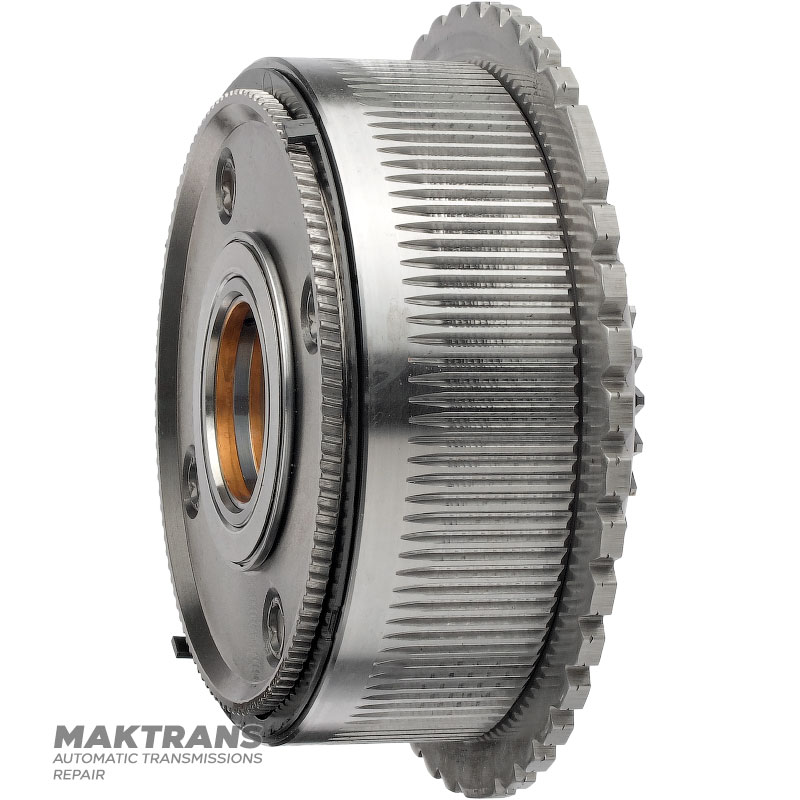

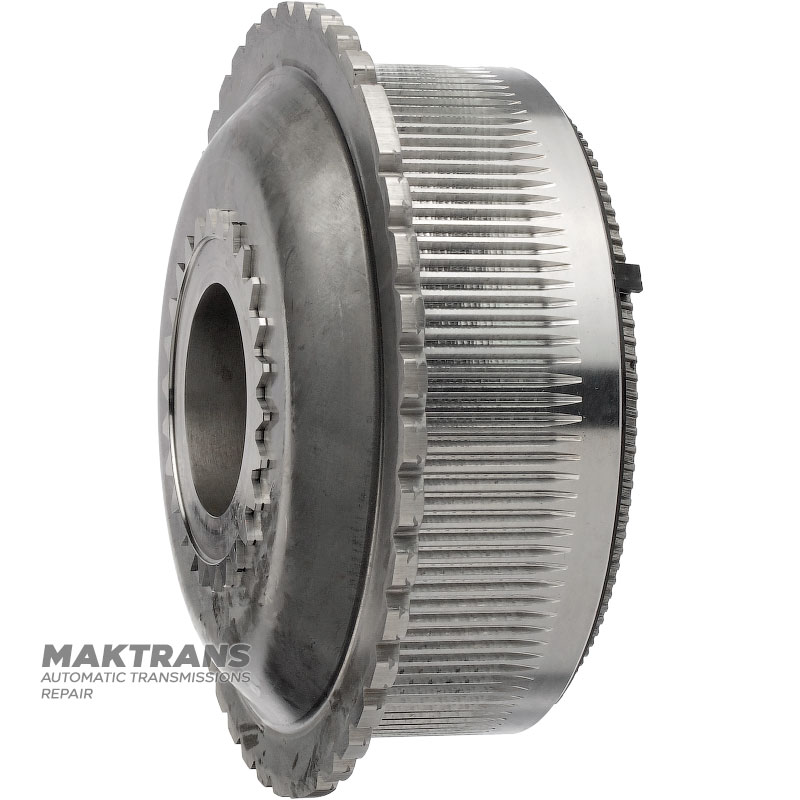

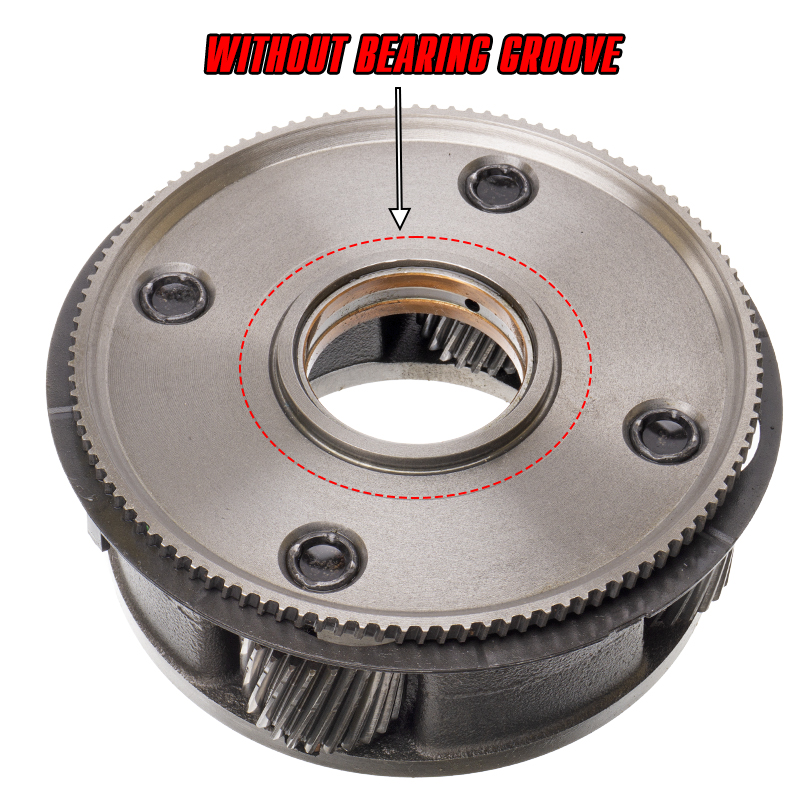

Planetary gear (P1):

• Overall height - 64 mm;
• Inner diameter of the bushing - 50.50 mm;
• Outer body diameter - 149.10 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 25 pcs.;

Ring gear:

• Height - 54.50 mm;
• Outer diameter - 174.35 mm;
• Number of teeth on the gear - 111 pcs.;
• Number of teeth on the outer side - 117 pcs.;

Sun gear:

• Overall height - 59.20 mm;
• Number of teeth - 61 pcs.;
• Outer diameter - 87.20 mm;

Sun gear flange:

• Height - 23 mm;
• Outer diameter - 204.55 mm;
• Number of teeth on the inner side - 26 pcs.;
