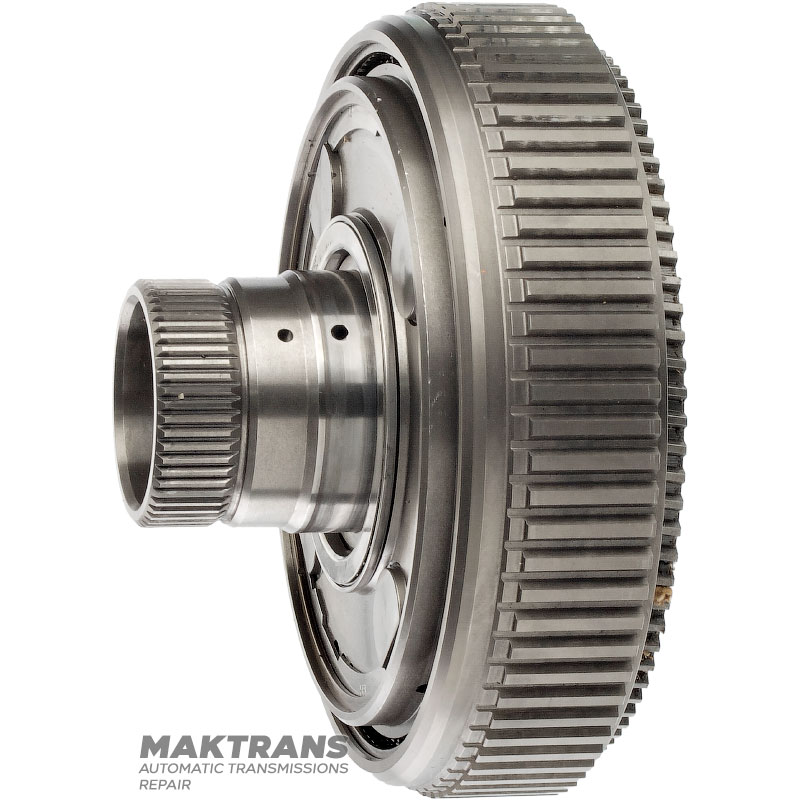

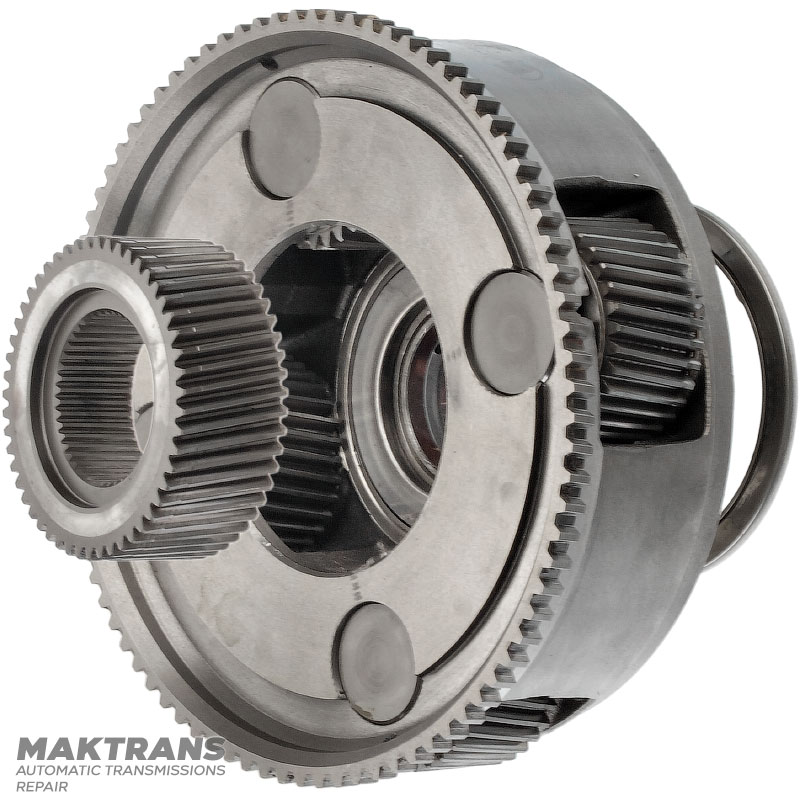

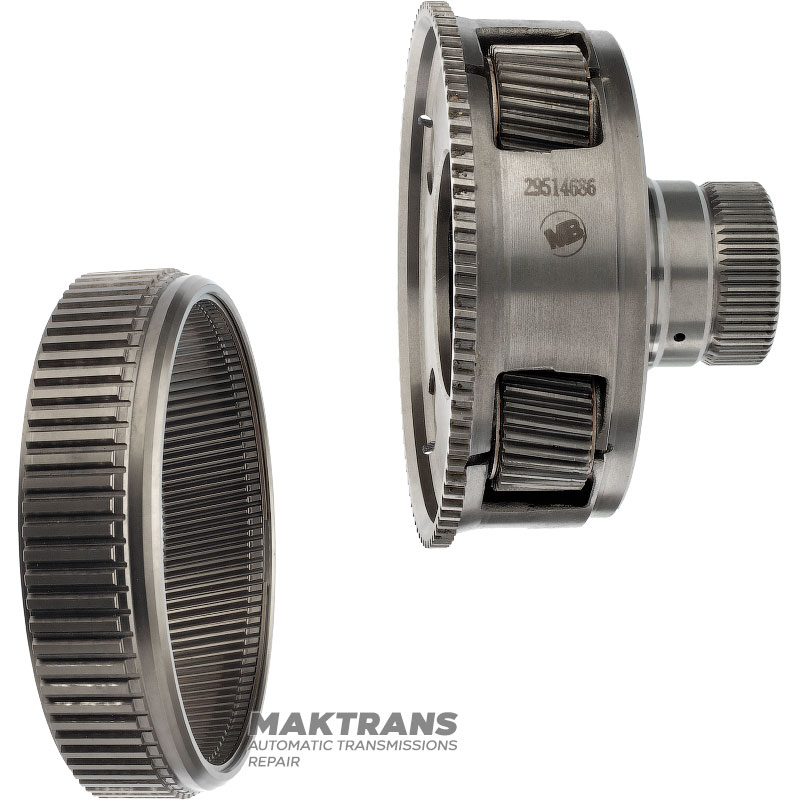

Planetary gear P2 ALLISON 4000 Series - 4 satellites (33 teeth)

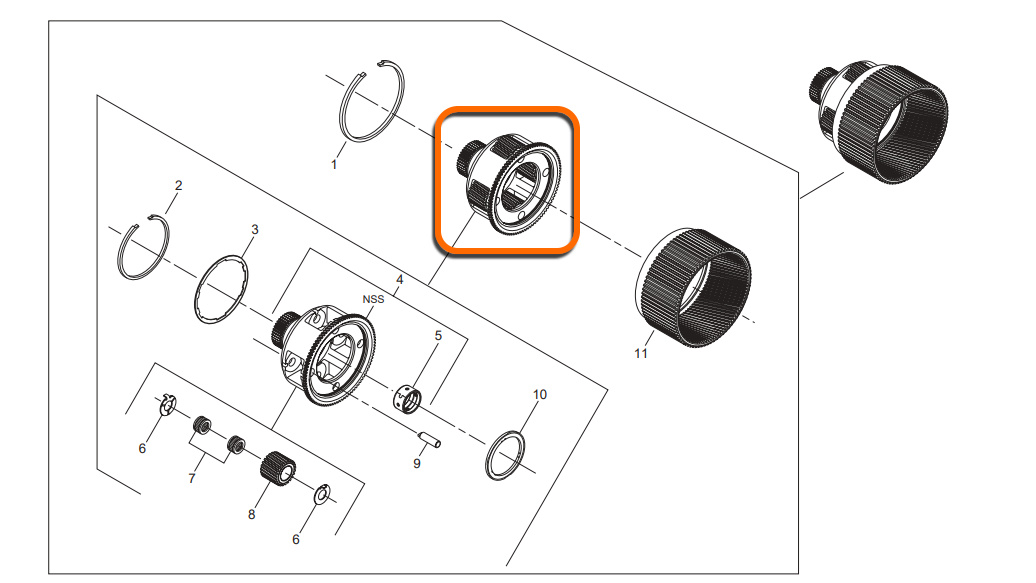

Planetary gear:

• Total height - 155 mm.;
• Neck height - 76 mm;
• Number of splines on the neck - 55 pcs.;
• The outer diameter of the splined part is 83.85 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 33 pcs.;
• The outer diameter of the planetary gear housing is 228 mm;
• The inner diameter of the hole for the sun gear is 109.95 mm;

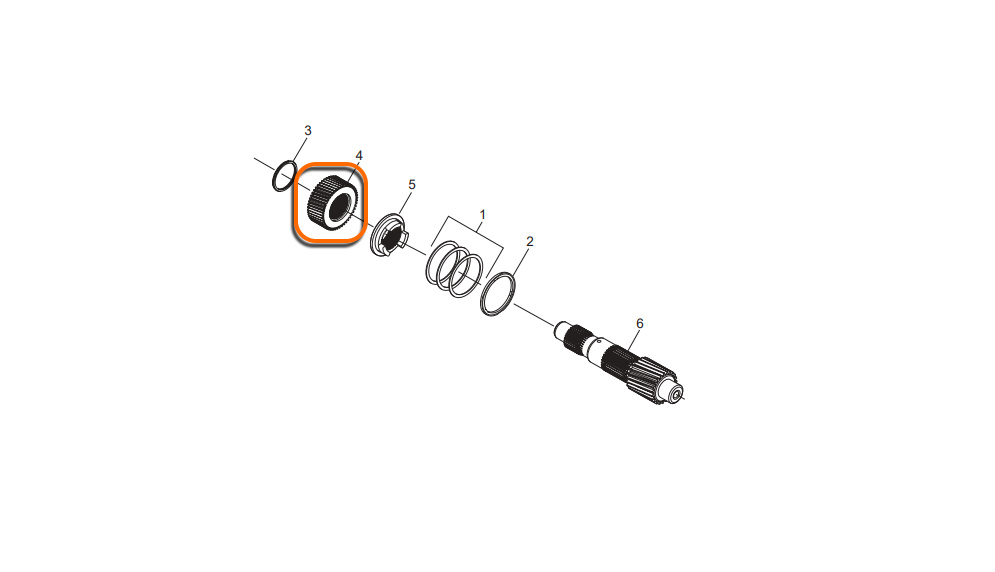

Sun gear:

• Overall height - 42.15 mm;
• Number of teeth on the gear - 51 pcs.;
• Gear outer diameter - 106.70 mm;
• Number of splines on the inner side - 45 pcs.;

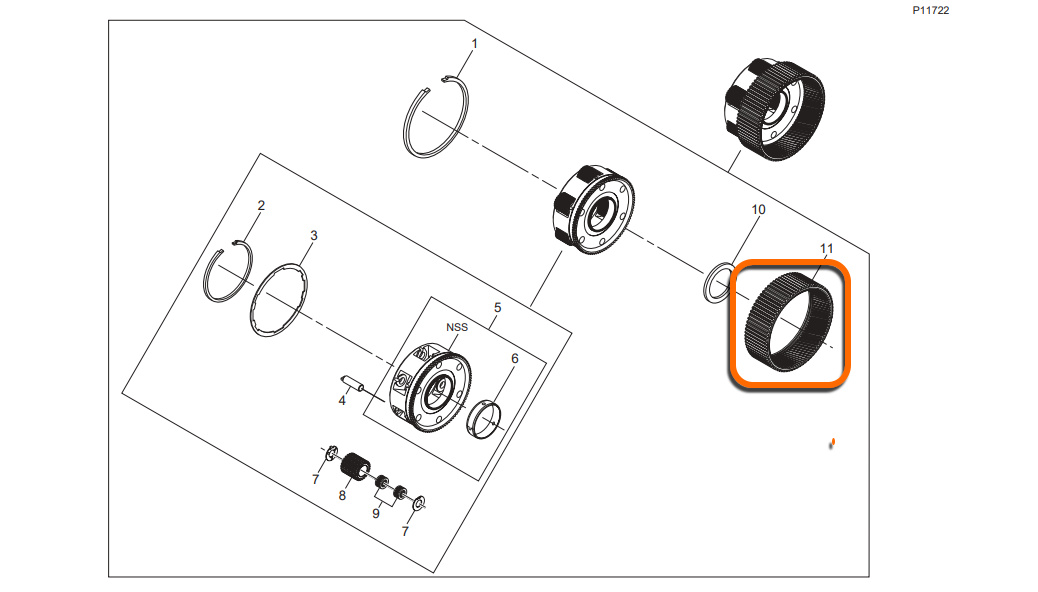

Ring gear:

• Overall height - 66 mm;
• Number of teeth - 117 mm;
• Gear outer diameter - 270.80 mm;
• Number of teeth on the outer side of the gear - 77 pcs.;

Tags: 29543991, 29507805, 29535992, 29505631, 29505607
