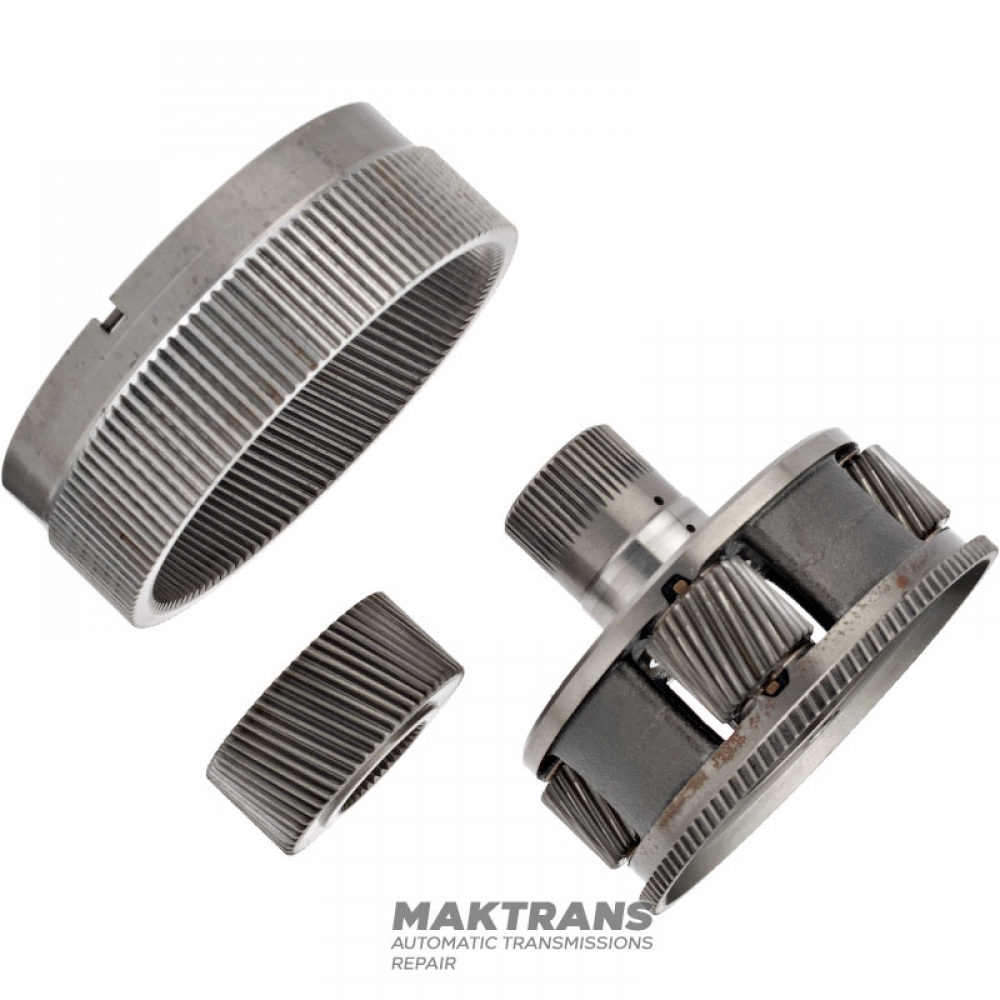

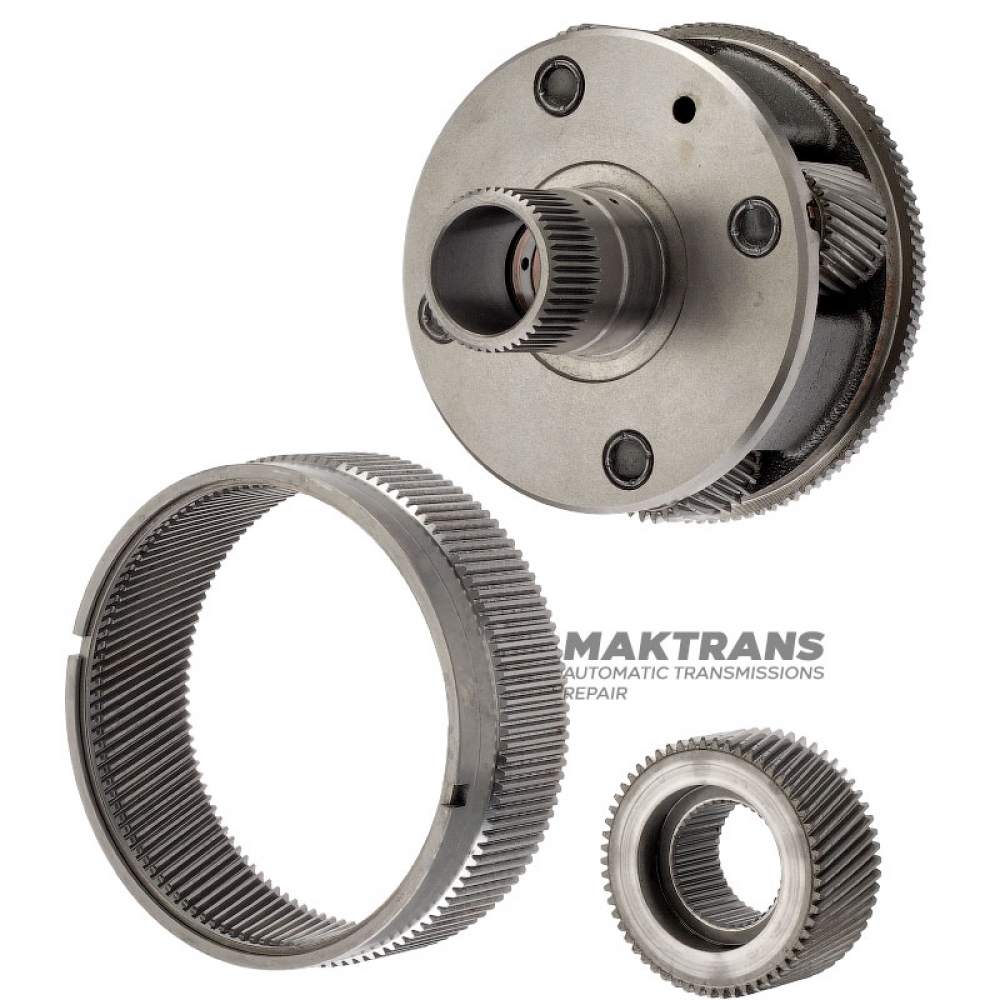

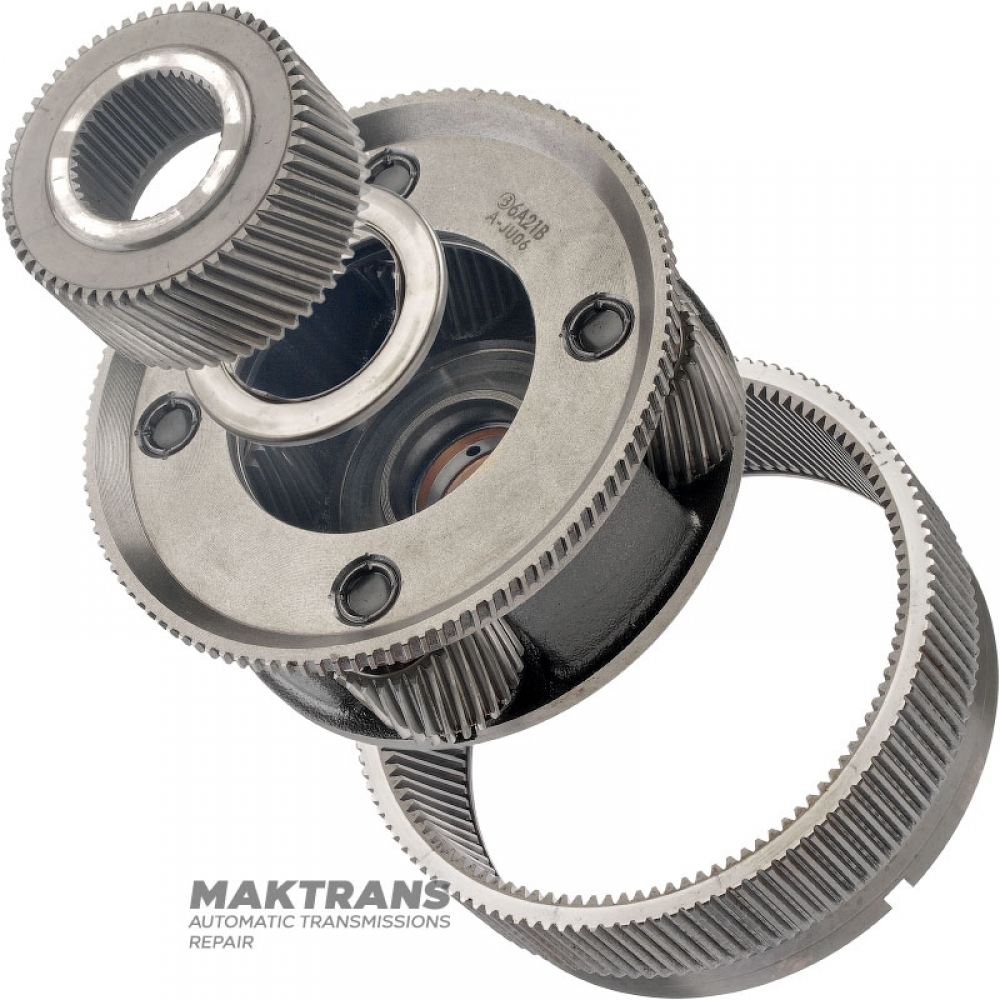

Planetary gear P2 (central) ALLISON 1000, 1000PK, 2000 — 4 satellites (27 teeth), sun gear height 39.55 mm, 29539510, 29541707

Planetary gear P2:

• Overall height - 122 mm;
• Neck height - 60 mm;
• Number of splines on the neck - 48 pcs.;
• The outer diameter of the splined part is 48.95 mm;
• Outer case diameter - 149.15 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 27 pcs.;
  Satellite width - 33.90 mm;

Sun gear:

• Overall height - 39.55 mm;
• Gear width - 38 mm;
• Number of splines on the inner side - 39 pcs.;
• Number of teeth on the sun gear - 57 pcs.;
• Gear outer diameter - 81.95 mm;

Ring gear:


• Overall height - 59.85 mm;
• Number of teeth of helical gear - 111 pcs.;
• Number of teeth on the outer side - 117 psc;
• Gear outer diameter - 174.35 mm;
