Main Specifications
Condition (used, new):
used and inspected
Type:
central planetary gear (P2)
Number of pinions:
4
If you order more than 2 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 2 pcs. |
  |
| Ukraine | 14 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)

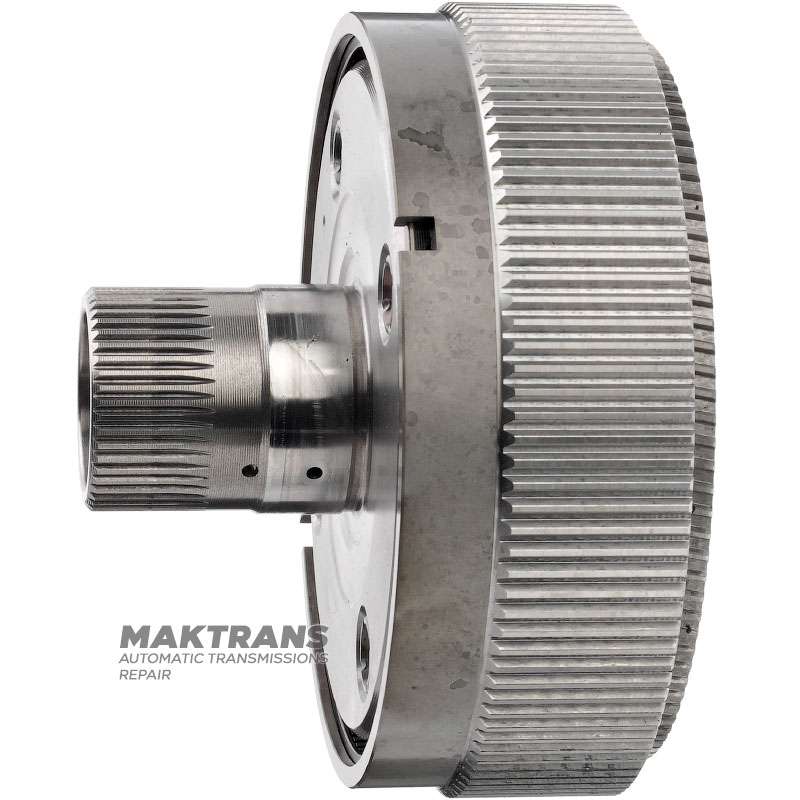

Planetary gear P2:
- Overall height - 122 mm;
- Neck height - 60 mm;
- Number of splines on the neck - 48 pcs.;
- The outer diameter of the splined part is 48.95 mm;
- Outer case diameter - 149.15 mm;
- Number of satellites - 4 pcs.;
- Number of teeth on satellites - 27 pcs.;

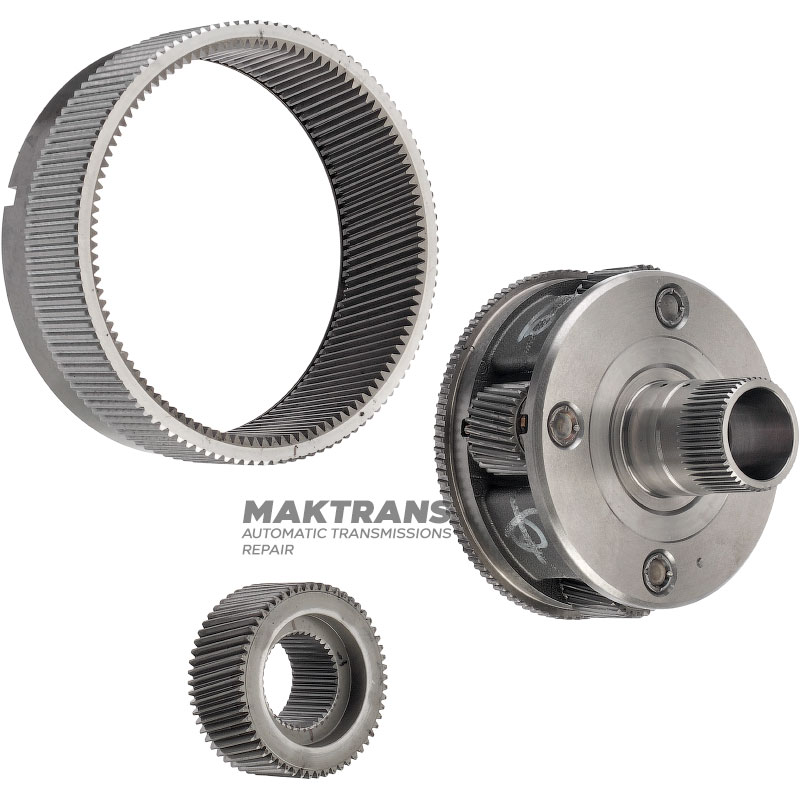

Sun gear:
- Overall height - 41.40 mm;
- Number of splines on the inner side - 39 pcs.;
- Number of teeth on the sun gear - 57 pcs.;
- Gear width - 36.40 mm;
Ring gear:
- Overall height - 59.05 mm;
- Number of teeth of helical gear - 111 pcs.;
- Number of teeth on the outer side - 116 mm;
- Gear outer diameter - 174.35 mm;
