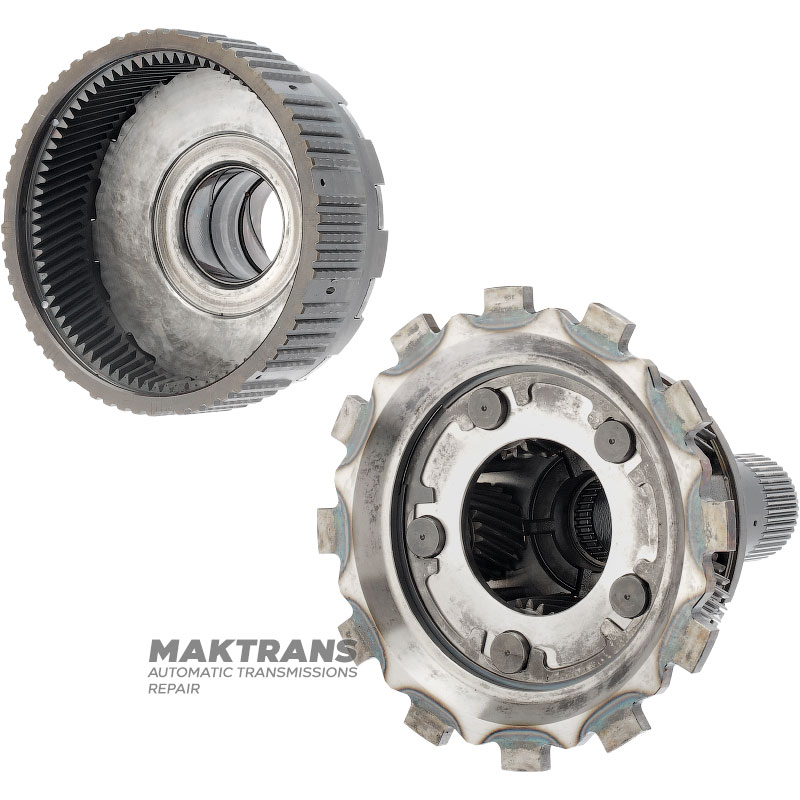

Planetary gear P2 (set) AS68RC, AS69RC DODGE RAM 4500/5500 — with ring gear flange bearing external Ø 106.90 mm, 68242207AA, 68242209AA, 68242215AA — 5 satellites (22 teeth)

Planetary gear P2:

• Overall height - 183 mm;
• Number of splines - 42 pcs.;
• The outer diameter of the splined part is 44.30 mm;
• The outer diameter of the working parts of the neck is 44.70 mm;
• Number of teeth on the gear ring - 12 pcs.;
• Outer diameter of gear ring - 171.65 mm;
• Number of satellites - 5 pcs.;
• Number of teeth on the satellite - 22 pcs.;

  ---

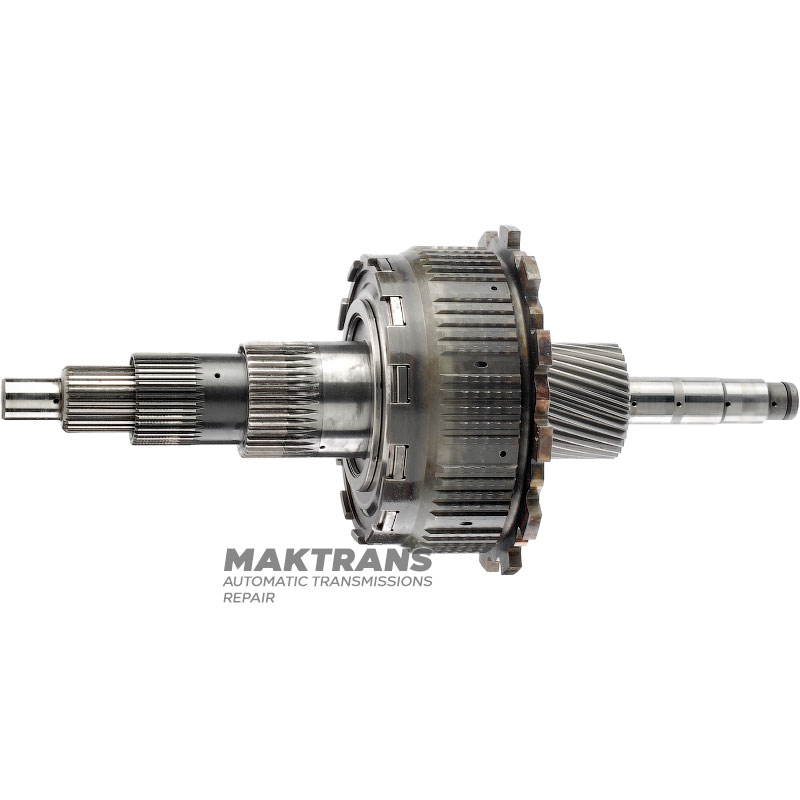

Shaft, sun gears P2/P3:

• Total shaft length - 392 mm;
• The outer diameter of the working parts of the shaft is 32.05 mm / 24.05 mm / 23.10 mm;
• Number of splines on the shaft - 30 pcs.;
• The outer diameter of the splined part is 31.95 mm;

Sun gear P2:

• Number of teeth - 38 pcs.;
• Gear outer diameter - 61.20 mm;
• Gear width - 28.55 mm;

Sun gear P3:

• Number of teeth - 32 pcs.;
• Gear outer diameter - 58.40 mm;
• Gear width - 45.65 mm;

  ---



Ring gear:

• Overall height - 118 mm;
• Number of splines on the neck - 40 pcs.;
• Outer diameter of spline part - 56.50 mm;
• The outer diameter of the ring gear is 149.70 mm;
• Number of teeth on the ring gear - 82 pcs.;

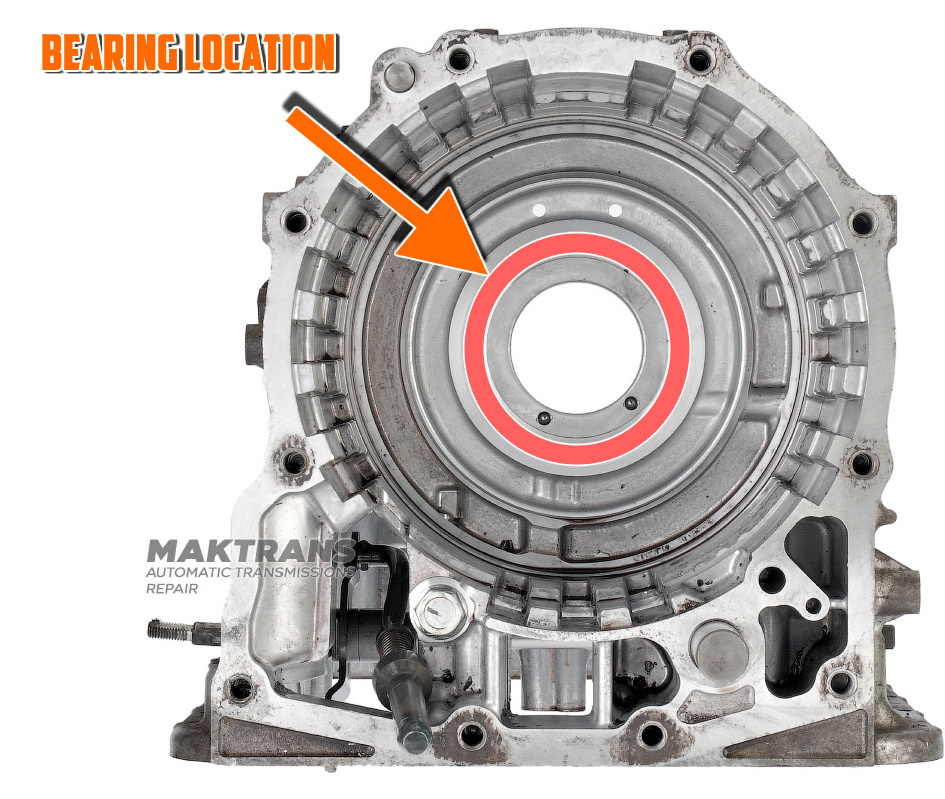

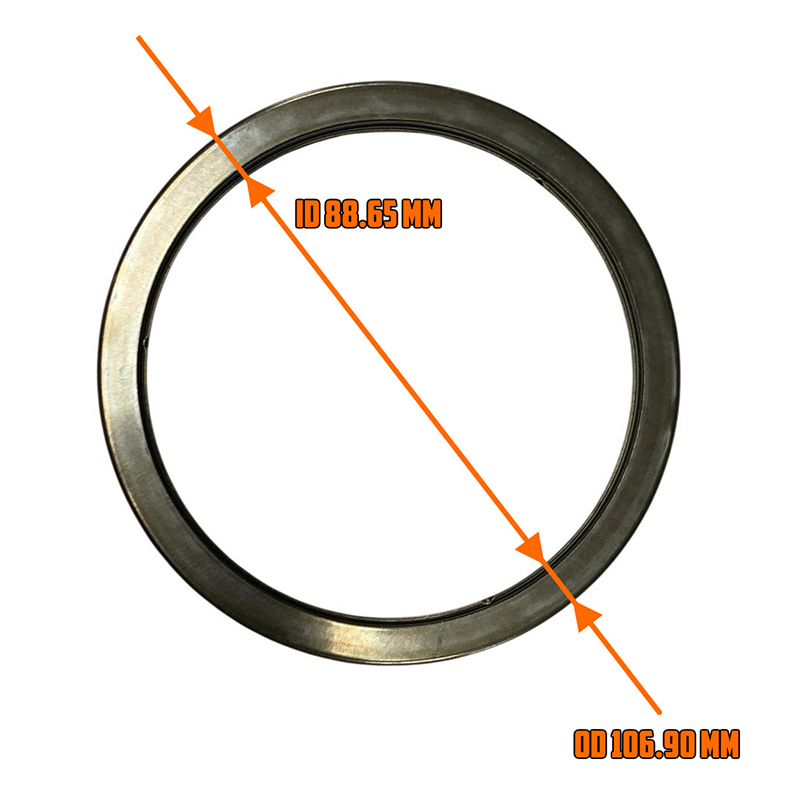

This planetary gear has a ring gear flange with a needle bearing of external Ø 106.90 mm.

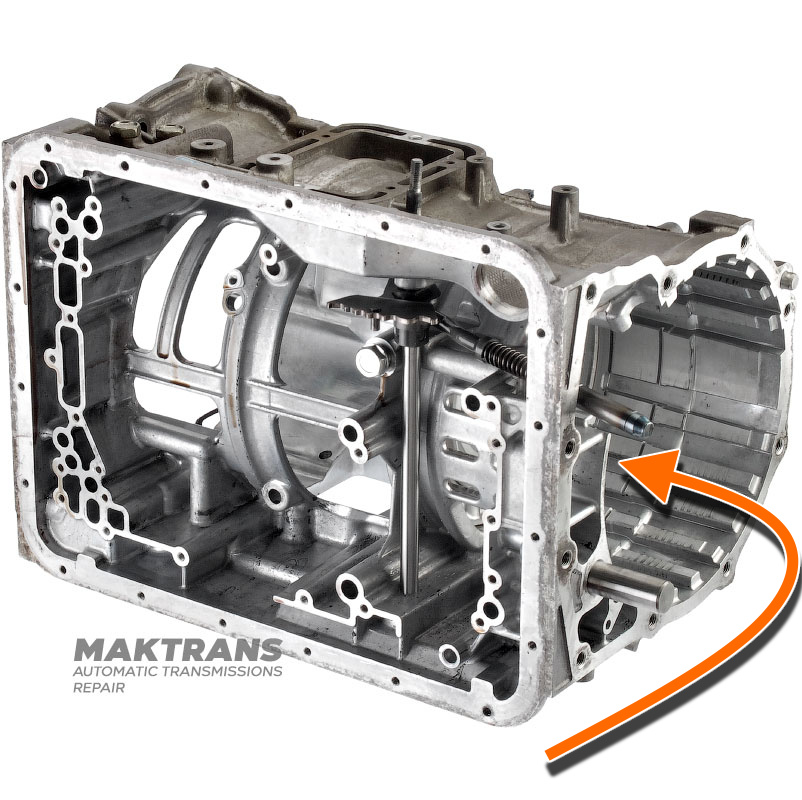

Flange with this bearing size  fits the body - on the website.
