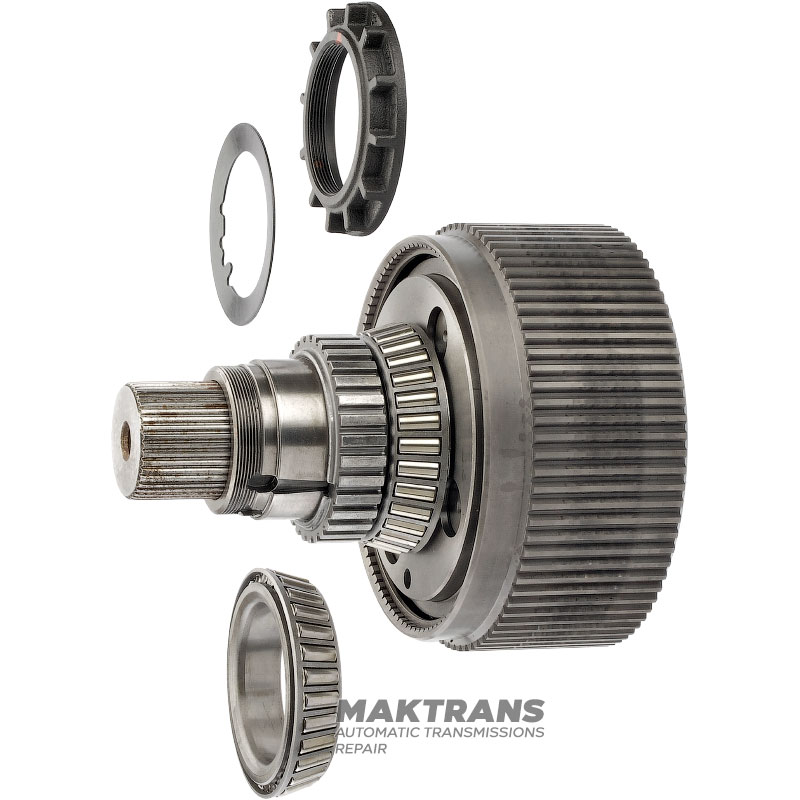

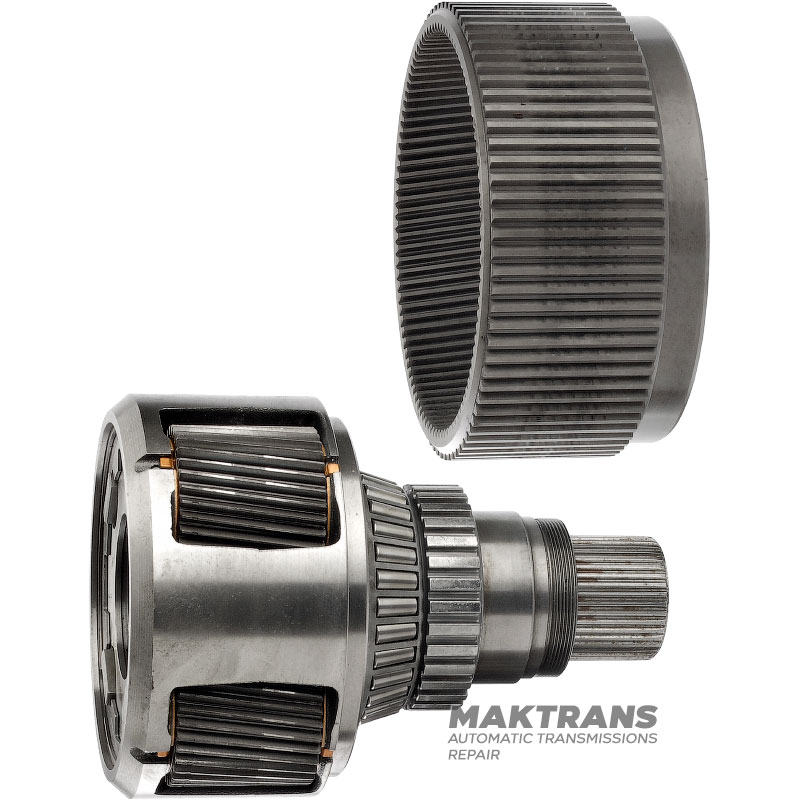

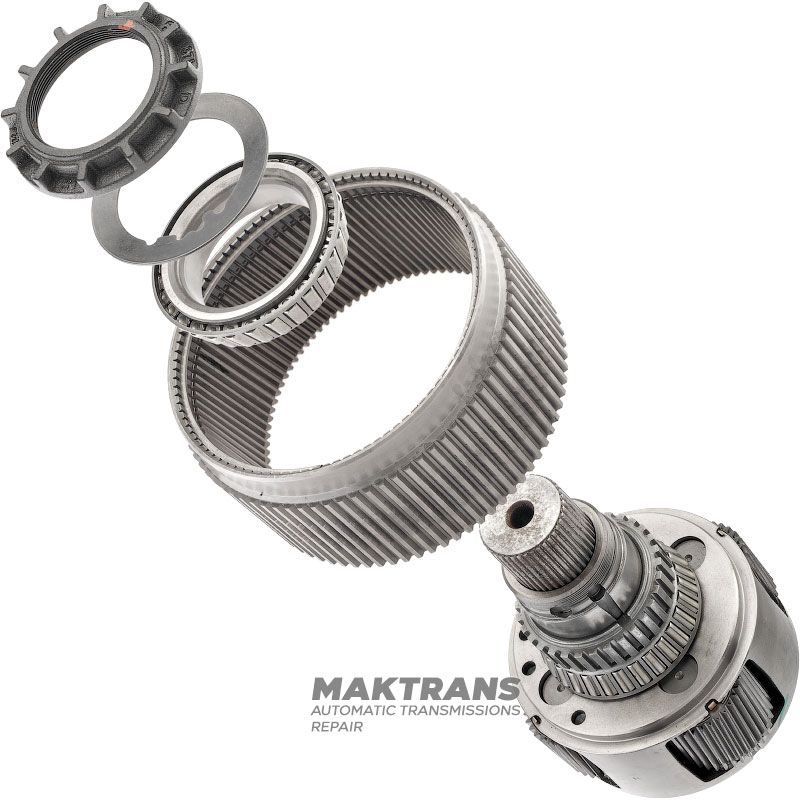

Planetary gear P3 ALLISON 3000 Series, MD3560 - 4 satellites (35 teeth, external Ø 68.20 mm), 29547417, 29540385, 23046437, 29540990

Planetary gear:

• Overall height - 237 mm;
• The outer diameter of the differential housing is 170.50 mm;
• Number of splines on the output shaft - 41 pcs.;
• Outer diameter of spline part - 54.50 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 35 pcs.;
• Outer diameter of satellites - 68.20 mm;

Ring gear:

• Overall height - 97.80 mm;
• Number of teeth on the helical gear - 97 pcs.;
• Number of teeth on the outer side - 81 pcs.;
• Gear outer diameter - 202.20 mm;
