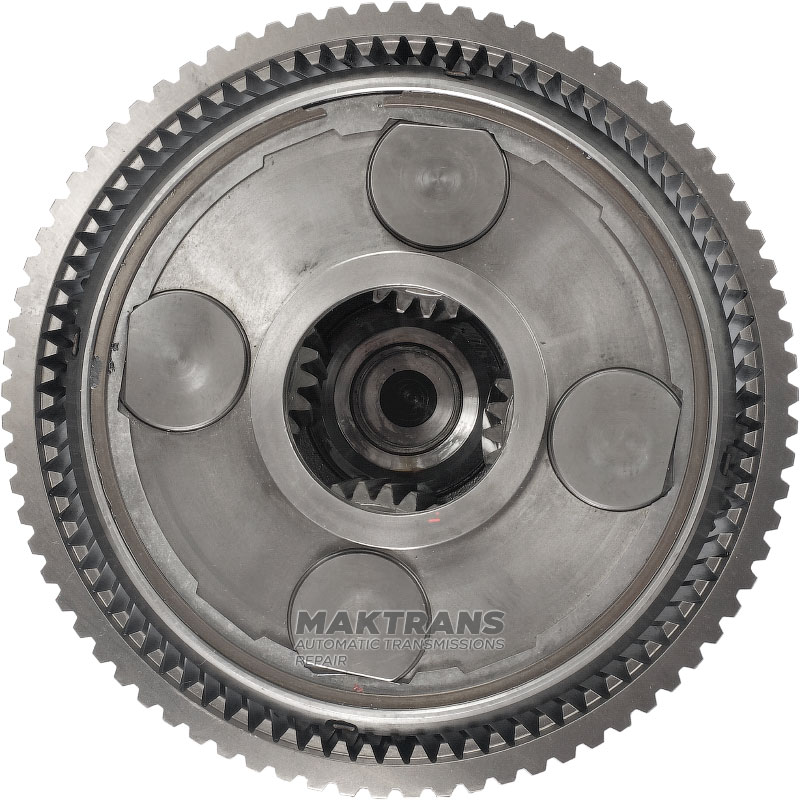

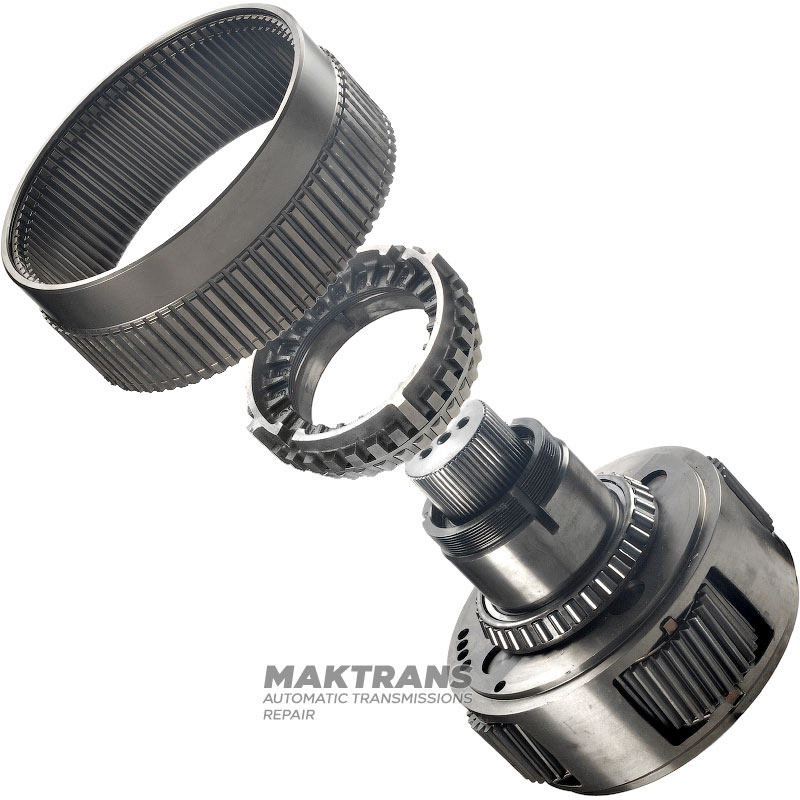

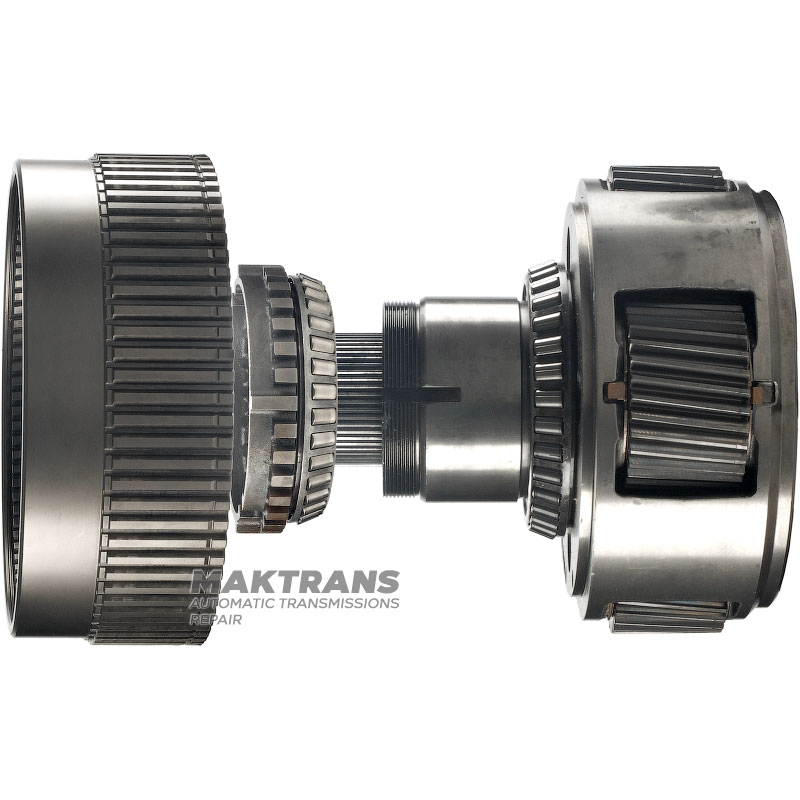

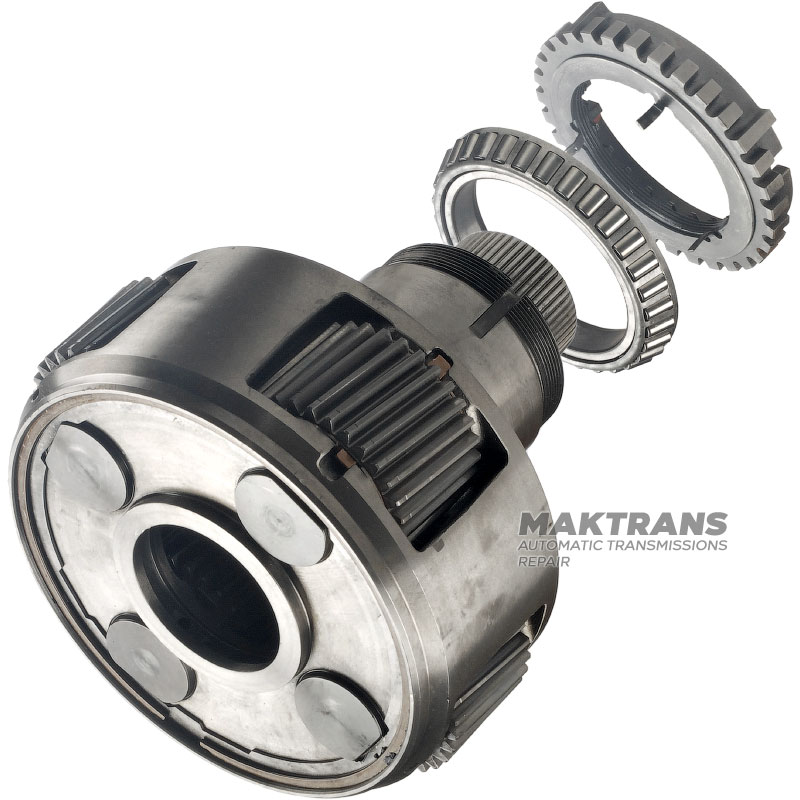

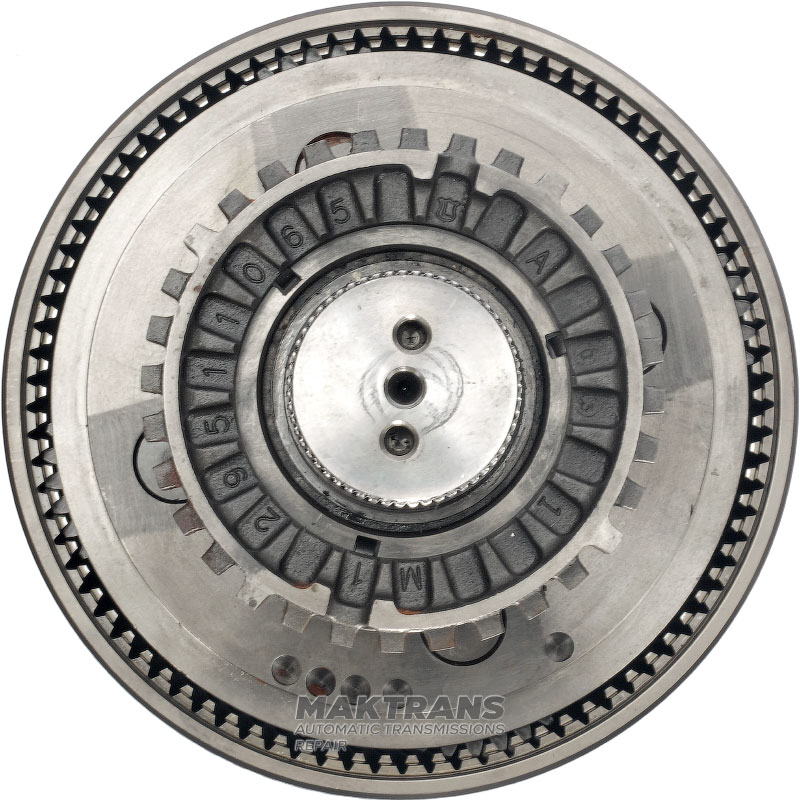

Planetary gear P3 ALLISON 4000 Series (4 pinions, 31 teeth per pinion)

Planetary gear:

• Total height - 240 mm;
• Number of splines on the shaft - 55 pcs.;
• The outer diameter of the spline part is 69.45 mm;
• The outer diameter of the satellite body is 230.90 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 31 pcs.;

Ring gear:

• Height - 104 mm;
• Number of teeth on the outside - 77 pcs.;
• The outer diameter of the gear along the outer teeth is 270.95 mm;
• Number of helical gear teeth - 85 pcs.;
