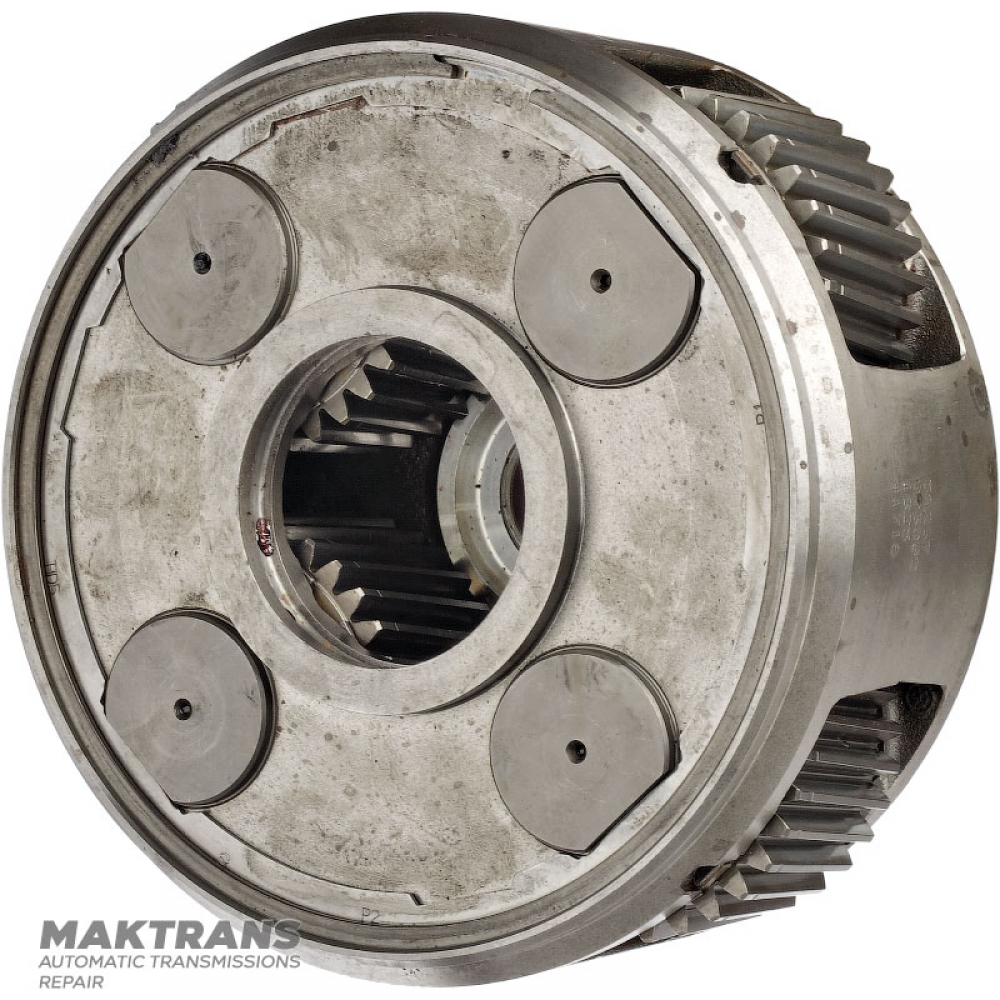

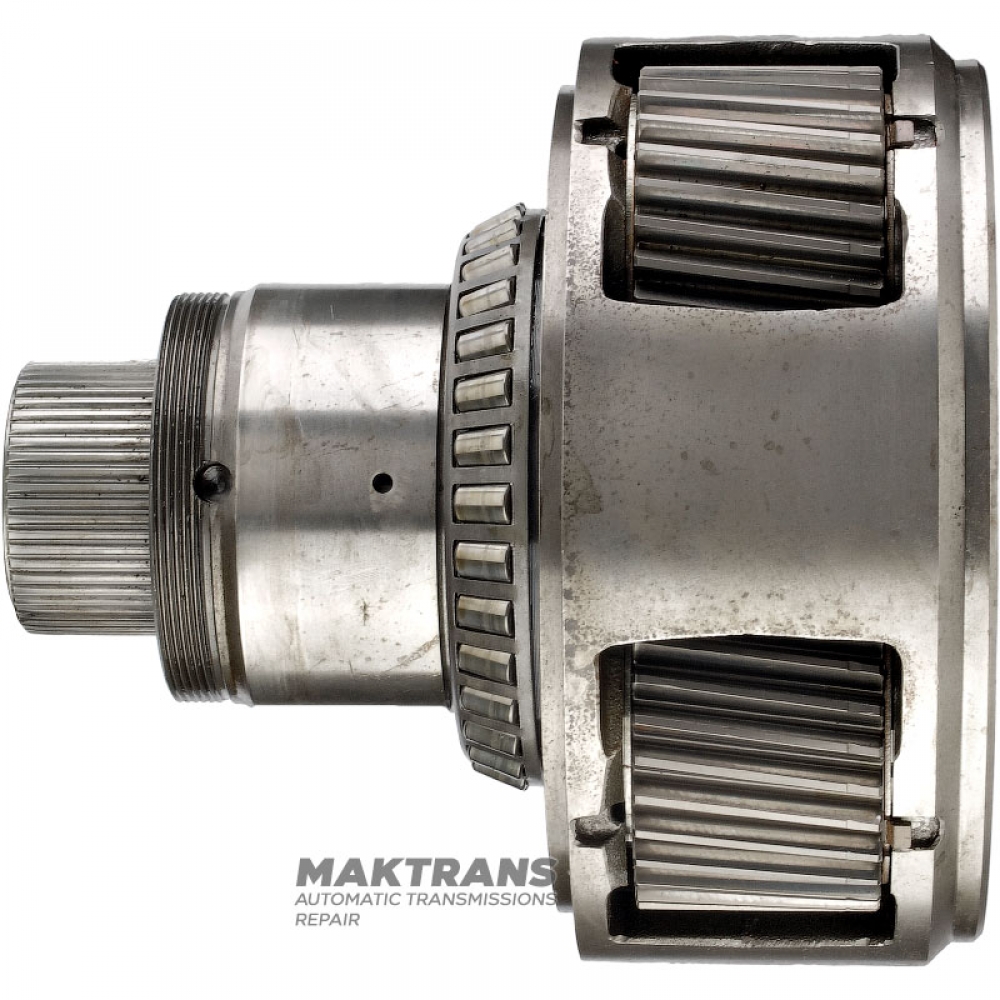

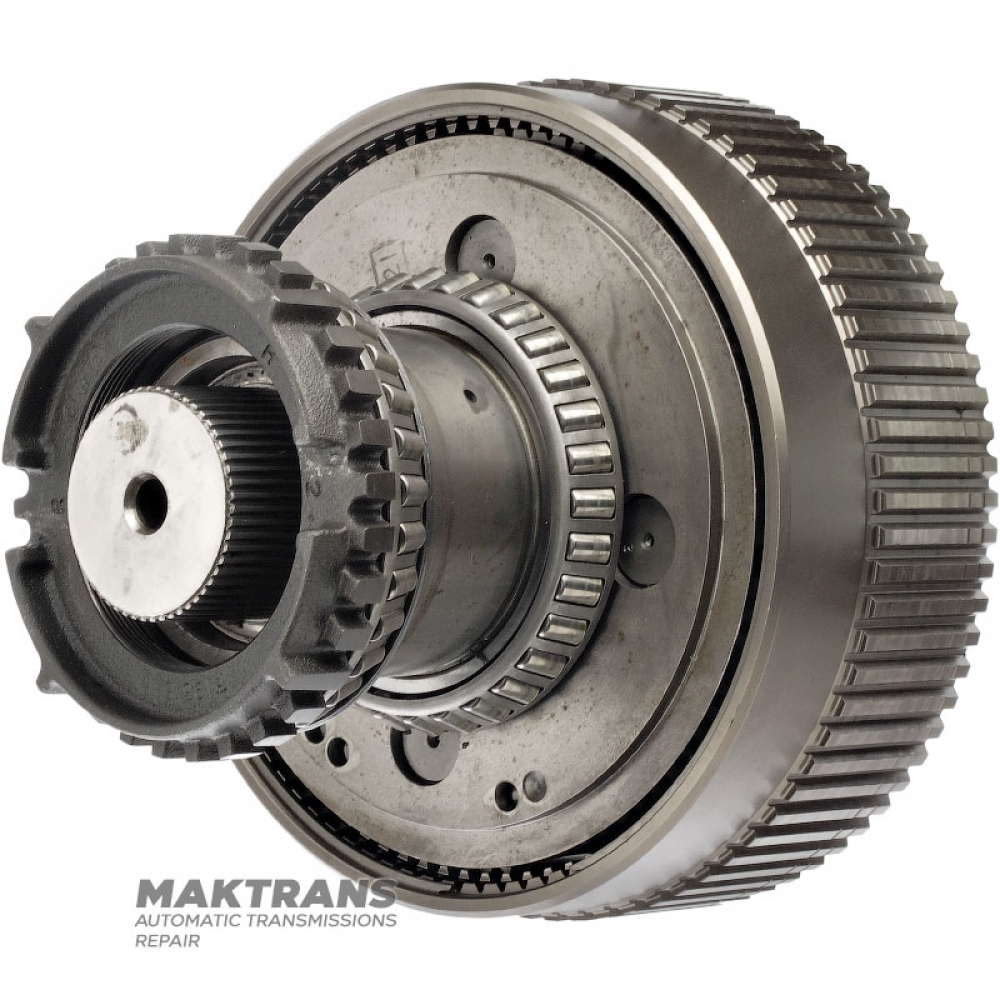

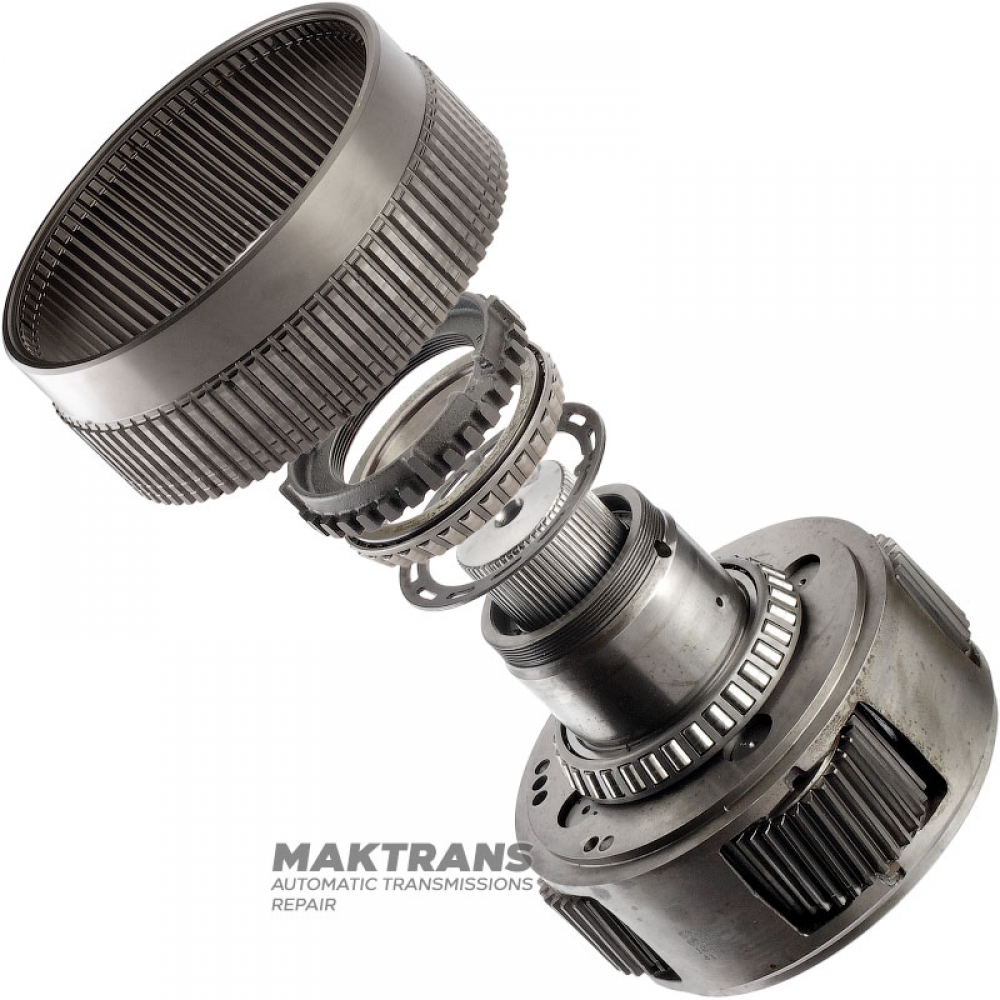

Planetary gear P3 ALLISON ALLISON 4000 Series - 4 satellites (31 teeth, external Ø 93 mm), shaft output 55 splines (external Ø 69.30 mm)

Planetary gear:

• Overall height - 240 mm;
• Number of splines on the output shaft - 55 pcs.;
• The outer diameter of the splined part of the output shaft is 69.30 mm;
• The outer diameter of the planetary gear housing is 231 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellites - 31 pcs.;
• Outer diameter of satellites - 93 pcs.;
• Inner diameter for sun gear - 77.90 mm;

Ring gear:

• Overall height - 104 mm;
• Gear outer diameter - 270.85 mm;
• Number of teeth on the gear - 85 pcs;
• Number of teeth on the outer side - 77 pcs.

Tags: 29534835, 29507803, 29538496, 29501066, 29535235, 29535998
