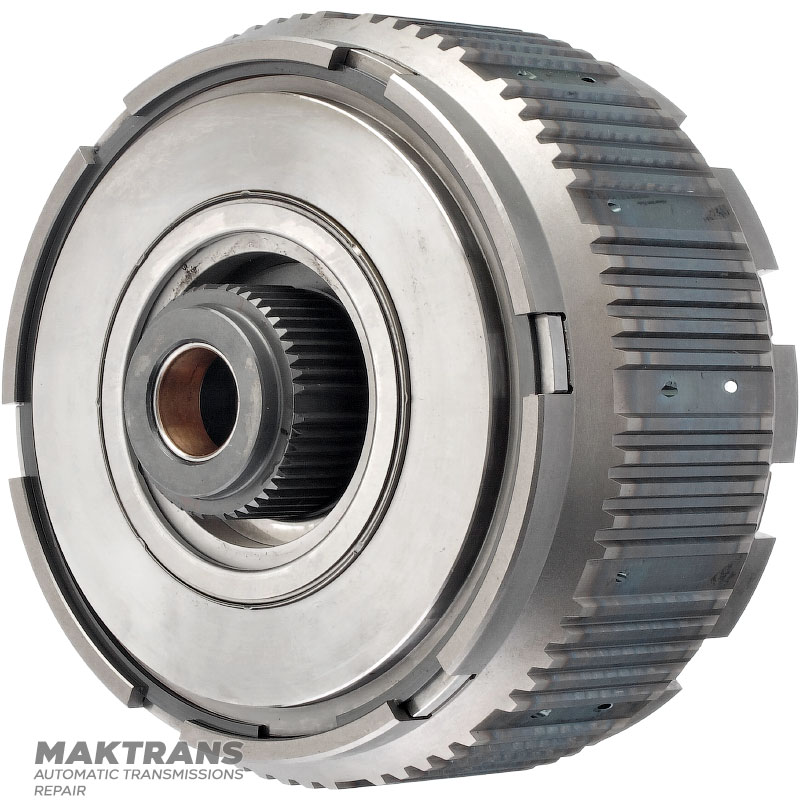

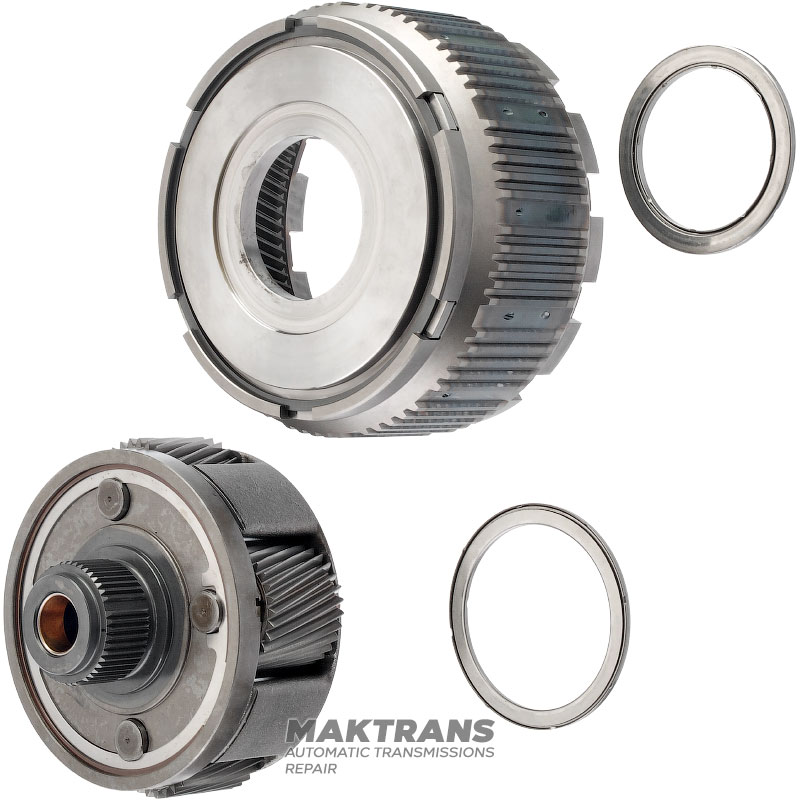

Planetary gear P3 AS68RC, AS69RC DODGE RAM 4500/5500 - 4 satellites (28 teeth), ring gear 88 teeth

Planetary gear:

• Overall height - 114 mm;
• Inner diameter of the sleeve - 24.05 mm;
• Outer body diameter - 147.05 mm;
• Number of splines on the neck - 44 pcs.;
• The outer diameter of the splined part of the neck is 52.95 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 28 pcs.;
• Satellite outer diameter - 53.05 mm;

Ring gear:

• Overall height - 93 mm;
• Outer diameter - 178.20 mm;
• Flange inner diameter - 66.55 mm:
• Number of teeth on the gear - 88 pcs.;
