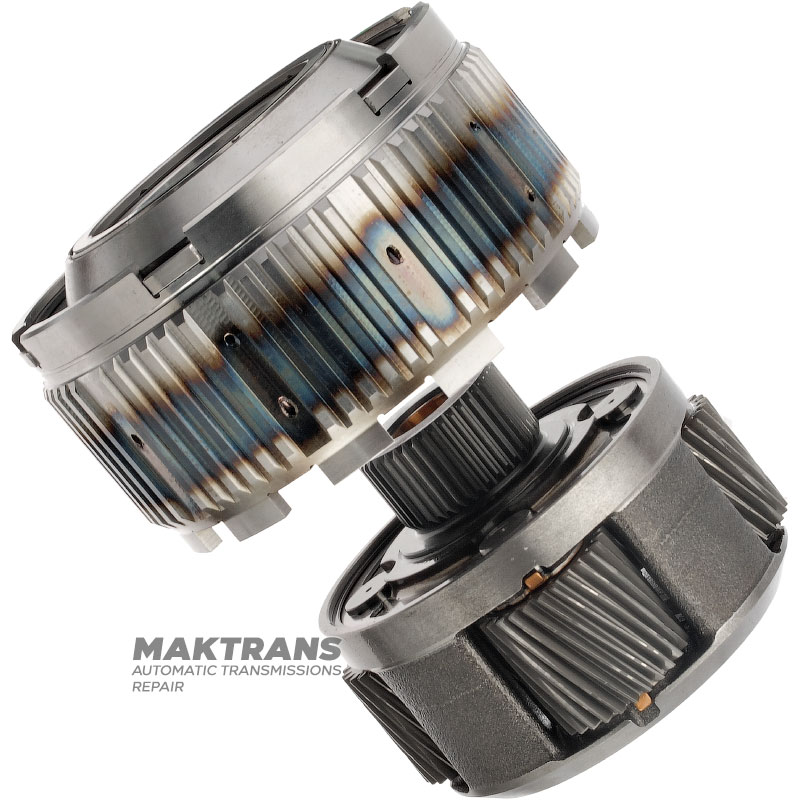

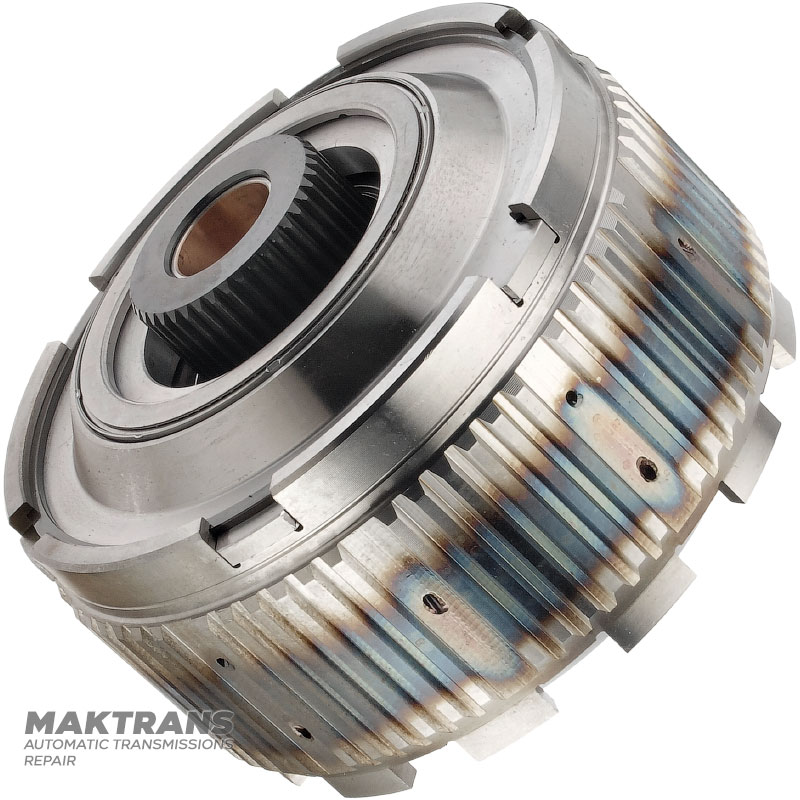

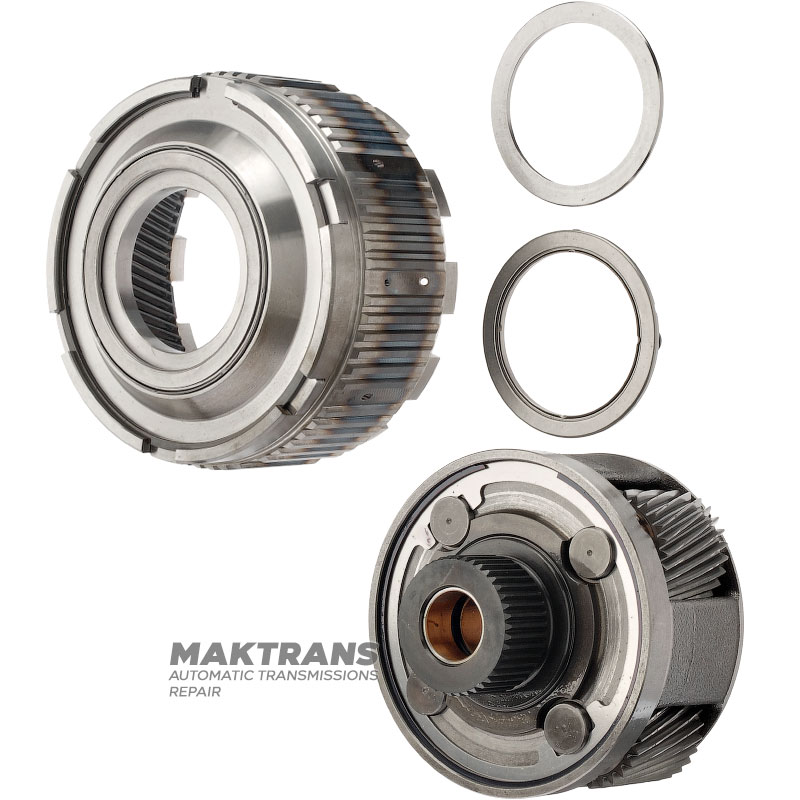

Planetary gear P3 NISSAN RE6R01A / AISIN WARNER A466ND - 4 satellites (27 teeth), ring gear 85 teeth

Planetary gear:

• Overall height - 111 mm;
• Inner diameter of the sleeve - 24.20 mm;
• Outer body diameter - 123.70 mm;
• Number of splines on the neck - 42 pcs.;
• The outer diameter of the splined part of the neck is 48.70 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellites - 27 pcs.;
• Satellite outer diameter - 43.90 mm;

Ring gear:

• Overall height - 85 mm;
• Outer diameter - 153.65 mm;
• Flange inner diameter - 62.45 mm:
• Number of teeth on the gear - 85 pcs.;
