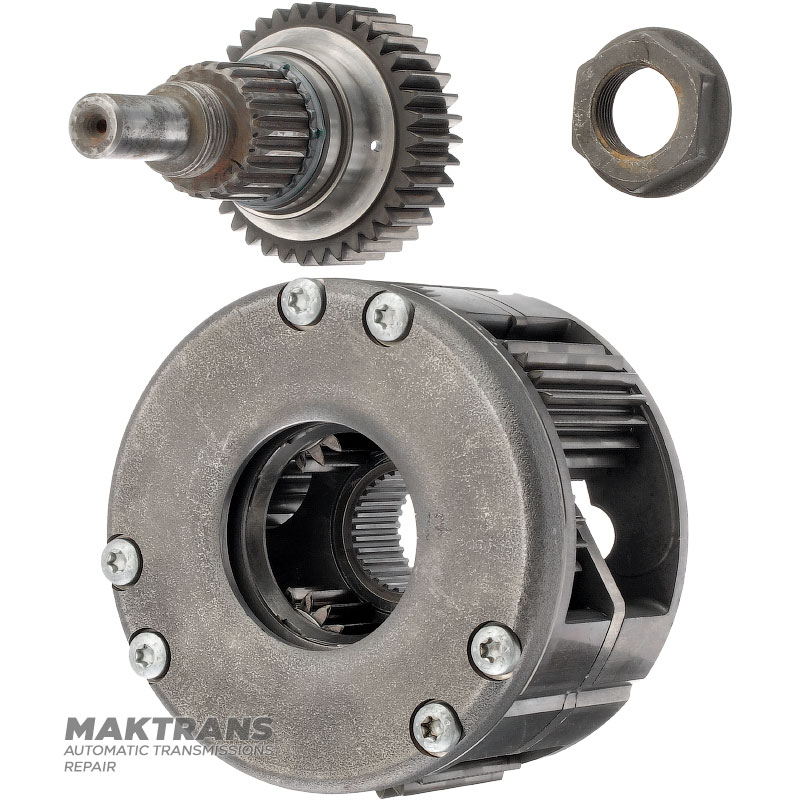

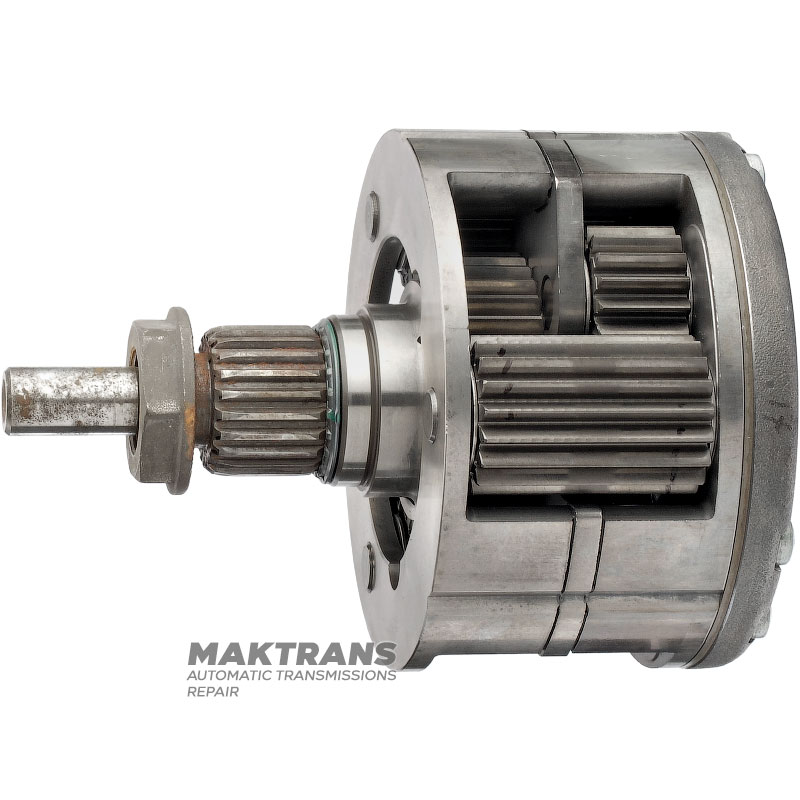

Planetary gear SEC Mercedes-Benz - A 2035500008, A2202820701

Planetary gear:

• Overall height - 81.50 mm;
• Outer body diameter - 125.80 mm;
• Number of splines on the inner side - 30 pcs.;

External satellites (long):

• Number of teeth - 17 pcs.;

Internal satellites:

• Number of teeth - 17 pcs.;

Sun gear/output shaft:

• Total length - 120 mm;
• Number of splines on the shaft - 22 pcs.;
• The outer diameter of the splined part is 34.95 mm;
• Number of teeth on the sun gear - 36 pcs.;
• Sun gear outer diameter: 69.25mm;
• Gear width - 23.10 mm;
