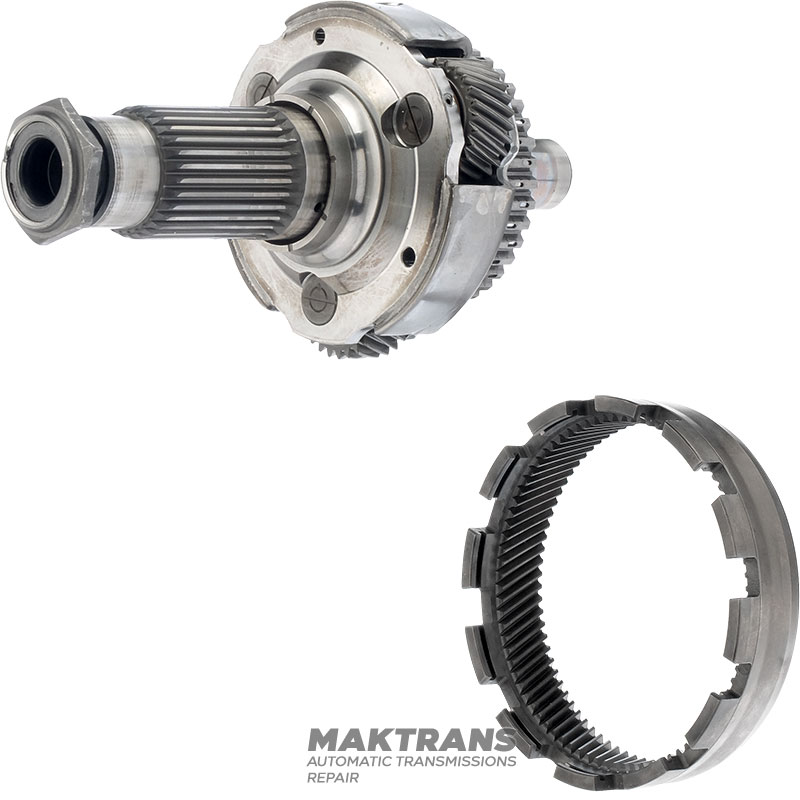

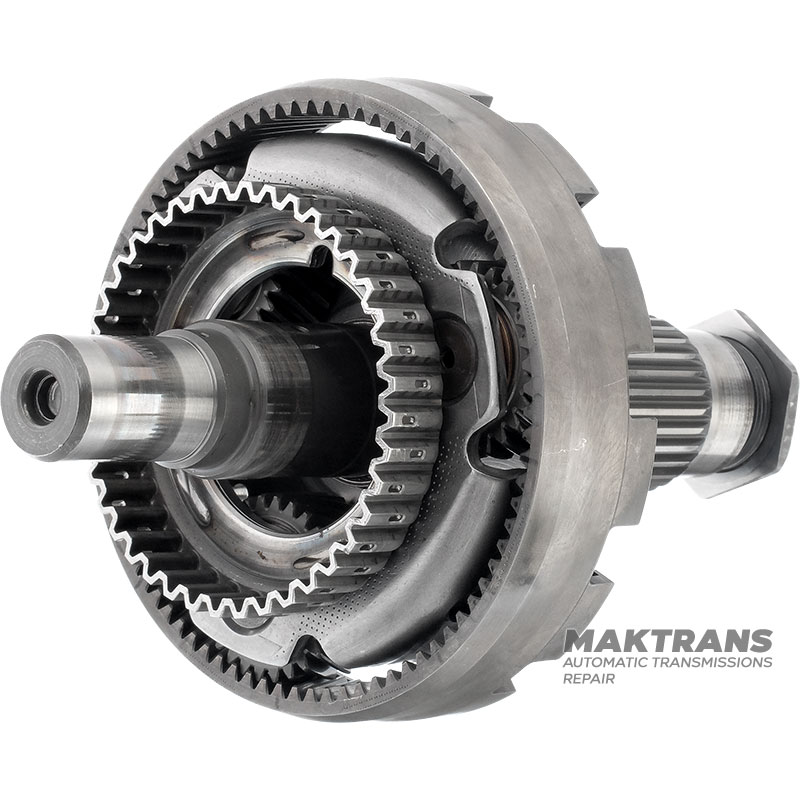

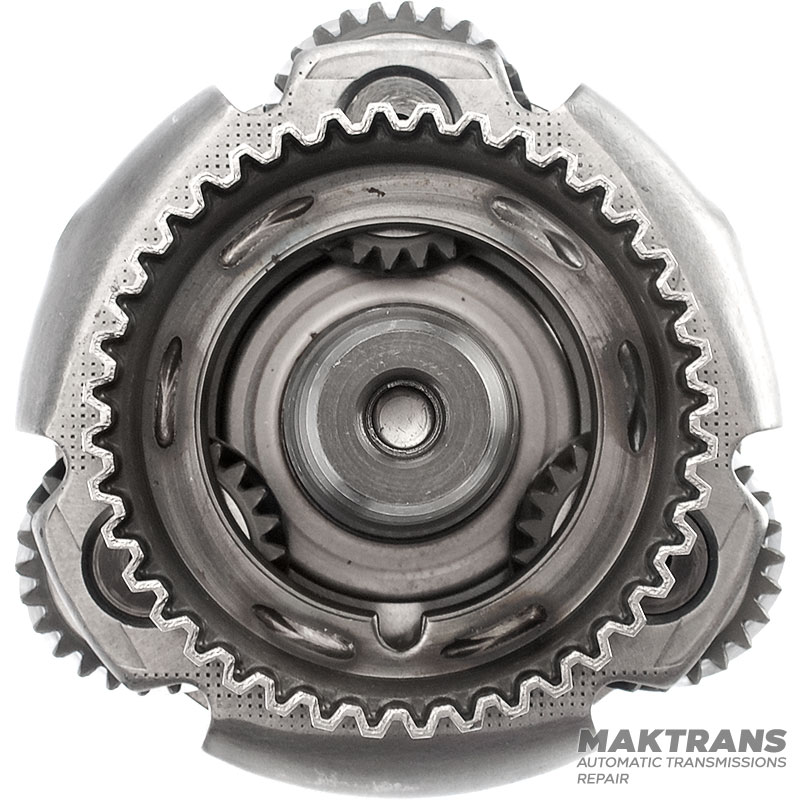

Planetary gear Underdrive TOYOTA U140 / U240 - 3 pinions (26 teeth), ring gear 83 teeth

Planetary gear:

• Total height - 226 mm;
• Number of splines on the shaft - 30 pcs.;
• The outer diameter of the spline part is 41.90 mm;
• The outer diameter of the satellite housing is 112.60 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 26 pcs.;
• Outer diameter of the Underdrive Clutch hub (C3) - 89.30 mm;
• The diameters of the working parts of the shaft on the side of the Underdrive Clutch hub are 25 mm / 32.55 mm;

Ring gear:

• Overall height - 33.15 mm;
• Number of teeth - 83 pcs.;
• Outer diameter - 137 mm;
