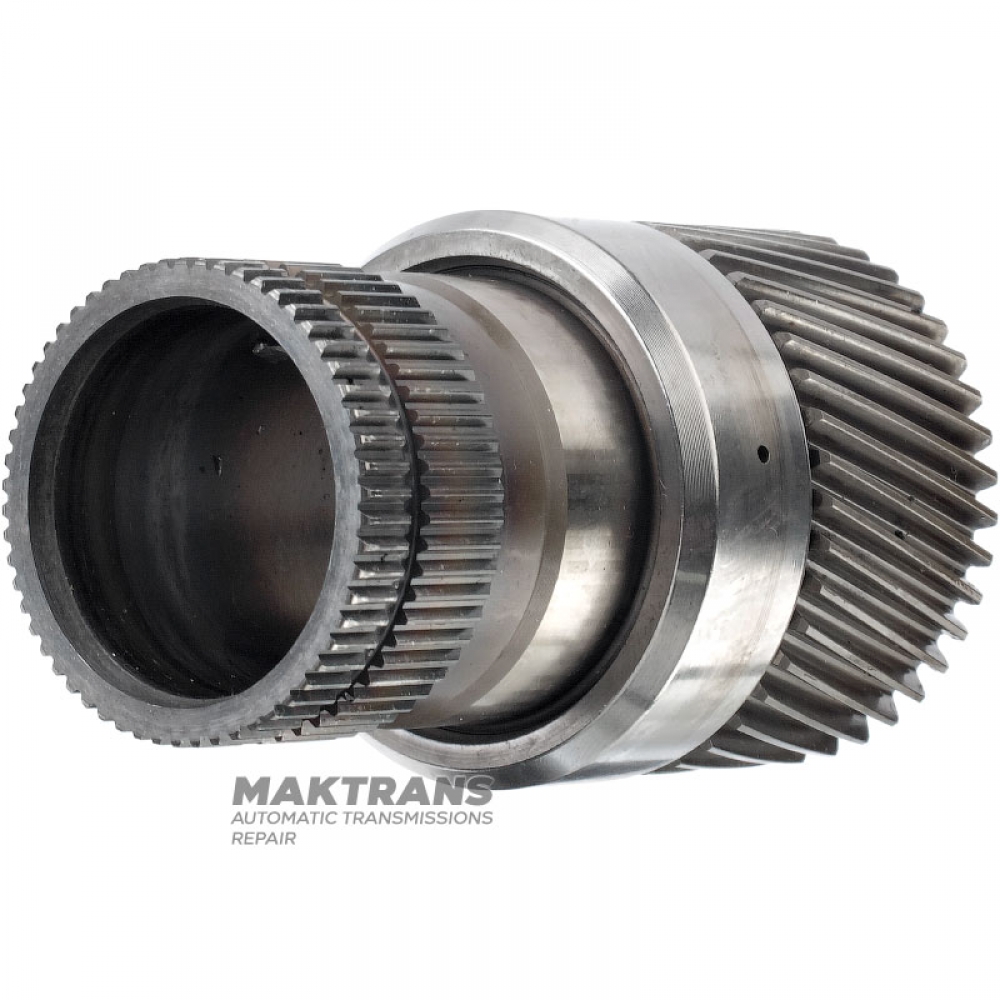

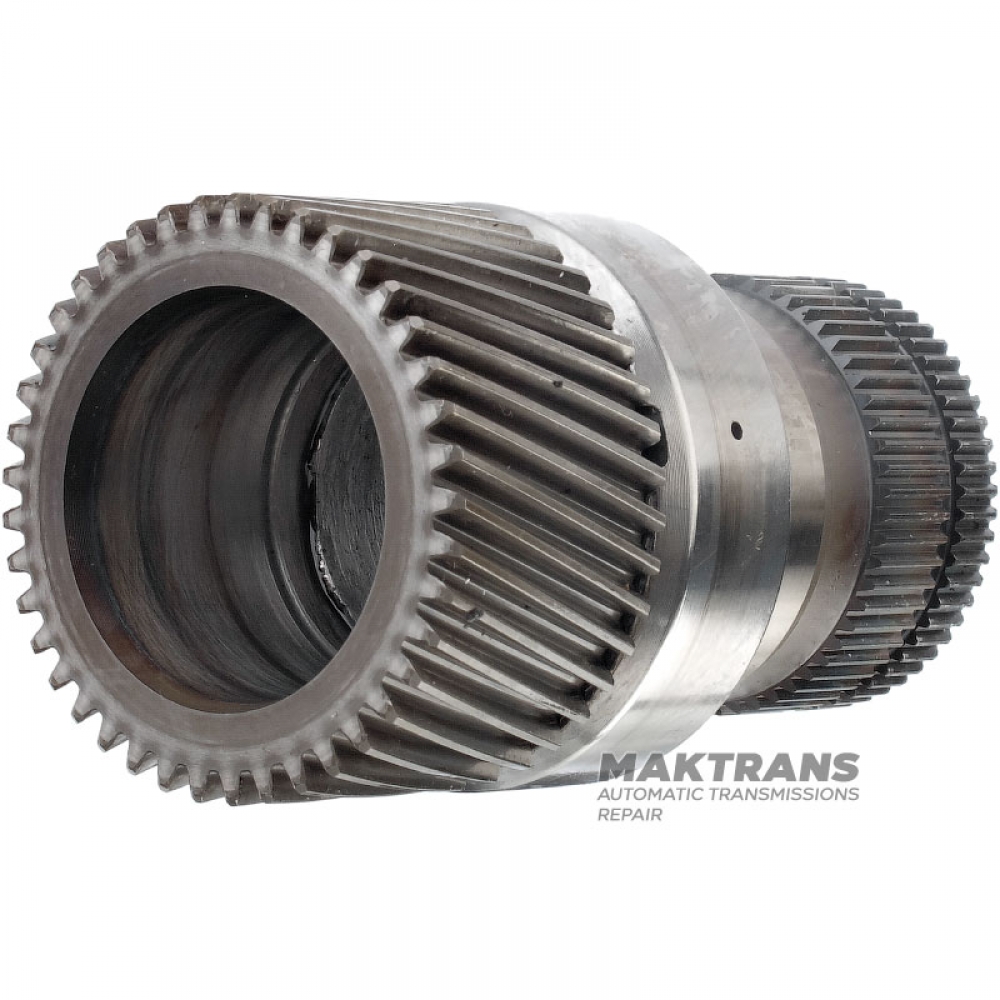

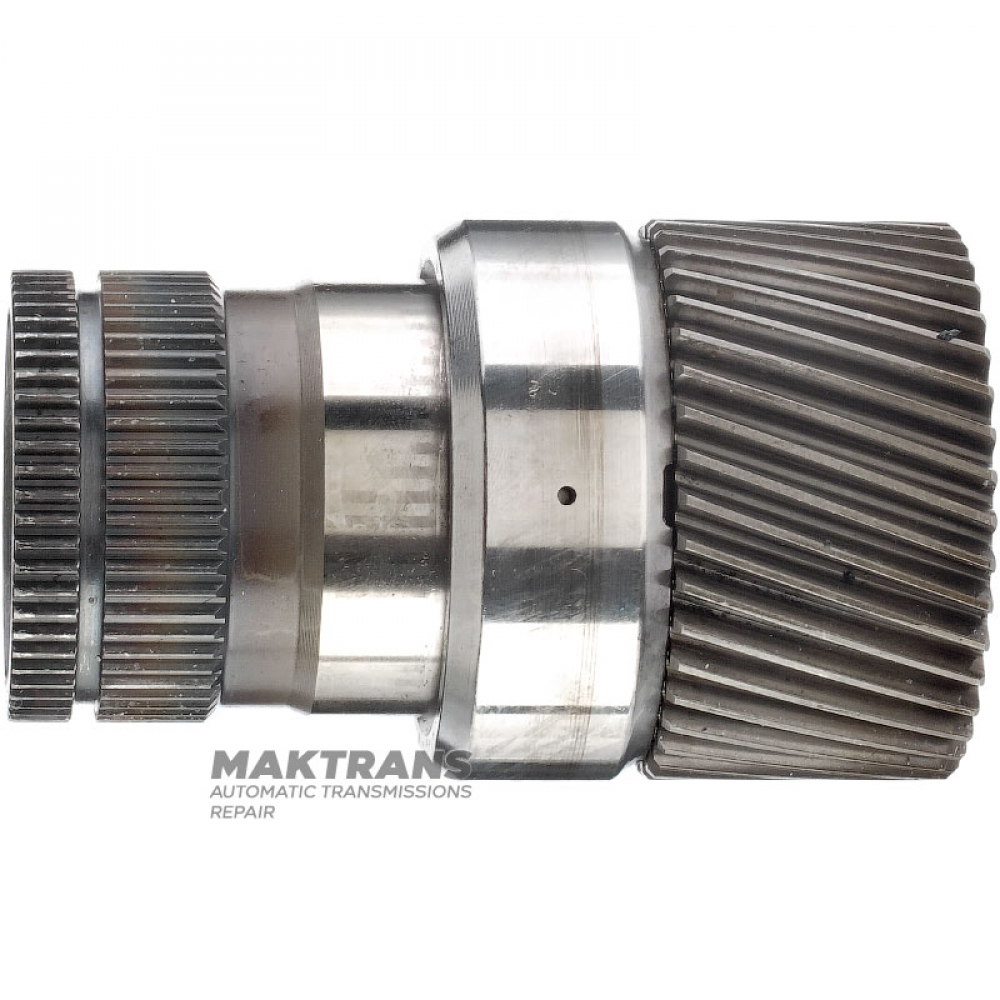

Planetary sun gear Reaction 8L45 24279663 - 41 teeth - bushings need to be replaced

*** internal bushings are damaged and require replacement.

• Total height - 92.50 mm;
• The outer diameter of the working part is 55.80 mm;
• Inner diameter of the bushing - 33.70 mm (ring side) / 32.25 mm (spline side);
• Number of splines - 58 pcs.;
• The outer diameter of the spline part is 44.10 mm;
• Number of teeth on the gear - 41 pcs.;
• The outer diameter of the sun gear is 55.15 mm;
