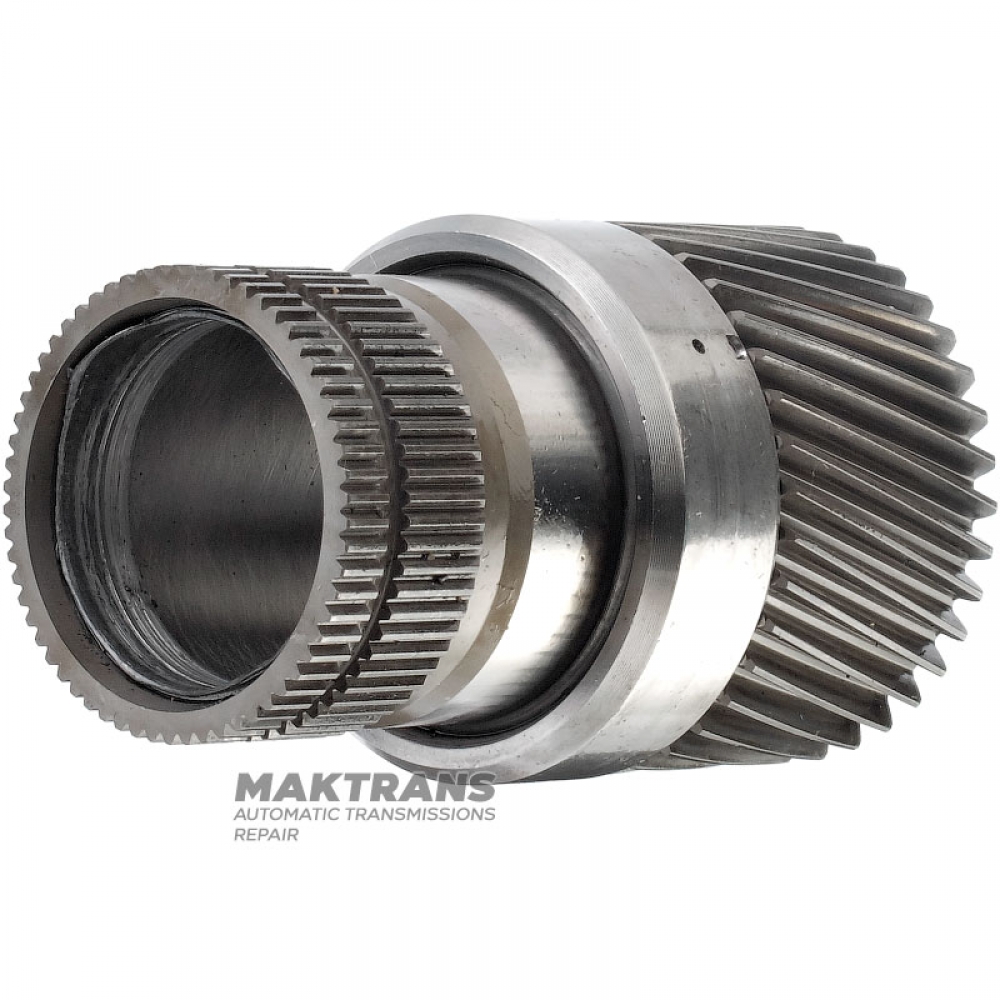

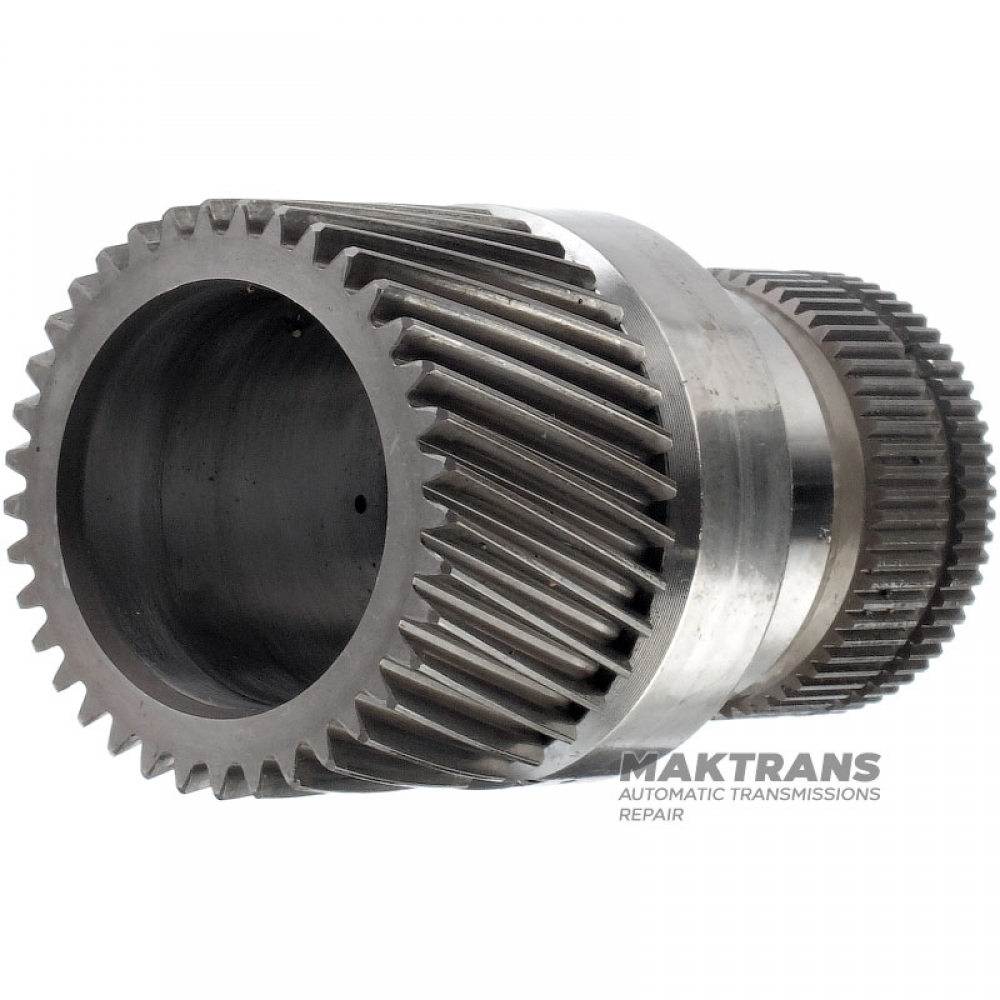

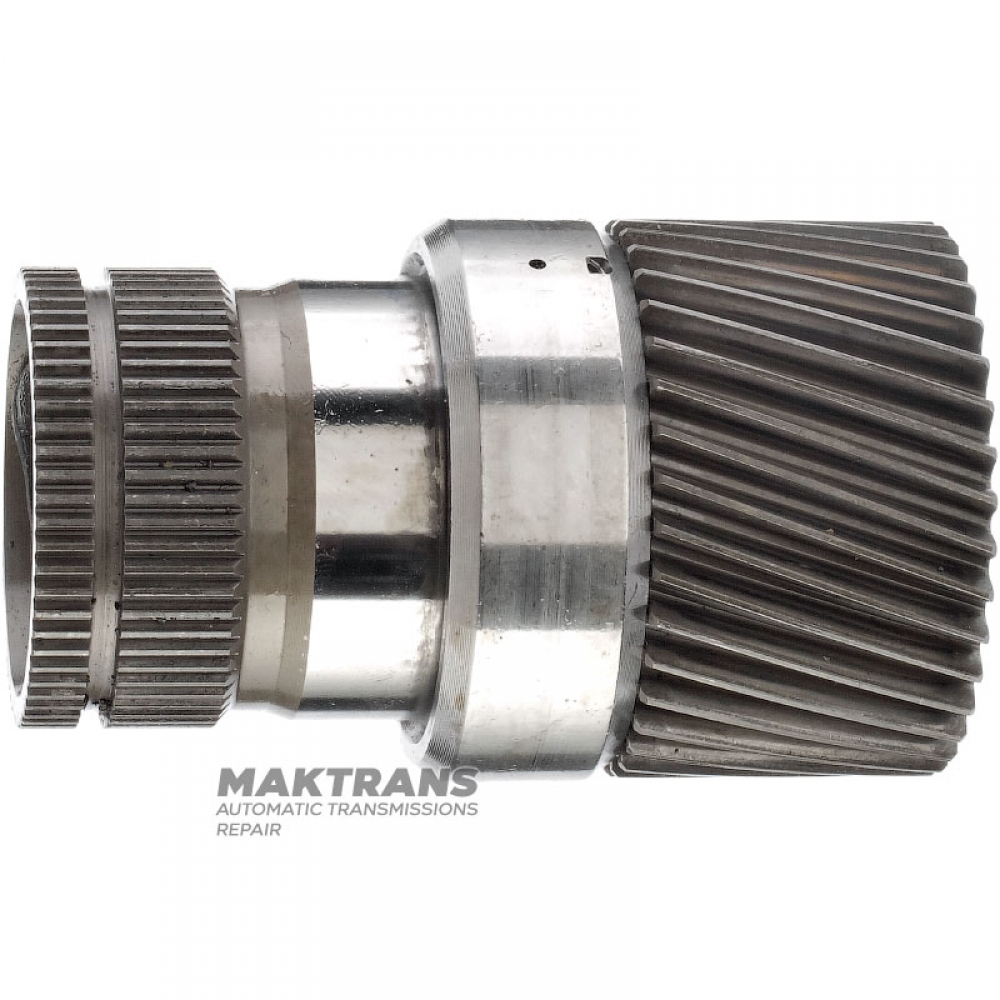

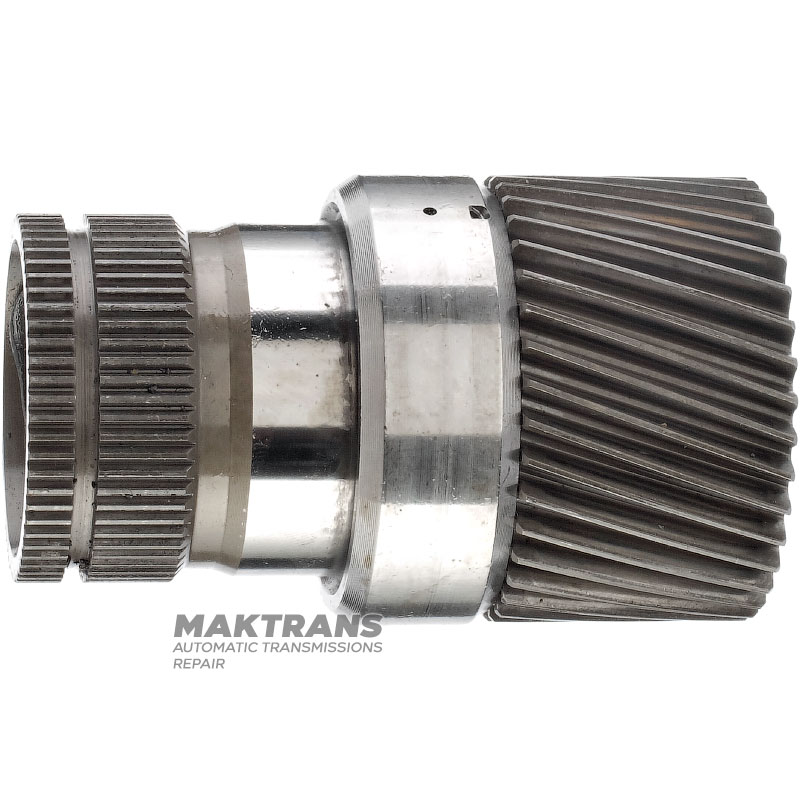

Planetary Sun Gear Reaction 8L90 24279662 24279663 - 37 teeth - bushings need replacement

*** internal bushings are damaged and require replacement.

• Total height - 96 mm;
• The outer diameter of the working part is 58.65 mm;
• Inner diameter of the bushing - 37.15 mm (ring side) / 35.85 mm (spline side);
• Number of splines - 62 pcs.;
• The outer diameter of the spline part is 47.10 mm;
• Number of teeth on the gear - 37 pcs.;
• The outer diameter of the sun gear is 57.80 mm;
