Main Specifications
Condition (used, new):
used and inspected
Type:
Planetary Overdrive
If you order more than 4 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 4 pcs. |
  |
| Ukraine | 8 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)

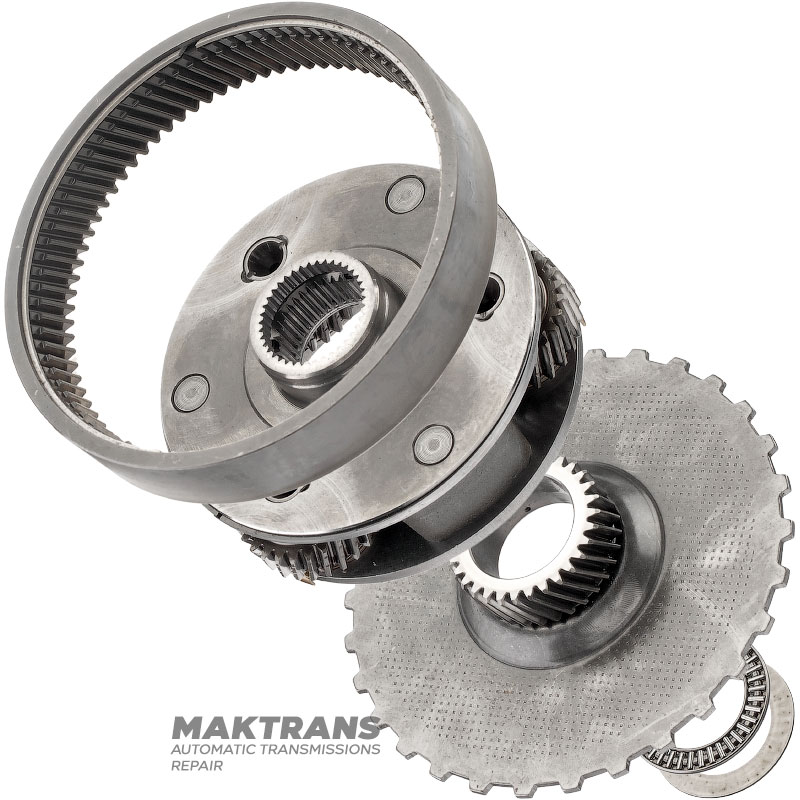

Planetary gear:
- Overall height - 52 mm;
- Outer body diameter - 115.30 mm;
- Number of splines on the inner side of the neck - 39 pcs.;
- Number of satellites - 3 pcs.;
- Number of teeth on satellites - 26 pcs.;
- The outer diameter of the satellites is 41.55 mm;
Ring gear:
- Overall height - 24.10 mm;
- Number of teeth - 83 pcs.;
- Gear outer diameter - 137.10 mm;
Sun gear:
- Overall height - 29 mm;
- Number of teeth on the gear - 31 pcs.;
- Gear outer diameter - 49.10 mm;
- The inner diameter of the gear is 33 mm;
- Number of teeth on the gear ring - 30 pcs.;
- The outer diameter of the gear ring is 145 mm;
