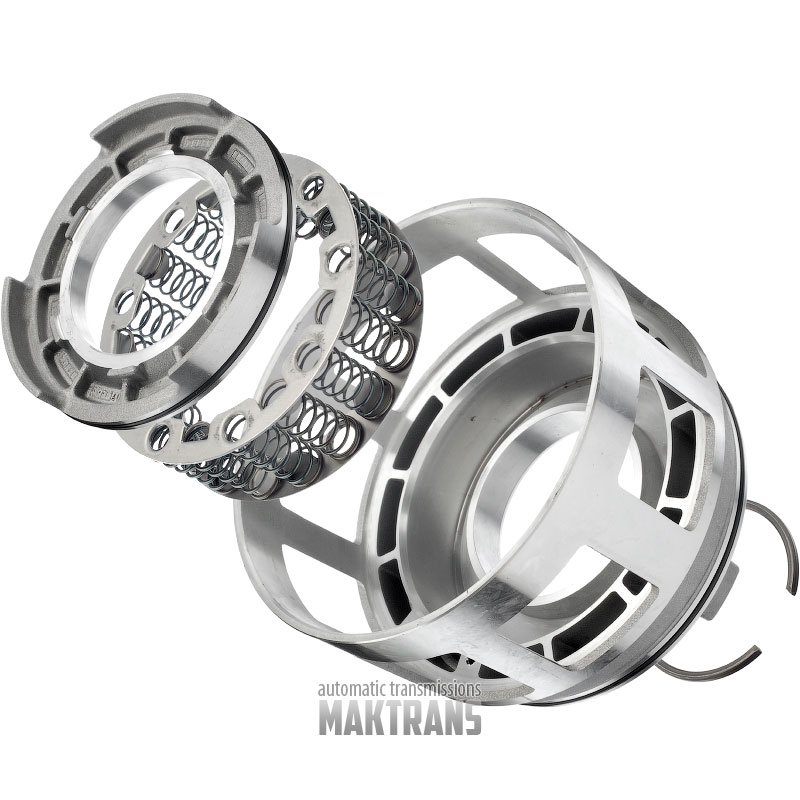

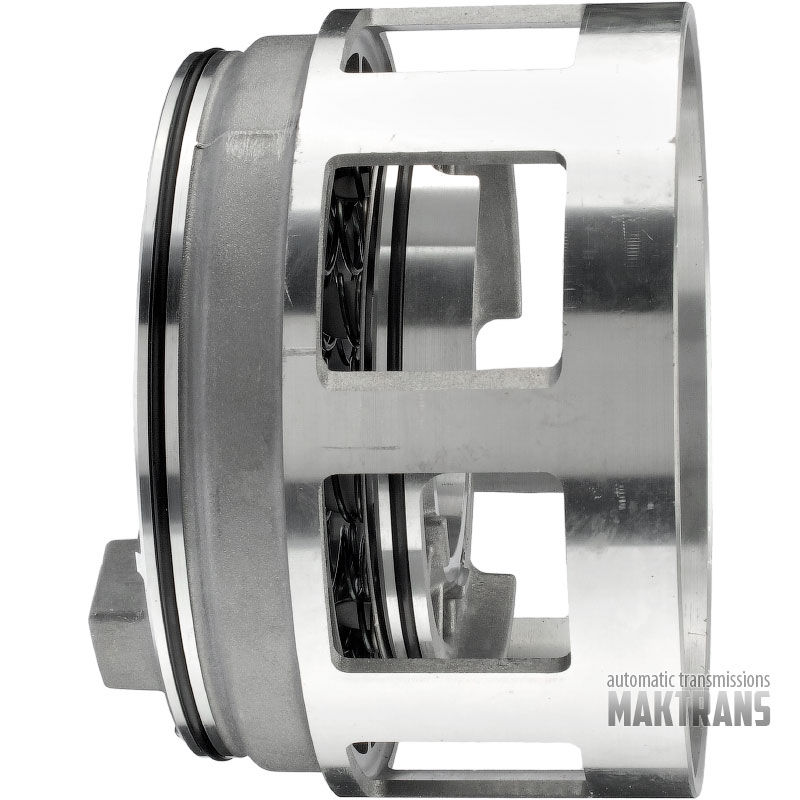

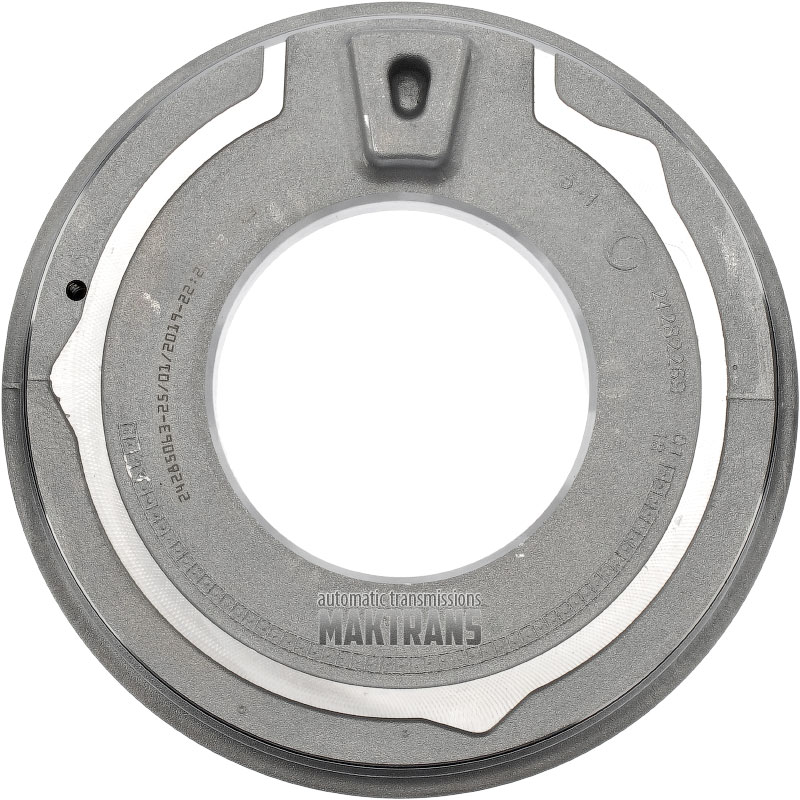

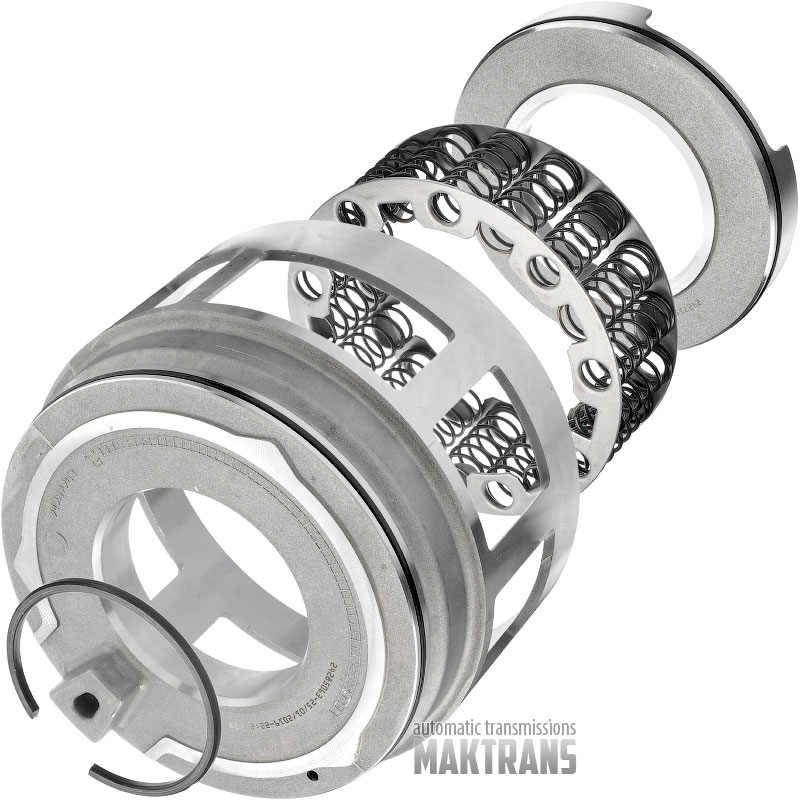

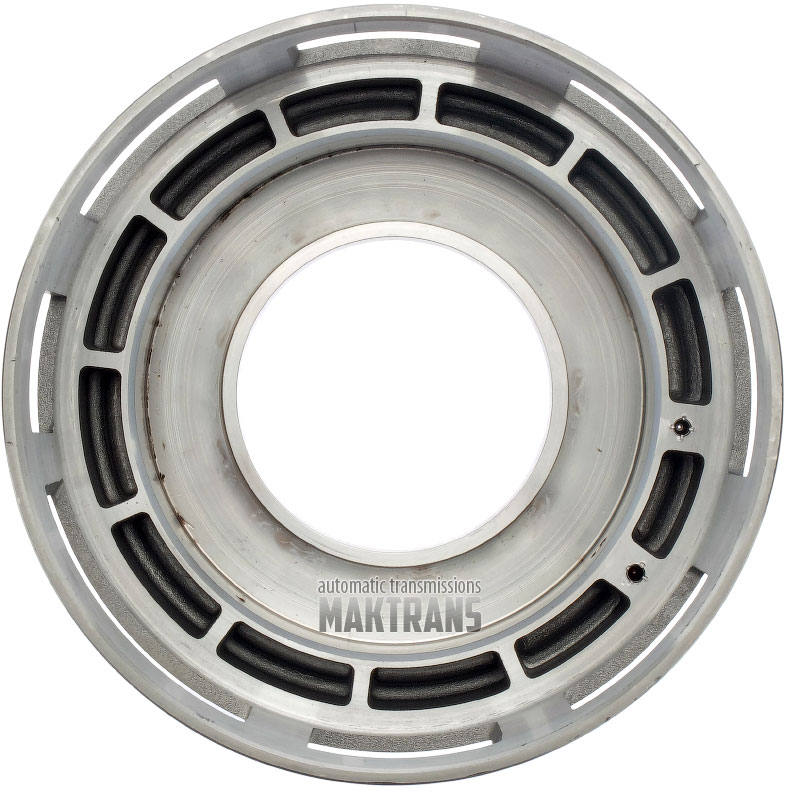

Piston and return spring 1-2-3-4-5 Reverse GM 8L90 / 24250301 24260980 24271540 24270448

Piston outer housing:

• Overall height - 100 mm / 111 mm;
• Outer diameter - 156.15 mm;
• Inner diameter - 45.45 mm;

Piston:

• Overall height - 18.90 mm;
• Outer diameter - 113.50 mm;
• Inner diameter - 66.65 mm;

Return spring block:

• Overall height - 36.90 mm;
• Outer diameter - 110.50 mm;
• Inner diameter - 80.55 mm;

Tags: 24271540 24285063 24282269 24271541
