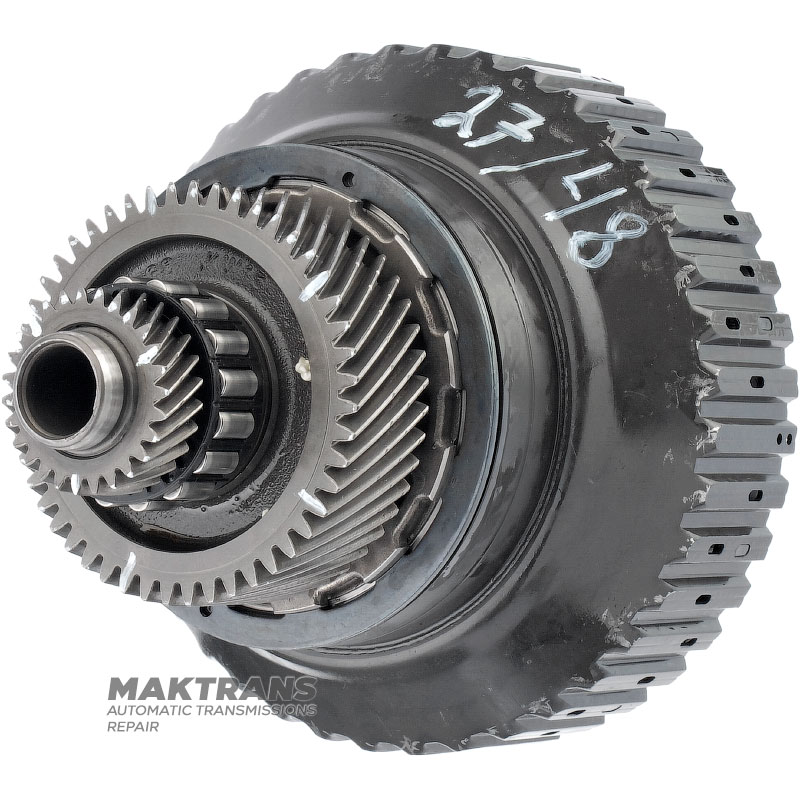

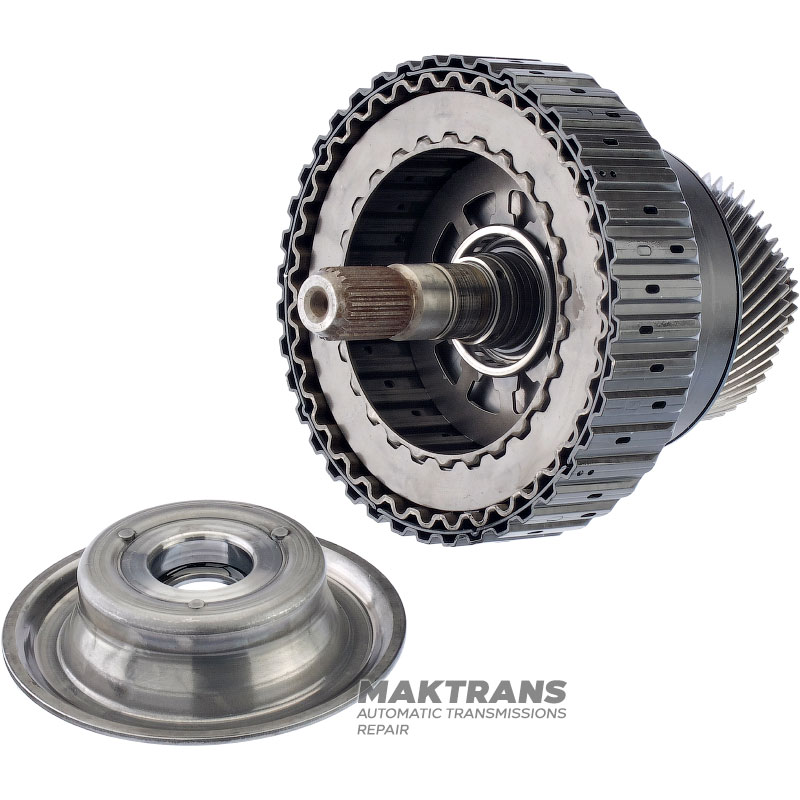

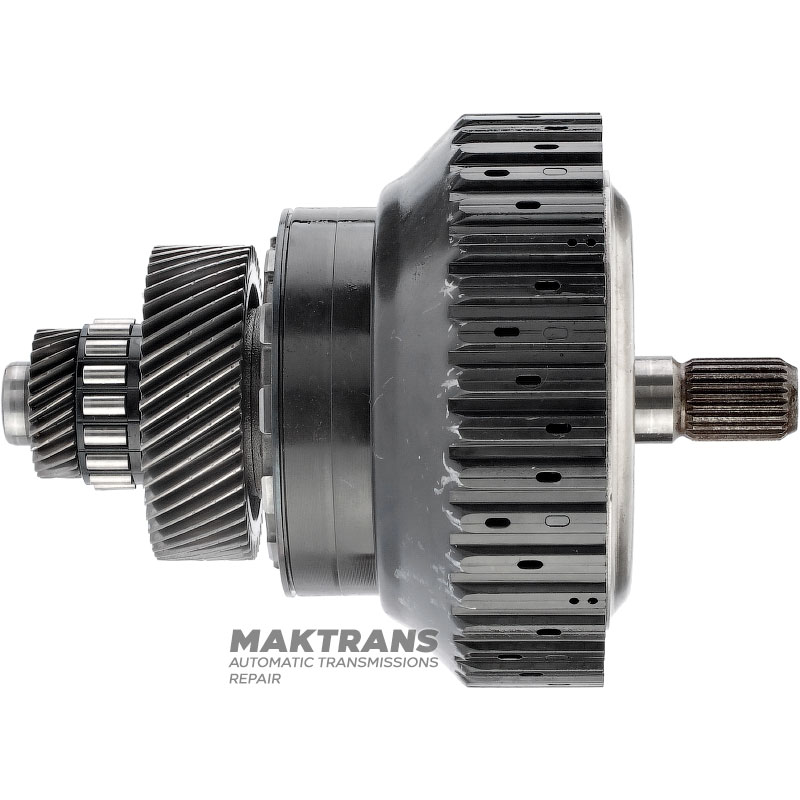

Primary shaft / clutch VAG CVT VL380 0AW - 27 teeth (ext.Ø 42.45 mm, 1 notch) / 48 teeth (ext.Ø 89.15 mm, 3 notches), 7 friction discs (total thickness of the set 31 mm)

• Total shaft height - 223 mm;
• Number of splines on the shaft - 23 pcs.;
• The outer diameter of the splined part is 23.65 mm;

Number of teeth on gears:

• 27 teeth, 1 notch - 42.45 mm;
• 48 teeth, 3 notches - 89.10 mm;

Set of steel and friction discs:

• The total thickness of the set is 31 mm;

Steel disk:

• Thickness - 3.10 mm;
• Outer diameter - 137.95 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 1.90 mm;
• Outer diameter - 137.95 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 7 pcs.;

Friction disc:

• Thickness - 2.05 mm;
• Inner diameter - 110.20 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 7 pcs.;

Spring disc:

• Thickness - 1.20 mm;
• Outer diameter - 137.80 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 1 pc.;

Tags: 0AW323911AQ, 01J323945, 01J323929
