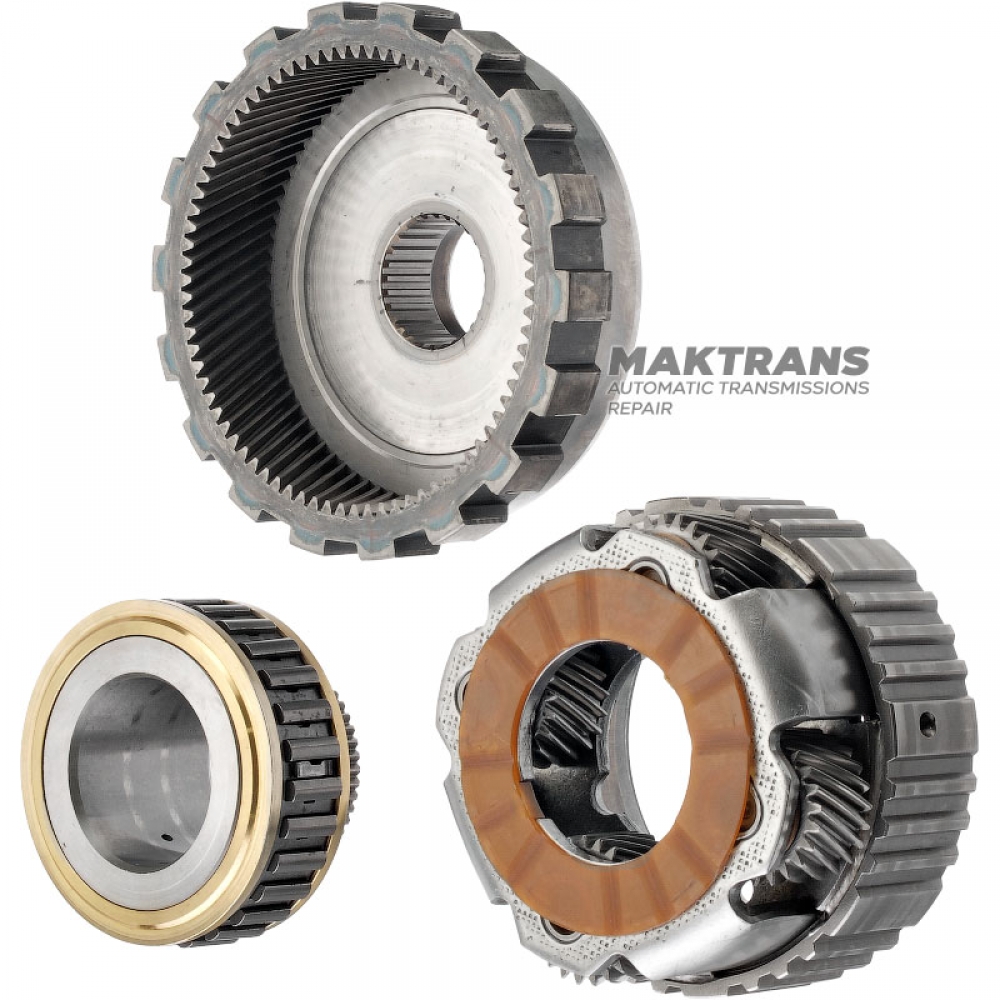

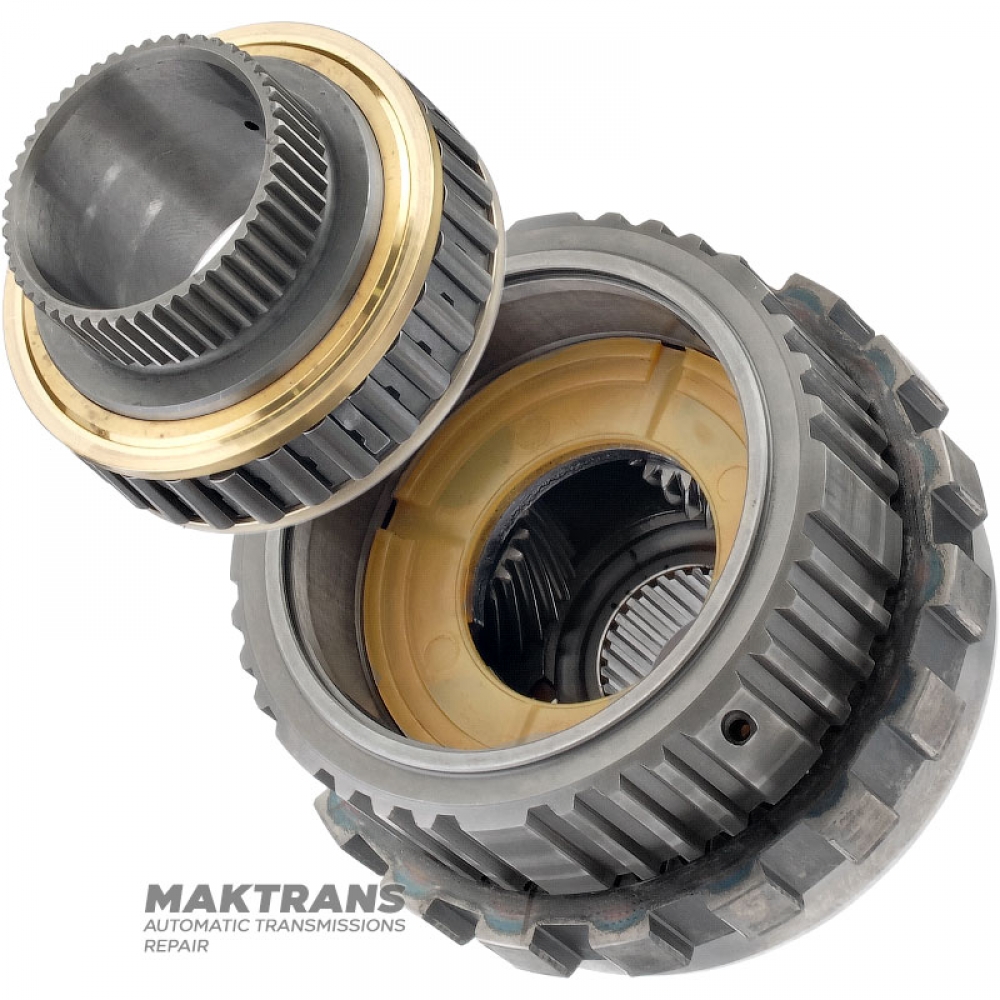

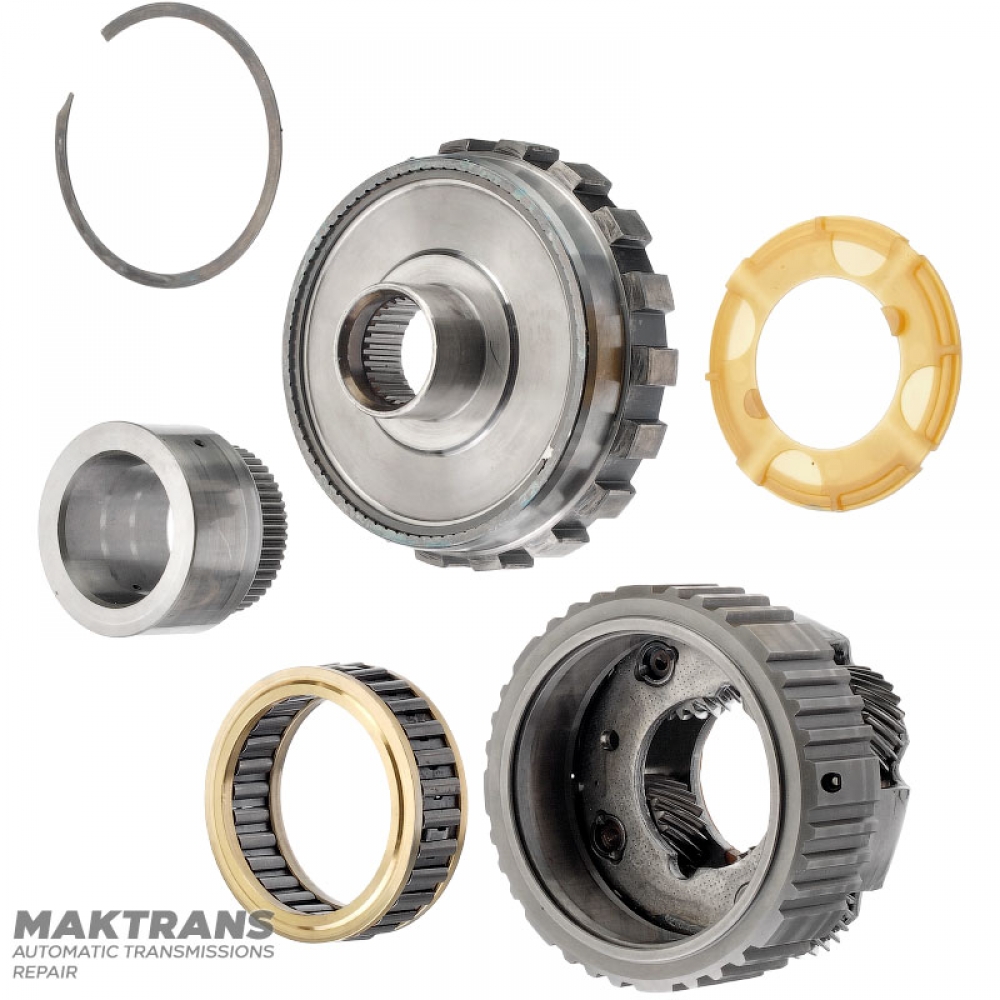

Rear planetary gear Aisin Warner 30-40LE, 30-80LE / TOYOTA A340 - 4 satellites (23 teeth, outer Ø 31.90 mm), ring gear 79 teeth

Planetary gear:

• Overall height - 63 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 23 pcs.;
• Satellite outer diameter - 31.90 mm;
• The outer diameter of the hub is 106.90 mm;
• The inner diameter of the overrunning clutch cylinder is 81.10 mm;

Ring gear:

• Total height (assembled with flange) - 54 pcs.;
• Flange neck height - 21.50 mm;
• Outer diameter of flange neck - 38 pcs.;
• Number of splines on the inner side - 28 pcs.;
• Number of teeth on the ring gear - 79 pcs.;
• Number of teeth on the outer ring - 18 pcs.;
• The outer diameter of the outer gear ring is 123.80 mm;

Overrunning clutch:

• Width - 21.75 mm;

Inner race / hub of the overrunning clutch:

• Overall height - 49.20 mm;
• Number of splines - 47 pcs.;
• The outer diameter of the splined part is 52.35 mm;
• The outer diameter of the working part is 64.50 mm;
• Height of the working part - 30.85 mm;
• Inner diameter - 44.45 mm;
