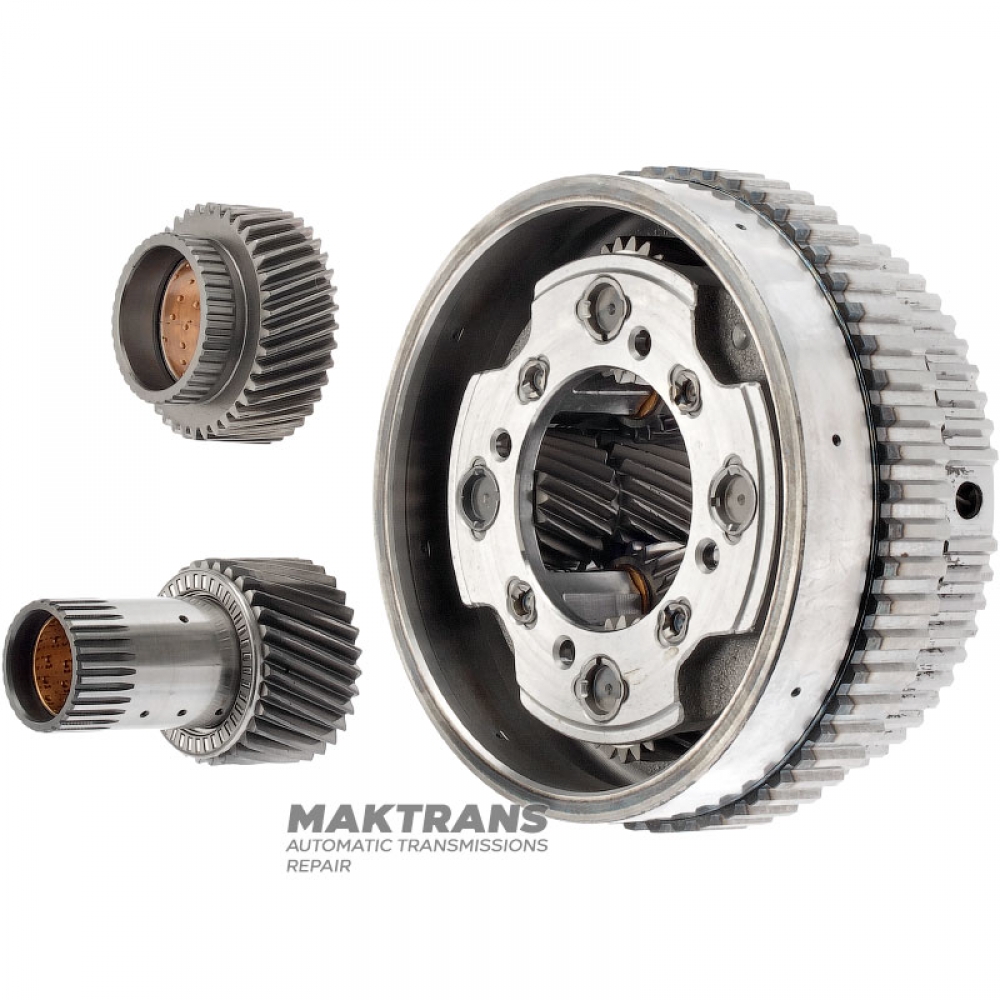

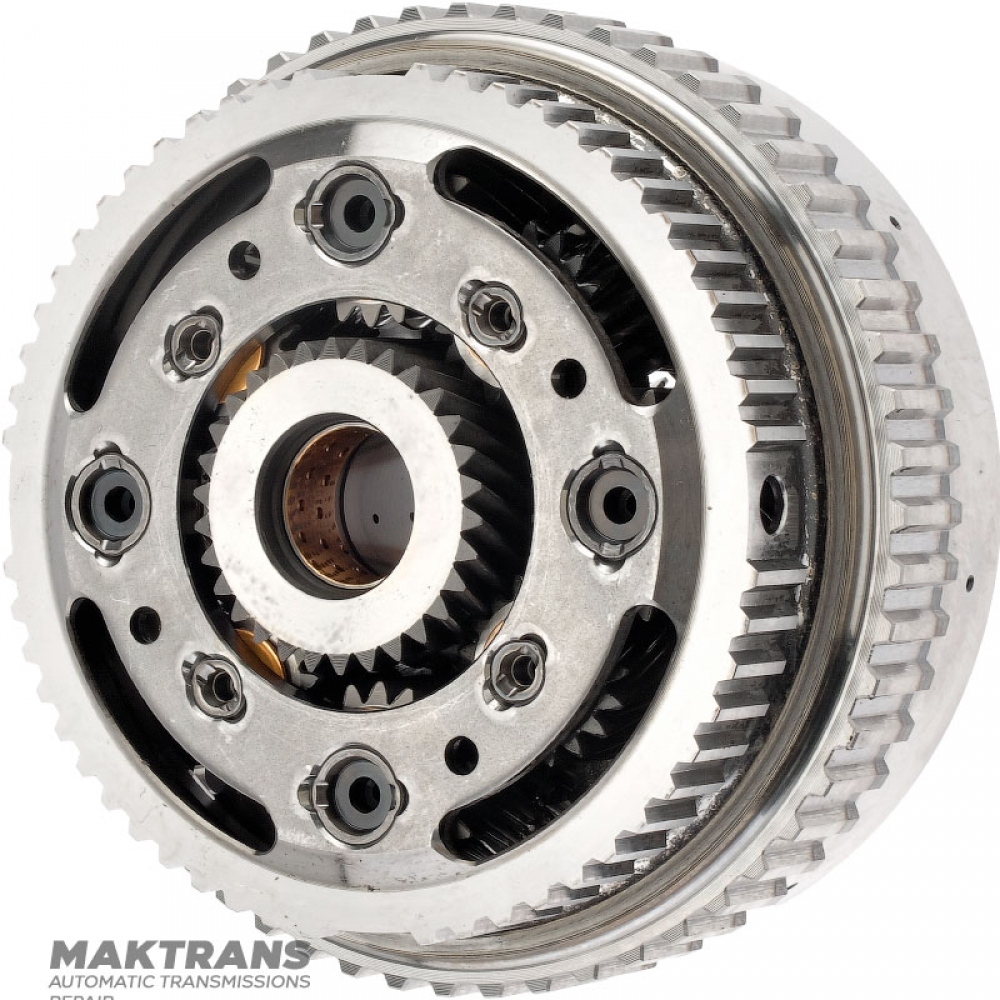

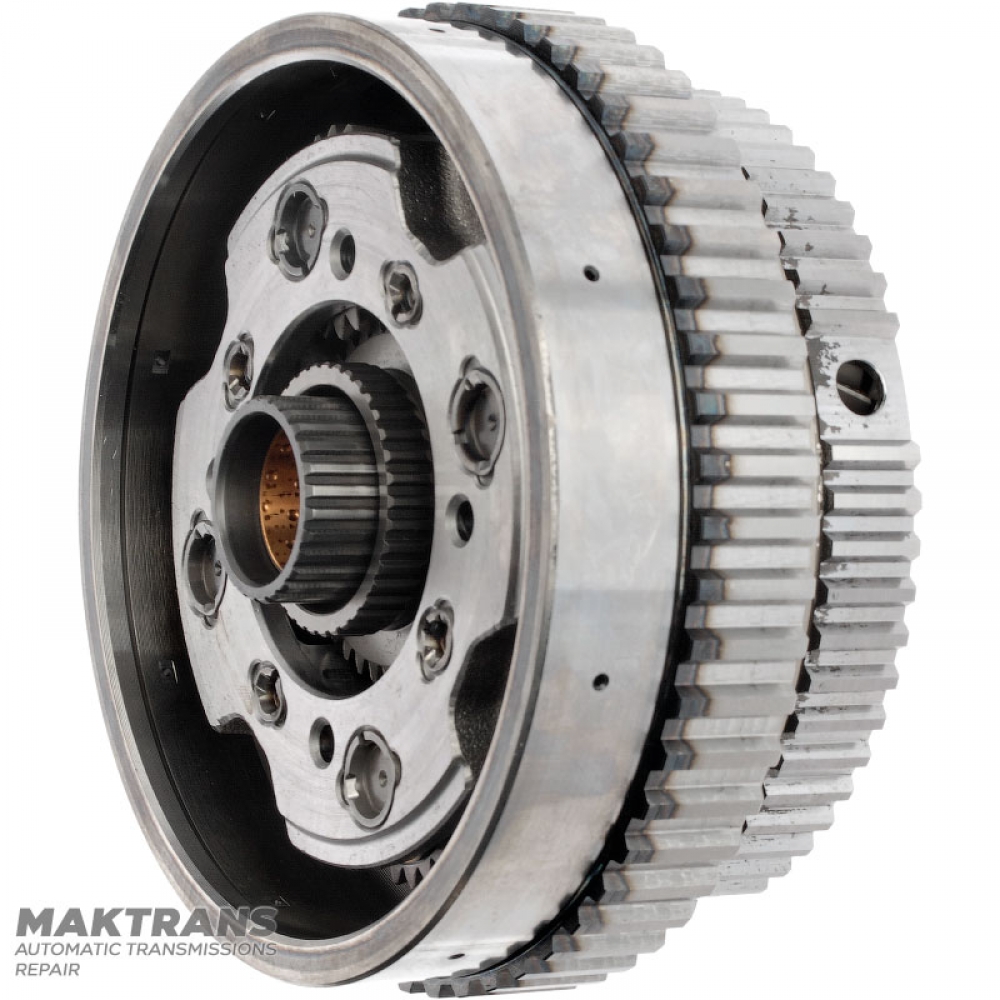

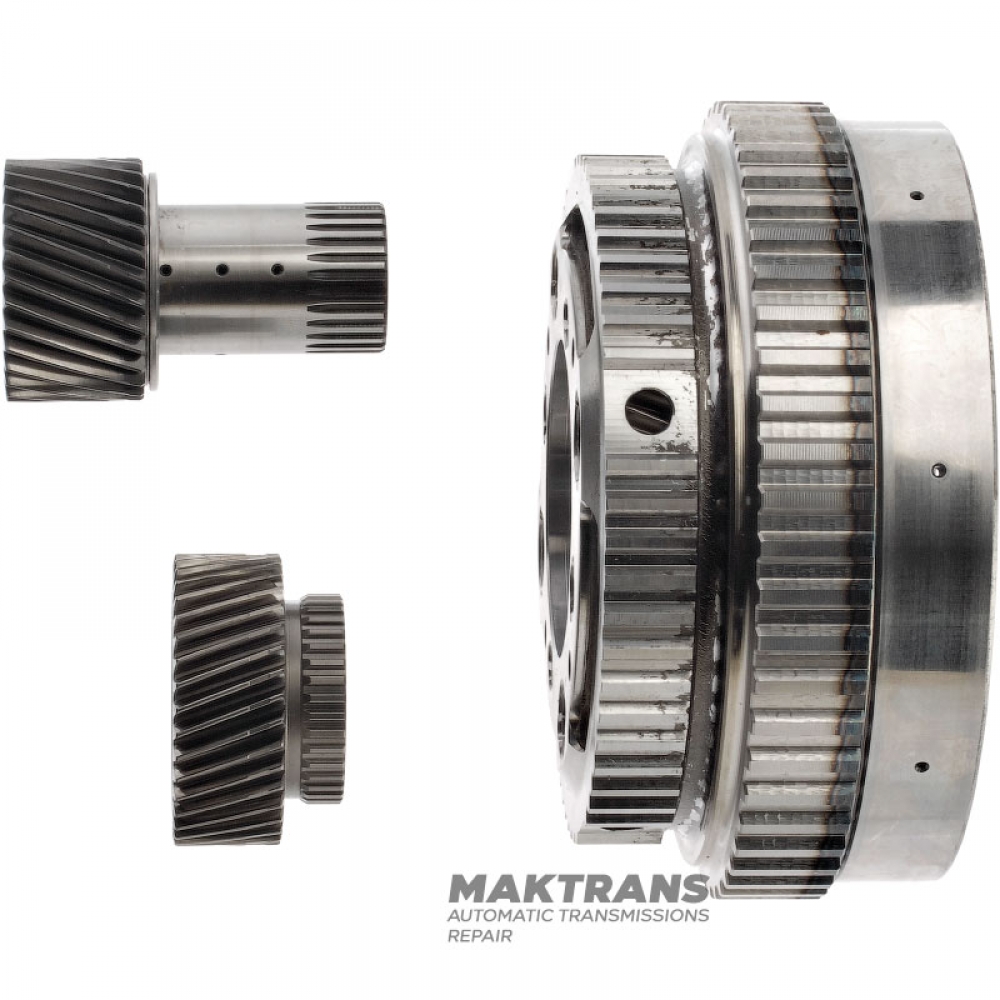

Rear planetary gear AISIN WARNER AWF8G30, TOYOTA / LEXUS UB80E, UB80F, VAG AQ300 (09S) - without ring gear, front sun gear (37 splines, outer Ø 39.60 mm)

Rear planetary gear AISIN WARNER AWF8G30, TOYOTA / LEXUS UB80E, UB80F, VAG AQ300 (09S) - without ring gear, front sun gear (37 splines, outer Ø 39.60 mm)
Rear planetary gear AISIN WARNER AWF8G30, TOYOTA / LEXUS UB80E, UB80F, VAG AQ300 (09S) - without ring gear, front sun gear (37 splines, outer Ø 39.60 mm)
Rear planetary gear AISIN WARNER AWF8G30, TOYOTA / LEXUS UB80E, UB80F, VAG AQ300 (09S) - without ring gear, front sun gear (37 splines, outer Ø 39.60 mm)
Rear planetary gear AISIN WARNER AWF8G30, TOYOTA / LEXUS UB80E, UB80F, VAG AQ300 (09S) - without ring gear, front sun gear (37 splines, outer Ø 39.60 mm)

Worldwide Shipping 🌎

Product Code:
AWF8G30-RQ-4S
Product model copied to clipboard
Brand
AISIN WARNER
Availability: 20
Weight (kg): 5
€184.49

Shipping Icon Shipping to United States from €96.39

Main Specifications
Condition (used, new): Used and inspected
Type: Rear planetary gear
Equipment level: Planetary gear, front and rear sun gears
If you order more than 6 pcs - shipping time will be longer at few days
Stock Place: Availability: Price: Qty:
Slovakia 6 pcs. €184.49
Add to cart
Add to cart
Ukraine 14 pcs. €184.49
Add to cart
Add to cart
  • Product overview
  • Shipping & Payment
  • Questions - Answers (0)

Planetary gear:

  • Overall height - 69 mm;
  • The outer diameter of the working part of the overrunning clutch is 139.40 mm;

Front Sun Gear/Ring Gear Satellites:

  • Number of satellites - 4 pcs.;
  • Number of teeth on satellites - 20 pcs.;


Rear sun gear satellites:

  • Number of satellites - 4 pcs.;
  • Number of teeth on satellites - 17 pcs.;





Sun gears:
Front: Back:
  • Height - 31.95 mm;
  • Number of splines - 37 pcs.;
  • Outer diameter of spline neck - 39.60 mm;
  • Inner diameter of the sleeve - 29.90 mm;
  • Number of teeth - 38 pcs.;
  • Gear outer diameter - 54.90 mm;
  • Gear width - 20.70 mm;
  • Height - 73.80 mm;
  • Number of splines - 28 pcs.;
  • Outer diameter of spline neck - 29.80 mm;
  • Inner diameter of the sleeve - 22.10 mm;
  • Number of teeth - 30 pcs.;
  • Gear outer diameter - 47.20 mm;
  • Gear width - 26.95 mm;
