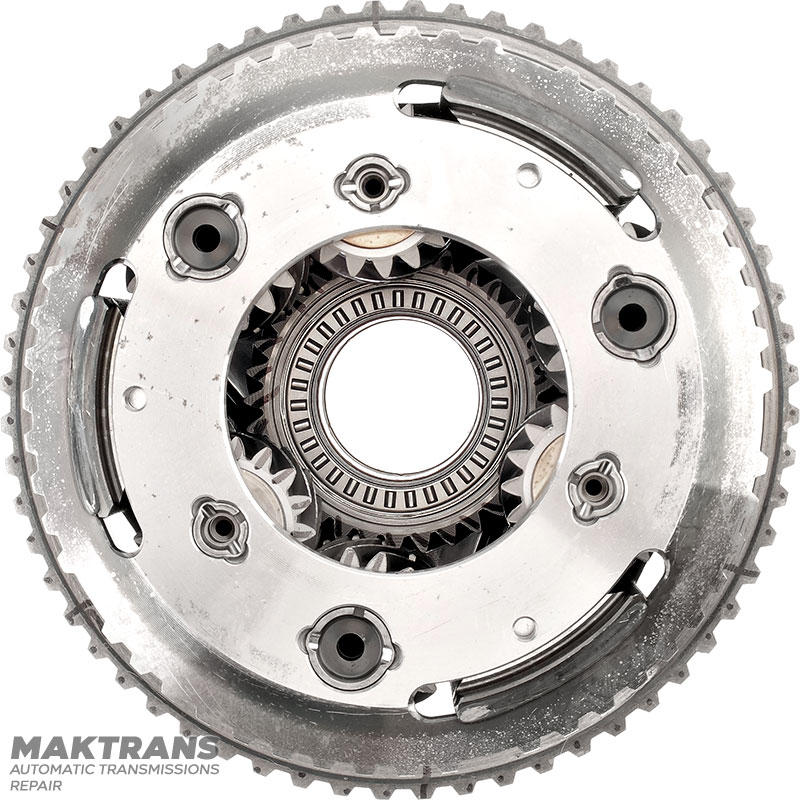

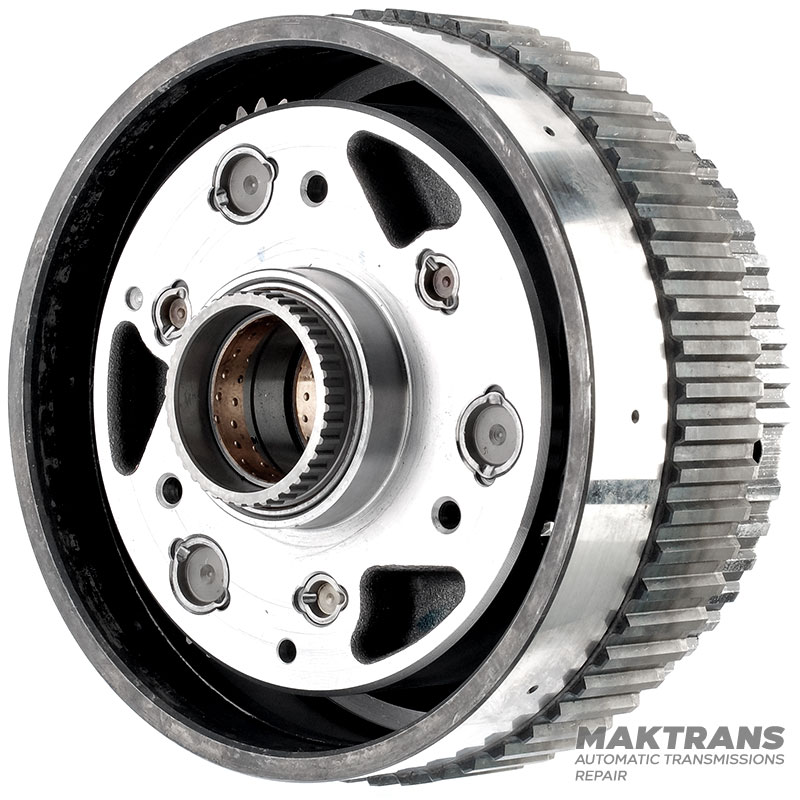

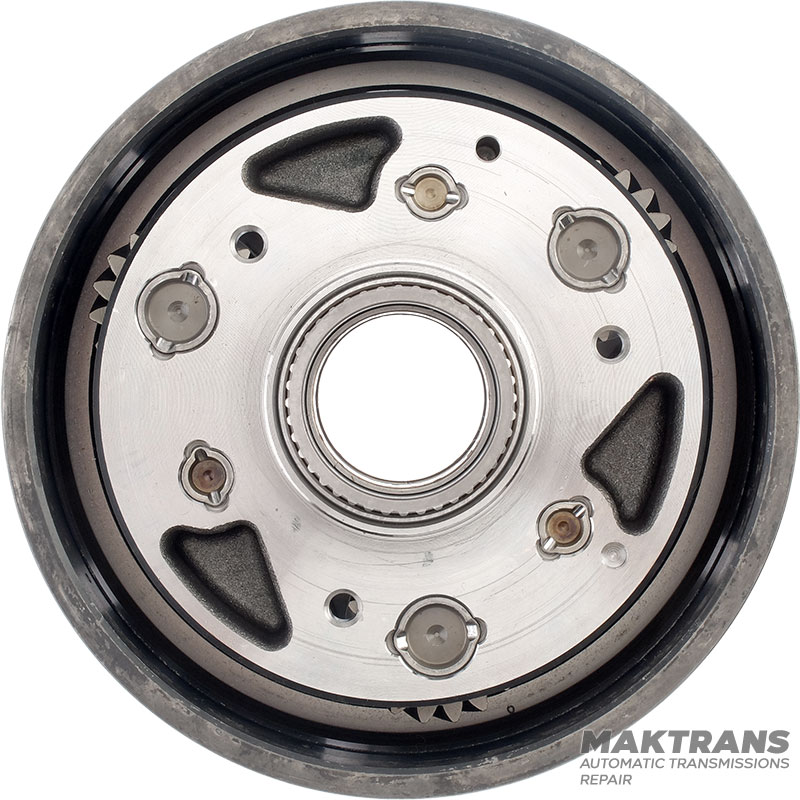

Rear Planetary Gear Aisin Warner TF81-SC TF80-SC - 3x3 pinions, no rear sun gear

Planetary gear:

• Total height - 83 mm (excluding sun gear);
• Overall height - 94 mm (including sun gear);
• The outer diameter of the working part of the overrunning clutch is 153.45 mm;
• Number of satellites - 3 pcs / 3 pcs.;

Front sun gear satellites: Number of satellites - 3 pcs.;

• Number of teeth - 18 pcs.;

Rear sun gear pinions:

• Number of satellites - 3 pcs.;
• The number of teeth on the satellite is 17 pcs.;

Front sun gear (non-removable):

• Number of teeth - 33 pcs;
• Number of splines - 40 pcs.;
• The outer diameter of the spline part is 42.85 mm;
• Inner diameter of the sleeve - 33.35 mm;

Rear sun gear:

Without rear sun gear.

Hub B2 Brake:

• Hub height 28.10 mm;
• The outer diameter of the B2 Brake hub is 159.20 mm;

C2 Clutch Hub:

• Hub height - 20 mm;
• The outer diameter of the C2 Clutch hub is 141.35 mm;
