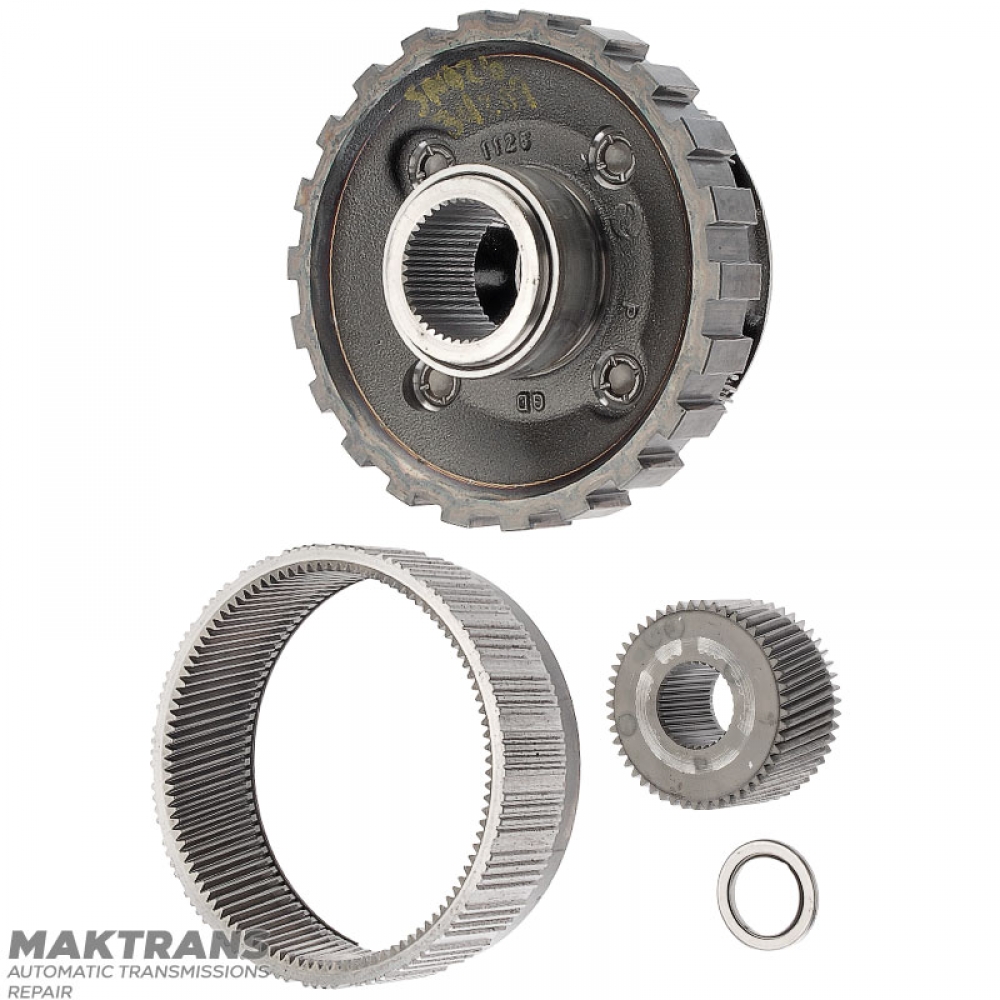

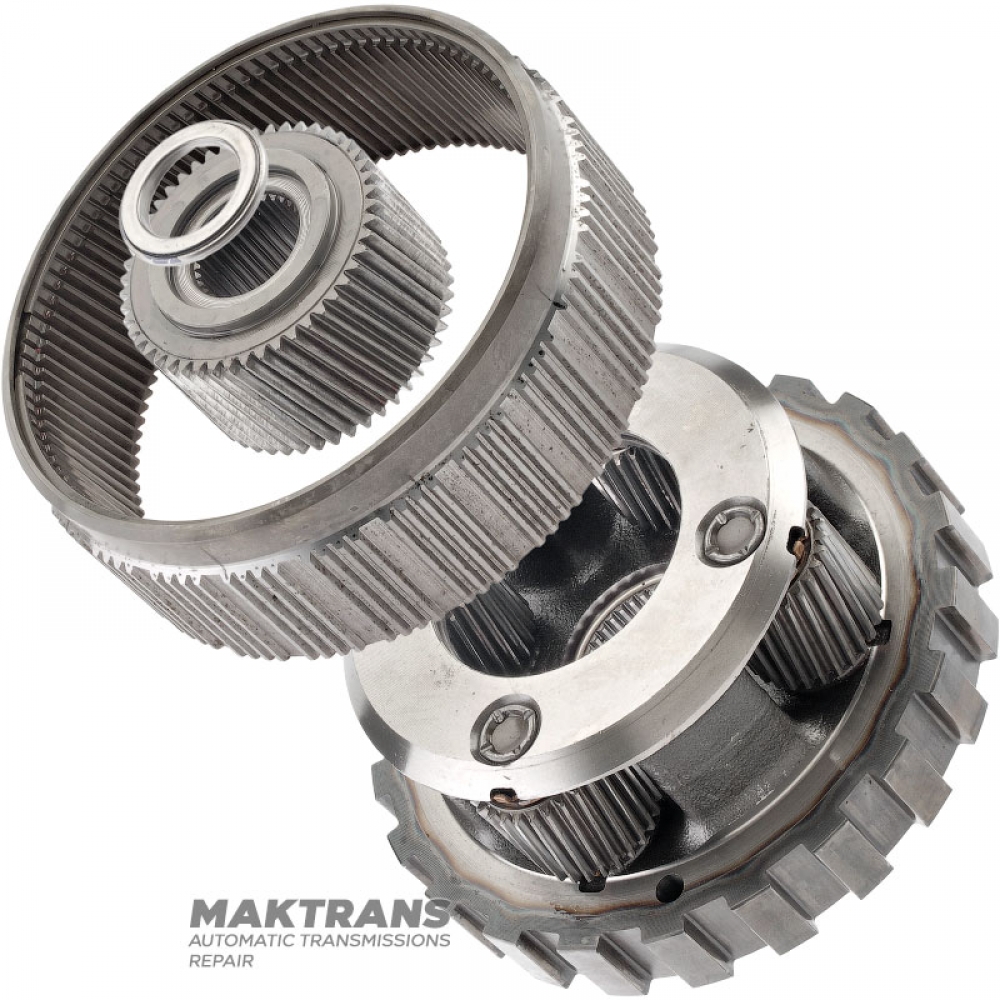

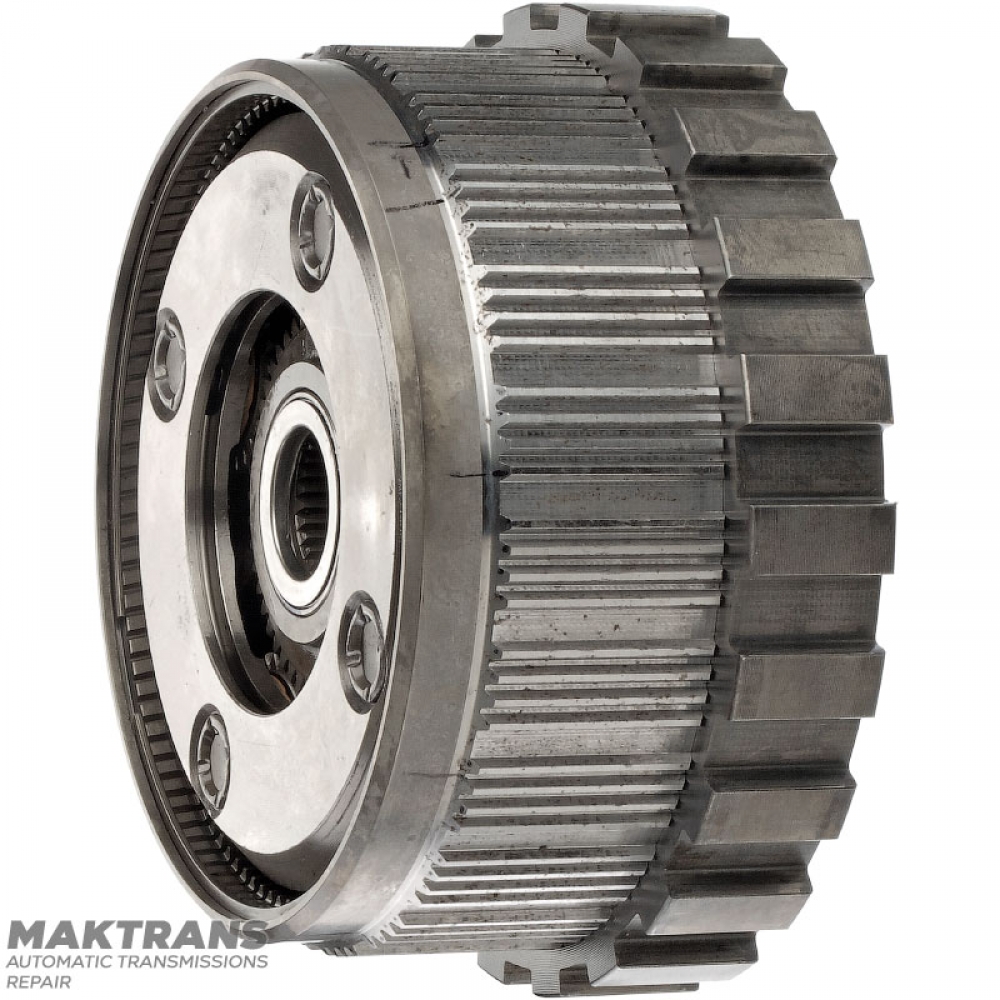

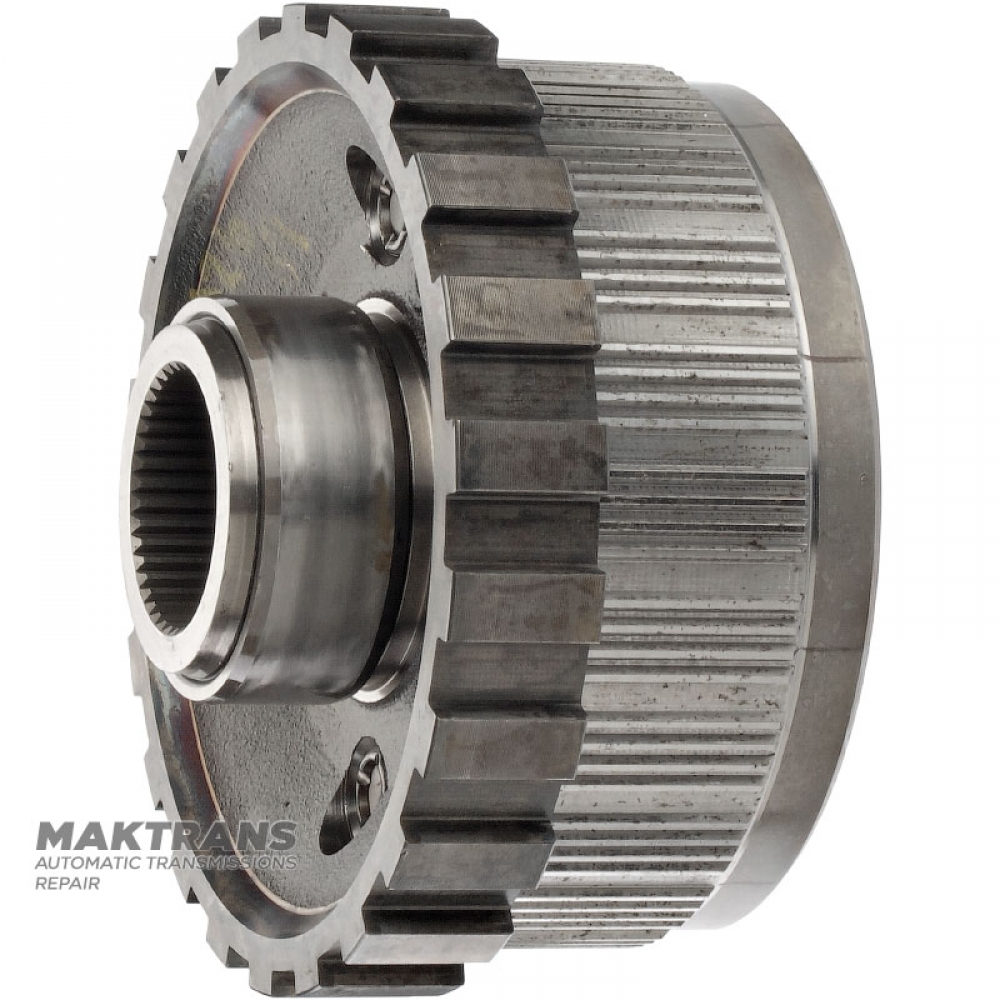

Rear planetary gear ALLISON 1000 - sun gear 49 teeth (for bearing 43.50 mm), 4 satellites (27 teeth, external Ø 43.60 mm), 29541008, 24279272, 29539512, 29540500

Planetary gear:

• Overall height - 108 mm;
• Number of splines on the inner side - 41 pcs.;
• The outer diameter of the bearing race (on the neck) is 80 mm;
• Number of teeth on the parking gear - 22 pcs.;
• Parking gear outer diameter - 194.50 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 27 pcs.;
• The outer diameter of the satellites is 43.60 mm;

Ring gear:

• Overall height - 61.05 mm;
• Number of teeth on the ring gear - 103 pcs.;
• Number of teeth on the outer side - 92 pcs.;
• Outer diameter of gear - 176 mm;

Sun gear:

• Overall height - 47.25 mm;
• Number of splines on the inner side - 31 pcs.;
• Number of teeth on the sun gear - 49 pcs.;
• Sun gear outer diameter: 78.25mm ;

Needle bearing pinion:

• Outer diameter - 43.60 mm;
• Inner diameter - 29.30 mm;
• Thickness - 3.85 mm;
