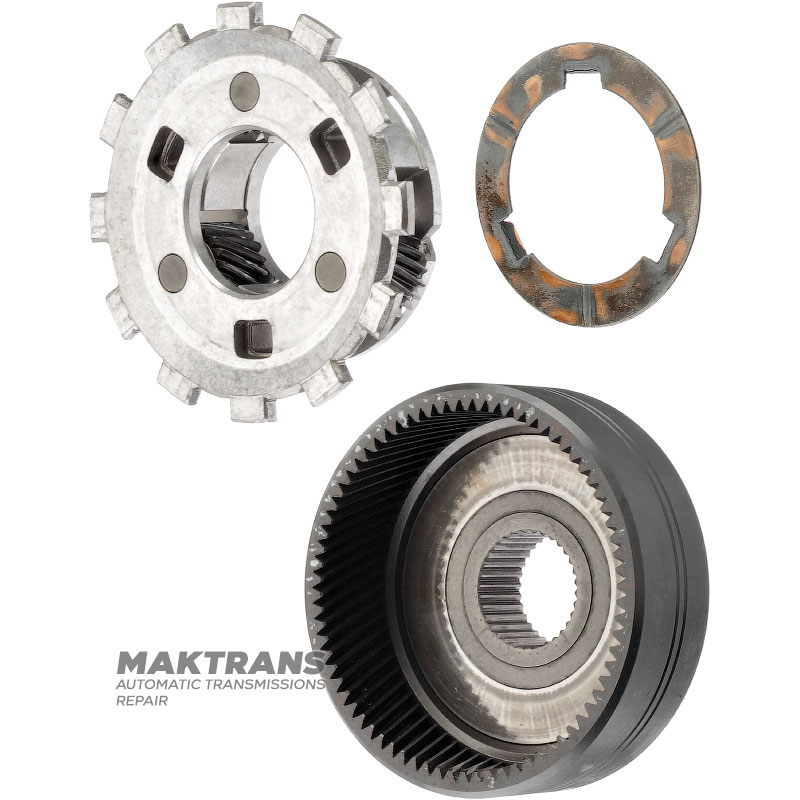

Rear planetary gear (aluminum case) FORD E4OD, 4R100 — 3 satellites (20 teeth, outer Ø 34.20 mm, 12 teeth on the crown), ring gear 74 teeth

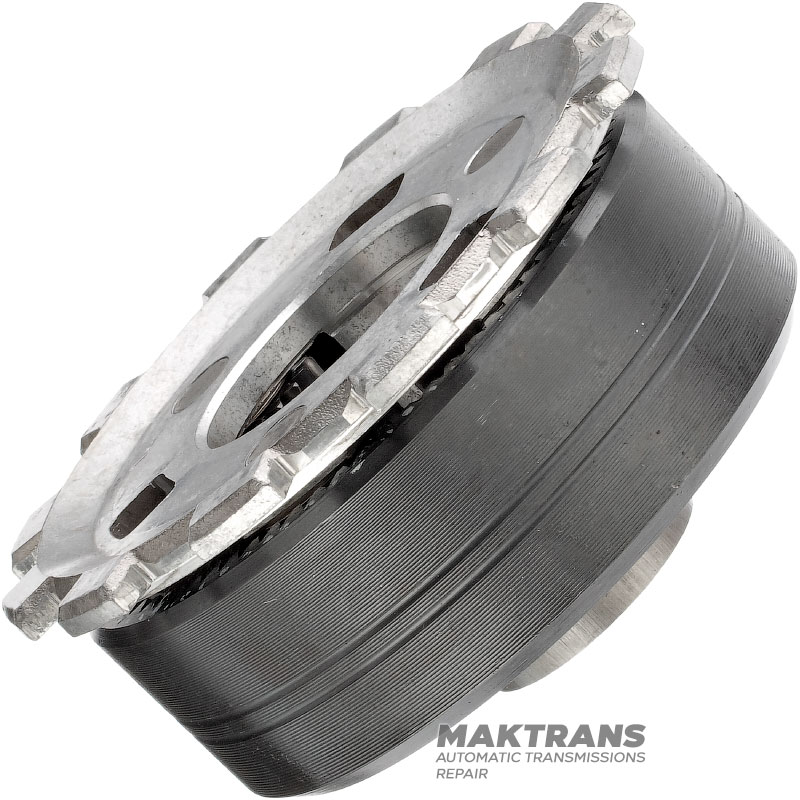

Ring gear (assembled with flange):

• Overall height - 58 mm;
• Gear outer diameter - 127.10 mm;
• Number of splines on the inner side - 34 pcs;
• The outer diameter of the spline neck is 46.40 mm;

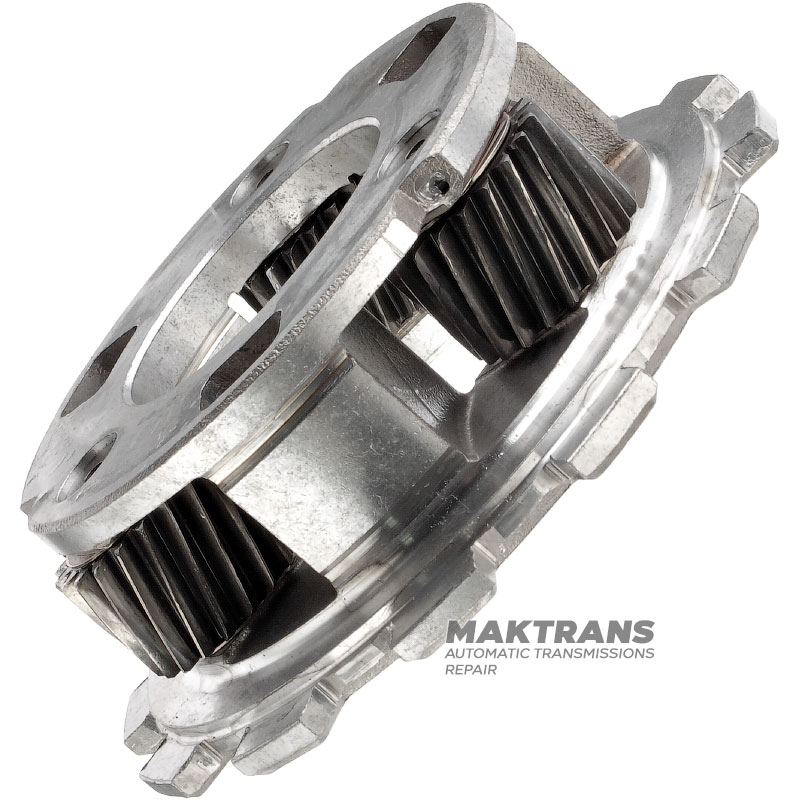

Planetary gear:

• Overall height - 44 mm;
• Number of satellites - 3 pcs;
• Number of teeth on the satellite - 20 pcs;
• Inner case diameter - 55.85 mm;
• Number of teeth on the crown - 12 pcs;
• Outer diameter of gear ring - 142.05 mm;
