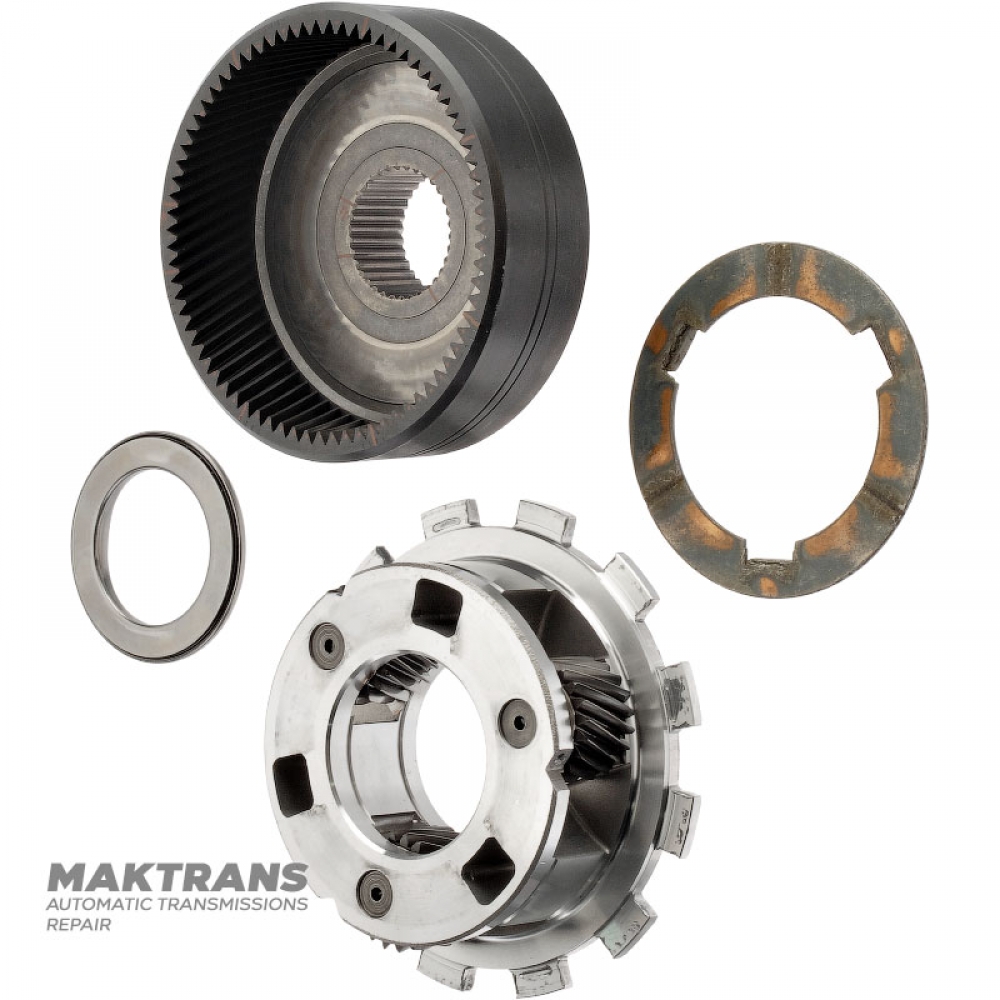

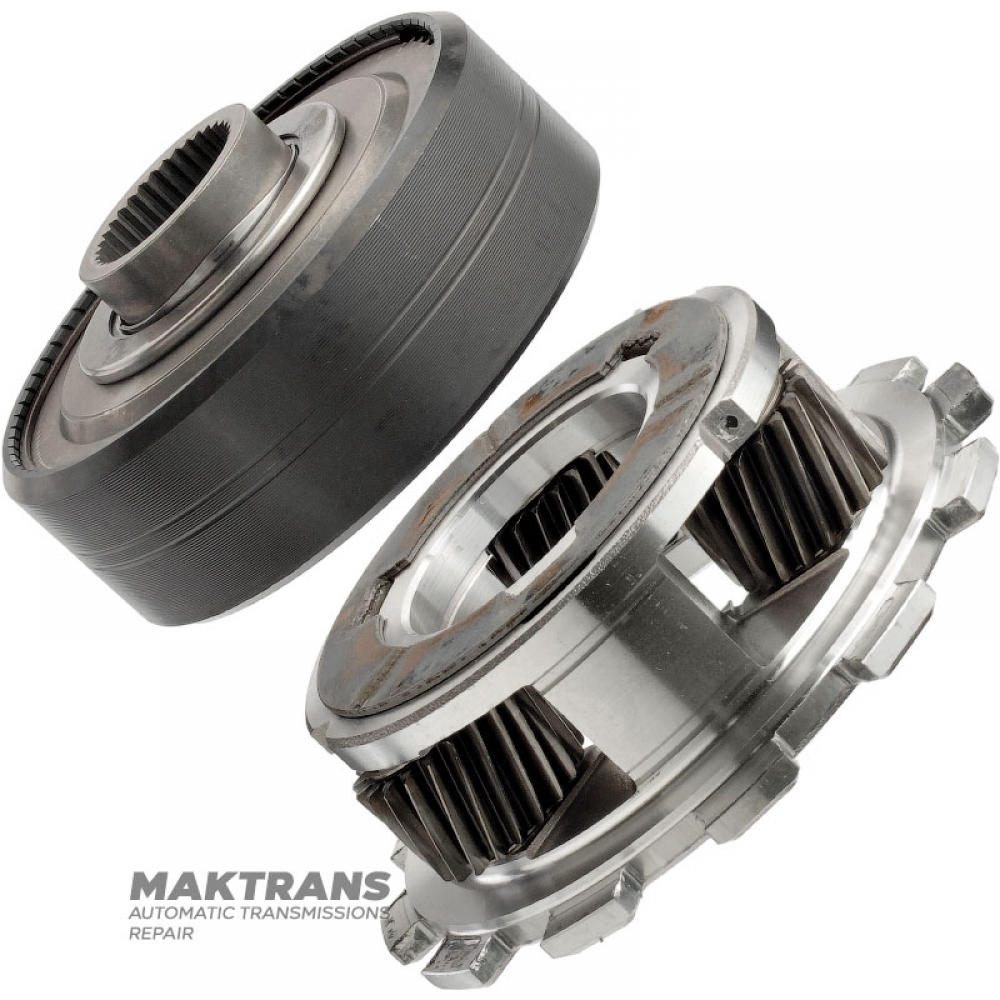

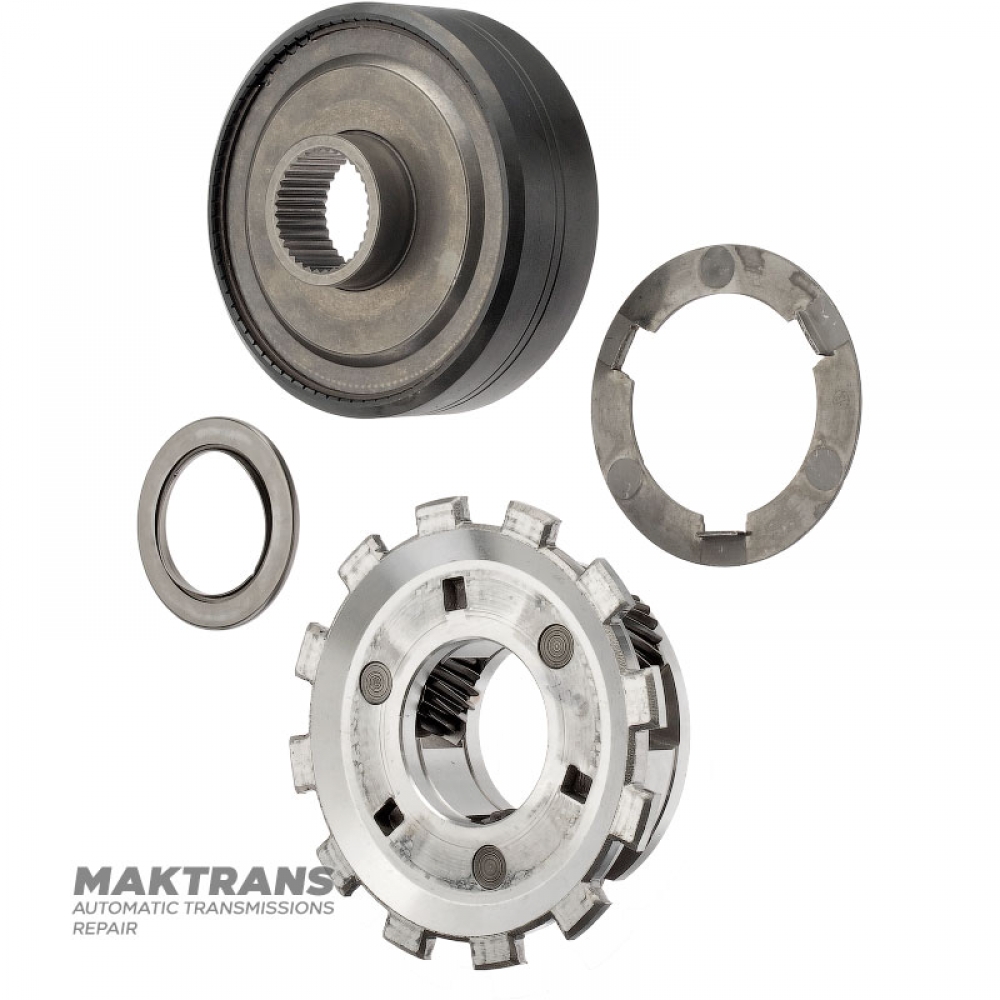

Rear planetary gear (aluminum housing) FORD 4R100 — 3 satellites (20 teeth, outer Ø 34.25 mm), ring gear 74 teeth

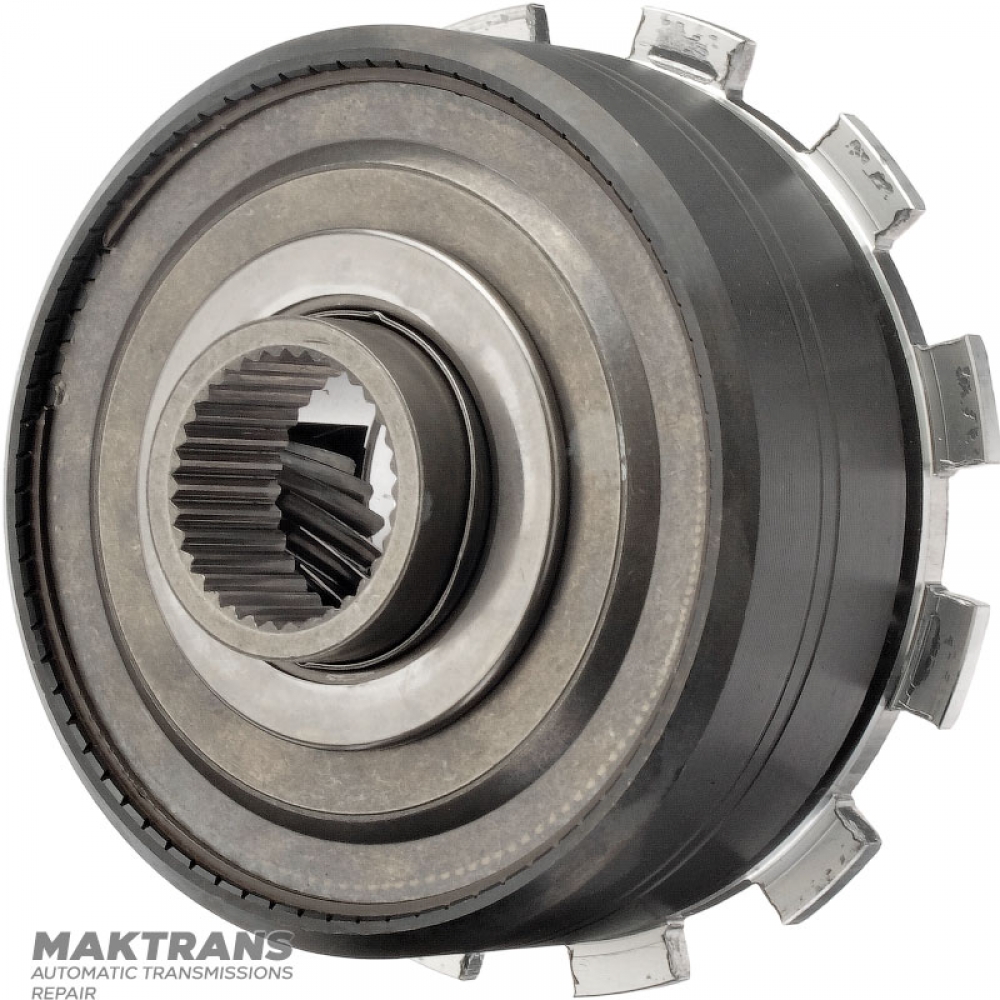

Ring gear assembly with flange:

• Overall height - 58 mm;
• Gear outer diameter - 127.10 mm;
• Number of splines on the inner side - 34 pcs.;
• The outer diameter of the spline neck is 46.40 mm;

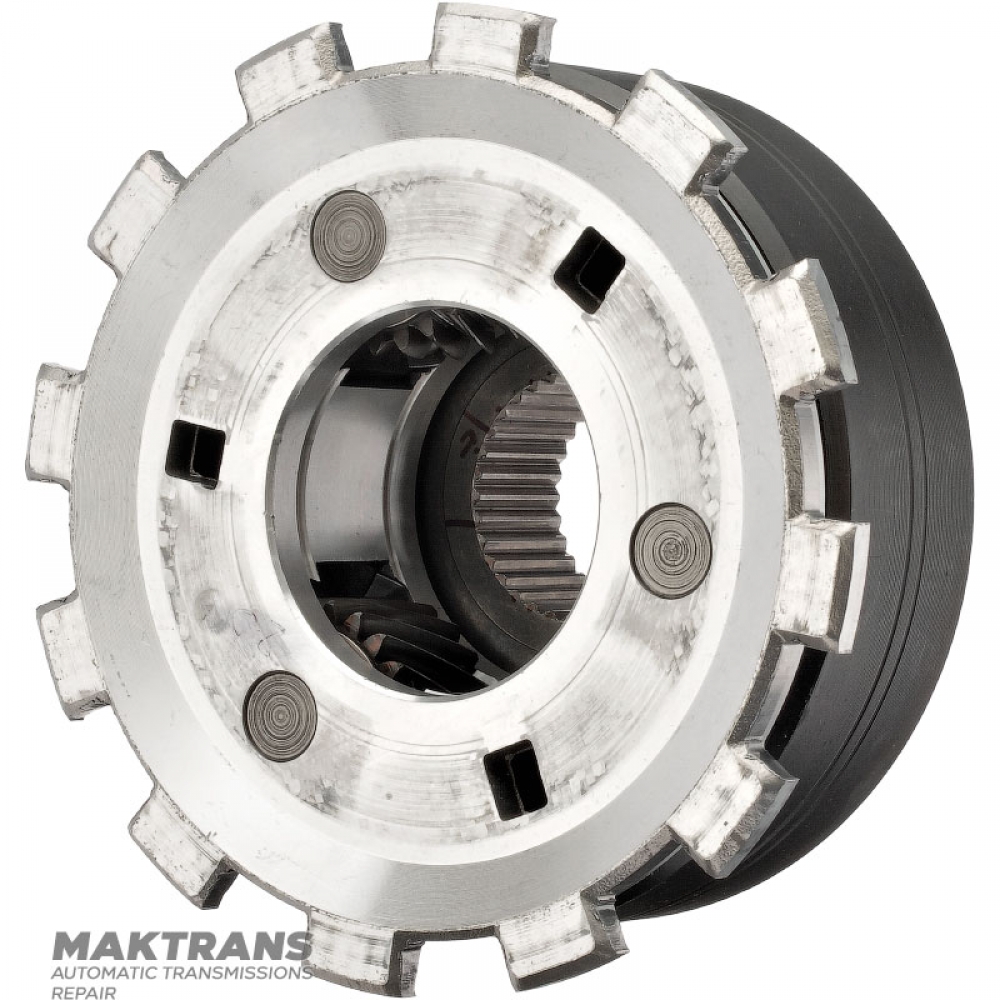

Planetary gear:

• Overall height - 42 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 20 pcs.;
• Satellite outer diameter - 34.25 mm;
• Inner case diameter - 55.60 mm;
• Number of teeth on the crown - 24 pcs.;
• Outer diameter of gear ring - 136.20 mm;
