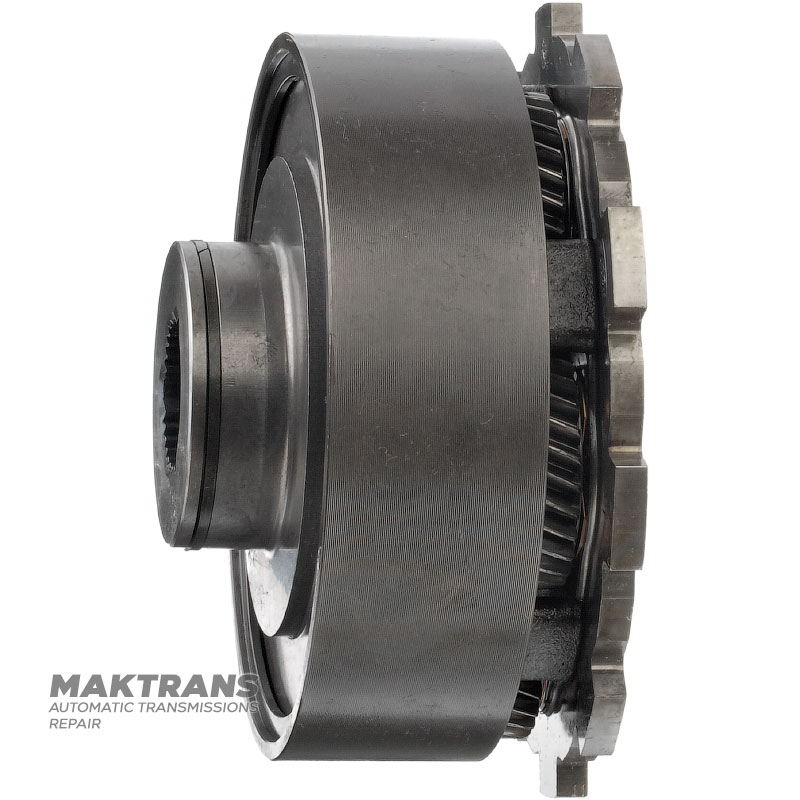

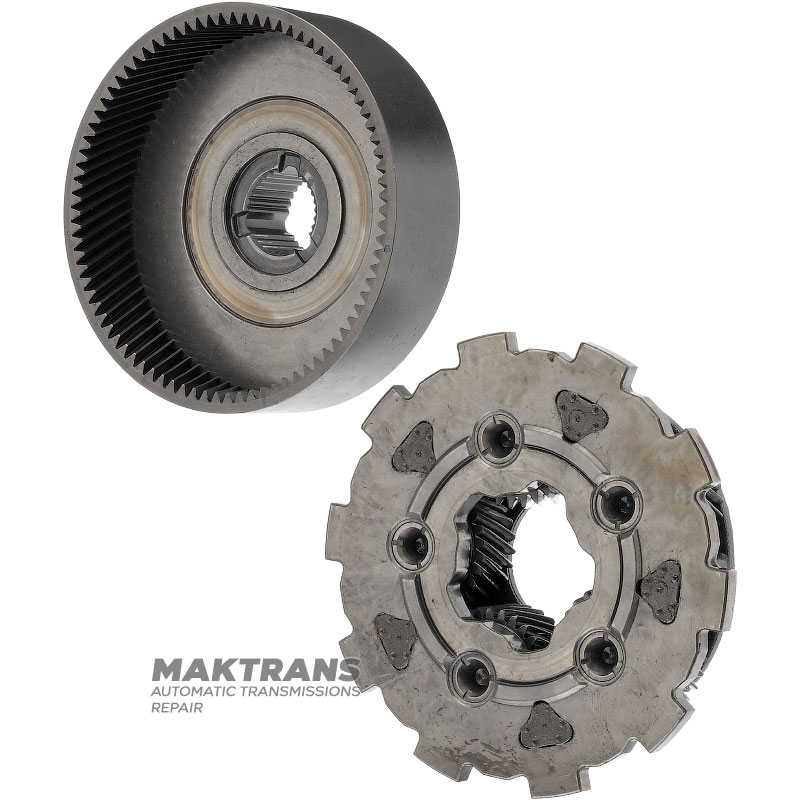

Rear planetary gear FORD 5R55N, 5R55W, 5R55S 1L2Z-7D006-BA, XW4P-7D007-AA — 5 satellites (28 teeth, outer Ø 40.85 mm), 83 teeth on ring gear

Planetary gear:

• Overall height - 34 mm;
• Outer case diameter - 107.65 mm;
• Number of teeth on the gear ring - 10 pcs.;
• The outer diameter of the gear ring is 135.45 mm;
• Number of satellites - 5 pcs.;
• Number of teeth on the satellite - 28 pcs.;
• Satellite outer diameter - 40.85 mm;

Ring gear:

• Overall height - 53 mm;
• Flange neck outer diameter - 51.90 mm;
• Number of splines on the inner side - 25 pcs.;
• Number of teeth on the ring gear - 83 pcs.;
• The outer diameter of the ring gear is 122.70 mm;
