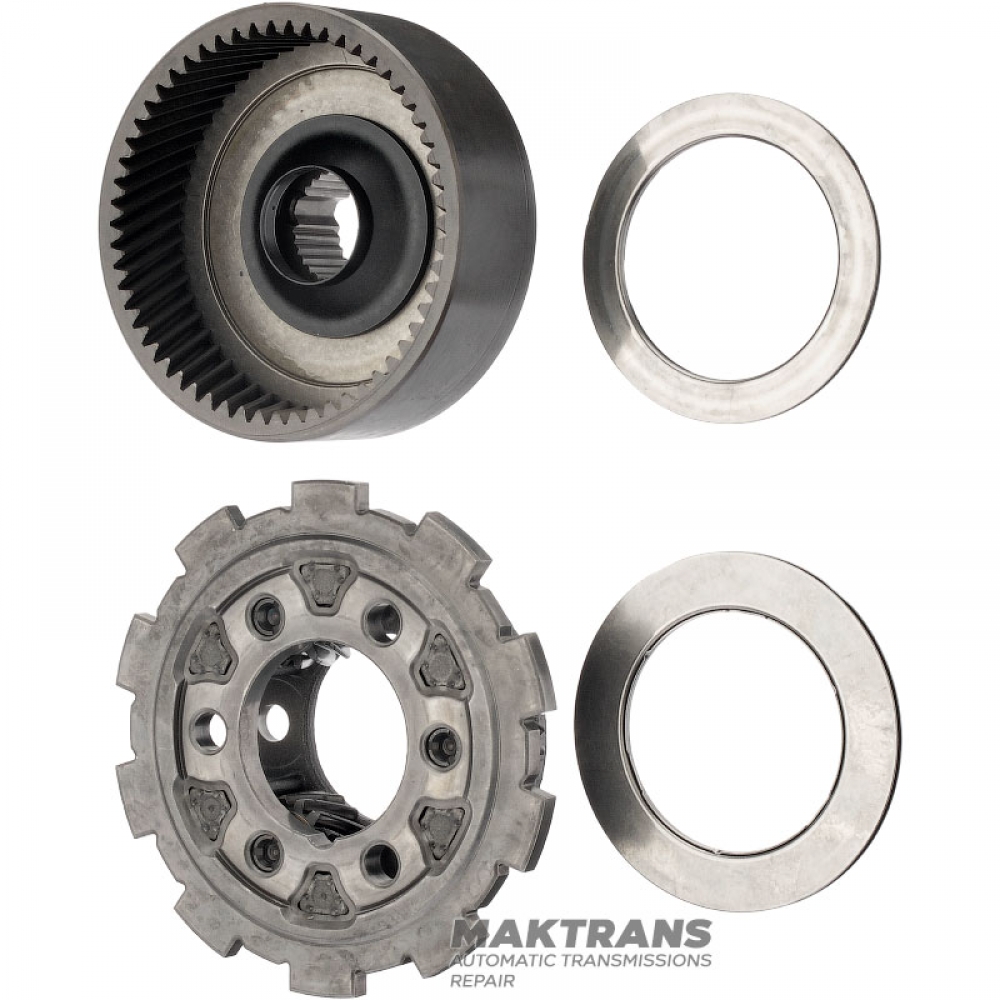

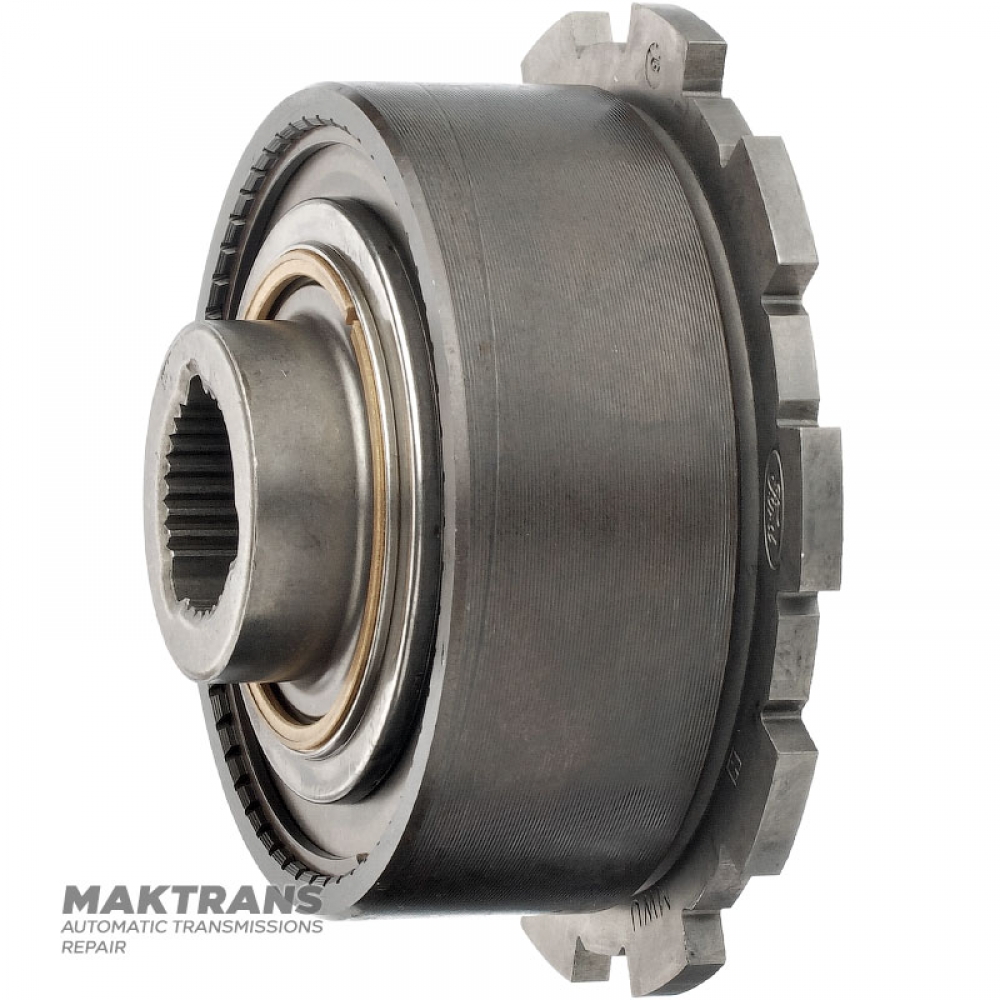

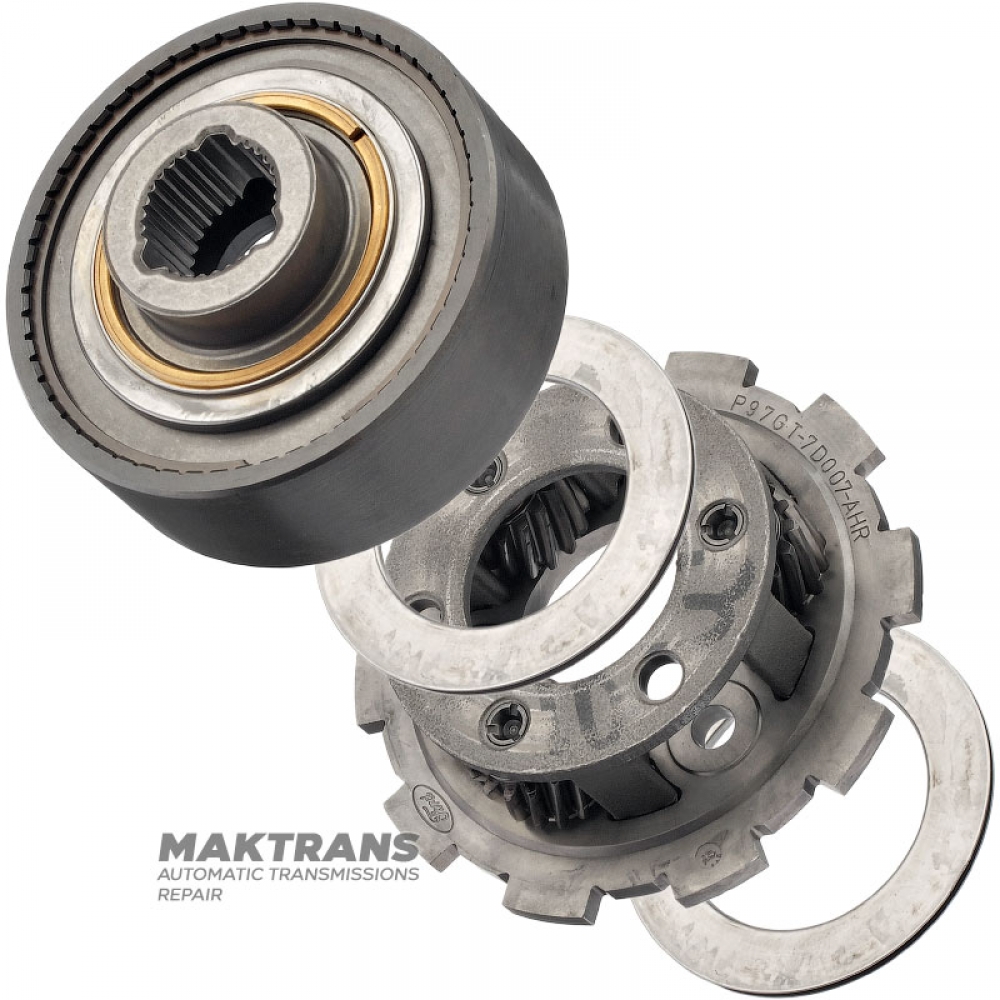

Rear planetary gear FORD A4LD, 4R44E, 4R55E, 5R55E, 5R55N, 5R55S, 5R55W P97GT-7D007-AHR — steel housing, 3 satellites (15 teeth, outer Ø 24.40 mm), ring gear 57 teeth (outer Ø 94.15 mm)

Planetary gear:

• Overall height - 31.50 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on the gear ring - 10 pcs.;
• Outer diameter of gear ring - 113.85 mm;
• Inner diameter - 43.30 mm;

Ring gear:

• Overall height - 46 mm;
• The outer diameter of the ring gear is 94.15 mm;
• Number of teeth - 57 pcs.;
• Number of splines on the inner side - 25 pcs.;
• Outer diameter of the neck - 40.40 mm;

Bearings:

No. 1 (between ring gear and planetary gear):

• Thickness - 2.75 mm;
• Inner diameter - 51.05 mm;
• Outer diameter - 69.85 mm;

№2

• Thickness - 2.75 mm;
• Inner diameter - 51 mm;
• Outer diameter - 77.25 mm;
