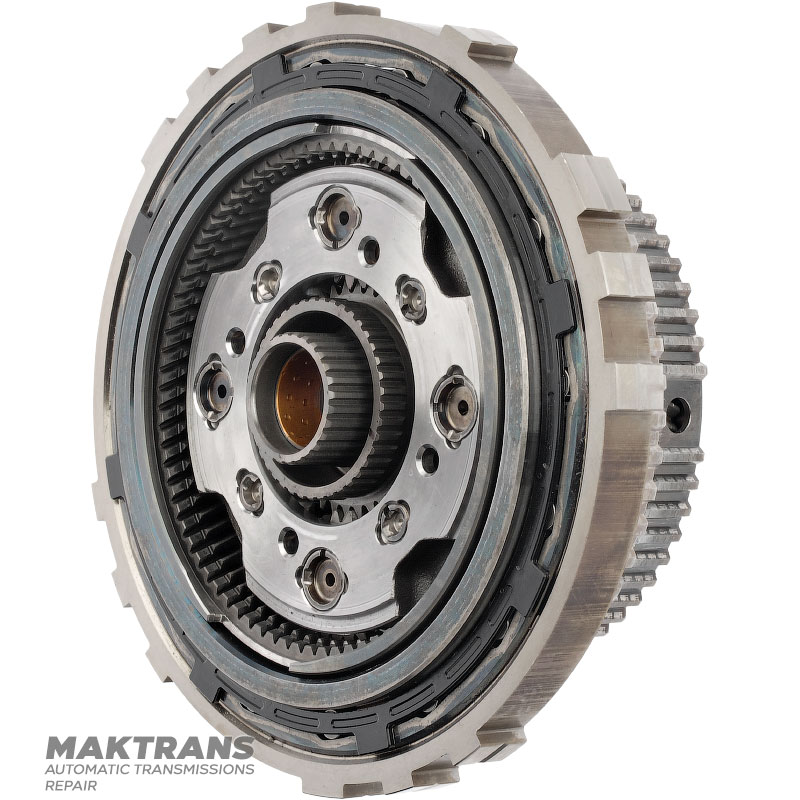

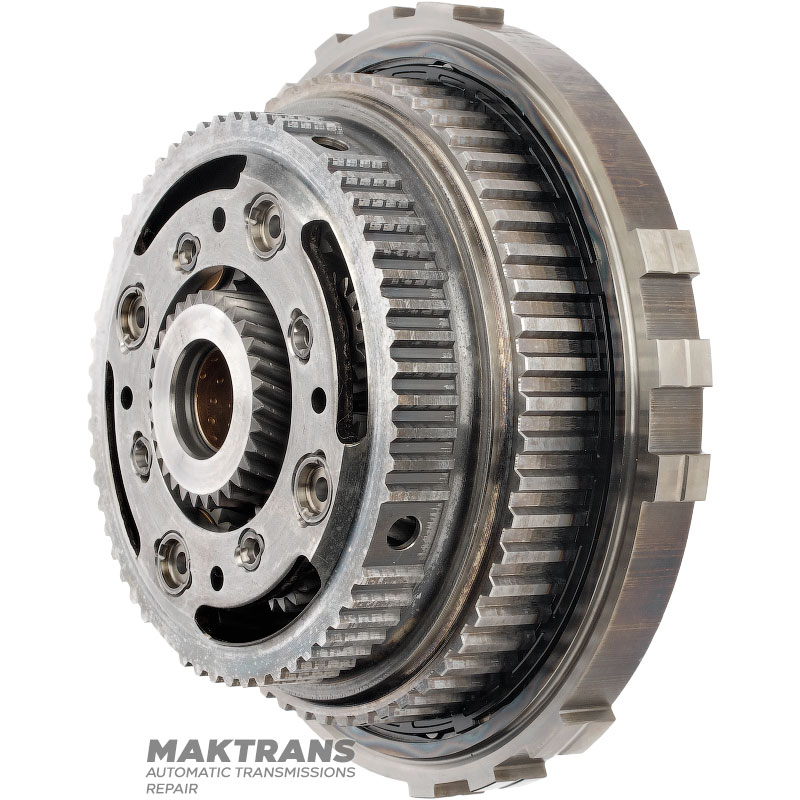

Rear Planetary Gear (Gen2) AISIN WARNER AWF8G30 - Front Sun Gear 41 Splines (OD 45.85mm)

Name: Rear Planetary Gear (Gen2) AISIN WARNER AWF8G30 - Front Sun Gear 41 Splines (OD 45.85mm)
Brand: AISIN WARNER
Price: 260.99 EUR
Availability: InStock

Worldwide Shipping 🌎

Product Code:

35706-8GB040

Product model copied to clipboard

Brand

AISIN WARNER

Availability: 19

Weight (kg): 5.3

€260.99

Shipping Icon Shipping to United States from €107.39

Main Specifications

Condition (used, new): Removed from new transmissions

Type: Rear planetary gear

Equipment level: Planetary gear, overrunning clutch, ring gear, front and rear sun gears

If you order more than 6 pcs - shipping time will be longer at few days

Stock Place:	Availability:	Price:	Qty:
Slovakia	6 pcs.	€260.99
Ukraine	13 pcs.	€260.99

Qty:

Product overview
Shipping & Payment
Questions - Answers (0)

Planetary gear:

Overall height - 69 mm;
The outer diameter of the working part of the overrunning clutch is 139.40 mm;

Front Sun Gear/Ring Gear Satellites:

Number of satellites - 4 pcs.;
Number of teeth on satellites - 20 pcs.;

Rear sun gear satellites:

Number of satellites - 4 pcs.;
Number of teeth on satellites - 17 pcs.;

Sun gears:
Front:	Back:
Height - 34.50 mm; Number of splines - 41 pcs.; The outer diameter of the splined neck is 45.75 mm; Inner diameter of the sleeve - 31.10 mm; Number of teeth - 38 pcs.; Gear outer diameter - 54.85 mm; Gear width - 23.15 mm;	Height - 73.70 mm; Number of splines - 28 pcs.; The outer diameter of the splined neck is 29.75 mm; Inner diameter of the sleeve - 22.10 mm; Number of teeth - 30 pcs.; Gear outer diameter - 47.30 mm;

Ring gear:

Height - 37.05 mm;
Outer diameter - 124.85 mm;
Number of teeth - 78 pcs.;

Tags: 35706-8GB040,
