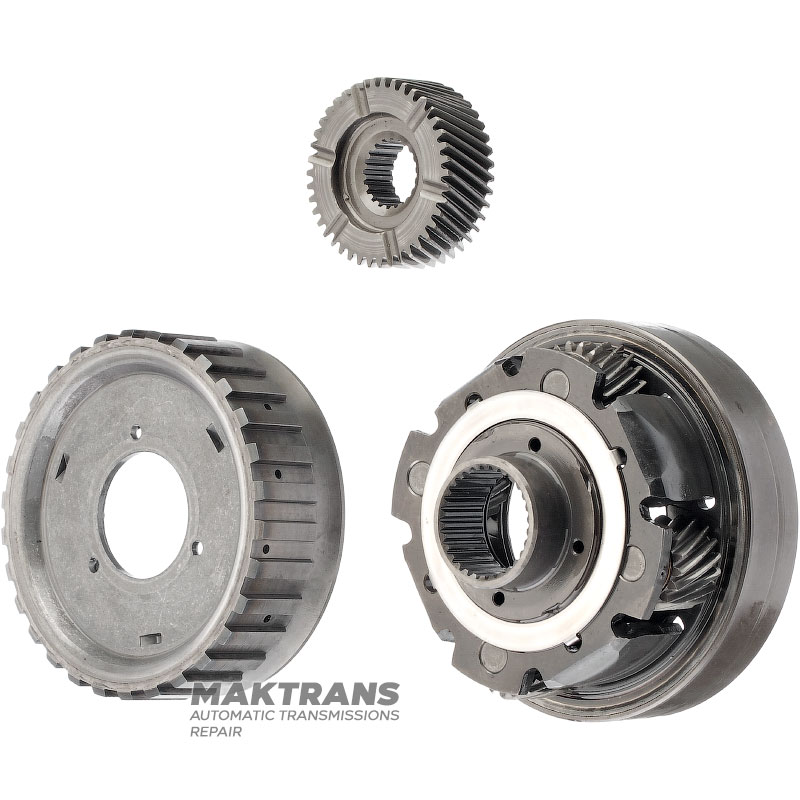

Rear planetary gear JATCO JR405E 8973309520, 8973309560, 8973309530 - 4 satellites (17 teeth), sun gear 42 teeth (ext. Ø 59.30 mm)

Planetary gear:

• Overall height - 75 mm;
• Number of splines on the inner side - 30 pcs.;
• Outer diameter of the neck - 37.85 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 17 pcs.;
• The outer diameter of the ring gear is 118.90 mm;
• Number of teeth on the ring gear - 75 pcs.;

Sun gear:

• Overall width - 23.05 mm;
• Number of teeth - 42 pcs.;
• Gear outer diameter - 59.30 mm;
• Number of splines on the inner side - 20 pcs.;

Ring gear:

• Overall height - 42 mm;
• Number of teeth on the ring gear - 75 pcs.;
• Hub outer diameter - 120.85 mm;
• Number of teeth on the hub - 30 pcs.;
• Inner diameter - 41.15 mm;

Tags: 8-97330-952-0, 8-97330-956-0, 8-97330-953-0, 8973309520, 8973309560, 8973309530
