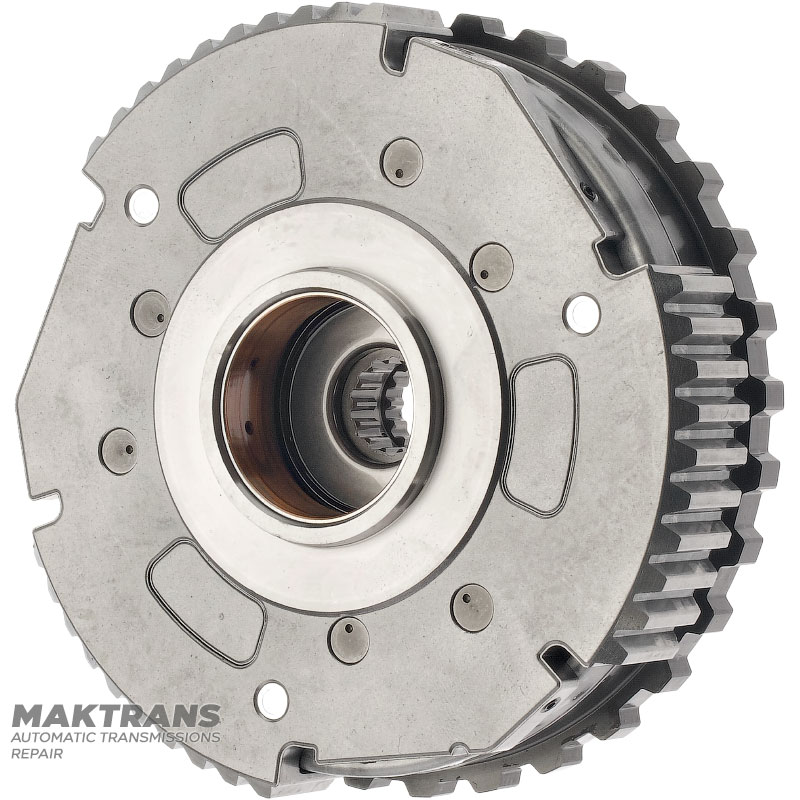

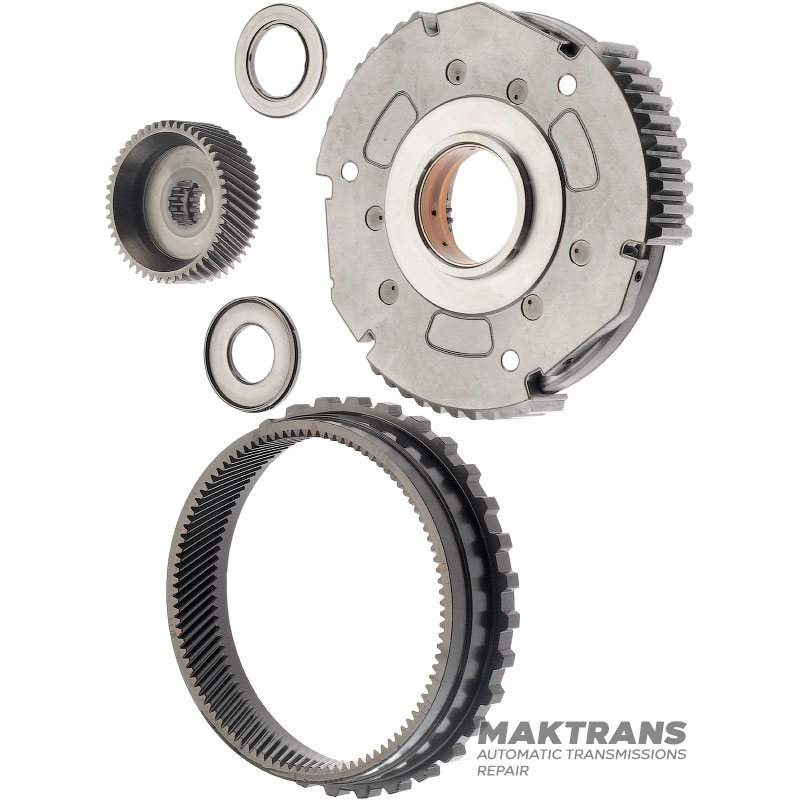

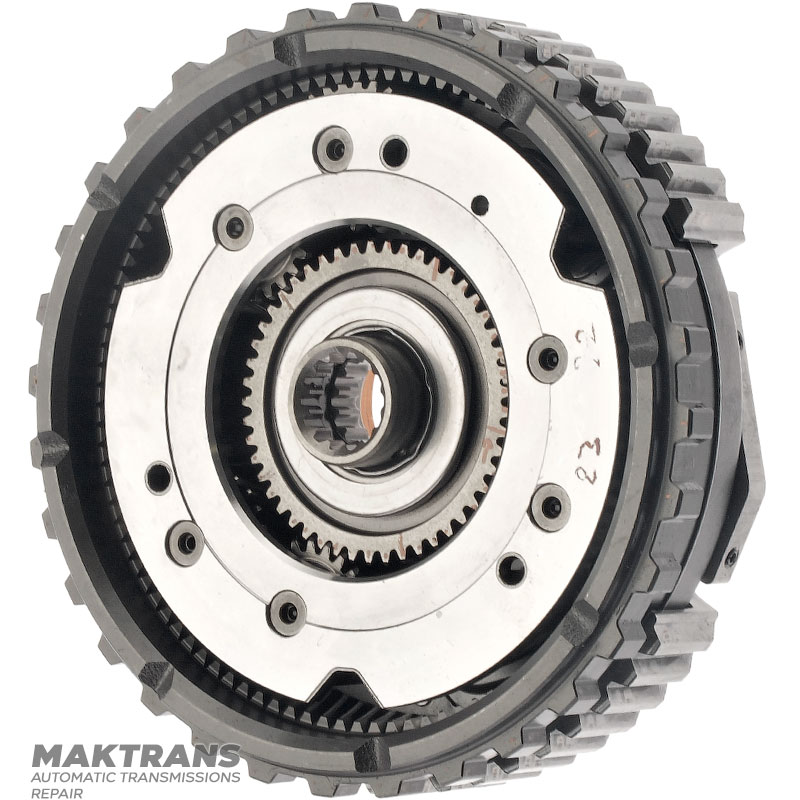

Rear planetary gear MAZDA CW6A-EL, EW6A-EL — 3 satellites (23 teeth) / 3 satellites (22 teeth), FZ11-19-57X

Planetary gear:

• Overall height - 35 mm;
• Inner diameter of the sleeve - 35.05 mm;
• Outer diameter (by hub) - 128.95 mm;

Number of satellites:

• 3 satellites (ring gears) - 23 teeth;
• 3 satellites (sun gear) - 22 teeth;

Ring gear:

• Overall height - 30.05 mm;
• Number of teeth on the outer side - 32 pcs.;
• Outer diameter of gear ring - 128.70 mm;
• Number of teeth on the ring gear - 100 pcs.;

Sun gear:

• Overall height - 28.10 mm;
• Number of splines on the inner side - 14 pcs.;
• Number of teeth on the gear - 49 pcs.;
• Gear outer diameter - 53.65 mm;
• Gear width - 18 mm;
