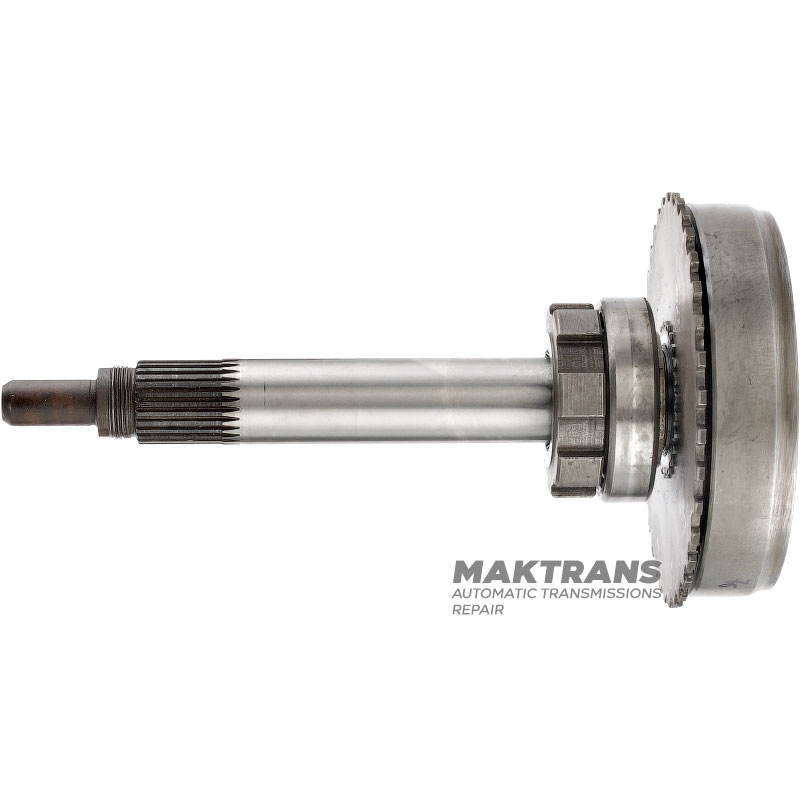

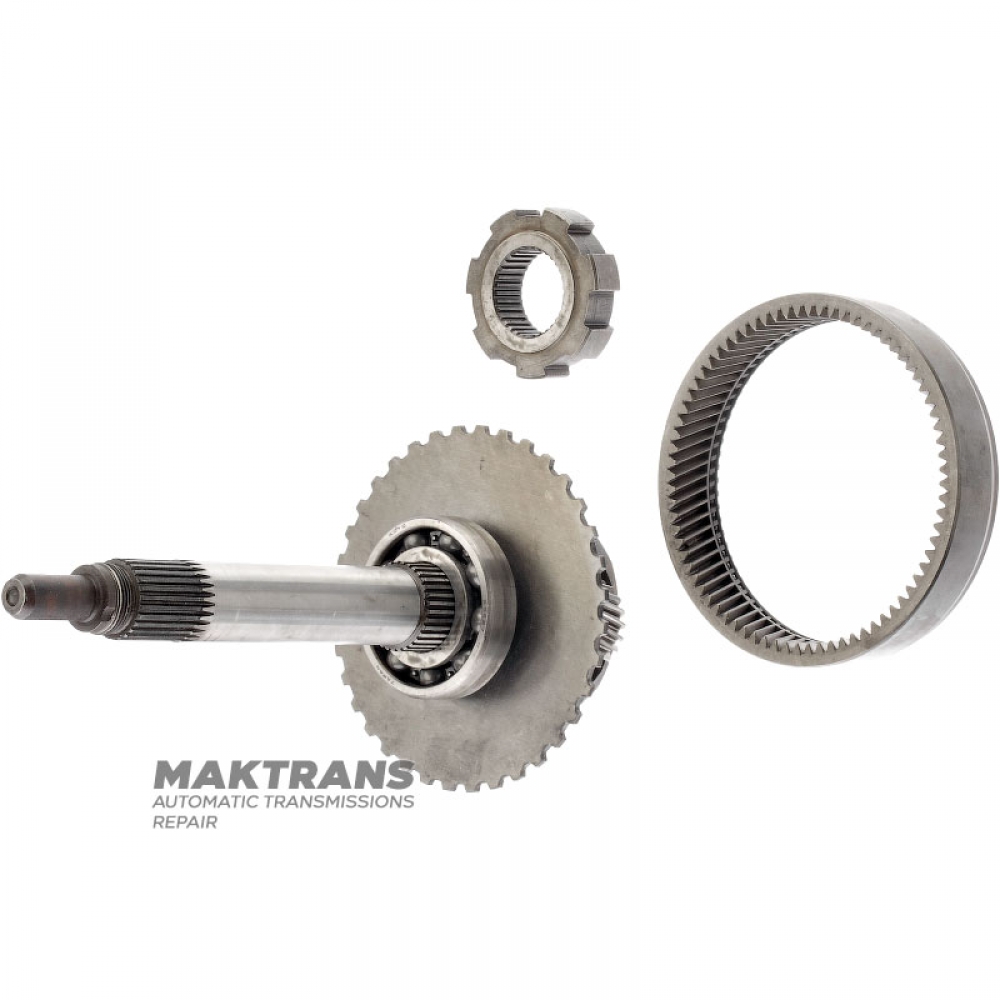

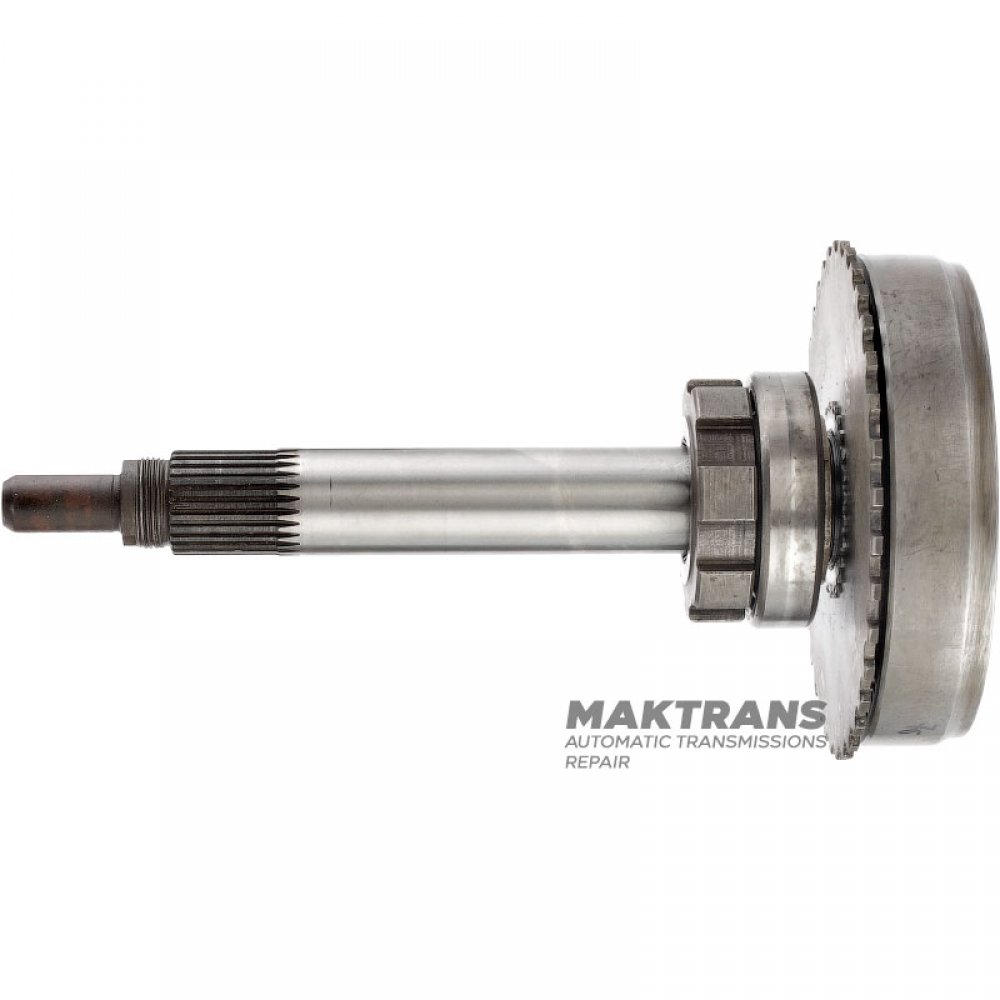

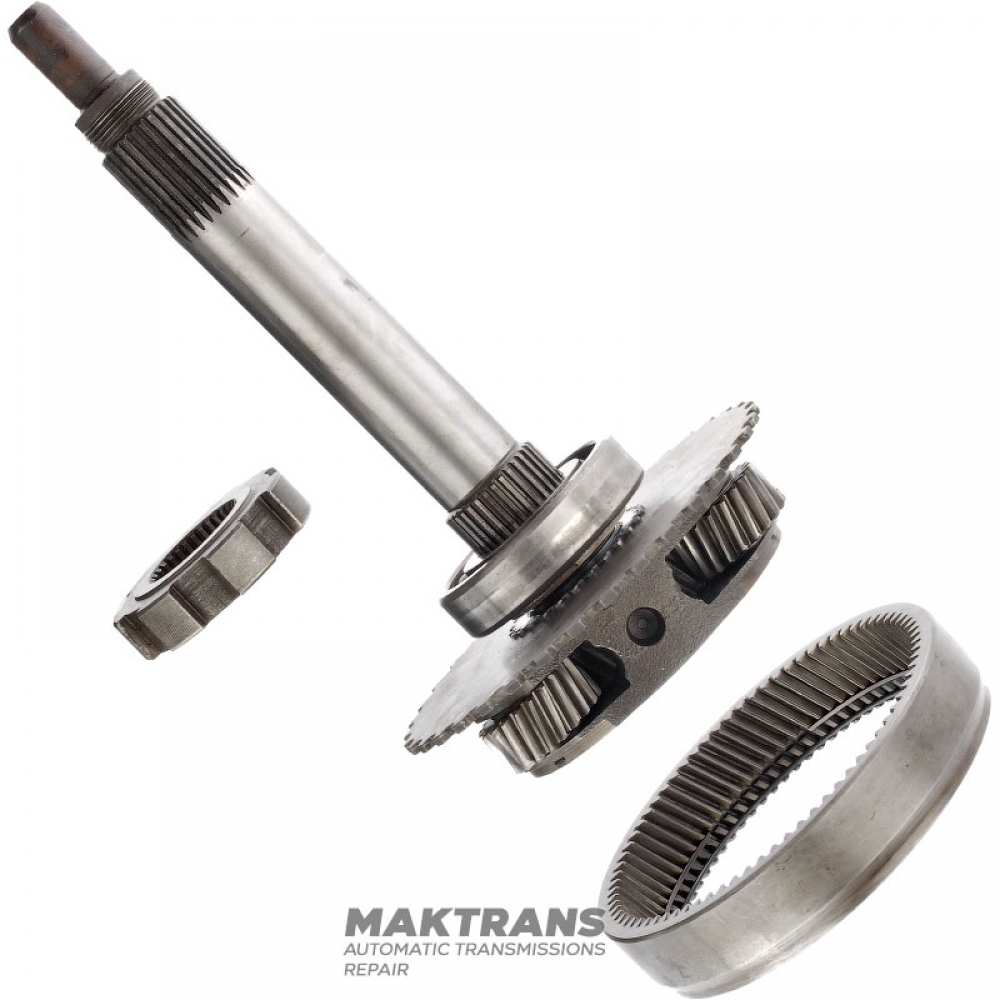

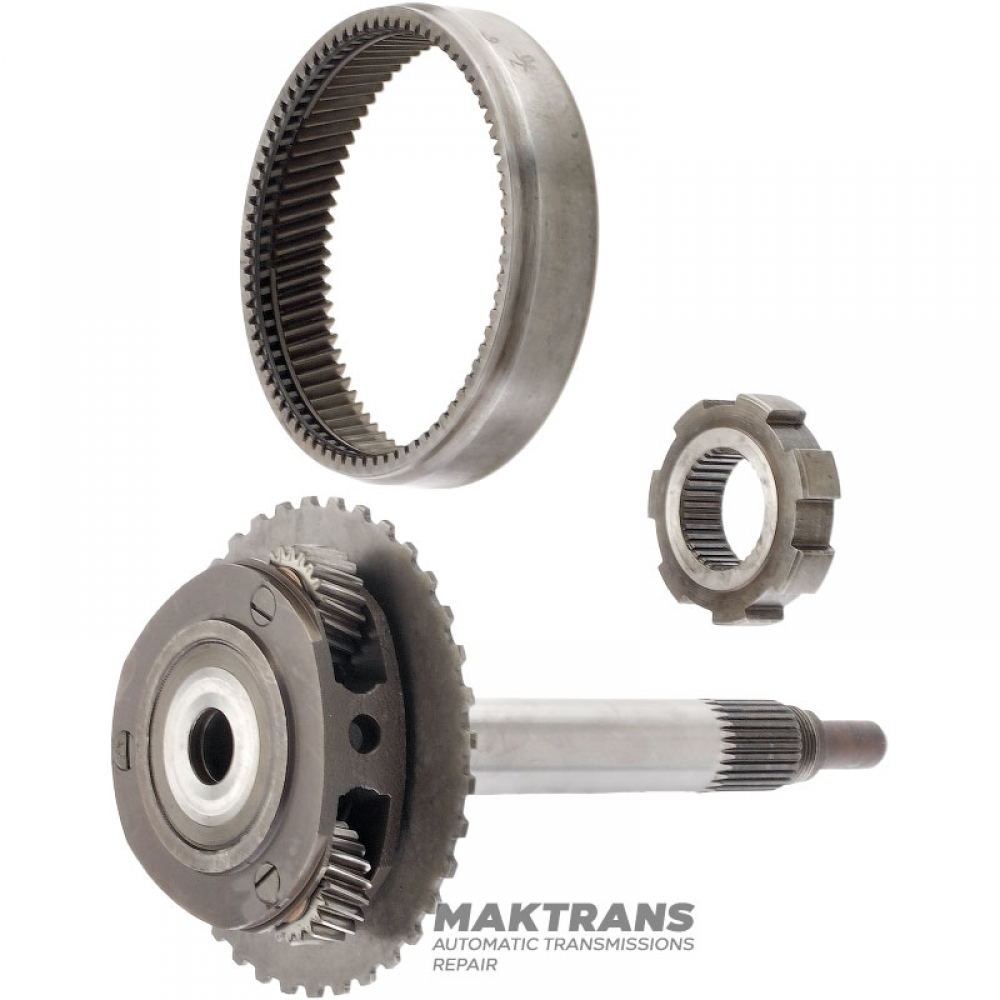

Rear planetary gear Mercedes-Benz 722.0, 722.1, 722.2 - 3 satellites (20 teeth), ring gear 76 teeth

Output shaft, rear planetary gear:

• Overall length - 267 mm;
• Number of splines on the shaft - 37 pcs.;
• The outer diameter of the splined part is 29.25 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 20 pcs.;
• Flange outer diameter - 145.25 mm;

Ring gear:

• Overall height - 28.95 mm;
• Number of teeth - 76 pcs.;
• Outer diameter - 138 mm;

Tags: A 001 981 18 25, A 115 272 37 62, A 004 981 40 10, A 007 981 39 10, A 109 270 16 43, A0019811825, A1152723762, A0049814010, A0079813910, A1092701643
