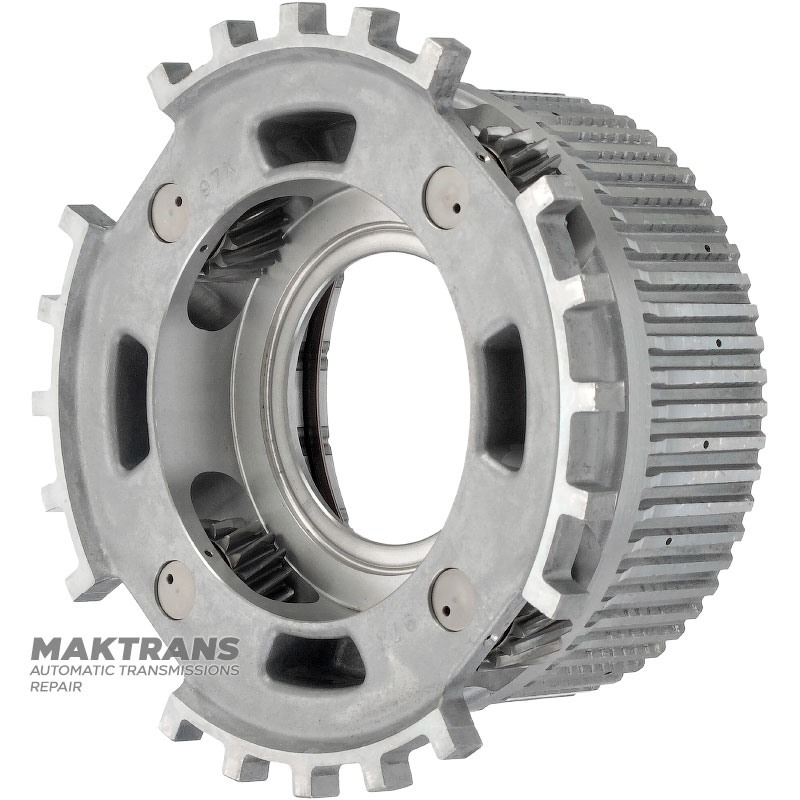

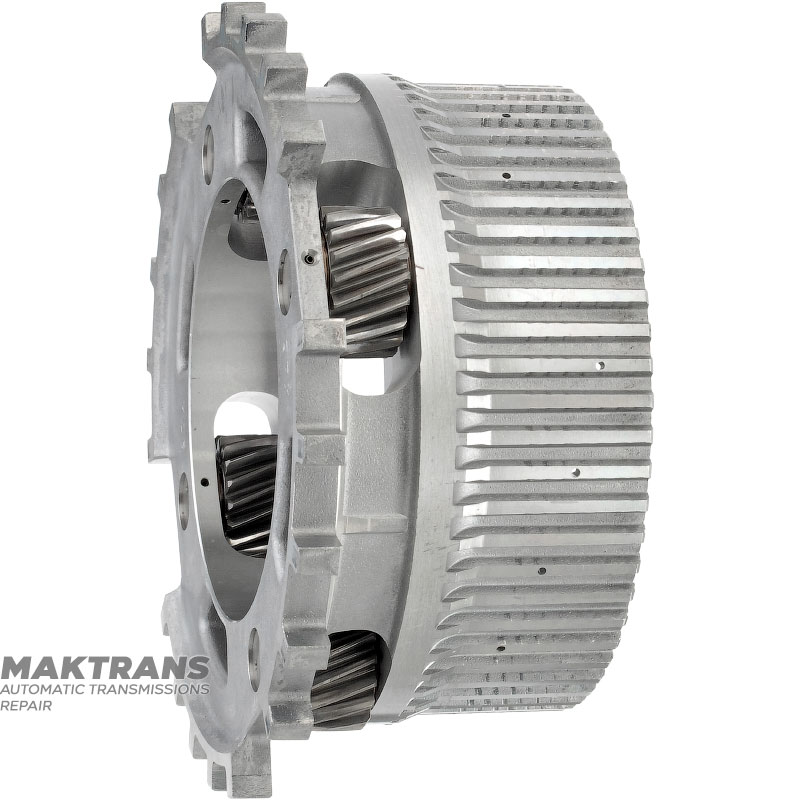

Rear Planetary Gear Nissan RE5R05A RE7R01A / JATCO JR710E 314403SX0A / [4 satellites, 18 teeth per satellite, removable ring gear, for 6 mm mounting tooth pinions]

• Overall height - 79 mm;
• Inner diameter for sun gear - 92.35 mm;
• Number of teeth of the C1 Clutch hub - 60 pcs. | Ø 142.35 mm;
• Number of fastening teeth in the C2 Clutch drum - 20 pcs. | Ø 176.70 mm;
• Number of satellites - 4 pcs. | 18 teeth per satellite;

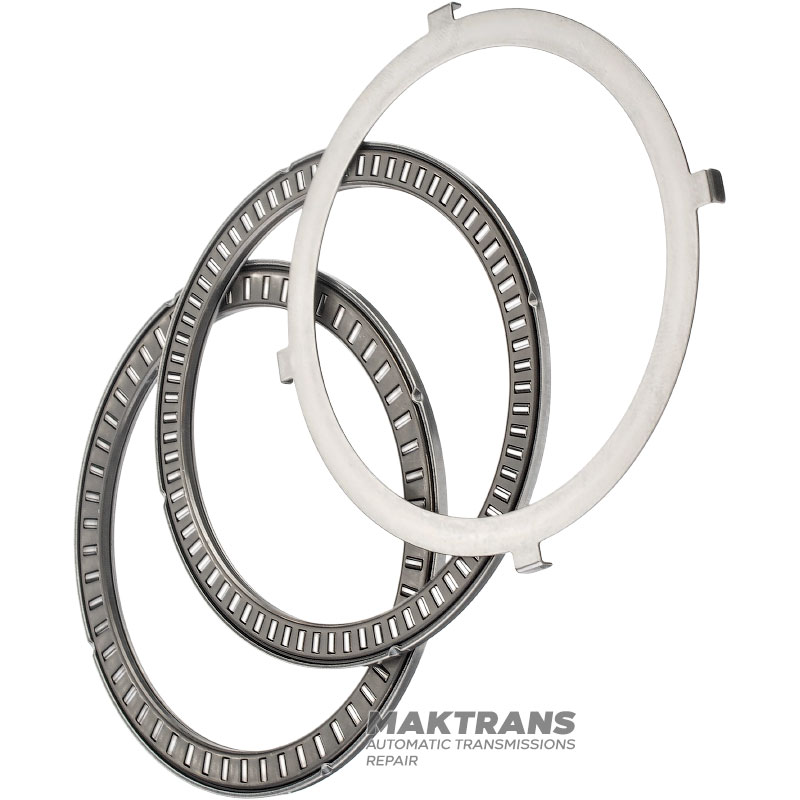

Thrust needle bearings:

Bearing #1:

• Outer diameter - 83.70 mm;
• Inner diameter - 68.65 mm;
• Thickness - 3 mm;

Bearing #2:

• Outer diameter - 79.75 mm;
• Inner diameter - 66.10 mm;
• Thickness - 2.80 mm;
