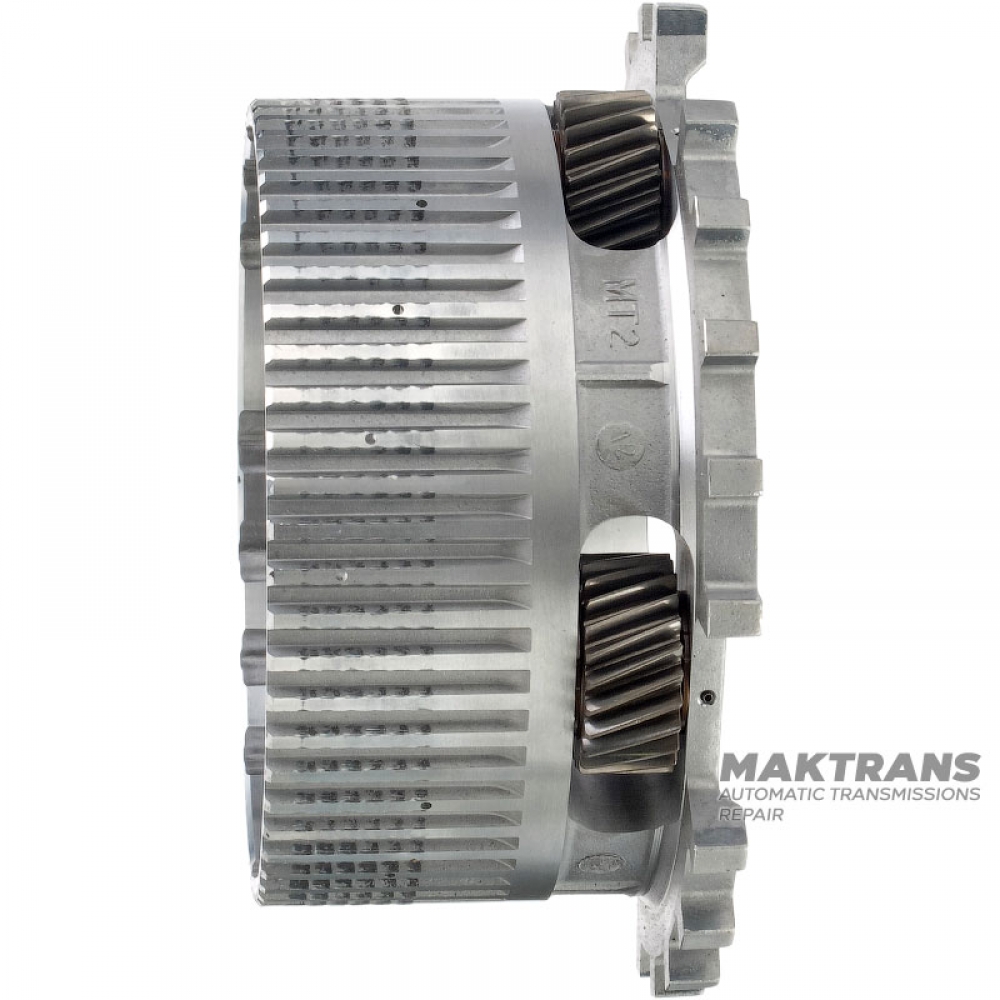

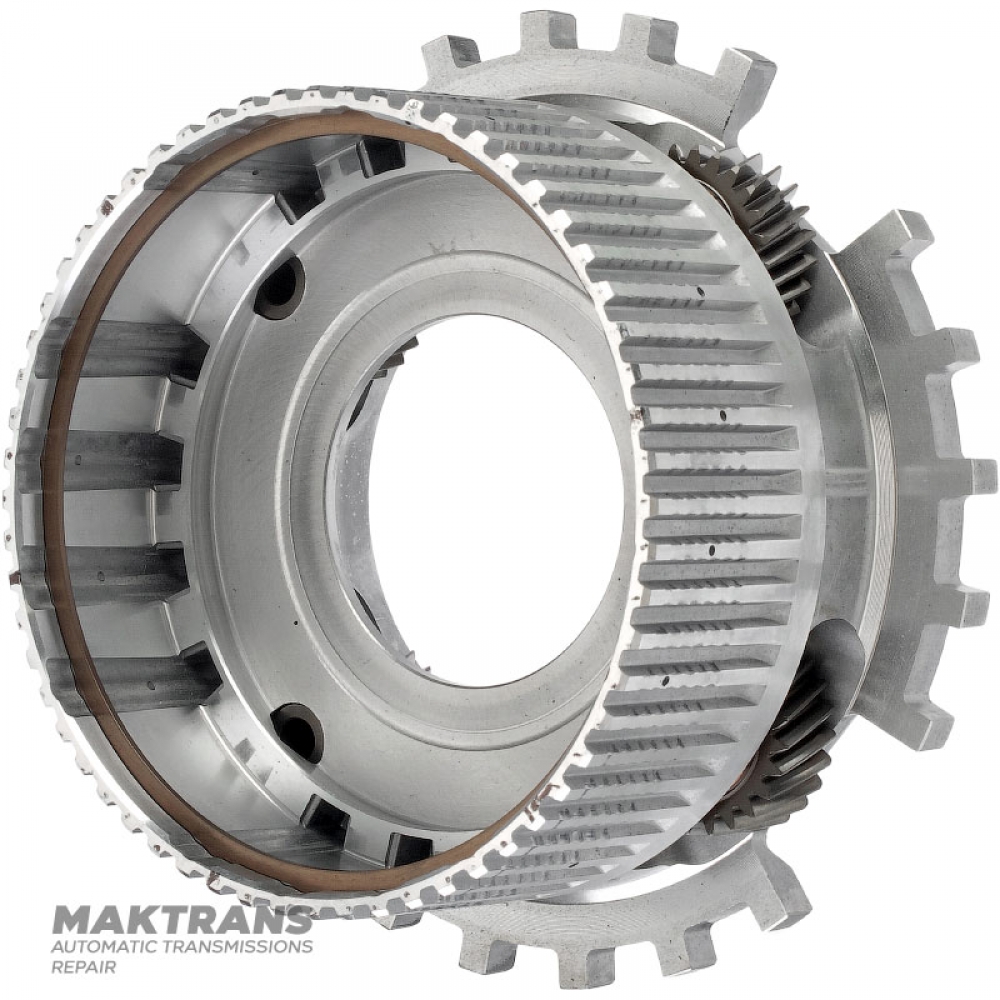

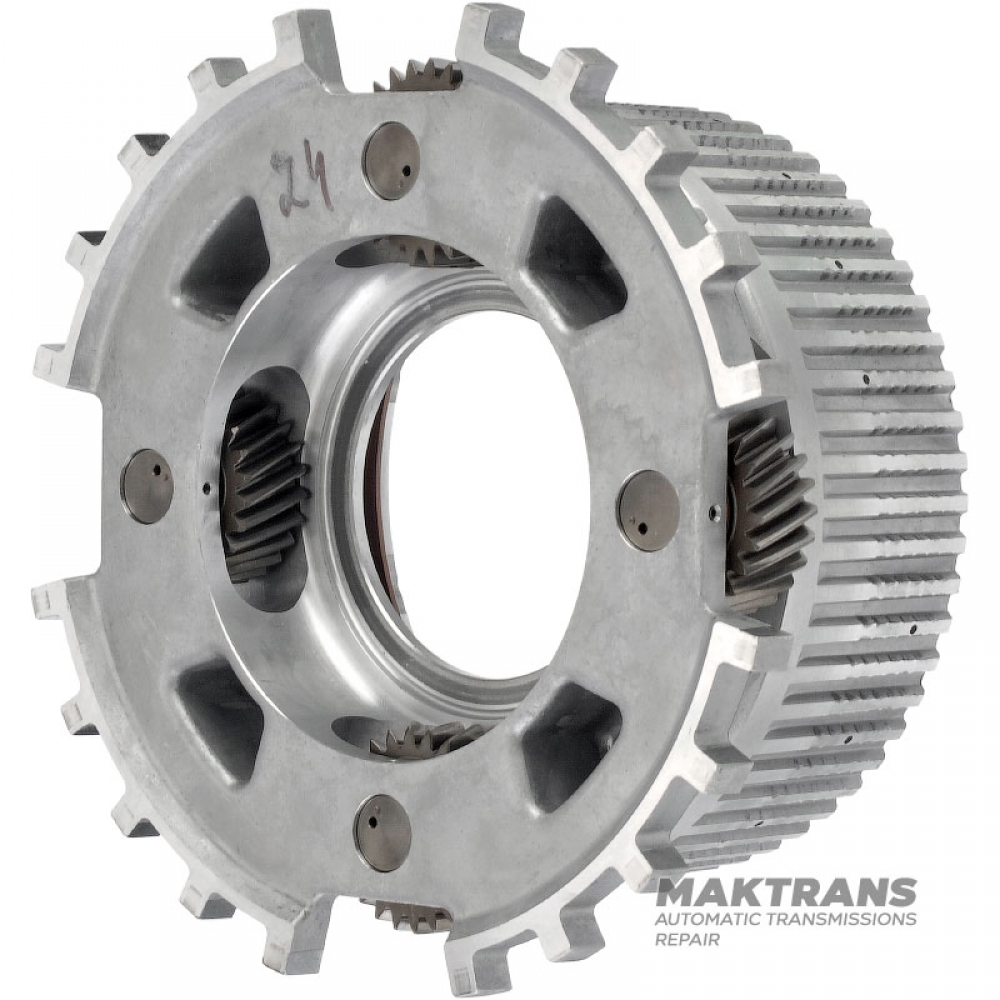

Rear planetary gear NISSAN RE5R05A RE7R01A / JATCO JR710E JR507A — 4 satellites (24 teeth, outer Ø 37.05 mm), for ring gear P3 with a crown tooth width of 8 mm

-20%

Discount

Worldwide Shipping 🌎

Product Code:

JTC-4ST24-8H

Product model copied to clipboard

Brand

OEM

Availability: 10

Weight (kg): 1.3

€70.55

€88.19

Shipping Icon Shipping to United States from €53.75

Main Specifications

Condition (used, new): used and inspected

Note: width of the seat of the tooth of the fastening crown of the ring gear P3 - 8 mm

Number of pinions: 4

Number of teeth on the satellite: 24

If you order more than 2 pcs - shipping time will be longer at few days

Qty:

Overall height - 79 mm;
The width of the seat of the tooth of the fastening crown of the ring gear P3 is 8 mm;
The outer diameter of the C1 Clutch hub is 142.55 mm;
Number of teeth on the C1 Clutch hub - 60 pcs.;
Outer diameter of gear ring - 176.90 mm;
Number of teeth on the gear ring - 20 pcs.;
The width of the tooth of the ring gear is 6.40 mm;
Number of satellites - 4 pcs.;
Number of teeth on the satellite - 24 pcs.;
Satellite outer diameter - 37.05 mm;
