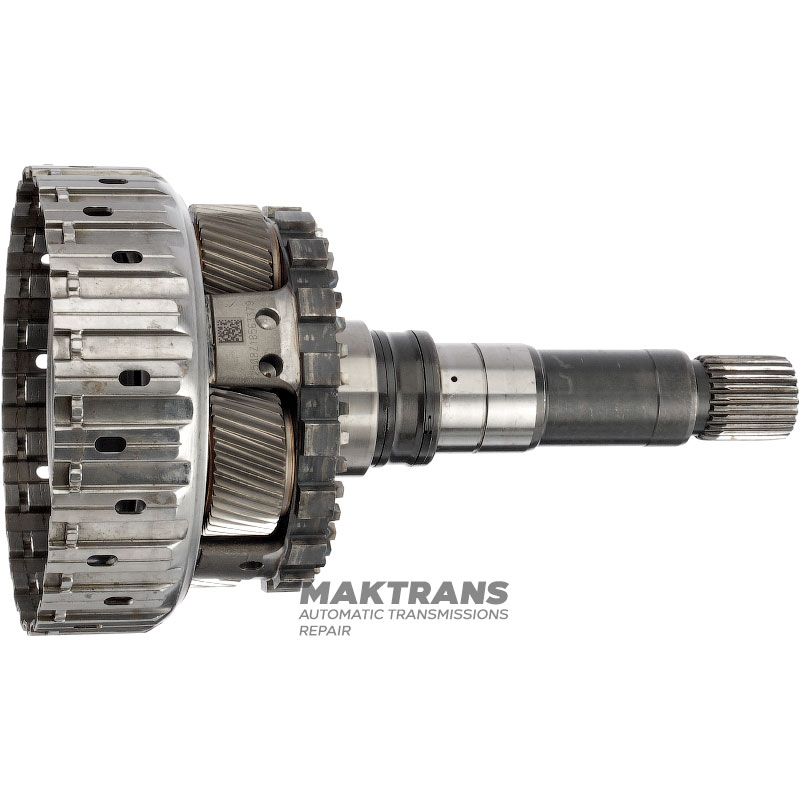

Rear Planetary Gear No.4, 4WD Output Shaft, Drum D Clutch (Empty, No Discs) ZF 845RE (8HP45) - Overall Height 274mm, 23 Splines (OD 30.90mm)

• Overall height - 274 mm;
• Number of splines - 23 pcs.;
• The outer diameter of the splined part is 30.90 mm;
• Number of splines on the parking gear - 18 pcs.;
• The outer diameter of the parking gear is 132.45 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 23 pcs.;

Drum D Clutch:

• Drum outer diameter - 158.10 mm;
• Height from piston to retaining ring - 25 mm;
