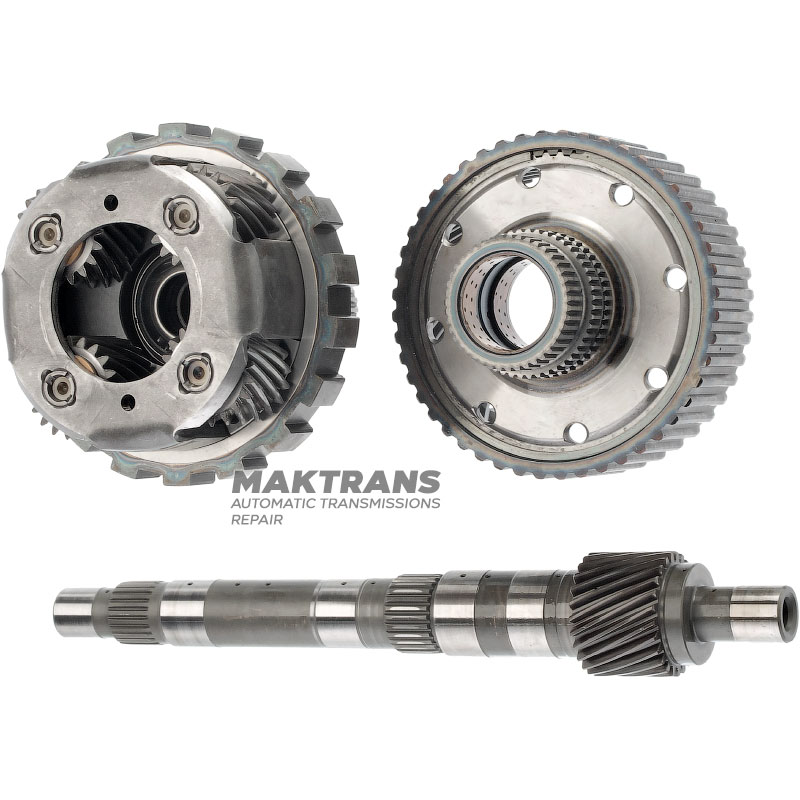

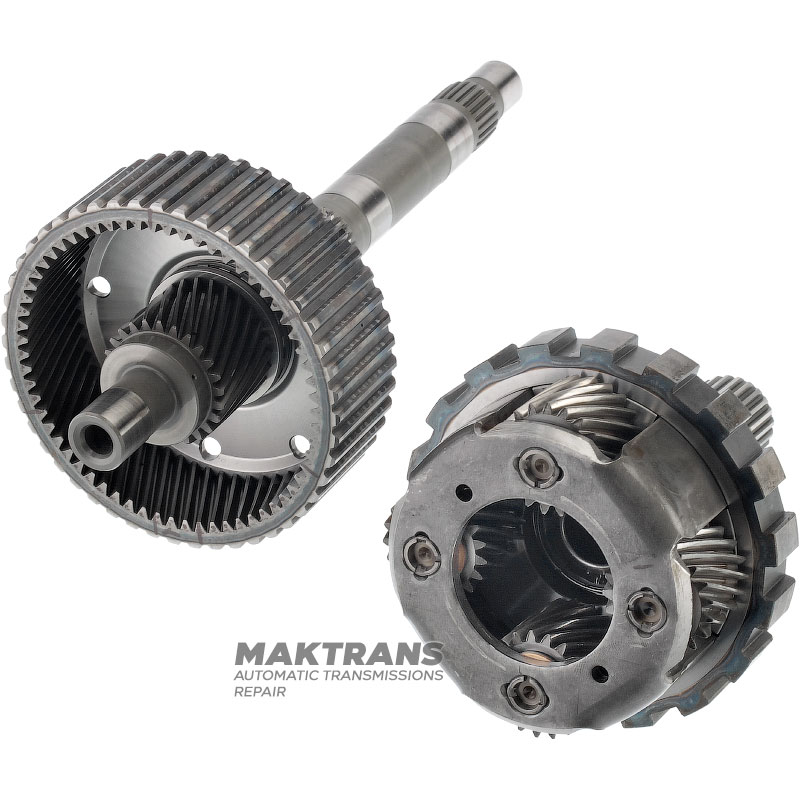

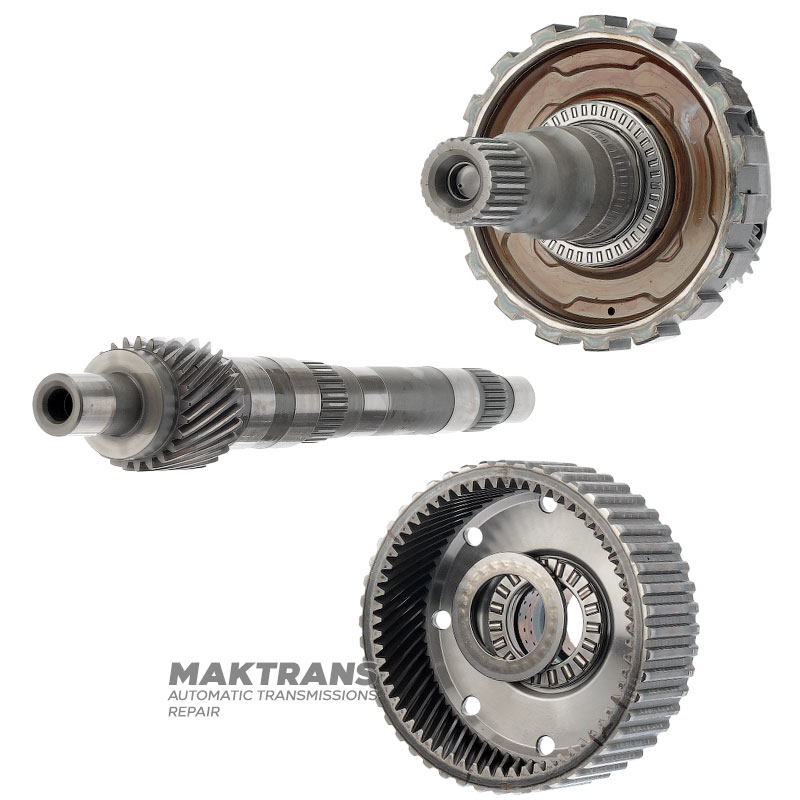

Rear planetary gear, output shaft TOYOTA / LEXUS A750 E/F, A760 E/F 3576060060 — shaft length 100 mm, 23 splines (outer Ø 30.45 mm, length of splined part of shaft 26 mm), 4 satellites (19 teeth on satellites)

Planetary gear with output shaft:

• Overall height - 157 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 19 pcs.;
• Satellite outer diameter - 35.40 mm;
• Number of teeth on the parking gear - 18 pcs.;
• Parking gear outer diameter - 123.95 mm;

Output shaft:

• Shaft length from base - 100 mm;
• The diameter of the working part at the base of the shaft is 41.50 mm;
• Number of splines on the shaft - 23 pcs.;
• Length of the splined part - 26 mm ;

Sun gear (with shaft):

• Total shaft length - 296 mm;
• Number of teeth on the sun gear - 25 pcs.;
• The outer diameter of the sun gear is 43.80 mm;

Number of splines on shaft:

• 23 slots - outer Ø 24.60 mm;
• 27 splines - outer Ø 29.20 mm;

External diameters of the working parts of the shaft:

• 20mm (sun gear side);
• 32.08 mm — x2;
• 25.95 mm - x2;
• 29 mm;

Ring gear:

• Overall height - 83.50 mm;
• Height of ring gear (without spline flange) - 41.63 mm;
• The outer diameter of the ring gear is 122.50 mm;
• Number of teeth on the ring gear - 63 pcs.;
• The inner diameter of the bushings is 32.20 mm;

Number of splines on the neck:

• 43 slots - outer Ø 46.05 mm;
• 48 splines - outer Ø 51.25 mm;

Tags: 3571360050, 3576060071, 3507760010
