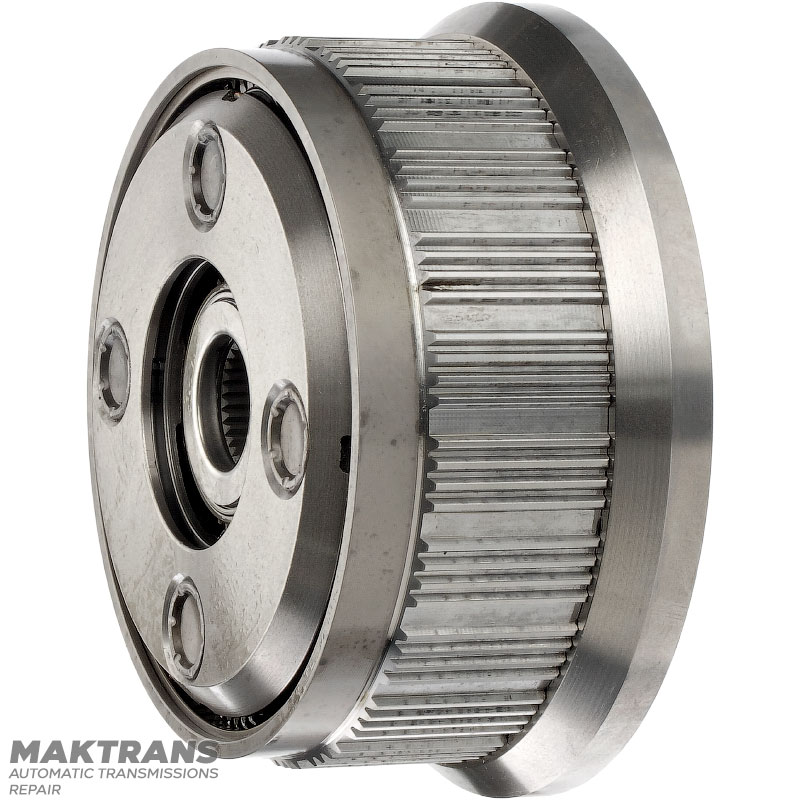

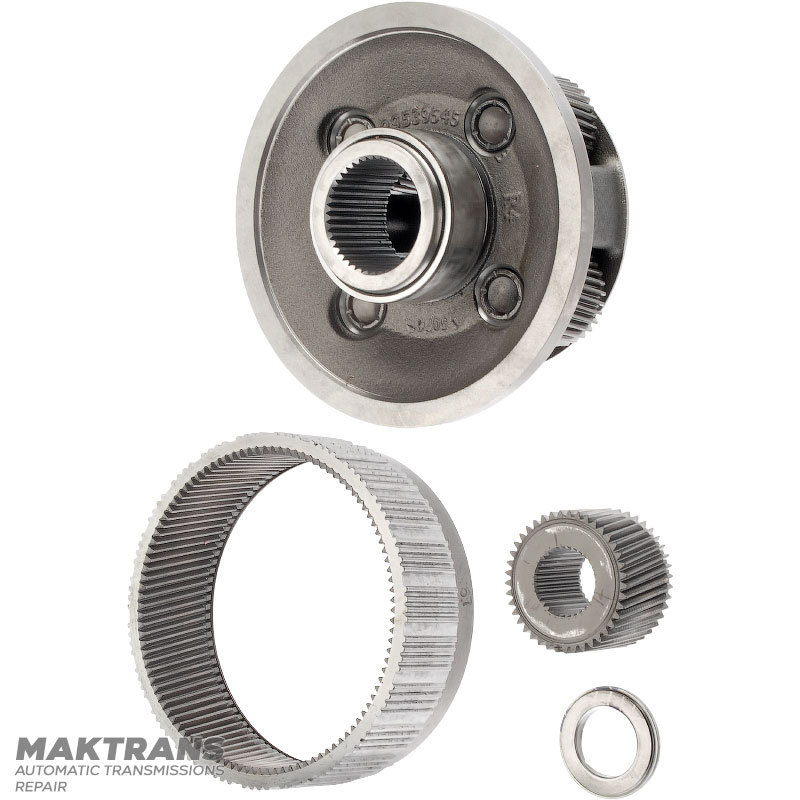

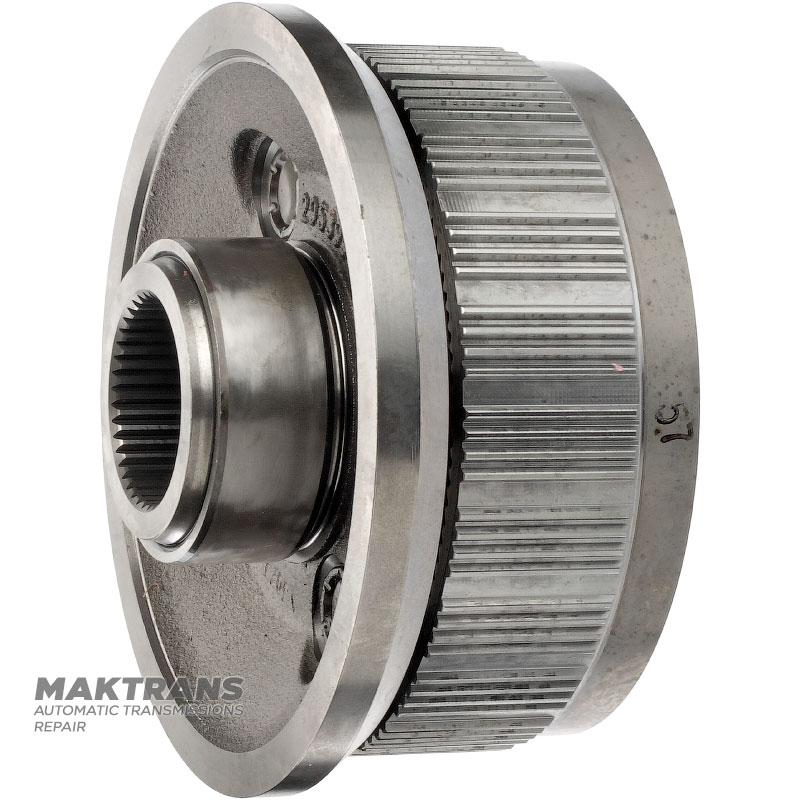

Rear planetary gear P3 (without parking gear) ALLISON 1000, 2000, 2400 — 29539547, 29539545 sun gear 41 teeth (outer Ø 66 mm, for bearing 53.70 mm), 4 satellites (31 teeth (outer Ø, outer Ø 49.70 mm)

Planetary gear:

• Overall height - 108 mm;
• Number of splines on the inner side - 41 pcs.;
• The outer diameter of the bearing race (on the neck) is 80 mm;
• Without parking gear. - outer Ø of housing 195 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 31 pcs.;

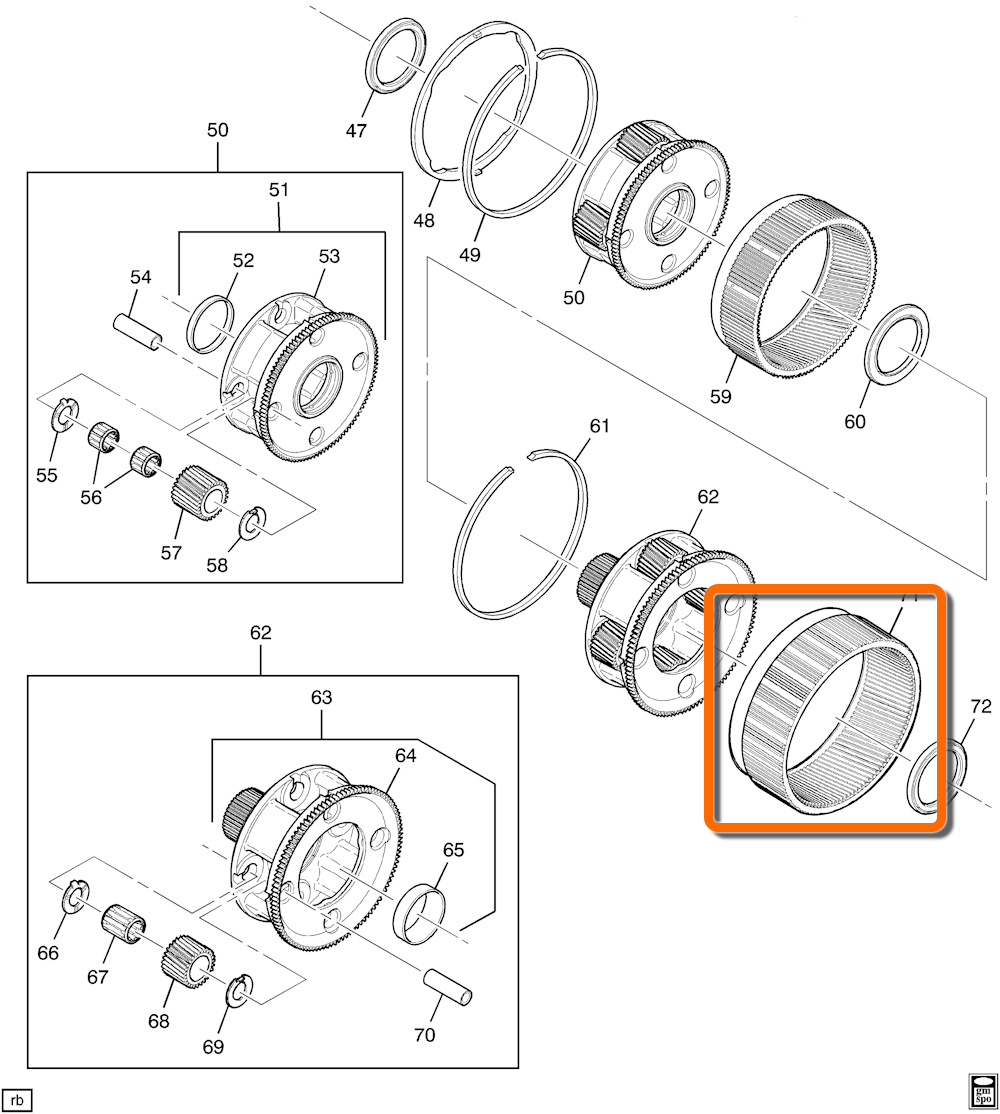

Ring gear:

• Overall height - 61 mm;
• Number of teeth on the ring gear - 103 pcs.;
• Number of teeth on the outer side - 92 pcs.;
• Outer diameter of gear - 176 mm;
• Number of teeth on the outer side - 92 pcs.;

Sun gear:

• Overall height - 46.40 mm;
• Number of splines on the inner side - 31 pcs.;
• Number of teeth on the sun gear - 41 pcs.;

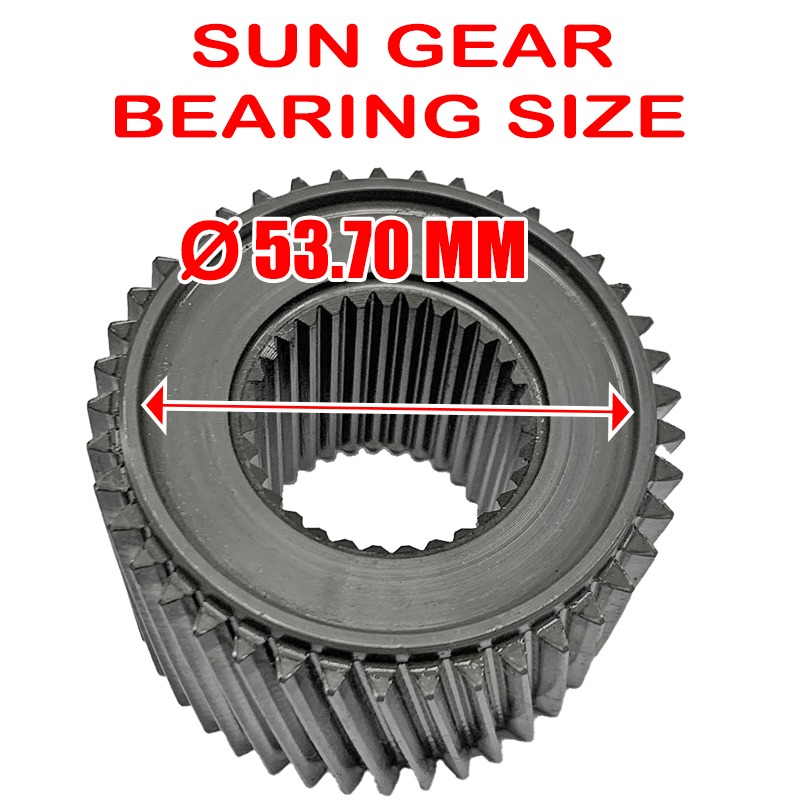

• Needle bearing pinion - 53.70mm;
• Sun gear outer diameter: 66mm;
