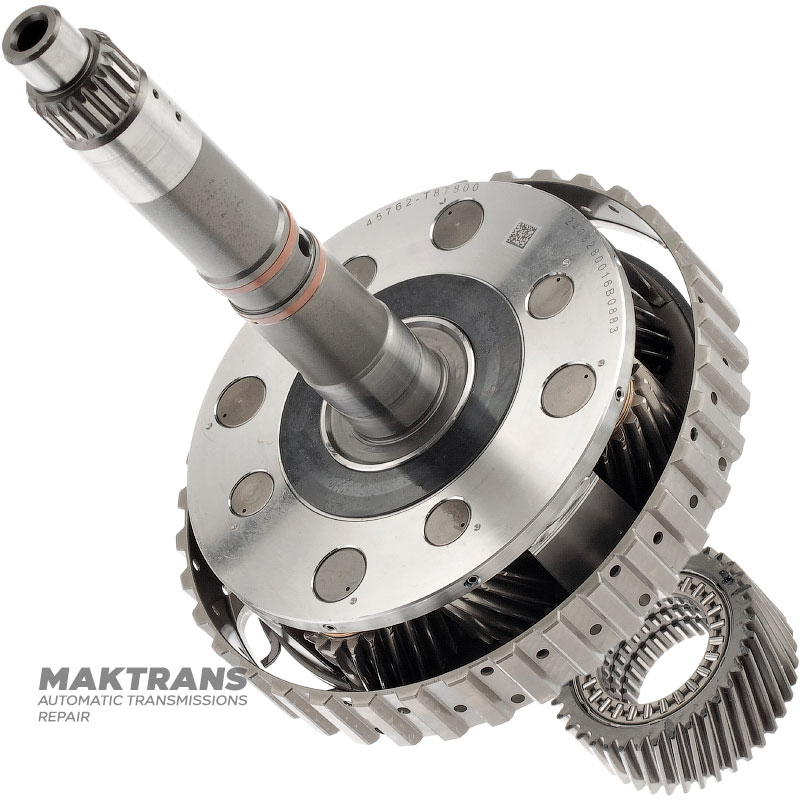

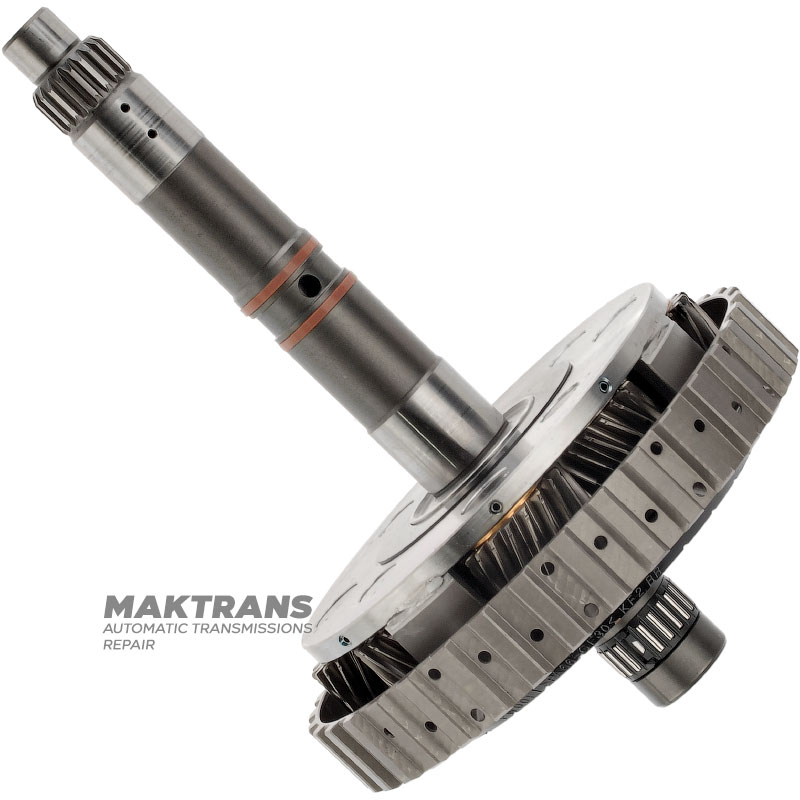

Rear planetary gear VAG 09H, AQ451 (8-speed transmission) — 45762-T87800, 4 satellites (19 teeth) / 4 satellites (18 teeth), sun gear 38 teeth (ext. Ø 58.45 mm)

• Total shaft length - 215 mm;

Front side:

• Shaft length - 145 mm;
• Number of splines on the shaft - 20 mm;
• The outer diameter of the splined part is 22 mm;
• Outer diameter of the working parts of the shaft - 15 mm | 22.75 mm | 24.75 mm;

• The outer diameter of the satellite housing is 116.50 mm;
• Hub outer diameter - 142.75 mm;
• Number of teeth on the satellites - 19 teeth (ring gear teeth) | 18 teeth (sun gear teeth);

Back side:

• Shaft length - 64 mm;
• The outer diameter of the needle bearing is 23.90 mm;

Solar gear:

• Height - 24.45 mm;
• Number of teeth - 38 pcs.;
• Gear outer diameter: 58.45 mm;
• Number of splines on the inner side - 28 pcs.;
