Main Specifications
Condition (used, new):
removed from new transmissions
Type:
rear planetary gear
If you order more than 8 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 7 pcs. |
  |
| Poland | 1 pcs. |
|
| Ukraine | 9 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)

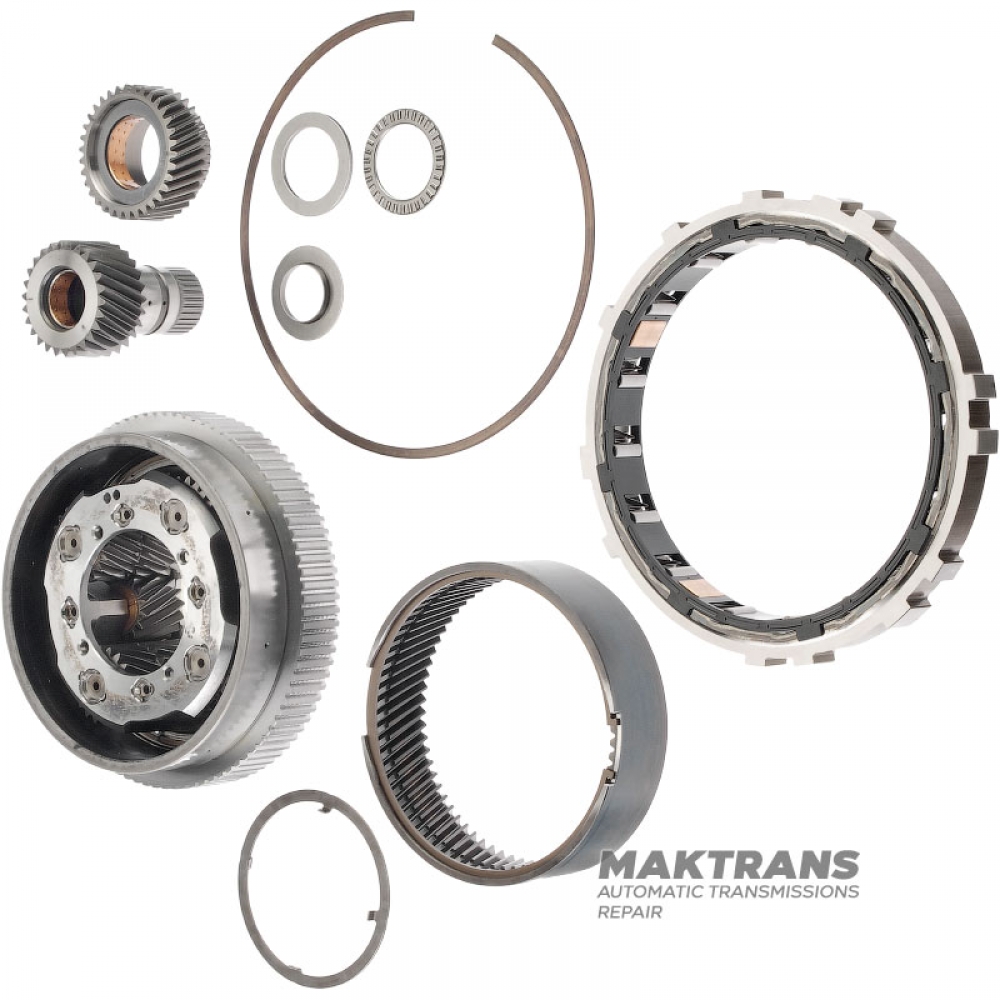

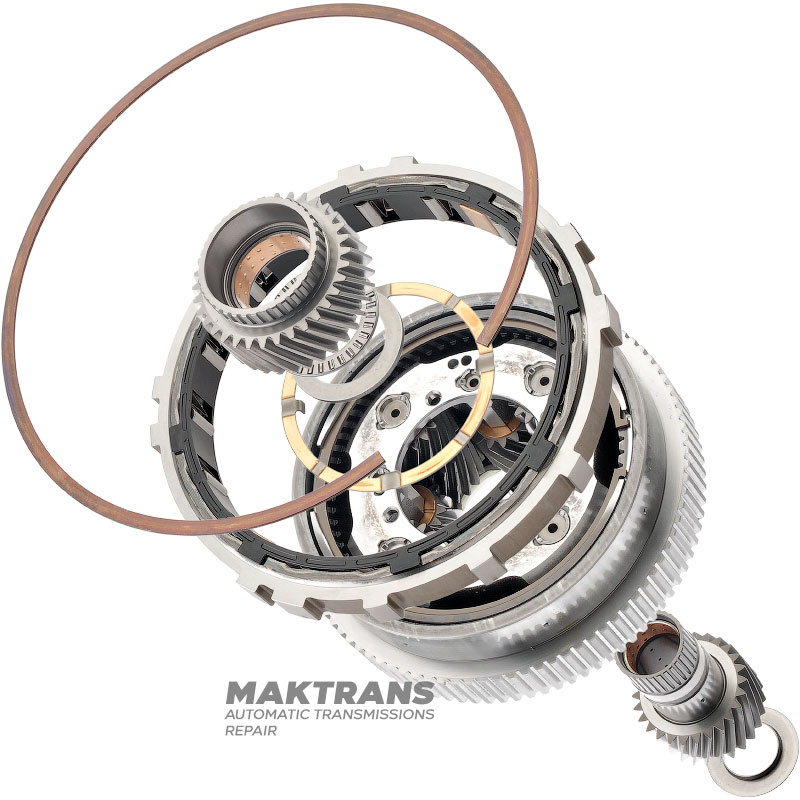

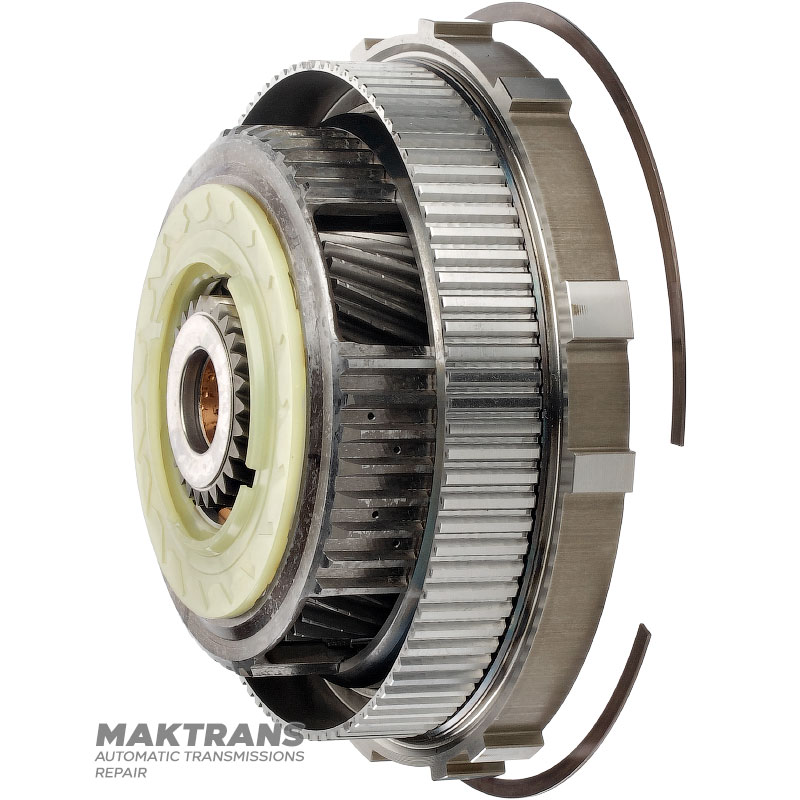

Planetary gear:
- Total height - 80 mm;
- The outer diameter of the working part of the overrunning clutch is 153.25 mm;
- B2 Brake hub outer diameter - 171.90 mm;
- Number of teeth on the B2 Brake hub - 90 pcs.;
- C2 Clutch Hub Outer Diameter - 138.40mm;
- Number of teeth on the C2 Clutch hub - 32 pcs.;
- Front sun gear satellites - 4 satellites (18 teeth);
- Rear planetary gear satellites - 4 satellites (15 teeth);
Sun gears:
Front (short):
- Overall height - 33 mm;
- Inner diameter of the sleeve - 33.30 mm;
- Number of teeth - 34 pcs.;
- Gear outer diameter - 62.85 mm;
- Number of splines - 38 pcs.;
- The outer diameter of the splined part is 47.80 mm;
Back (long):
- Overall height - 78.80 mm;
- Inner diameter of the sleeve - 24.30 mm;
- Number of splines - 32 pcs.;
- The outer diameter of the splined part is 32.15 mm;
- The outer diameter of the working part of the neck is 33.20 mm;
- Number of teeth on the gear - 26 pcs.;
- Gear outer diameter - 53.40 mm;
Ring gear:
- Height - 38.50 mm;
- Outer diameter - 139.40 mm;
- Number of teeth - 70 pcs.;
