Main Specifications
Condition (used, new):
used and inspected
Type:
Rear planetary gear, intermediate shaft
Number of pinions:
4
If you order more than 4 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 4 pcs. |
  |
| Ukraine | 8 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)

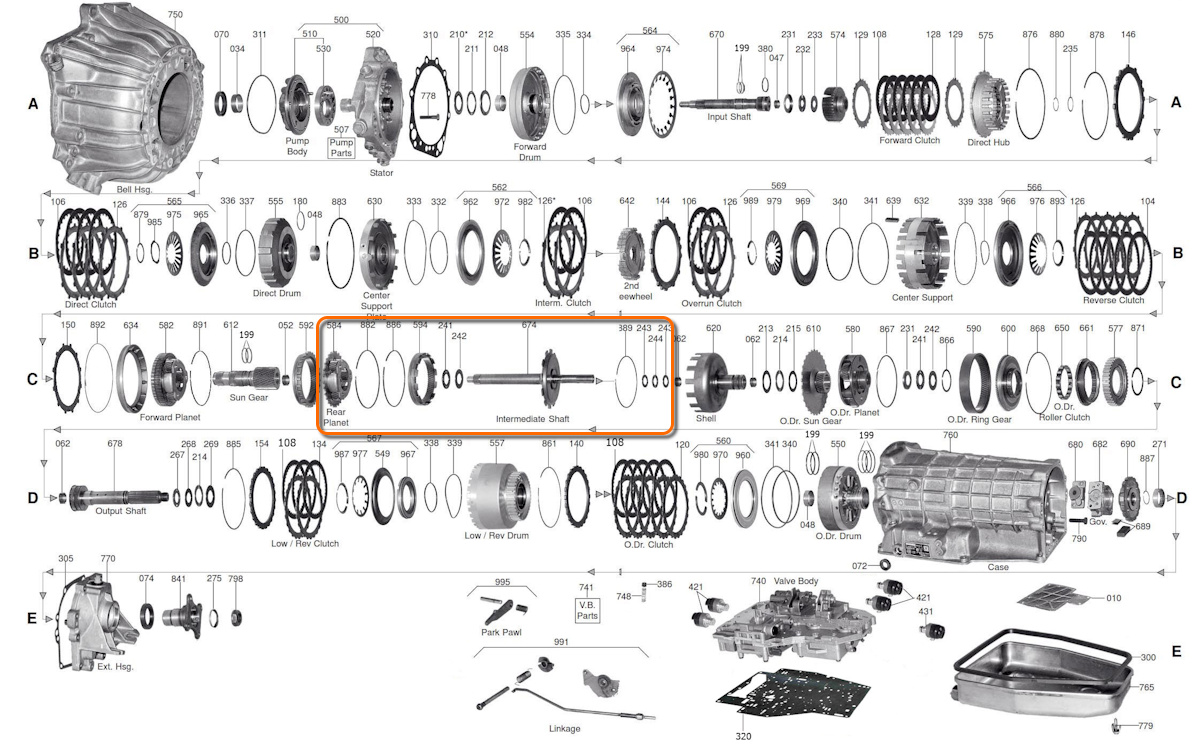

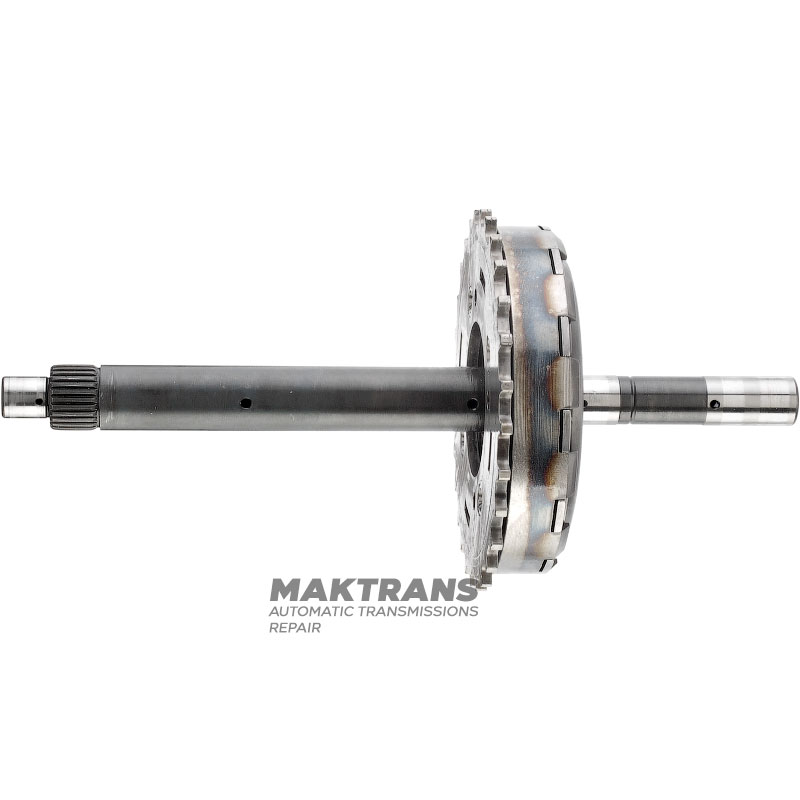

Intermediate shaft:
- Length - 266 mm;
- Number of satellites - 27 pcs.;
- The outer diameter of the splined part is 21.95 mm;
Outer diameter of working parts of the shaft:
- 14 mm;
- 22.20 mm;
- 17 mm;

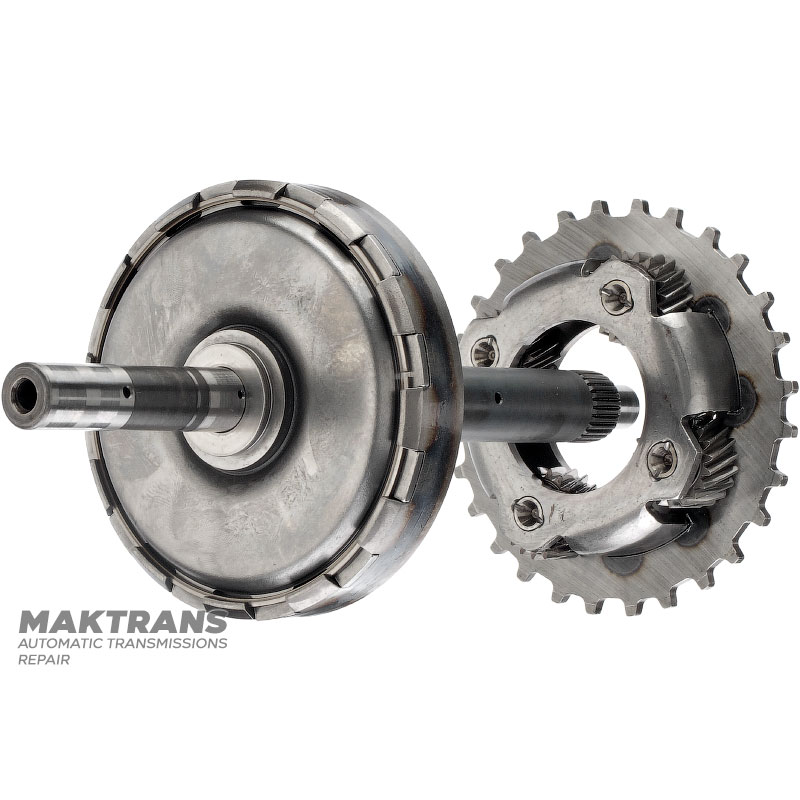

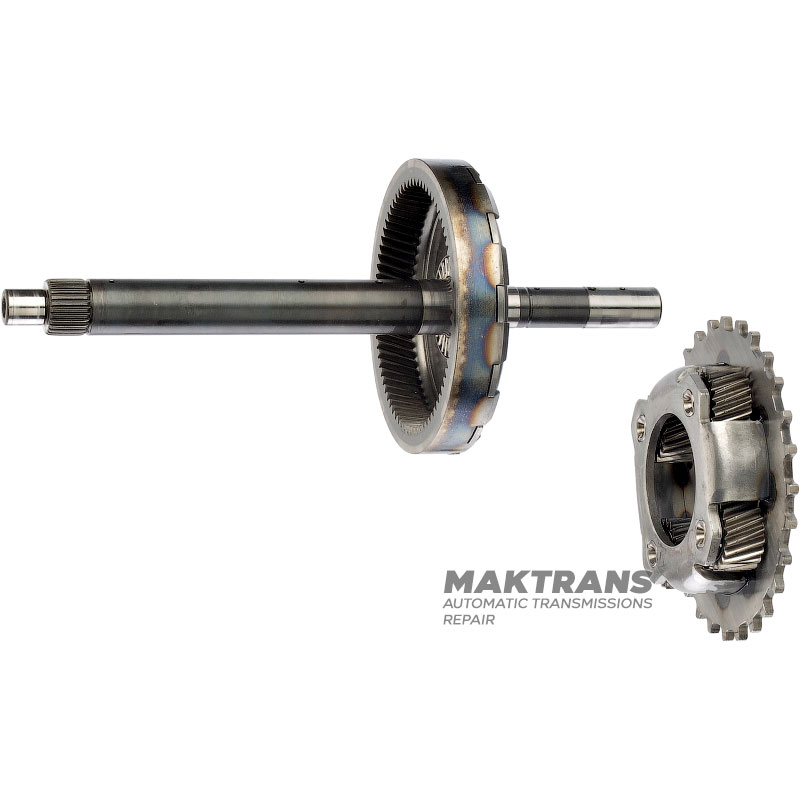

Planetary gear:
- Overall height - 26 mm;
- Number of satellites - 4 pcs.;
- Number of teeth on satellites - 19 pcs.;
- The outer diameter of the satellites is 28.35 mm;
- Outer diameter of gear ring - 127.85 mm;
Ring gear:
- Number of teeth - 73 pcs.;
- Outer diameter - 116.80 mm;
