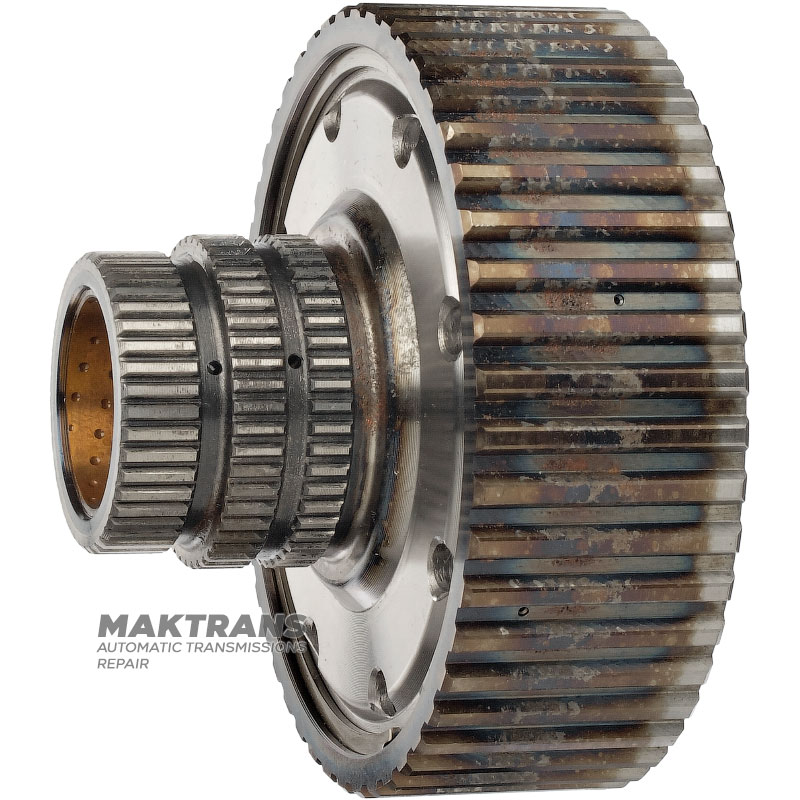

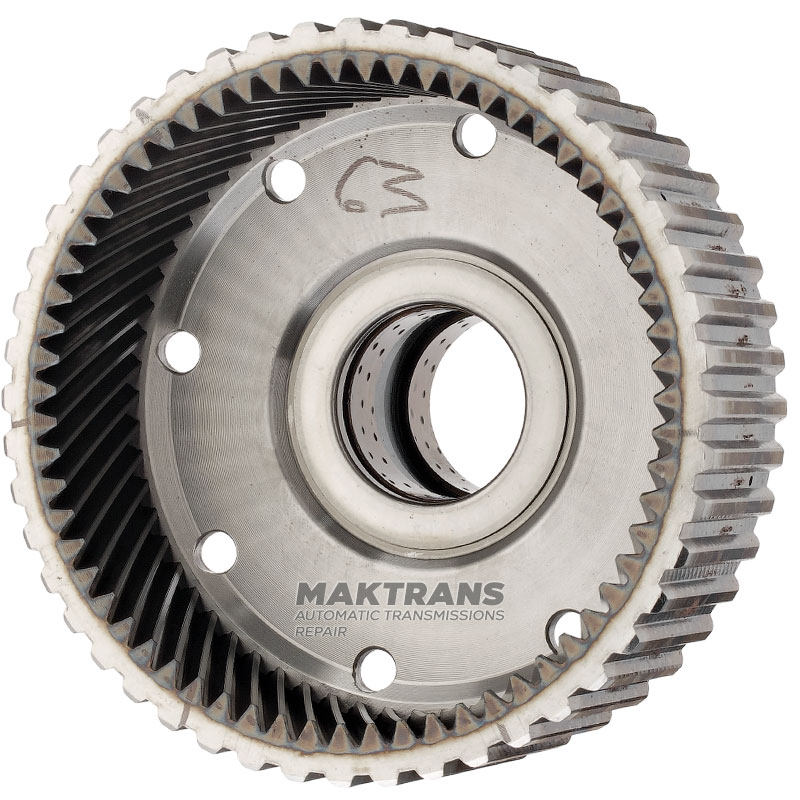

Rear planetary ring gear TOYOTA / LEXUS A750E, A750F, A760E — 3507760010, 9052099073, 3576160040

• Overall height - 83.50 mm;
• Height of ring gear (without spline flange) - 41.63 mm;
• The outer diameter of the ring gear is 122.50 mm;
• Number of teeth on the ring gear - 63 pcs.;
• The inner diameter of the bushings is 32.20 mm;

Number of splines on the neck:

• 43 slots - outer Ø 46.05 mm;
• 48 splines - outer Ø 51.25 mm;
