Main Specifications
Condition (used, new):
Refurbished (road tested)
Engine power:
200kW
Planetary gear No. 4:
37 teeth
TCM:
0260550104 | 1034420255
Transmission code:
QZW | QA8D5007
Spare part number(s):
1103034027
Warranty:
1 year _____________ This warranty does not cover towing charges, rental vehicles, fluids, inconvenience, loss of time, commercial loss, property damage, personal injury, or any other incidental or consequential loss or damage. This warranty does NOT cover damage caused by: Overfilled, low, lack of, or wrong lubricant (oil) Contamination caused by water, glycol/anti-freeze, sand, salt or any other foreign debris Engine software manipulations such as increased engine power (chip tuning, etc.)
If you order more than 4 pcs - shipping time will be longer at few days
Purchase with exchange for your faulty automatic transmission
| Stock Place: | Availability: | Qty: |
| Poland | 4 pcs. |
  |

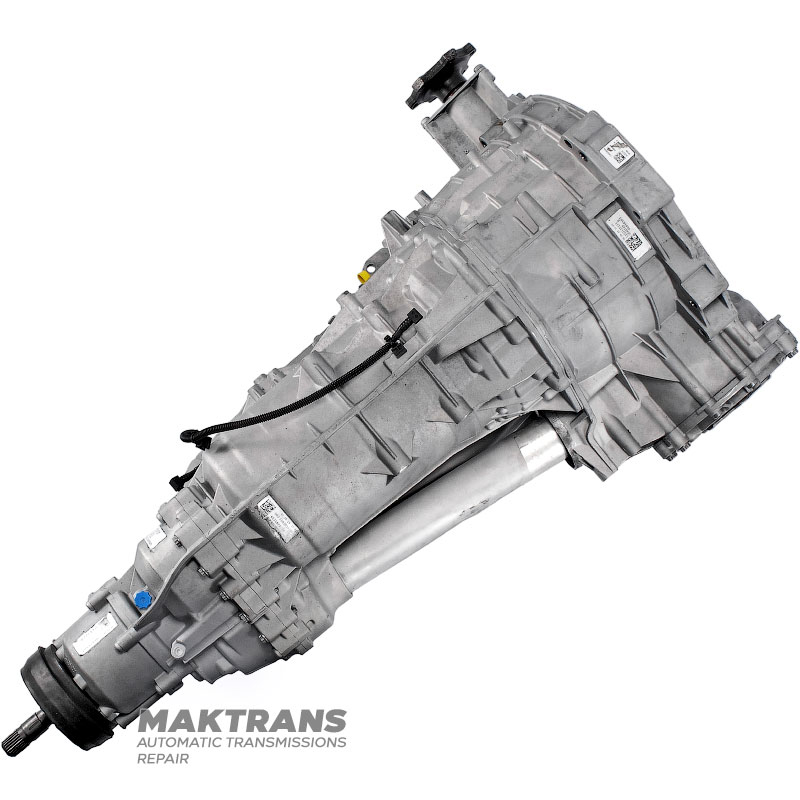

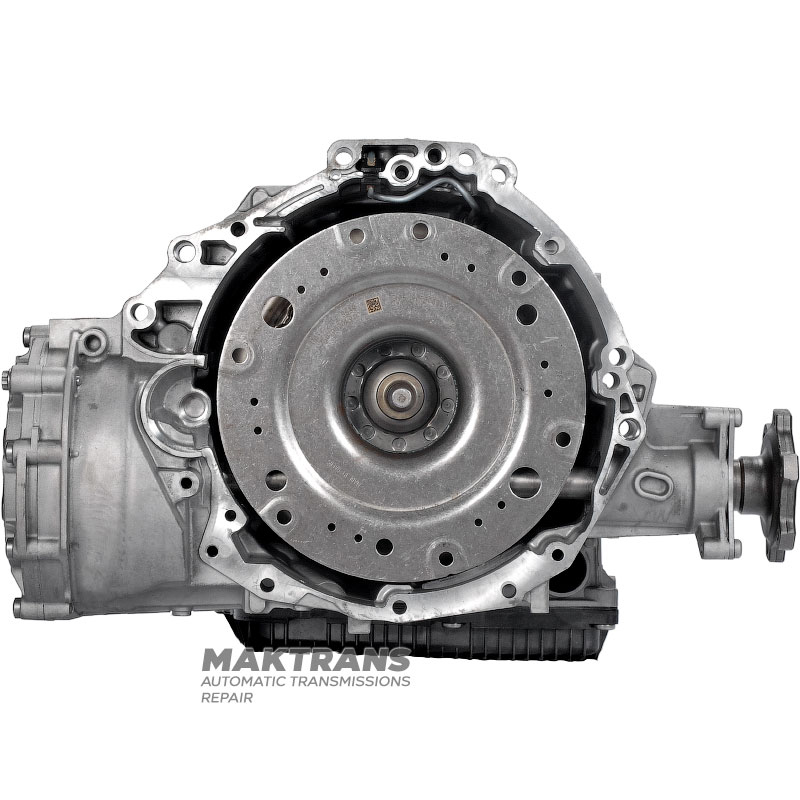

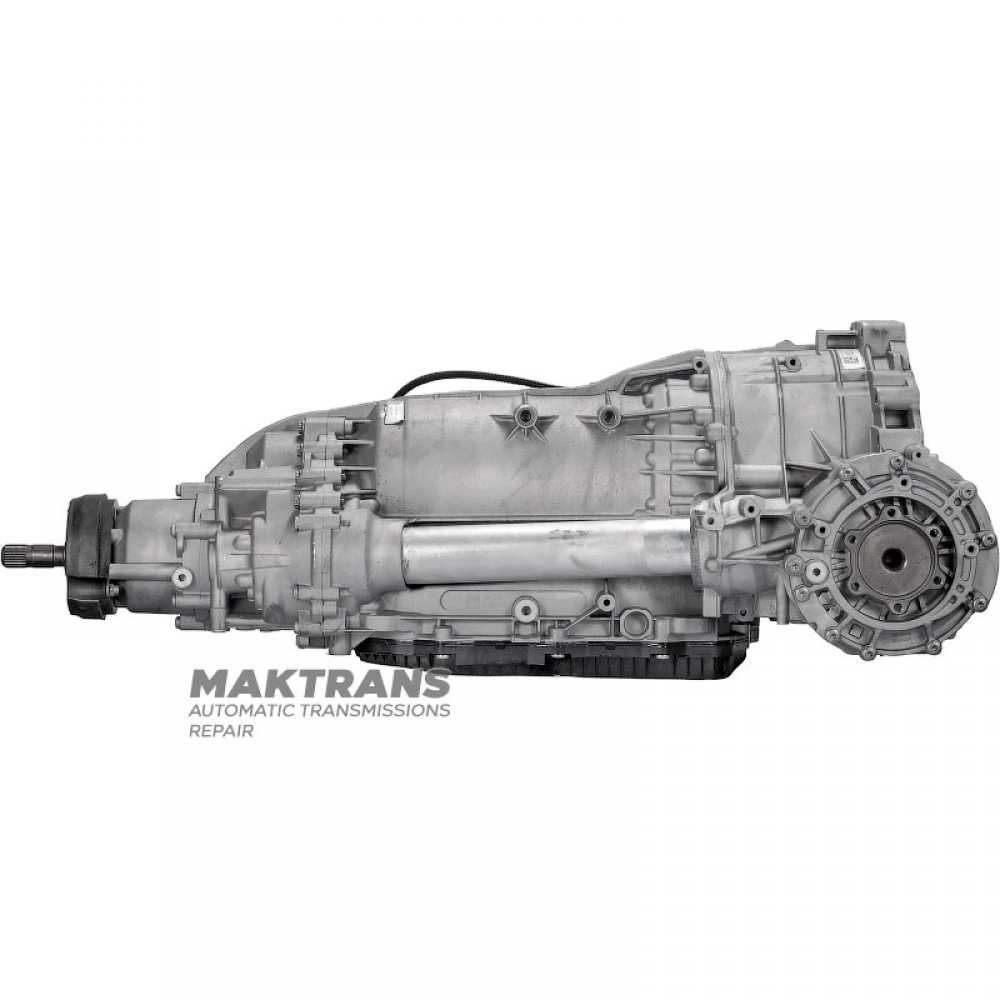

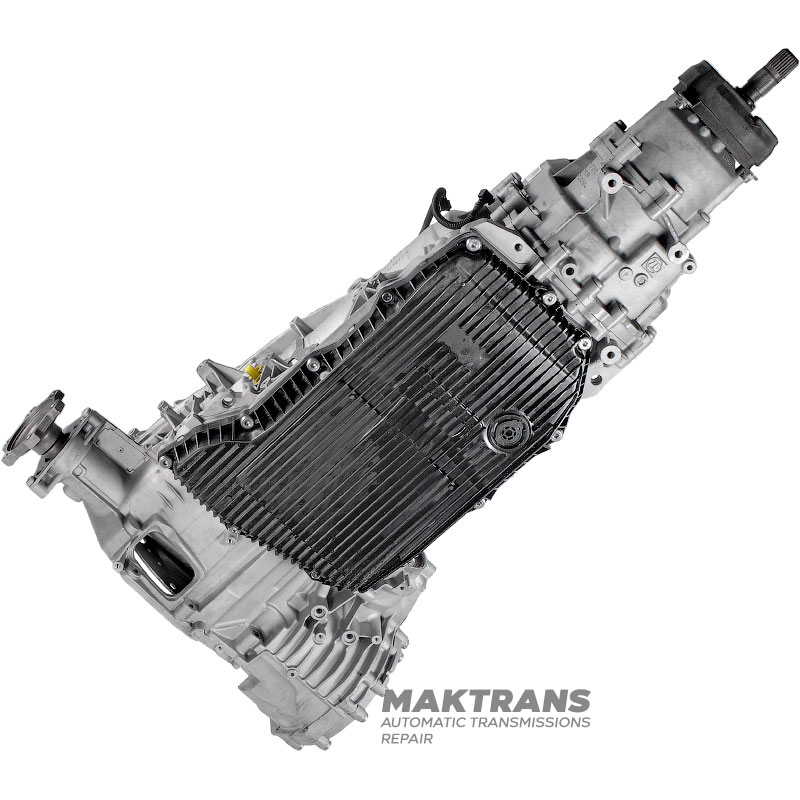

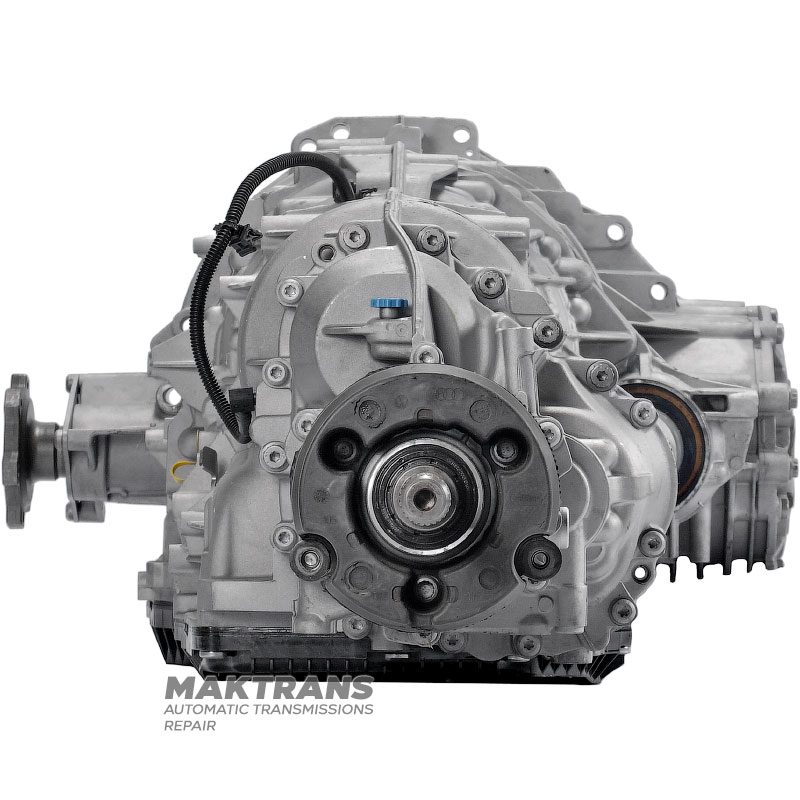

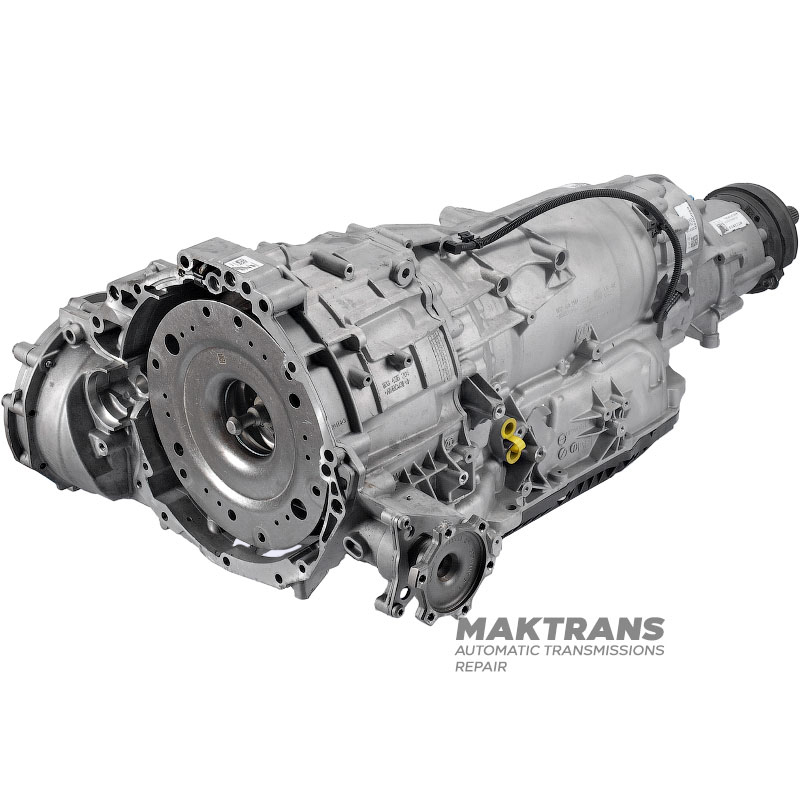

Our refurbished ZF 8HP65 units are delivered as a Complete Driveline Solution. To ensure maximum longevity and a plug-and-play experience, we have already pre-filled the Integrated Transfer Case and the Front Differential with the correct high-performance synthetic fluids.
✅ FRONT DIFFERENTIAL: Pre-filled to factory level.
✅ TRANSFER CASE: Pre-filled with specialized synthetic fluid.
This eliminates the risk of dry-start damage and saves you the high cost of specialized gear oils during installation.
Software Handling Options
Option A: Ship your old TCM (Recommended)
Before we ship your refurbished unit, send us your original (old) TCM or the complete mechatronic. We will use FLEX to perform a full bench clone. You will receive a 100% plug-and-play gearbox.
Option B: On-Site Cloning
If your mechanic has a MagicMotorsport FLEX or a similar Master tool (such as Autotuner), you can perform the clone at the shop. You must Read the Full Backup (Flash + EEPROM) from the old unit and Write it to the refurbished one.
Important: Quick Learn Procedure
Even though we have cloned the software, every refurbished 8HP65 has slightly different internal tolerances. The Quick Learn procedure tells the computer exactly when each clutch starts to grab. Without this, the first few shifts might be too harsh or too soft, which can cause unnecessary wear on the fresh clutches.
Even though we have cloned the software, every refurbished 8HP65 has slightly different internal tolerances. The Quick Learn procedure tells the computer exactly when each clutch starts to grab. Without this, the first few shifts might be too harsh or too soft, which can cause unnecessary wear on the fresh clutches.
Step-by-Step Calibration:
- Warm Up: The transmission fluid must be between 65°C and 90°C.
- Stationary: The vehicle must be on a level surface with the engine idling and the brake pedal firmly pressed.
- Trigger: Select Fast Adaptation or Quick Learn in the transmission service menu.
- The Process: The car will stay in D and you will feel the vehicle shake or "thump" slightly for about 2–5 minutes. This is the computer testing each clutch pack.
- Finish: Once the tool says Successful, the base learning is complete.
Need Your Refurbished Gearbox Installed? We’ve Got You Covered!
When you purchase a refurbished automatic transmission from us, you don't have to worry about finding a reliable shop to install it. We offer full gearbox replacement services at our specialized workshops in Bratislava and Warsaw.
Can't drive your car to us? No problem!
We operate our own tow car to bring your vehicle safely to our workshop. Our towing rate is completely transparent: just 1€ per kilometer.
- Expert Installation: Your transmission is fitted by the same specialists who understand the gearbox inside and out.
- Hassle-Free Transport: We pick up your car directly, so you don't have to coordinate with third-party towing companies.
- Strategic Locations: Professional service centers in Bratislava and Warsaw.
- Transparent Pricing: Only 1€/km for towing, with no hidden transport fees.
- Purchase: Pay for the gearbox plus a refundable core deposit.
- Delivery: We ship the remanufactured unit directly to you.
- Swap: Your mechanic installs the new unit and packs the old one.
- Return: Ship the old gearbox back or we’ll arrange a pickup.
- Refund: We inspect the old gearbox and refund your deposit immediately.
- Product overview
- Shipping & Payment
- Questions - Answers (0)
The Tech: New shaft seals and a complete bushing kit. We haven't just fixed a symptom; we have fully remanufactured your QZW transmission. Every internal component that experiences friction or pressure has been replaced with high-performance parts. It is essentially a zero-mile gearbox internally.
The Tech: Refurbished valve body with new accumulators, modulators, and booster valves.
- With transfer case gears: 25-29-29-31
- Planet gears of planetary gear set №4: 37 teeth
Electronic Control Unit:
- BOSCH: 260550104
- CPU: 1034420255
