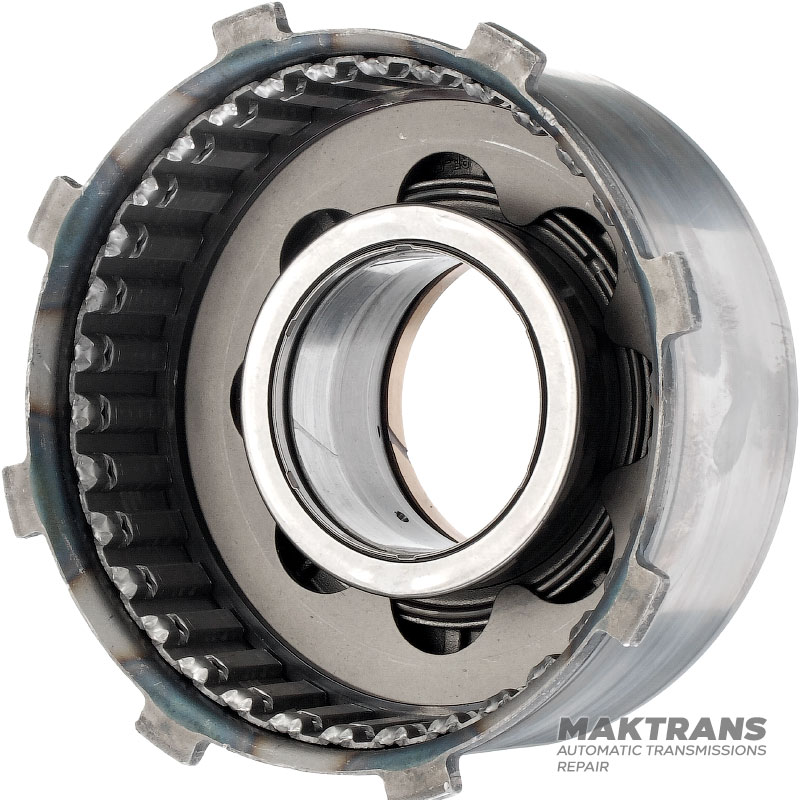

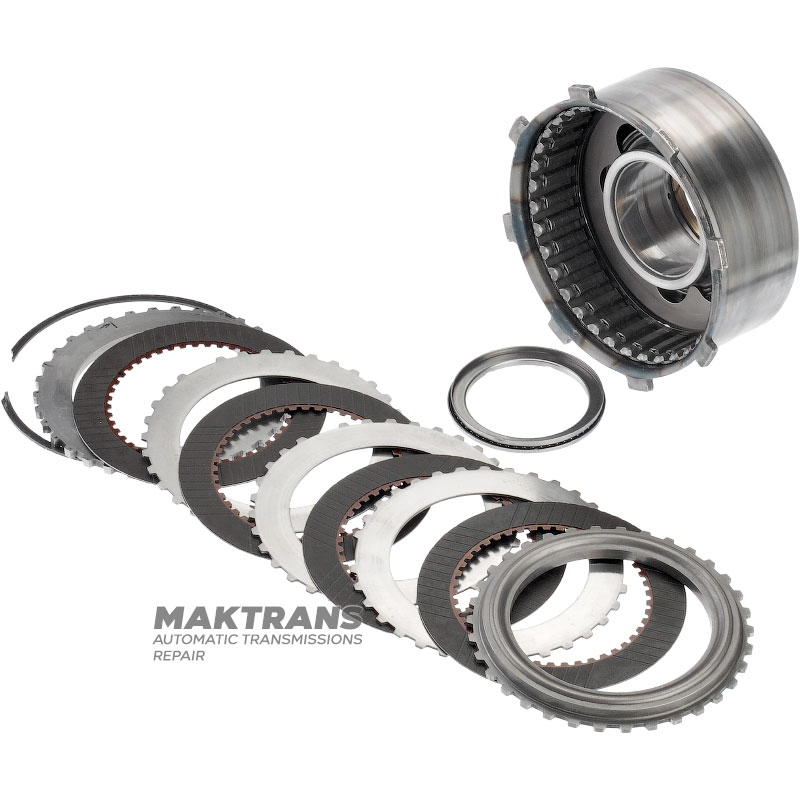

Reverse Clutch Drum FORD 4R75E, 4R75W, 4R70E, 4R70W (AODE) 3L3Z-7D044-AA, F2TZ-7B442-A, EOAZ-7B164-A — 4 friction discs (total thickness of the kit 19.50 mm)

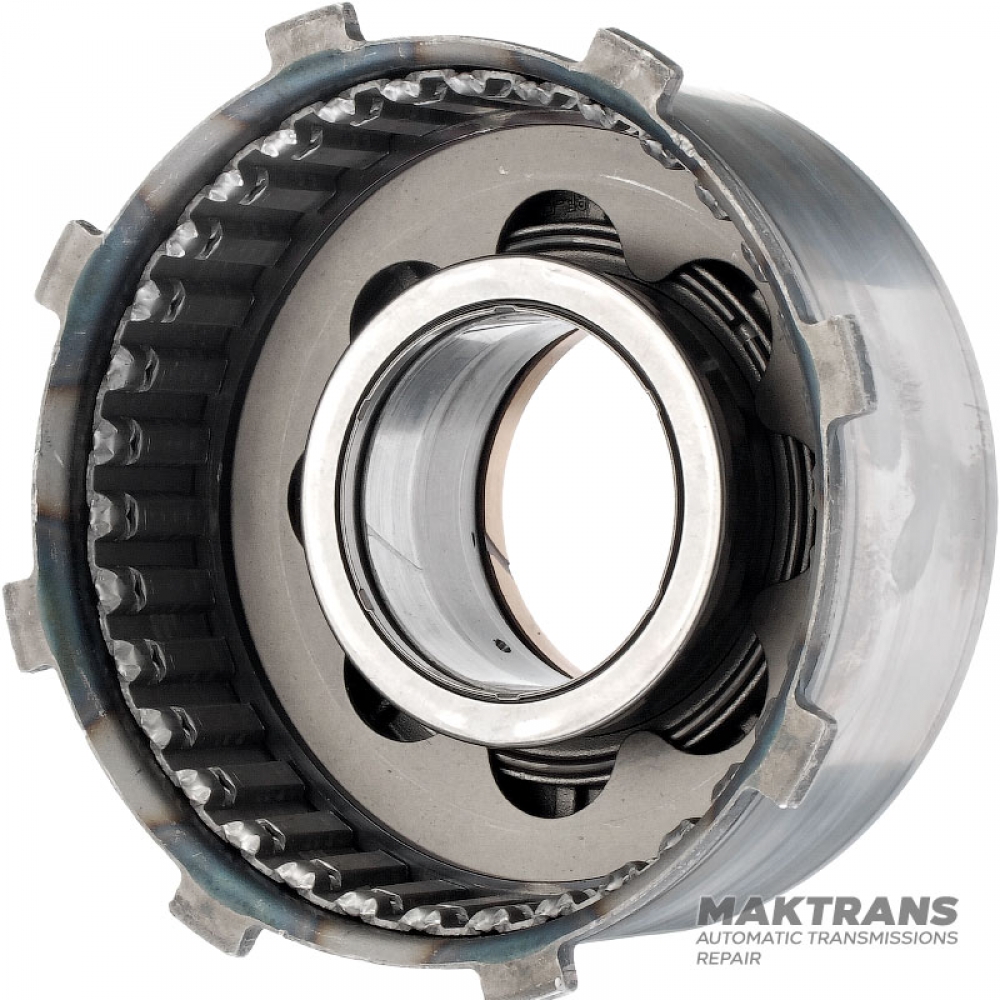

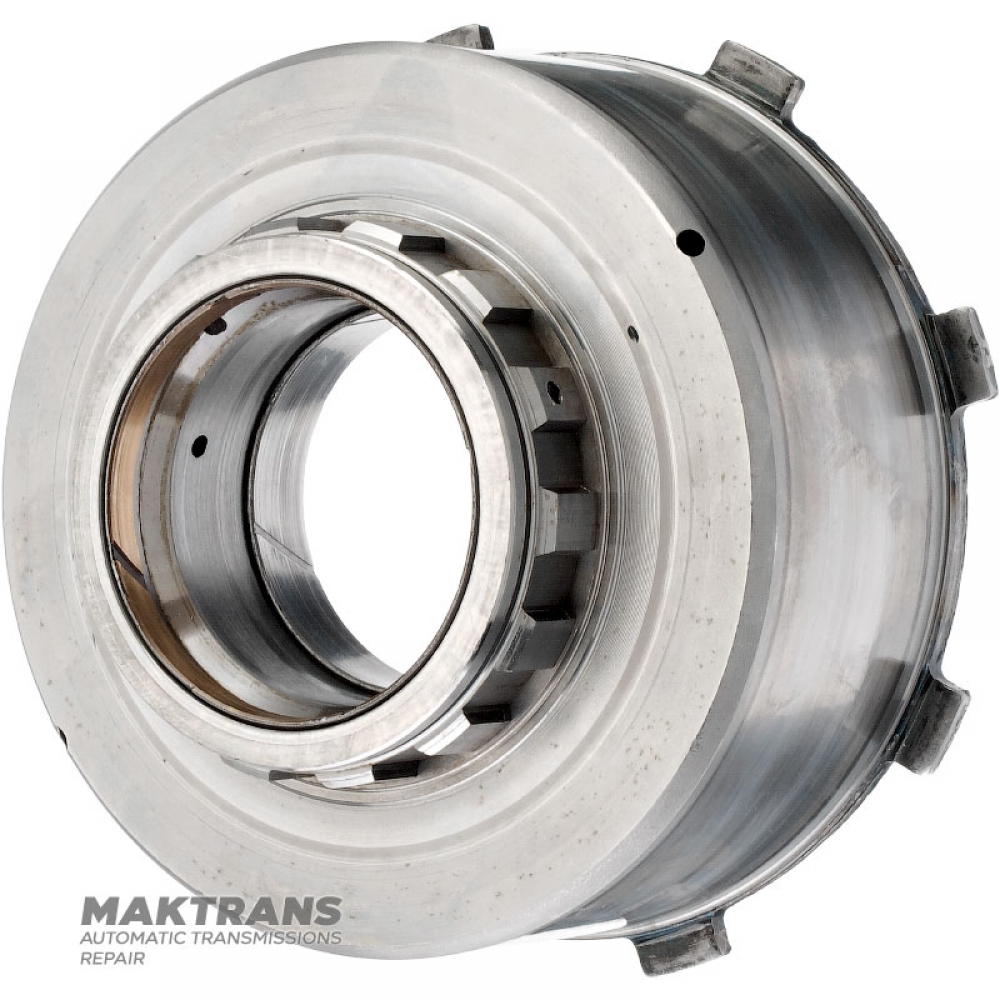

Reverse Clutch Drum:

• Total height - 90 mm;
• The outer diameter of the working part of the brake band is 151.70 mm;
• The outer diameter of the overrunning clutch mounting ring is 92.70 mm;

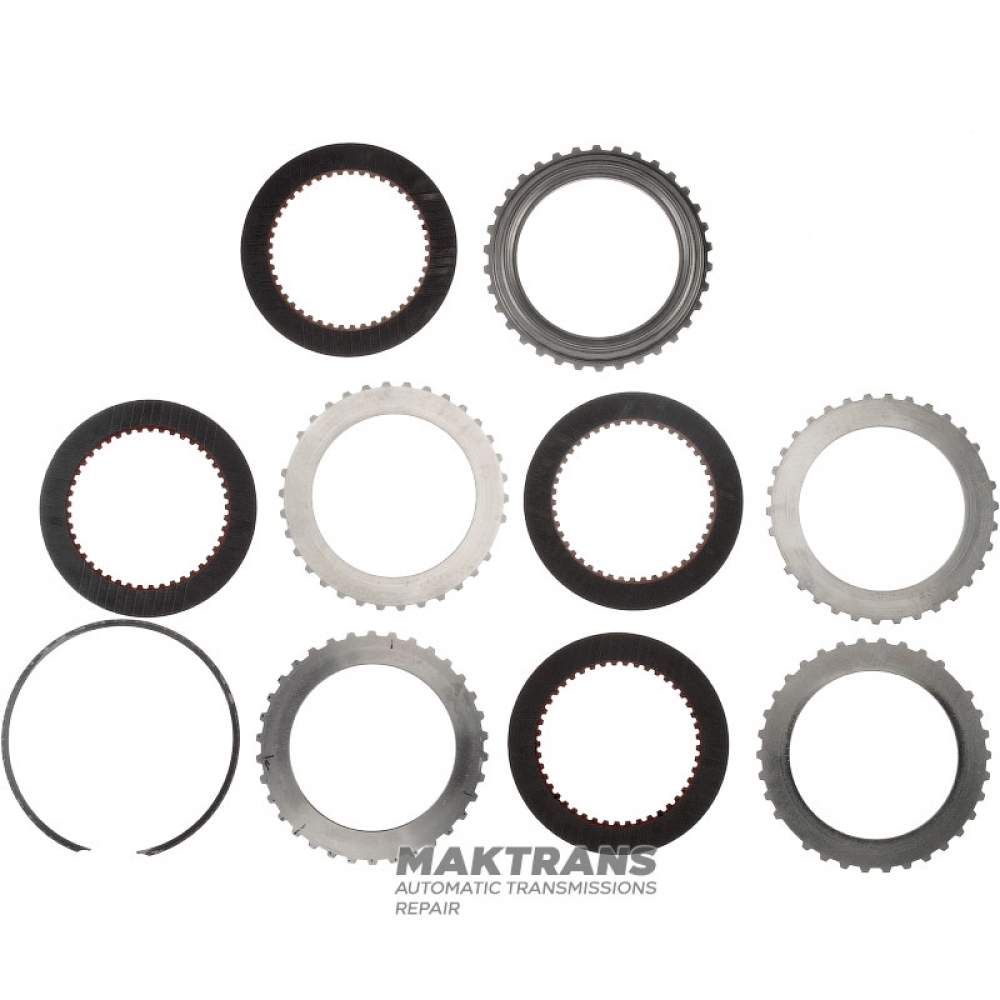

Reverse Clutch Steel and Friction Disc Kit:

• Total thickness of the set - 19.50 mm;
• Height from spring retaining ring to disc set retaining ring - 21.50 mm;

Support disk:

• Thickness - 5.15 mm;
• Inner diameter - 99.05 mm;
• Number of teeth - 34 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 133.35 mm;
• Number of teeth - 45 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.75 mm;
• Inner diameter - 99.05 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 3 pcs.;

Pressure disc:

• Thickness - 9.45 mm;
• Inner diameter - 98.30 mm;
• Number of teeth - 34 pcs.;
• Number of discs in the set - 1 pc.;

Needle thrust bearing:

• Outer diameter - 84 mm;
• Inner diameter - 64.70 mm;
• Thickness - 4 mm;
